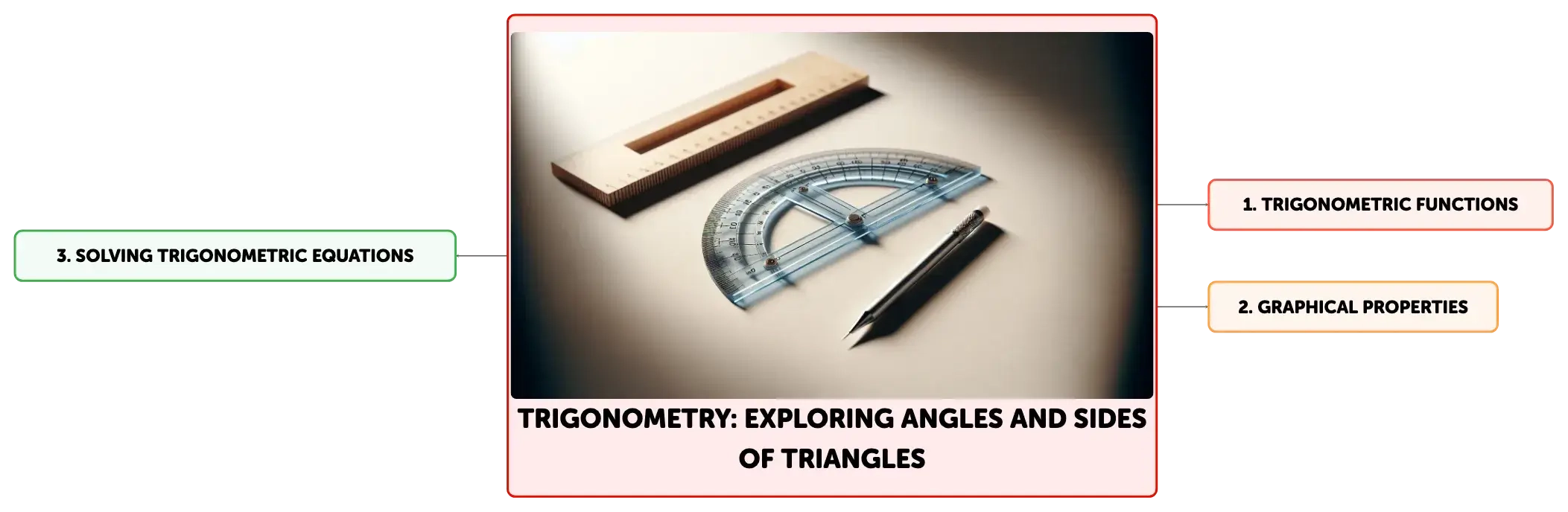

Trigonometry: Exploring Angles and Sides of Triangles

Trigonometry delves into the relationships between triangle angles and sides, focusing on sine, cosine, and tangent functions. These functions exhibit periodic behavior and are graphically represented to aid in solving equations. The sine and cosine functions oscillate between -1 and 1, while the tangent function's range is all real numbers. Understanding their graphical properties is crucial for finding solutions within specific intervals.

see more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Trigonometric functions periodicity

Click to check the answer

Sine, cosine, and tangent functions repeat values at regular intervals; sine and cosine have a period of 2π, tangent has a period of π.

2

Sine and cosine value range

Click to check the answer

Sine and cosine functions oscillate between -1 and 1, representing their maximum and minimum values respectively.

3

Tangent function value range

Click to check the answer

Tangent function relates opposite to adjacent side lengths in a right-angled triangle and can take any real number as its value, unlike sine and cosine.

4

The ______ wave repeats its pattern every ______ radians, equivalent to ______ degrees.

Click to check the answer

sinusoidal 2π 360

5

Cosine function initial value at x=0

Click to check the answer

Cosine graph starts at maximum value when x equals 0.

6

Symmetry types in cosine function

Click to check the answer

Cosine exhibits y-axis reflection symmetry and origin point symmetry.

7

Role of symmetries in solving cosine equations

Click to check the answer

Symmetries help identify multiple solutions considering function's start point and periodicity.

8

Unlike sine and cosine, the ______ function has vertical asymptotes at ______, and its range includes all ______.

Click to check the answer

tangent odd multiples of π/2 radians real numbers

9

Interpreting intersections in trigonometric graph solutions

Click to check the answer

Intersections of trig function graph and constant value line represent equation solutions.

10

Identifying additional solutions for sine and cosine equations

Click to check the answer

Use symmetry properties to find more solutions within the functions' fundamental periods.

11

Generating solutions for tangent equations

Click to check the answer

Add/subtract integer multiples of tangent's period to a known solution to find other solutions.

12

The ______ function is known for its vertical asymptotes and infinite range.

Click to check the answer

tangent

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Mathematics

The Importance of Equations in Mathematics and Beyond

View document

Mathematics

Natural Logarithms and Exponential Functions

View document

Mathematics

Understanding the Vertex in Quadratic Functions

View document

Mathematics

Rearrangement in Mathematics

View document

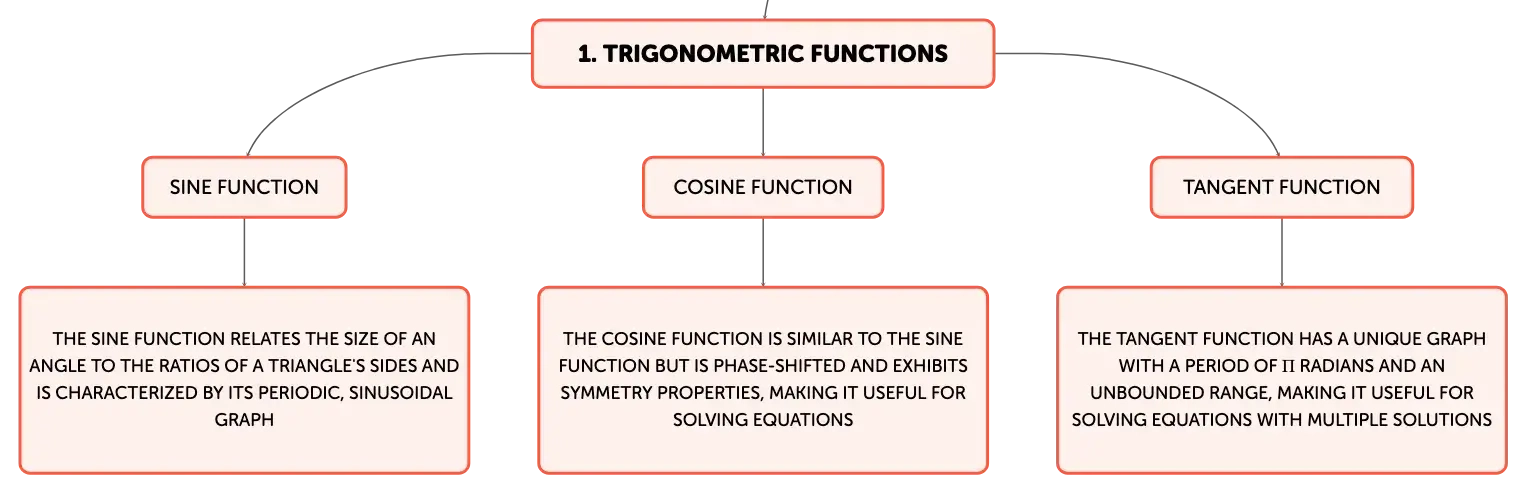

Exploring the Fundamentals of Trigonometric Functions

Trigonometry, an essential branch of mathematics, explores the relationships between the angles and sides of triangles, particularly right-angled triangles. The primary trigonometric functions—sine (sin), cosine (cos), and tangent (tan)—link the size of an angle to the ratios of the triangle's sides. These functions are inherently periodic, meaning they repeat their values in regular intervals, and their graphical representations are crucial for visualizing and solving trigonometric problems. The sine and cosine functions oscillate between -1 and 1, while the tangent function, which relates the length of the opposite side to the adjacent side of a right-angled triangle, can assume any real number as its value. Mastery of these functions' graphical properties is vital for accurately solving trigonometric equations within specific ranges.
Close-up view of a transparent blue protractor with three wooden rulers forming a scalene triangle, and a mechanical pencil in the background.

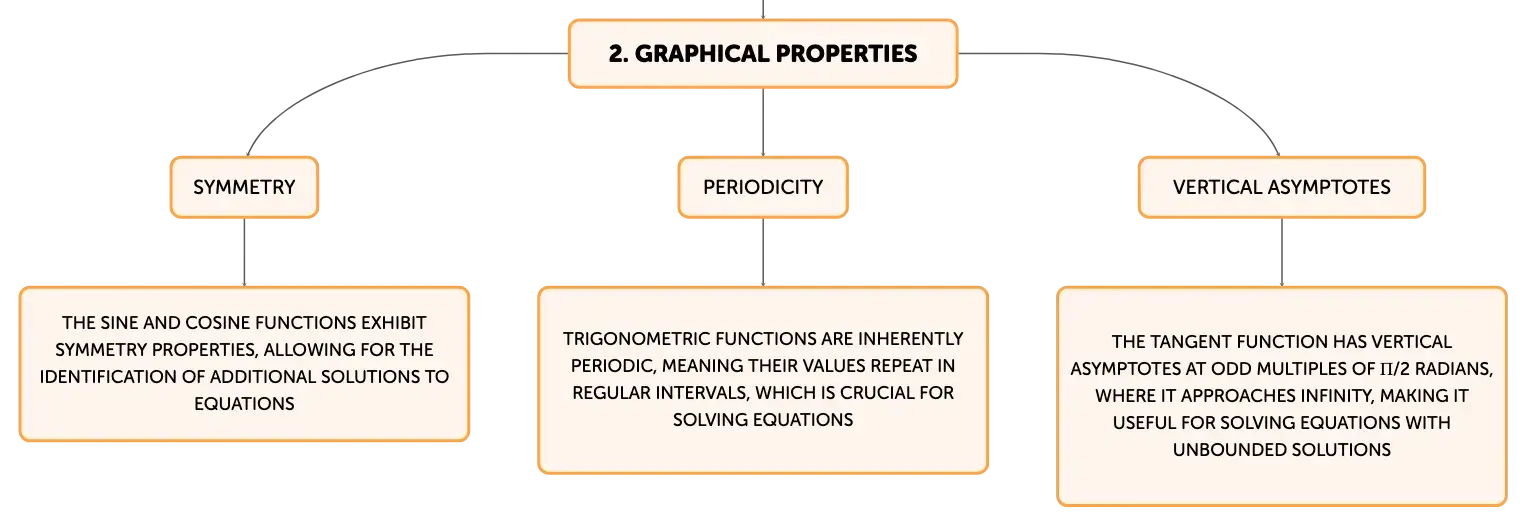

Properties of the Sine Function Graph

The sine function, expressed as y = sin(x), produces a sinusoidal wave, a smooth, repetitive oscillation. It reaches a peak at 1 and a trough at -1, signifying the limits of the sine function's output. With a period of 2π radians (or 360 degrees), the sine wave's pattern repeats after each interval, providing a predictable structure for analysis. The graph exhibits point symmetry about the origin and reflection symmetry about the y-axis, which can be leveraged to deduce additional solutions to sine-related equations. Recognizing that the sine function is periodic allows for the determination of an infinite set of solutions, spaced at intervals of the function's period.

Characteristics of the Cosine Function Graph

The cosine function graph, denoted by y = cos(x), mirrors the sine function in range and periodicity but is phase-shifted 90 degrees (π/2 radians) to the right. This phase shift results in the cosine graph initiating at its maximum value when x = 0. The cosine function also exhibits symmetry, with reflection symmetry about the y-axis and point symmetry about the origin. These symmetries are instrumental in identifying multiple solutions to cosine-based equations, taking into account the function's starting point and its periodic behavior.

Distinctive Features of the Tangent Function Graph

The tangent function graph, represented as y = tan(x), stands out from the sine and cosine graphs with its unique features. It has a period of π radians (180 degrees), half that of sine and cosine, and displays vertical asymptotes at odd multiples of π/2 radians (90 degrees), where the function approaches infinity. The tangent function's range is the entire set of real numbers, as it does not possess maximum or minimum values. This unbounded behavior implies that solutions to tangent-related equations can span all real numbers, recurring at every period interval.

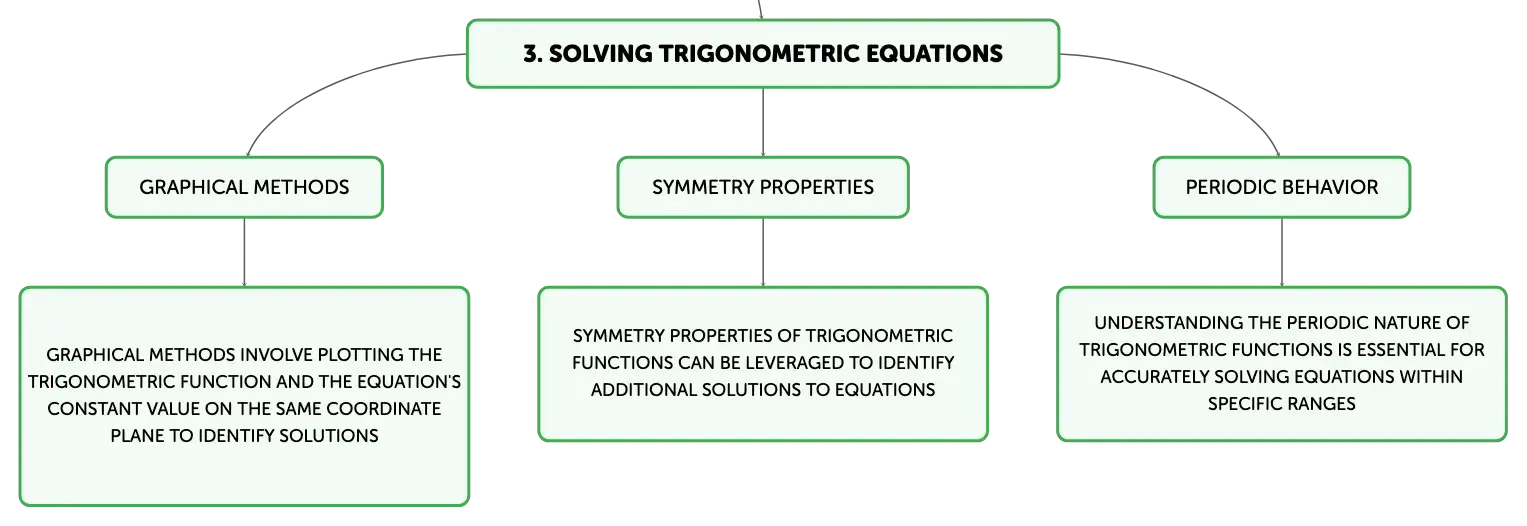

Solving Trigonometric Equations Using Graphs

Graphical methods are often employed to solve trigonometric equations, especially when seeking multiple solutions within a defined interval. Plotting the trigonometric function and the equation's constant value on the same coordinate plane, the intersections correspond to the solutions. For sine and cosine equations, symmetry properties enable the identification of additional solutions beyond the fundamental period. In the case of the tangent function, solutions can be generated by adding or subtracting integer multiples of its period from a known solution. It is imperative to set the calculator to the appropriate mode—degrees or radians—when calculating these solutions to ensure precision.

Key Takeaways from Trigonometric Function Graphs

A thorough comprehension of trigonometric function graphs is indispensable for the resolution of trigonometric equations. The sine and cosine functions are characterized by their amplitude of 1, symmetry, and periodicity, which facilitate the discovery of solutions. The cosine function is distinct due to its phase shift relative to the sine function. The tangent function's graph is uniquely identified by its vertical asymptotes and unbounded range. By harnessing these attributes and grasping the periodic nature of trigonometric functions, students can adeptly navigate and solve trigonometric challenges within given intervals.
