Implicit Differentiation

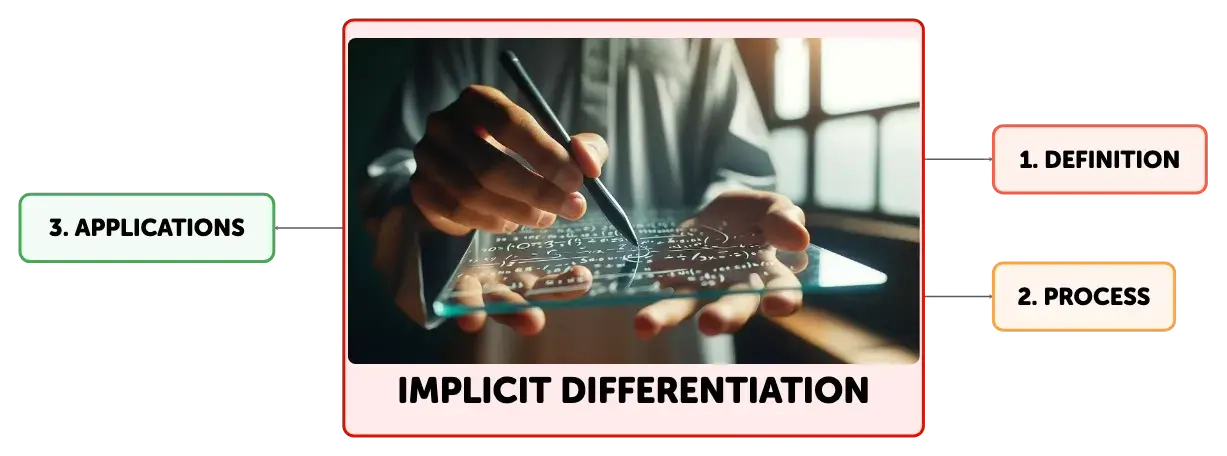

Concept Map
Implicit differentiation is a calculus technique used to find the derivative of functions where one variable is not explicitly expressed in terms of another. It's essential for equations like circles, where y is not isolated, and for calculating slopes of tangents and normals to curves at any point. The process involves differentiating both sides of an equation with respect to x and applying rules like the chain and product rules. Higher order derivatives can also be computed using this method.
Summary
Outline
Exploring the Concept of Implicit Differentiation
Implicit differentiation is a fundamental technique in calculus for finding the derivative of a function that is not explicitly solved for one variable in terms of another. This typically occurs when y is not isolated on one side of the equation. Such functions are known as implicit functions, exemplified by equations like x^2 + y^2 = r^2, which represents a circle. To differentiate implicitly, one takes the derivative of both sides of the equation with respect to x, using the chain rule where necessary. When differentiating terms involving y, the derivative of y with respect to x (denoted as dy/dx) is included. This method enables the calculation of the slope of the tangent line to the curve at any given point without the need to solve for y explicitly.The Process of Differentiating Implicit Functions
When performing implicit differentiation, each term of the equation is differentiated with respect to x. For terms that only involve x, the standard rules of differentiation are applied. For terms that involve y, the result is multiplied by dy/dx to account for the implicit relationship between y and x. Consider the equation of a circle, x^2 + y^2 = r^2. Differentiating each term yields 2x + 2y(dy/dx) = 0. Solving for dy/dx gives the slope of the tangent to the circle at any point on its circumference as dy/dx = -x/y. If the equation includes products of x and y, such as x^3y + y^2 = 7, the product rule must be applied, which states that the derivative of a product uv is given by d(uv)/dx = v(du/dx) + u(dv/dx). By applying this rule and differentiating accordingly, we can isolate dy/dx to find the slope of the tangent line at any given point.Calculating Higher Order Derivatives via Implicit Differentiation
Implicit differentiation can be extended to compute higher order derivatives of implicit functions. This involves differentiating the result of the first derivative with respect to x to obtain the second derivative, d^2y/dx^2, and so on for higher derivatives. For example, starting with the equation x^2 + 2y = 3, the first derivative is found to be dy/dx = -x/y. Differentiating this expression with respect to x, while applying the quotient rule, yields the second derivative d^2y/dx^2. This process can be repeated to find third, fourth, or any higher order derivatives as required, providing deeper insights into the curvature and behavior of the function's graph.Deriving the Equation of a Tangent Line with Implicit Differentiation
Implicit differentiation is invaluable for determining the equations of tangent lines to curves at specific points. To find a tangent line's equation, one must first calculate the slope at the point of tangency using dy/dx. Then, employing the point-slope form of a line equation, y - y1 = m(x - x1), where (x1, y1) is the point of tangency and m is the slope, the equation of the tangent line can be formulated. For instance, for the curve defined by the equation x^3 + y^3 = 6xy, to find the tangent at the point (x1, y1), we first differentiate the equation to find dy/dx. Substituting the point's coordinates into the derivative gives the slope m, and the tangent line's equation can be written accordingly.Establishing the Equation of a Normal Line via Implicit Differentiation
The normal line to a curve at a particular point is the line perpendicular to the tangent line at that point. To determine the equation of a normal line, one uses the fact that the slope of the normal (m_N) is the negative reciprocal of the slope of the tangent (m_T), such that m_N * m_T = -1. Building on the previous example, if the slope of the tangent at a point is m, then the slope of the normal is -1/m. Using the point-slope form, the equation of the normal line can be constructed as y - y1 = (-1/m)(x - x1). This method allows for the derivation of the normal line's equation for any implicitly defined curve, given a point of tangency and the slope at that point, as determined through implicit differentiation.
Show More

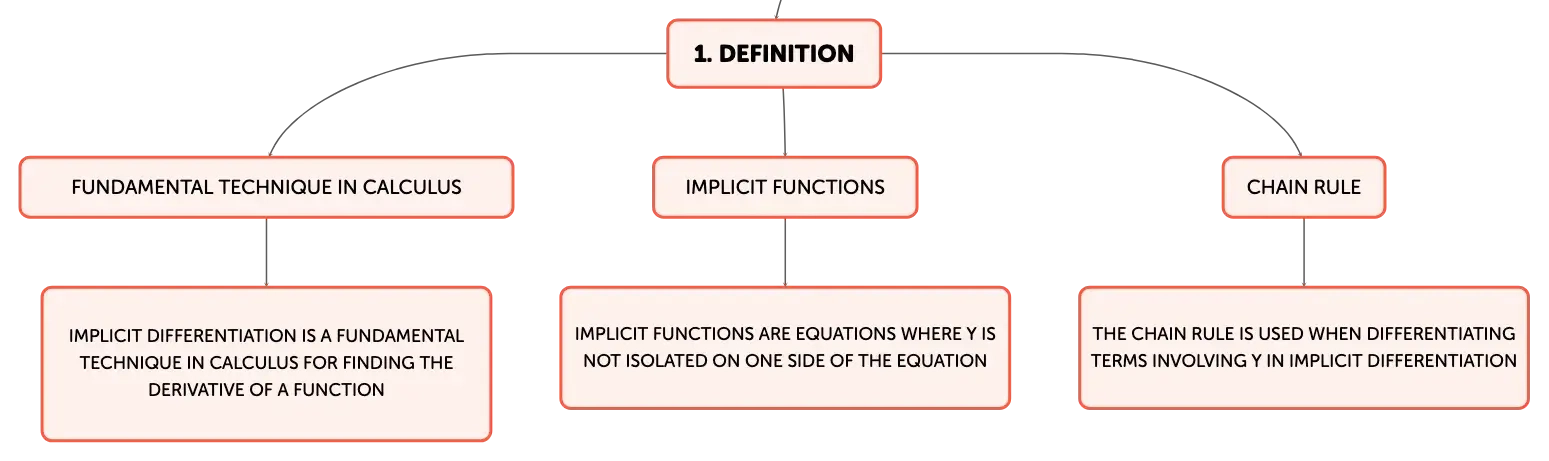

Definition
Fundamental technique in calculus
Implicit differentiation is a fundamental technique in calculus for finding the derivative of a function
Implicit functions
Implicit functions are equations where y is not isolated on one side of the equation
Chain rule
The chain rule is used when differentiating terms involving y in implicit differentiation

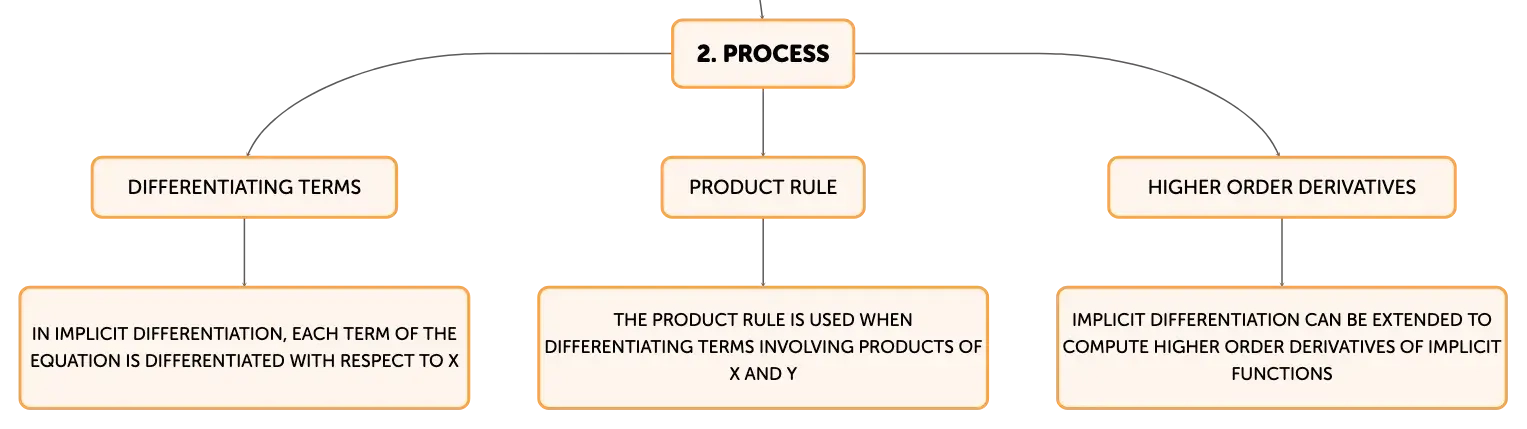

Process
Differentiating terms
In implicit differentiation, each term of the equation is differentiated with respect to x
Product rule
The product rule is used when differentiating terms involving products of x and y
Higher order derivatives
Implicit differentiation can be extended to compute higher order derivatives of implicit functions

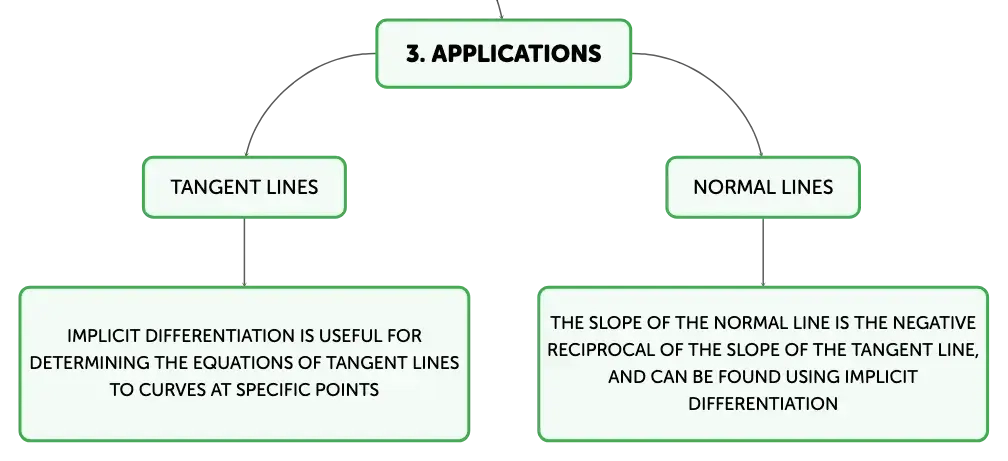

Applications
Tangent lines
Implicit differentiation is useful for determining the equations of tangent lines to curves at specific points
Normal lines
The slope of the normal line is the negative reciprocal of the slope of the tangent line, and can be found using implicit differentiation
Implicit Differentiation
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Implicit Function Example
Equation x^2 + y^2 = r^2 represents a circle, not solved for y explicitly.
01
Differentiation Technique
Derive both sides with respect to x, apply chain rule for y terms, include dy/dx.
02
Tangent Line Slope Calculation
Use implicit differentiation to find slope of tangent without solving y explicitly.
