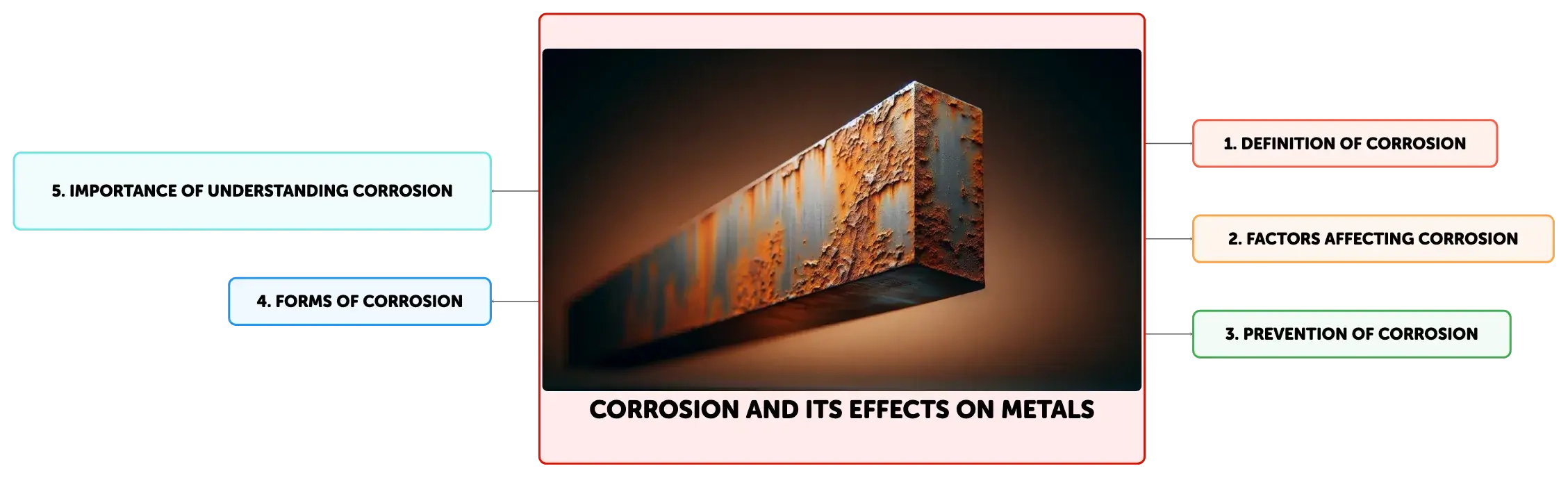

Corrosion and its Effects on Metals

Corrosion is the chemical degradation of metals due to environmental interactions, leading to structures like iron transforming into oxides or hydroxides. Factors such as moisture, oxygen, and corrosive gases accelerate this process. Prevention techniques include barrier protection, electroplating, and using corrosion-resistant materials. Understanding and mitigating corrosion is crucial for maintaining the integrity of metal infrastructures.

See more
Open map in editor

1

6

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Corrosion chemical products

Click to check the answer

Metals corrode into stable forms like oxides, hydroxides, sulfides.

2

Example of corrosion: Iron

Click to check the answer

Iron reacts with oxygen and moisture to form iron oxide, known as rust.

3

Corrosion consequences for infrastructure

Click to check the answer

Can weaken structural integrity of pipelines, bridges, buildings, risking failures.

4

The chemical formula for rust after dehydration is represented as ______, where 'n' represents the number of water molecules that can vary.

Click to check the answer

Fe_2O_3·nH_2O

5

Impact of corrosive gases on metal oxidation

Click to check the answer

Gases like chlorine, sulfur dioxide, and hydrogen sulfide increase metal oxidation rates, worsening corrosion.

6

Effect of electrical currents and mechanical stress on corrosion

Click to check the answer

Electrical currents and stress can cause stress corrosion cracking, leading to abrupt structural failures.

7

To prevent ______, methods like barrier protection, which includes the application of ______ or ______, are used to separate the metal from environmental factors.

Click to check the answer

corrosion paint grease

8

______, which is part of stainless steel, allows it to naturally withstand ______, while noble metals like ______, ______, and ______ are inherently more resistant due to their low reactivity.

Click to check the answer

Chromium corrosion gold silver platinum

9

General attack corrosion characteristics

Click to check the answer

Uniformly affects entire metal surface; common and predictable.

10

Galvanic corrosion mechanism

Click to check the answer

Occurs when two different metals in contact within electrolyte; less noble metal corrodes faster.

11

Localized vs. General corrosion impact

Click to check the answer

Localized targets specific areas, can cause internal weakening; General is uniform, easier to predict and manage.

12

To safeguard and prolong the service life of metal-based assets, it's crucial to grasp the ______ process of corrosion, identify its ______ factors, and apply ______ prevention techniques.

Click to check the answer

electrochemical contributing available

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Chemistry

Heteroatoms in Organic Chemistry

View document

Chemistry

Enolate Ions: Key Intermediates in Organic Chemistry

View document

Chemistry

Alkene Nomenclature

View document

Chemistry

Ruff Degradation: A Key Technique in Carbohydrate Chemistry

View document

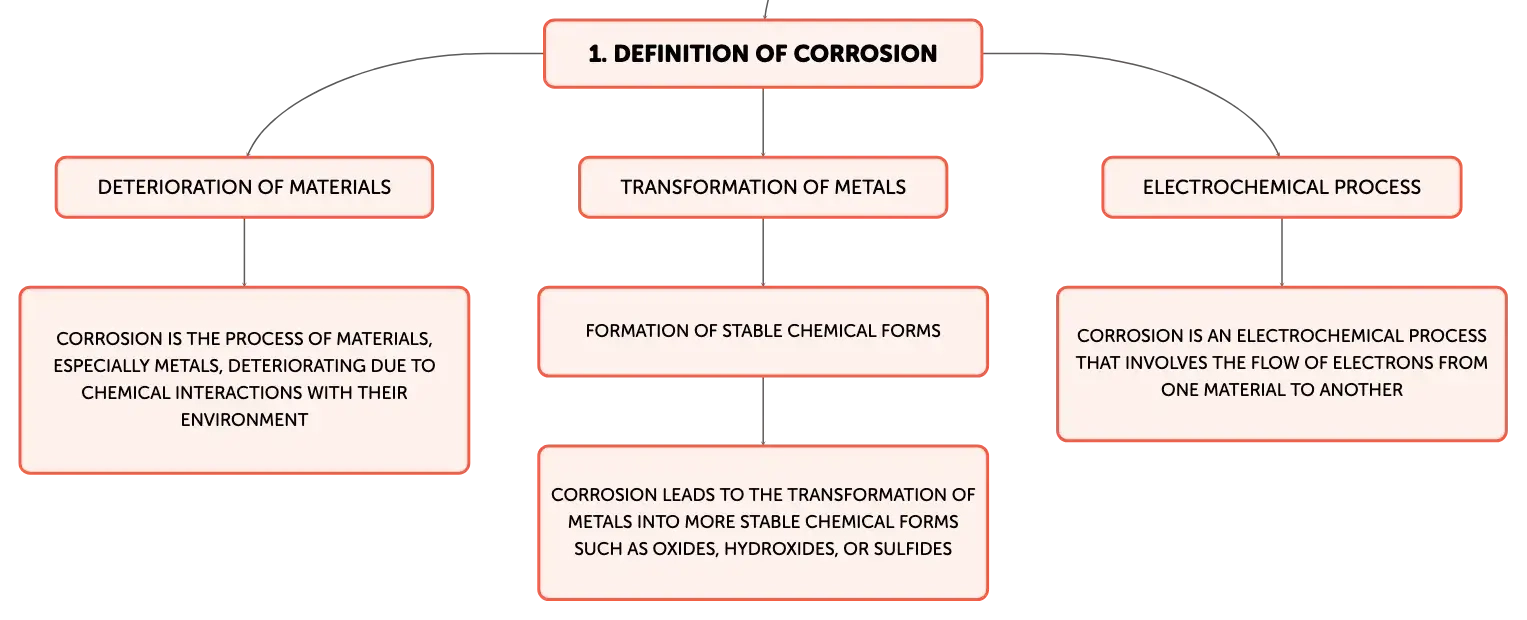

The Fundamentals of Corrosion and Its Consequences

Corrosion is the deterioration of materials, especially metals, due to chemical interactions with their environment. This process leads to the transformation of metals into more stable chemical forms such as oxides, hydroxides, or sulfides. Iron, for example, rusts when it reacts with oxygen and moisture, forming iron oxide. Corrosion is not just an aesthetic issue; it can compromise the structural integrity of various infrastructures, including pipelines, bridges, and buildings, potentially leading to hazardous failures.
Rusty horizontal steel beam with texture rich in orange-brown shades, rounded edges and irregular surface, without distinctive marks.

The Electrochemical Mechanism of Corrosion

Corrosion is an electrochemical process that involves the flow of electrons from one material to another. Specifically, iron undergoes oxidation, losing electrons to form iron (II) ions in moist environments. These ions can further oxidize to iron (III) ions, which react with hydroxide ions to form ferric hydroxide. Upon dehydration, ferric hydroxide becomes iron(III) oxide-hydrate, commonly known as rust. The chemical equation for the rusting of iron is \(4Fe + 3O_2 + 6H_2O \rightarrow 4Fe(OH)_3\), and upon dehydration, rust forms as \(Fe_2O_3\cdot nH_2O\), where \(n\) can vary.

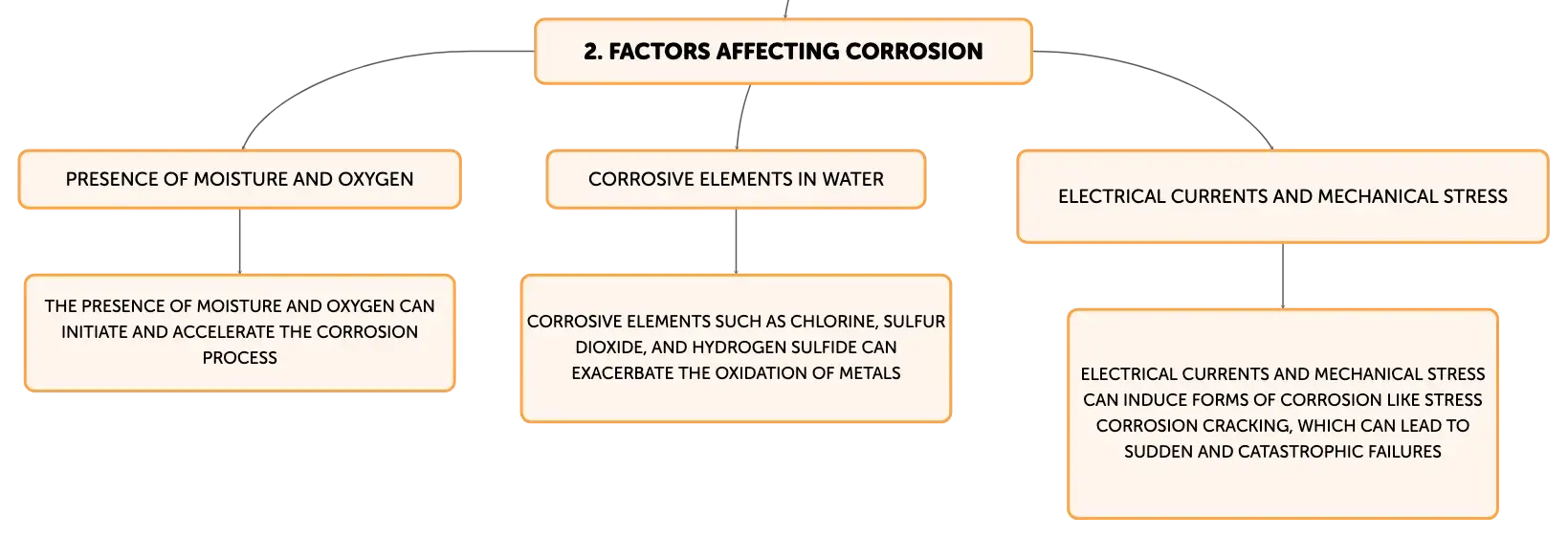

Influential Factors in Corrosion Processes

Corrosion is influenced by multiple factors. The presence of moisture or high humidity can initiate and accelerate the corrosion process, as can the presence of oxygen and other elements in water. Corrosive gases, such as chlorine, sulfur dioxide, and hydrogen sulfide, can exacerbate the oxidation of metals. Electrical currents and mechanical stress can induce forms of corrosion like stress corrosion cracking, which can lead to sudden and catastrophic structural failures.

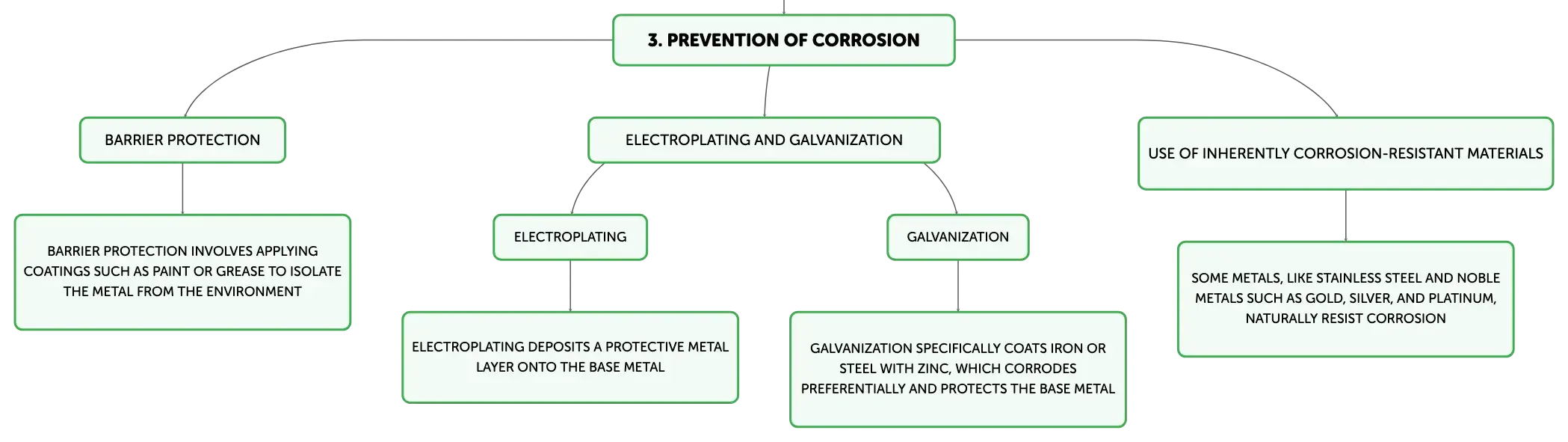

Corrosion Prevention Techniques

To safeguard against corrosion, various prevention strategies are employed. Barrier protection involves applying coatings such as paint or grease to isolate the metal from the environment. Electroplating deposits a protective metal layer onto the base metal, while galvanization specifically coats iron or steel with zinc, which corrodes preferentially and protects the base metal. Some metals, like stainless steel, which contains chromium, naturally resist corrosion. Similarly, noble metals such as gold, silver, and platinum are less reactive and more resistant to corrosion.

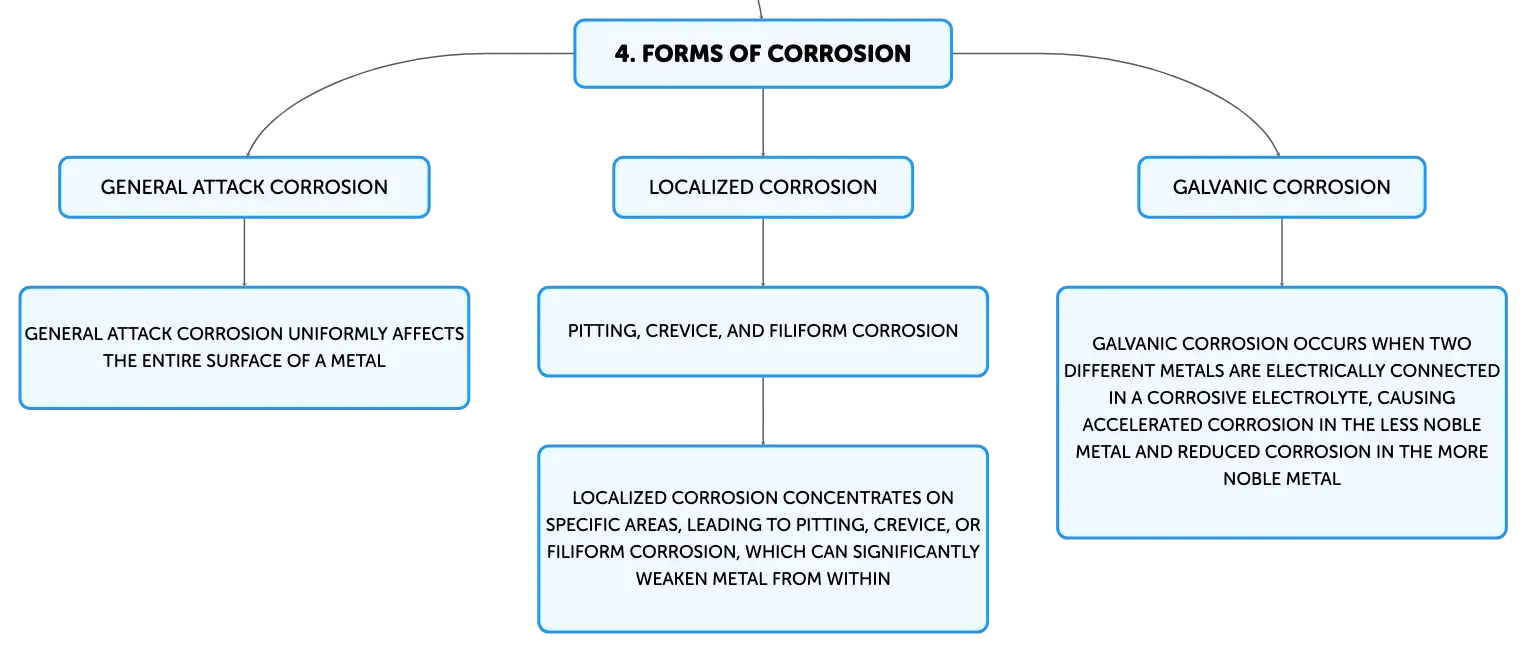

Classifying Corrosion by Its Manifestations

Corrosion can occur in several distinct forms. General attack corrosion uniformly affects the entire surface of a metal, while localized corrosion concentrates on specific areas, leading to pitting, crevice corrosion, or filiform corrosion. These localized forms can significantly weaken metal from within. Galvanic corrosion arises when two different metals are electrically connected in a corrosive electrolyte, causing accelerated corrosion in the less noble metal (anodic) and reduced corrosion in the more noble metal (cathodic).

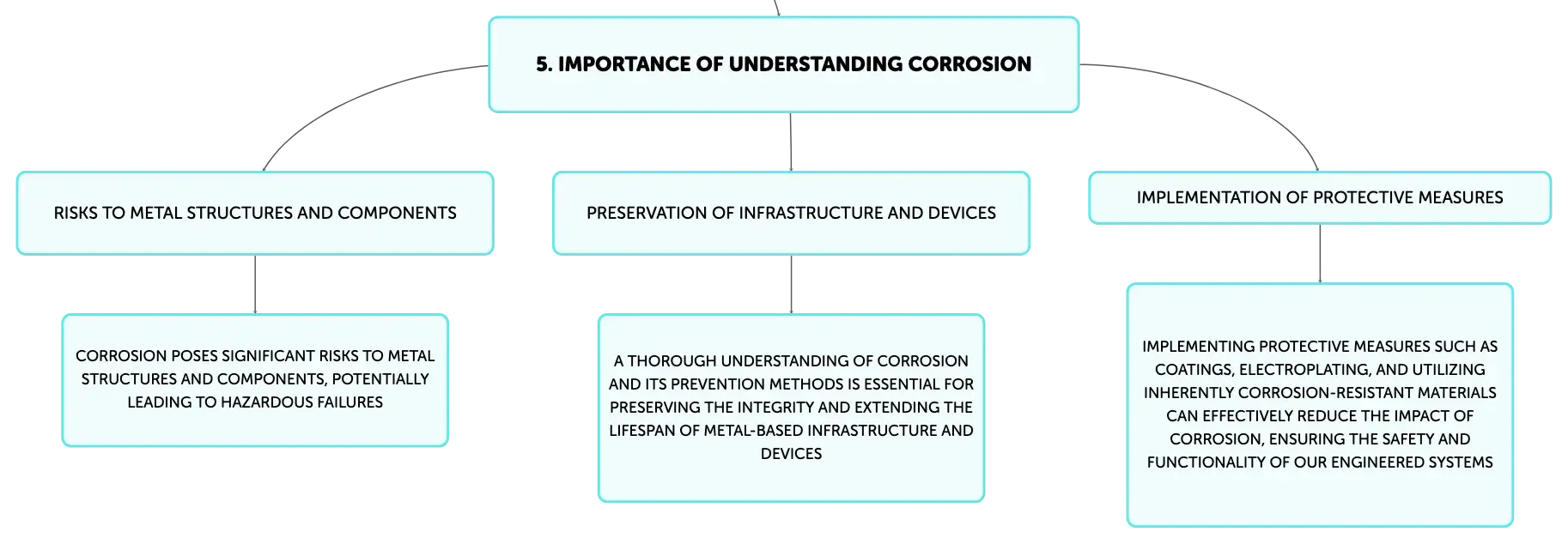

Comprehensive Insights into Corrosion

Corrosion is a pervasive and destructive process that poses significant risks to metal structures and components. A thorough understanding of the electrochemical nature of corrosion, the contributing factors, and the available prevention methods is essential for preserving the integrity and extending the lifespan of metal-based infrastructure and devices. Implementing protective measures such as coatings, electroplating, and utilizing inherently corrosion-resistant materials can effectively reduce the impact of corrosion, ensuring the safety and functionality of our engineered systems.
