Electron Configuration in Chemistry

The Fundamentals of Electron Configuration

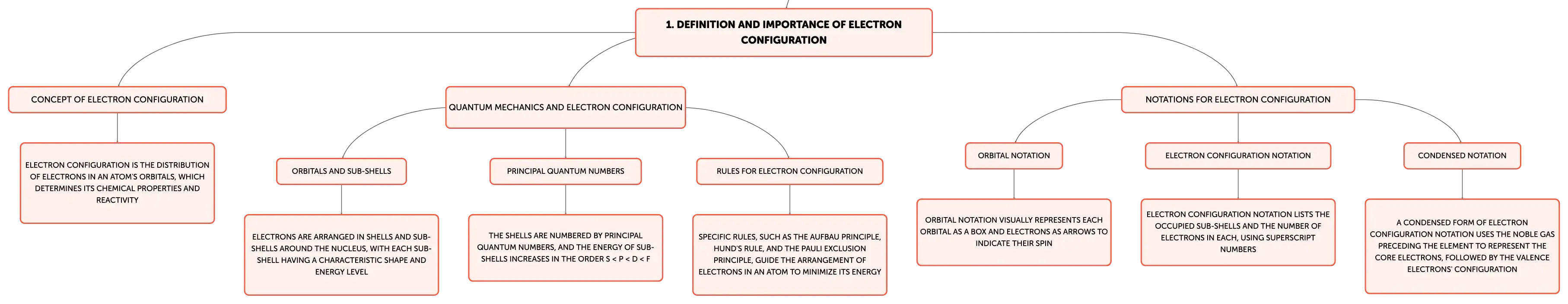

Electron configuration is a key concept in chemistry that details the distribution of electrons in an atom's orbitals, which are defined by quantum mechanics. These configurations are crucial for understanding the chemical properties and reactivity of an element, as they determine how an atom interacts with others. Electrons are arranged in shells around the nucleus, with each shell containing a set of sub-shells (s, p, d, f) that have characteristic shapes and energy levels. The shells are numbered by principal quantum numbers (n=1, 2, 3, ...), and within each shell, the energy of sub-shells increases in the order s < p < d < f. Each orbital within a sub-shell can hold a maximum of two electrons with opposite spins, and the overall configuration follows specific rules to minimize the energy of the atom.

The Aufbau Principle and Electron Configuration Rules

The electron configuration of an atom is determined by the Aufbau principle, which posits that electrons fill orbitals starting from the lowest available energy levels before moving to higher ones. This principle is complemented by Hund's rule, which states that electrons will fill degenerate orbitals (orbitals of the same energy within a sub-shell) singly as far as possible, with parallel spins, to minimize electron-electron repulsion. Additionally, the Pauli exclusion principle dictates that no two electrons in an atom can have the same set of four quantum numbers, ensuring that electrons in the same orbital have opposite spins. These rules collectively guide the arrangement of electrons in an atom.

Notation for Electron Configurations

Electron configurations are commonly expressed in two notations: orbital notation and electron configuration notation. Orbital notation, also known as box diagrams, visually represents each orbital as a box and electrons as arrows pointing up or down to indicate their spin. Electron configuration notation, on the other hand, lists the occupied sub-shells and the number of electrons in each, using superscript numbers. For example, the electron configuration of carbon is written as 1s² 2s² 2p². A condensed form of this notation uses the noble gas preceding the element in the periodic table to represent the core electrons, followed by the valence electrons' configuration.

Electron Configurations in Atoms and Ions

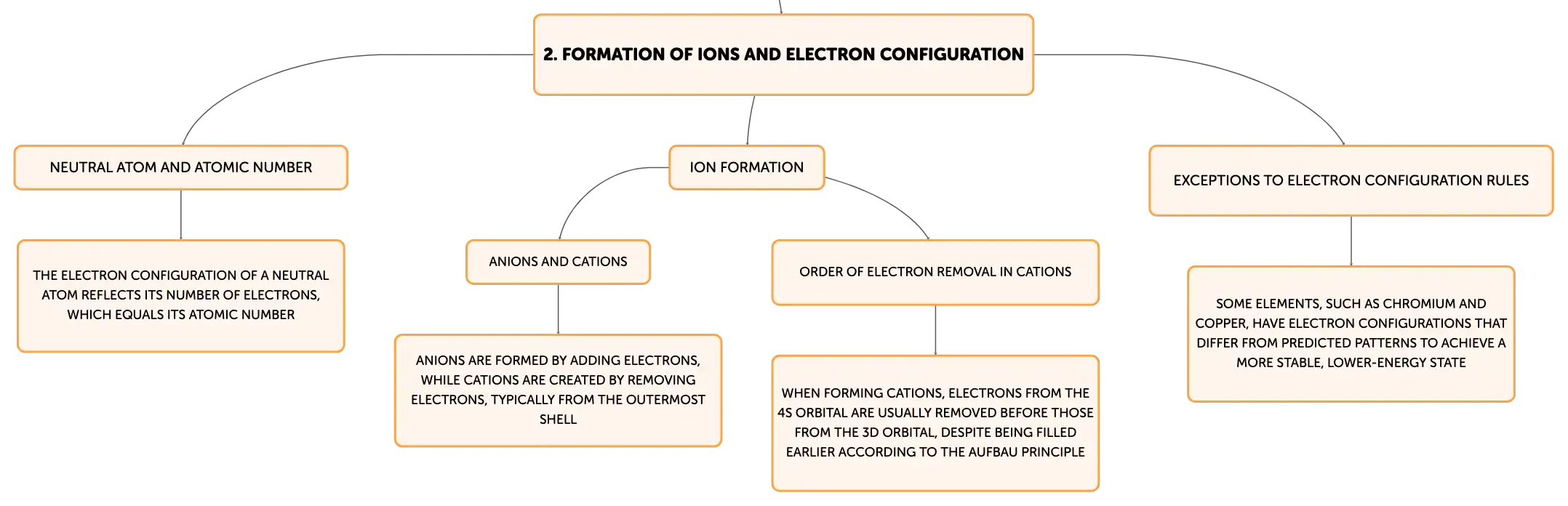

The electron configuration of a neutral atom reflects its number of electrons, which equals its atomic number. When atoms form ions, they gain or lose electrons to achieve a more stable electron configuration, often resembling that of a noble gas. Anions (negatively charged ions) are formed by adding electrons, while cations (positively charged ions) are created by removing electrons, typically from the outermost shell. Notably, when forming cations, electrons from the 4s orbital are usually removed before those from the 3d orbital, despite being filled earlier according to the Aufbau principle.

Exceptions to Electron Configuration Patterns

Although the Aufbau principle, Hund's rule, and the Pauli exclusion principle generally predict electron configurations accurately, there are notable exceptions. Some transition metals, such as chromium and copper, have electron configurations that differ from predicted patterns to achieve a more stable, lower-energy state. These exceptions often involve a half-filled or completely filled d sub-shell, which is energetically favorable due to enhanced stability and symmetry. Understanding these exceptions is important for accurately predicting the properties of elements and their ions.

Empirical Evidence for Electron Configuration

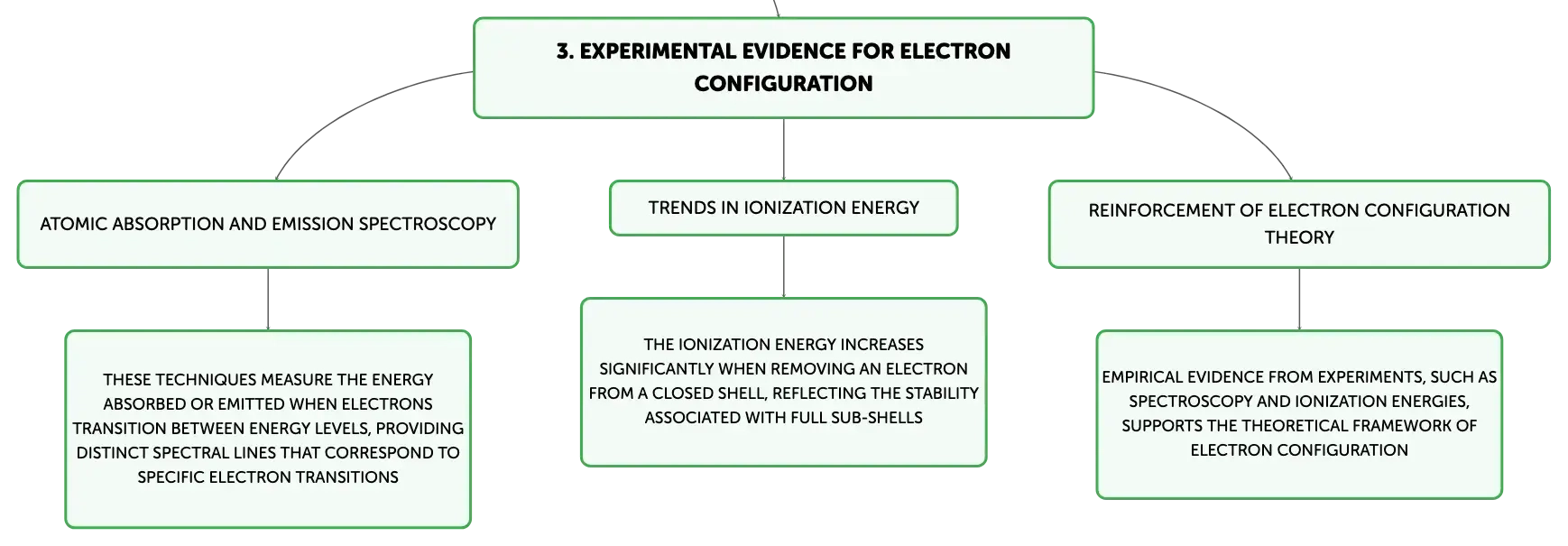

The validity of electron configuration theory is supported by empirical evidence from experiments such as atomic absorption and emission spectroscopy. These techniques measure the energy absorbed or emitted when electrons transition between energy levels, providing distinct spectral lines that correspond to specific electron transitions. Additionally, trends in ionization energy—the energy required to remove an electron from an atom—corroborate the existence of distinct shells and sub-shells. The ionization energy increases significantly when removing an electron from a closed shell, reflecting the stability associated with full sub-shells.

Concluding Insights on Electron Configuration

Electron configuration is a foundational concept in chemistry that explains the arrangement of electrons in atoms and ions. It is governed by principles such as the Aufbau principle, Hund's rule, and the Pauli exclusion principle, with notable exceptions that reflect the complex nature of atomic structure. Electron configurations are depicted through orbital and electron configuration notations, and the formation of ions involves electron transfer to achieve stable configurations. The theoretical framework of electron configuration is reinforced by experimental evidence, such as spectroscopy and ionization energies, making it a critical tool for understanding and predicting chemical behavior.
