Exploring the Reactivity Series and Metal Displacement Reactions

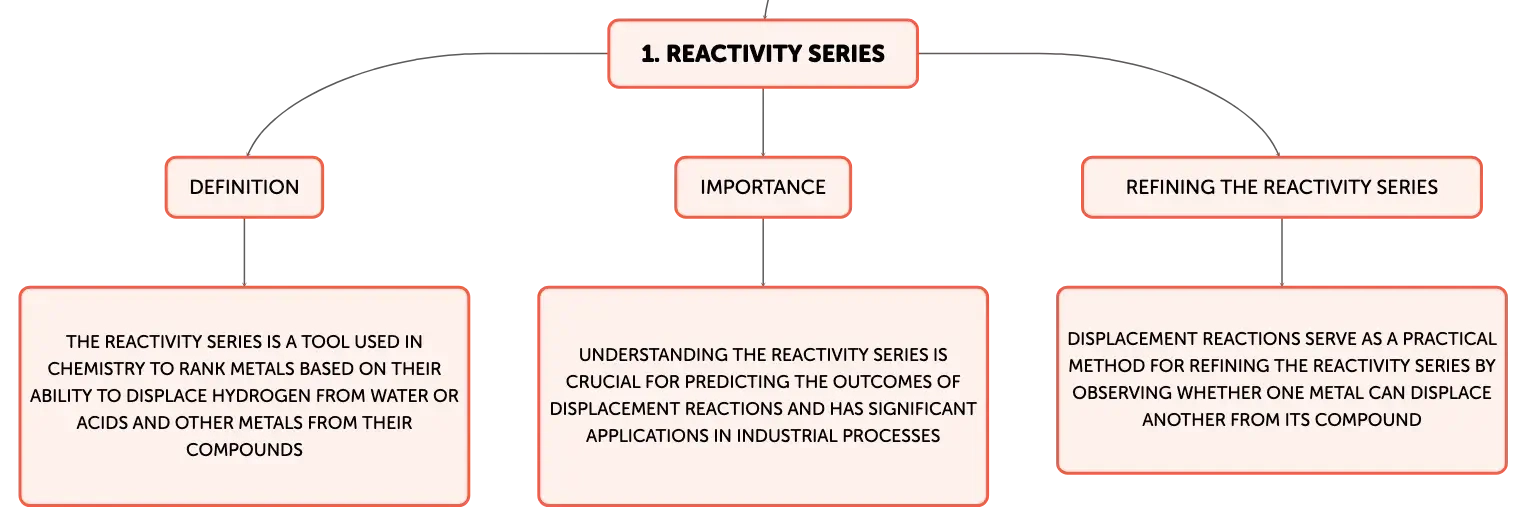

The reactivity series is a fundamental tool in chemistry that orders metals from most to least reactive based on their ability to displace hydrogen from water or acids and to displace other metals from their compounds. Metals like potassium and sodium are found at the top of the series due to their high reactivity, while less reactive metals such as gold and platinum are placed at the bottom. Understanding the reactivity series is crucial for predicting the outcomes of displacement reactions, where a more reactive metal will replace a less reactive metal in a compound. For instance, when magnesium is introduced into copper sulfate solution, it displaces the copper, forming magnesium sulfate and releasing copper metal.

Laboratory with beaker containing blue solution and reacting silver metal, pieces of copper and test tube with colorless liquid on bench with safety glasses.

The Significance of Displacement Reactions in Metal Reactivity

Displacement reactions serve as a practical method for refining the reactivity series. They are particularly useful when metals exhibit similar reactivity in reactions with water or acids. By observing whether one metal can displace another from its compound, chemists can determine the relative reactivity of the metals involved. For example, if magnesium displaces zinc from zinc sulfate, forming magnesium sulfate and free zinc, it indicates that magnesium is more reactive than zinc. These reactions are not only pivotal for ranking metals in the reactivity series but also have significant applications in industrial processes, such as the extraction of metals and the synthesis of chemicals.

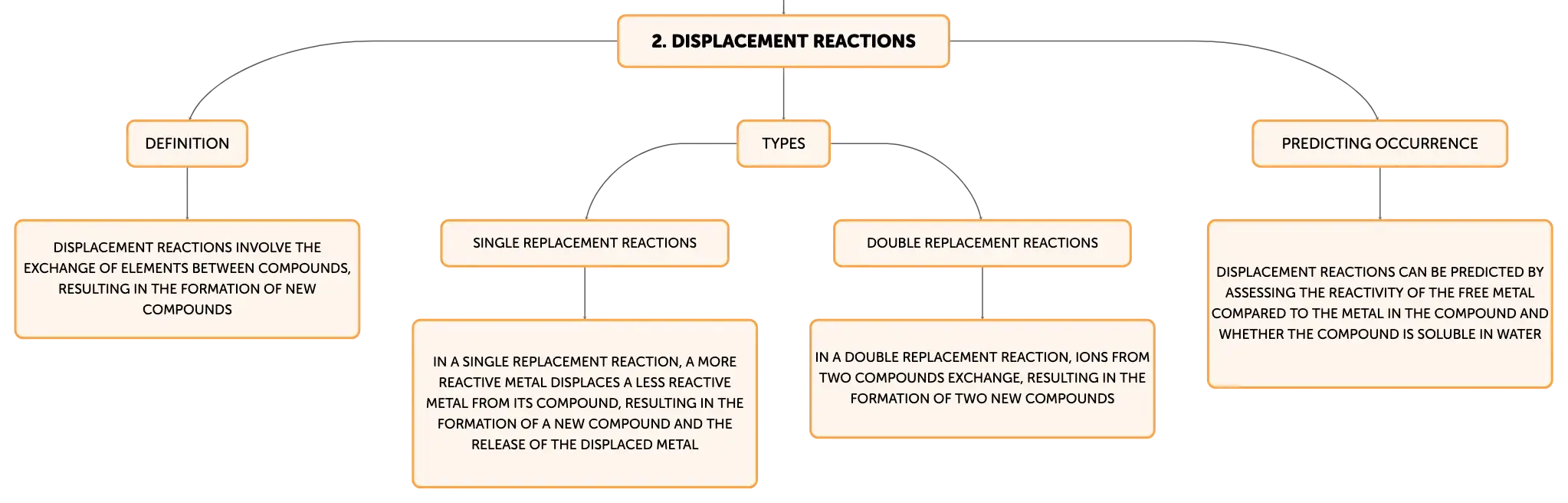

Classifying Displacement Reactions: Single and Double Replacement

Displacement reactions are classified into single and double replacement reactions. In a single replacement reaction, a more reactive metal (A) displaces a less reactive metal (B) from its compound (BC), resulting in a new compound (AC) and the release of the displaced metal (B). The general equation for this type of reaction is A + BC → AC + B. Double replacement reactions involve the exchange of ions between two compounds, leading to the formation of two new compounds. The general equation for a double replacement reaction is AB + CD → AD + BC. These equations are essential for predicting the products of displacement reactions and understanding the chemical changes that occur.

Predicting Displacement Reaction Outcomes

To predict the occurrence of a displacement reaction, one must assess the reactivity of the free metal compared to the metal in the compound and whether the compound is in an aqueous solution. If the free metal is more reactive and the compound is soluble in water, a displacement reaction is likely. For example, when iron filings are added to a solution of lead (II) nitrate, iron, being more reactive, displaces the lead to form iron nitrate and elemental lead. This predictive methodology is essential for chemists to anticipate the behavior of metals in various chemical environments.

Demonstrating Displacement Reactions with Examples

Displacement reactions are prevalent in chemical education due to their clear demonstration of reactivity principles. A classic example of a single displacement reaction is when zinc metal is placed in a copper sulfate solution, resulting in the formation of zinc sulfate and the deposition of copper metal. An example of a double displacement reaction is the mixing of potassium iodide and lead nitrate solutions, which produces a precipitate of lead iodide and a solution of potassium nitrate. All displacement reactions are also redox reactions, where electron transfer occurs, such as when magnesium reacts with hydrochloric acid to yield magnesium chloride and hydrogen gas.

Special Case: Halogen Displacement Reactions

Halogen displacement reactions are a unique subset of displacement reactions involving the halogen group of elements—fluorine, chlorine, bromine, and iodine. These reactions follow the same principle of reactivity, where a more reactive halogen can displace a less reactive halogen from its compound. For instance, chlorine gas can displace bromine from an aqueous solution of potassium bromide, forming potassium chloride and bromine gas. Fluorine, the most reactive halogen, can displace any other halogen from its compounds, as demonstrated when it reacts with a compound containing iodine to form various iodine fluorides.

Concluding Insights on Displacement Reactions

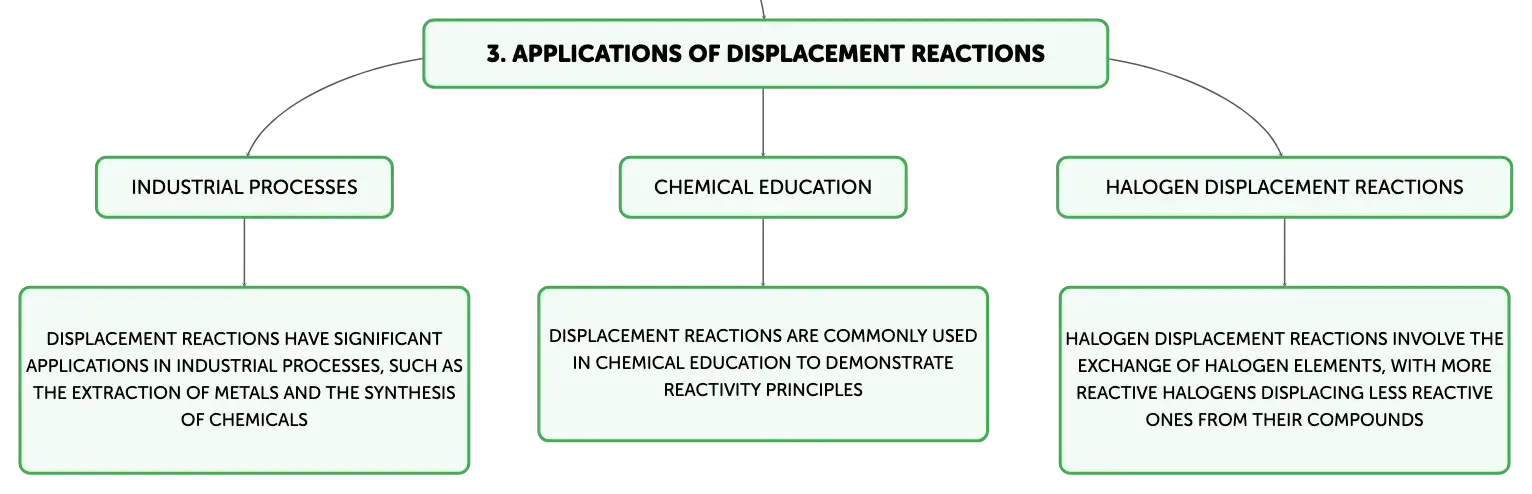

Displacement reactions offer valuable insights into the reactivity of metals and play a crucial role in constructing the reactivity series. These reactions, which are fundamentally redox in nature, enable chemists to determine the relative reactivity of different metals and to predict the outcomes of reactions involving metals and their salts. A thorough understanding of displacement reactions is essential for their application in practical fields such as metallurgy, where they are used to extract metals from their ores, and in the synthesis of new chemical compounds.
