Exploring Covalent Bonds: Polar vs. Non-Polar

Covalent bonds are a type of chemical bond where two atoms, typically non-metals, share one or more pairs of valence electrons. This sharing can be equal or unequal, depending on the atoms' electronegativities. When atoms with similar electronegativities form a bond, the shared electrons are distributed evenly, resulting in a non-polar covalent bond. An example is the bond in a diatomic hydrogen molecule (H2). In contrast, a polar covalent bond forms between atoms with different electronegativities, leading to an uneven distribution of electron density. This creates partial positive and negative charges on the atoms, as seen in the water molecule (H2O), where the oxygen atom holds a partial negative charge and the hydrogen atoms hold partial positive charges.

Detailed 3D model of a water molecule with a central red oxygen atom and two white hydrogen atoms in a V shape, bonded by covalency.

The Role of Electronegativity in Bond Polarity

Electronegativity is a measure of an atom's tendency to attract and hold onto shared electrons and is a critical factor in determining bond polarity. The Pauling scale, which assigns values typically between 0.7 and 4.0, quantifies electronegativity. The larger the difference in electronegativity between two bonded atoms, the more polar the bond becomes. For example, in water (H2O), the oxygen atom has a higher electronegativity than the hydrogen atoms, resulting in polar covalent bonds. These bonds give rise to a molecule with a significant dipole moment, where the oxygen end is slightly negative, and the hydrogen end is slightly positive.

Distinguishing Features of Polar and Non-Polar Bonds

Polar and non-polar covalent bonds have distinct characteristics that affect the properties of the molecules they form. Polar covalent bonds result in molecules with a dipole moment, which means they have separated positive and negative charges due to the uneven electron distribution. These molecules often exhibit higher boiling points and solubility in polar solvents. Non-polar covalent bonds, on the other hand, form molecules that are electrically neutral with no dipole moment, as the electrons are shared equally. Such molecules typically have lower boiling points and are soluble in non-polar solvents.

The Continuum of Chemical Bonding

Chemical bonding is a spectrum that ranges from purely covalent to purely ionic. Non-polar covalent bonds represent one extreme, where atoms with identical or very similar electronegativities share electrons equally. Polar covalent bonds occur when atoms with moderate differences in electronegativity share electrons unequally. At the other extreme are ionic bonds, which form when the difference in electronegativity is so great that one atom completely transfers electrons to another, resulting in ions. The degree of ionic character in a bond increases with the difference in electronegativity between the atoms involved.

Predicting Bond Types

Electronegativity differences provide a preliminary indication of the type of bond that may form between two atoms, but they are not the only consideration. The physical properties of a compound, such as melting and boiling points, solubility, and electrical conductivity, offer additional insights into the nature of its bonding. Ionic compounds typically exhibit high melting and boiling points and conduct electricity when dissolved in water or melted. Covalent compounds, in contrast, generally have lower melting and boiling points and do not conduct electricity in their solid or liquid states. These observations, combined with electronegativity values, help chemists to infer whether a substance contains ionic, polar covalent, or non-polar covalent bonds.

Covalent Bonding in Practice: Examples

To contextualize the theory, consider these examples: A non-polar covalent bond is found in the chlorine molecule (Cl2), where the two chlorine atoms share the electron pair equally. In contrast, the bond between oxygen and hydrogen in a water molecule is a polar covalent bond due to oxygen's higher electronegativity. Methane (CH4) features non-polar C-H bonds because the electronegativity difference between carbon and hydrogen is minimal. However, the C-F bond in Teflon is highly polar, as fluorine is significantly more electronegative than carbon. These examples highlight the variability in covalent bonding and its influence on molecular properties.

Concluding Insights on Covalent Bonding

In conclusion, covalent bonding, which involves the sharing of electron pairs between atoms, is classified based on the relative electronegativities of the atoms involved. Polar covalent bonds arise from unequal electron sharing due to significant electronegativity differences, leading to molecules with partial charges and dipole moments. Non-polar covalent bonds occur when electron sharing is equal, resulting in electrically neutral molecules. The type of bond present affects the compound's physical properties and can often be predicted by considering both electronegativity differences and the observed properties of the substance. Mastery of these concepts is essential for understanding molecular behavior and the formation of various chemical substances.

Covalent Bonding

Concept Map

Summary

Outline

Covalent Bonding

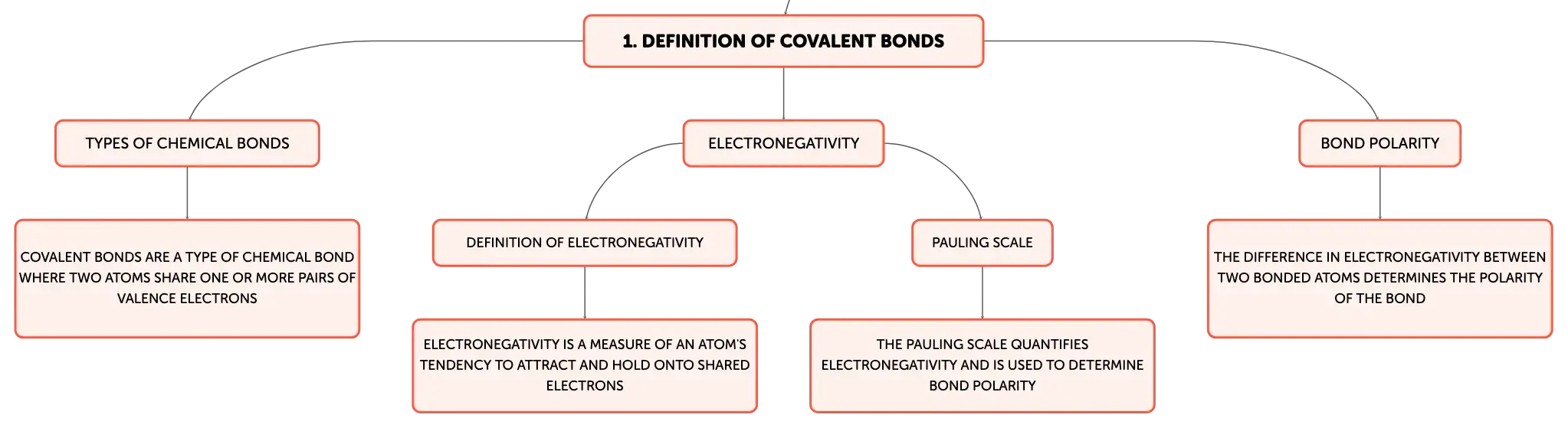

Definition of Covalent Bonds

Types of Chemical Bonds

Electronegativity

Bond Polarity

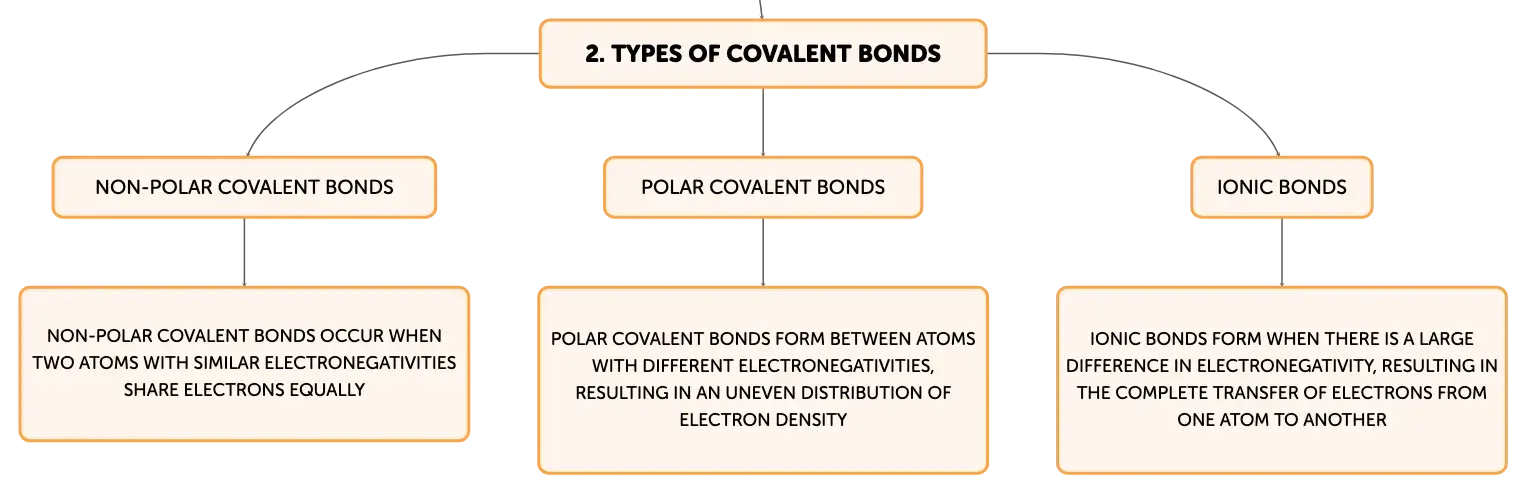

Types of Covalent Bonds

Non-Polar Covalent Bonds

Polar Covalent Bonds

Ionic Bonds

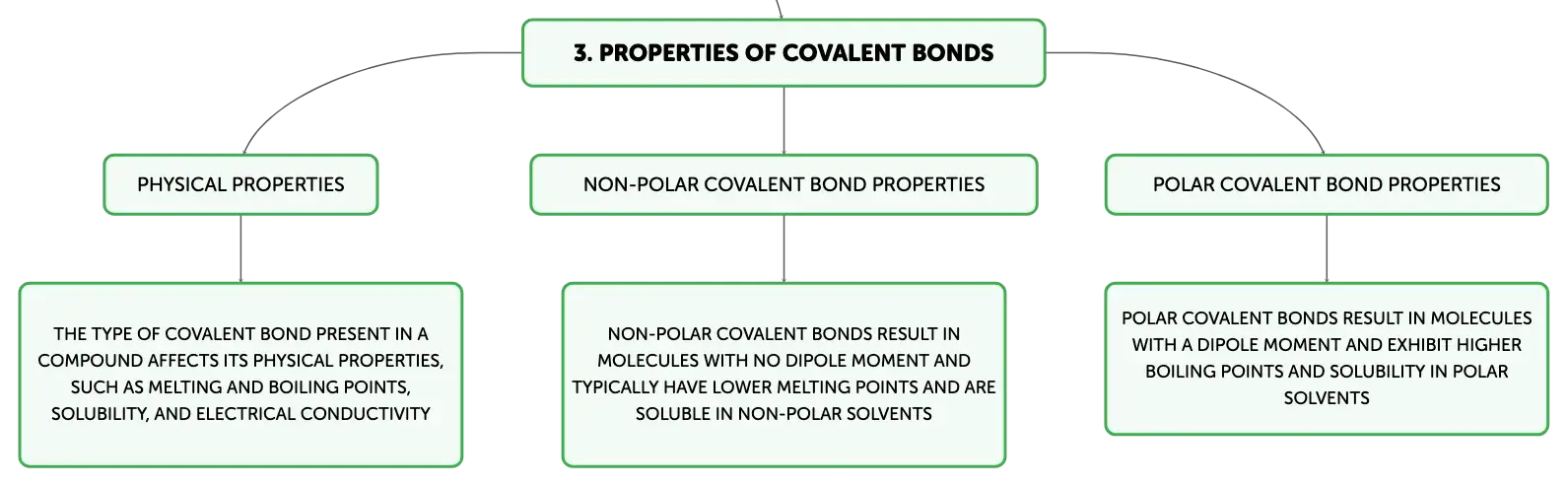

Properties of Covalent Bonds
