Dipoles in Chemistry

Chemical dipoles arise from the unequal sharing of electrons due to atoms' differing electronegativity, leading to partial charges within a molecule. The text explores how dipoles form, their quantification through dipole moments, and their influence on molecular geometry and interactions. It also discusses the types of dipole interactions, such as ion-dipole, dipole-dipole, and induced-dipole forces, which are crucial for understanding substance behaviors.

See more

1/5

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

A dipole occurs when atoms with different ______ values form a bond, leading to a partial ______ charge on the more electronegative atom.

Click to check the answer

electronegativity negative

2

Electronegativity difference < 0.4 bond type

Click to check the answer

Non-polar covalent; electrons shared equally, no net dipole.

3

Electronegativity difference 0.4 to 1.7 bond result

Click to check the answer

Polar covalent; unequal electron sharing, dipole formed.

4

Electronegativity difference > 1.7 bond characteristic

Click to check the answer

Ionic; complete electron transfer, ions formed.

5

In ______ bonds, electrons are shared equally, while ______ bonds have unequal sharing, and ______ bonds involve a complete transfer of electrons.

Click to check the answer

non-polar covalent polar covalent ionic

6

Dipole moment vector direction

Click to check the answer

Points from positive to negative charge

7

Dipole moment magnitude formula

Click to check the answer

Product of charge difference and distance: μ=Q*r

8

Net dipole moment in symmetrical molecules

Click to check the answer

Bond dipoles cancel out, resulting in zero net dipole

9

______ (PCl3) possesses a net dipole moment due to polar bonds and an ______ structure with a lone pair of electrons.

Click to check the answer

Phosphorus trichloride asymmetrical tetrahedral

10

Despite having polar bonds, ______ (CO2) lacks a net dipole moment because it has a ______ shape, leading to cancellation of dipoles.

Click to check the answer

Carbon dioxide linear

11

Ion-dipole interaction strength factor

Click to check the answer

Increases with ion's charge and polarity of molecule.

12

Hydrogen bonding specifics

Click to check the answer

Occurs between H atom bonded to N, O, or F and an electronegative atom.

13

Induced-dipole interaction cause

Click to check the answer

Temporary, caused by distortion of electron cloud in non-polar molecules.

14

______ has a net dipole moment because of the polar bond between ______ and ______.

Click to check the answer

Acetone (C3H6O) carbon oxygen

15

Despite having polar bonds, ______ is non-polar due to its ______ shape causing the bond dipoles to ______.

Click to check the answer

carbon tetrachloride (CCl4) tetrahedral cancel out

16

Define dipole moment.

Click to check the answer

Dipole moment is a vector quantity that measures the extent of net polarity in a molecule due to unequal electron sharing.

17

List types of dipole interactions.

Click to check the answer

Types include ion-dipole, dipole-dipole, and induced-dipole forces.

18

Relation between molecular geometry and dipole moment.

Click to check the answer

Molecular geometry determines how bond dipoles sum up, affecting the overall dipole moment and polarity.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Chemistry

Alkene Nomenclature

Chemistry

Organic Chemistry and Its Applications

Chemistry

Cycloaddition Reactions in Organic Chemistry

Chemistry

Thin Layer Chromatography (TLC)

The Nature of Chemical Dipoles

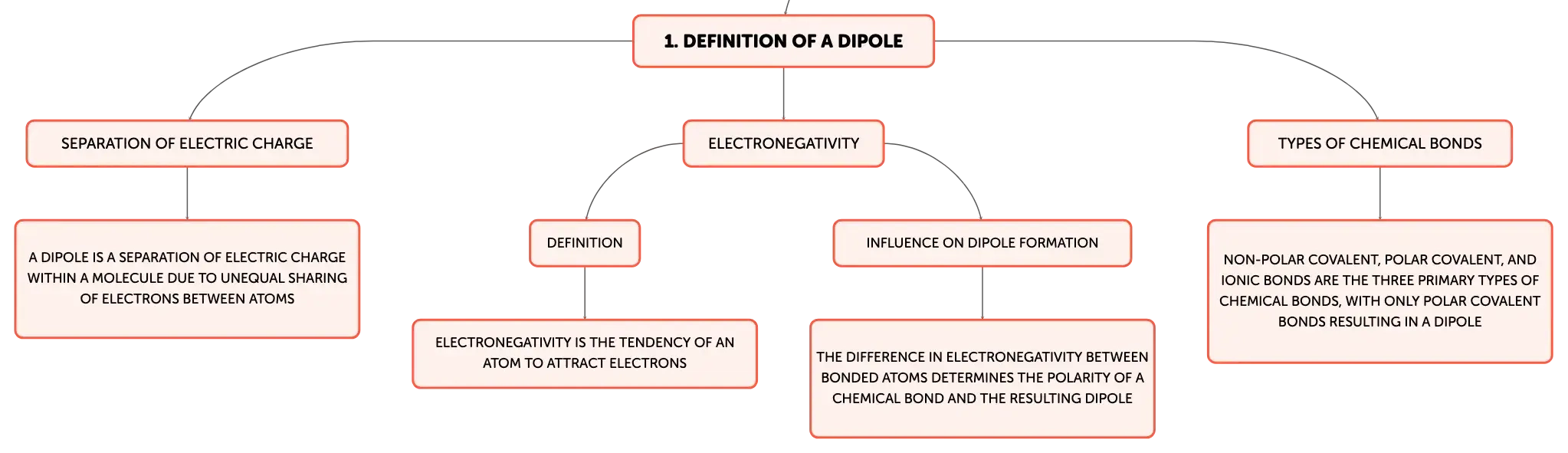

A dipole in chemistry refers to a separation of electric charge within a molecule that results from the unequal sharing of electrons between atoms. This imbalance is due to the atoms' differing electronegativity, which is the tendency of an atom to attract electrons. When two atoms form a bond and their electronegativity values are not identical, the electrons are drawn more towards the atom with the higher electronegativity, creating a partial negative charge there and a corresponding partial positive charge on the other atom. This separation of charge within the molecule or bond is what characterizes a dipole.
Glass container with colorless liquid and suspended iridescent oil drops, on smooth surface with blurred background.

Formation and Characteristics of Dipoles

The polarity of a chemical bond and the resulting dipole are determined by the difference in electronegativity between the bonded atoms. A difference of less than 0.4 is typically indicative of a non-polar covalent bond, where electrons are shared fairly equally. A difference ranging from 0.4 to 1.7 signifies a polar covalent bond, with electrons being shared unequally and a dipole being formed. An electronegativity difference greater than 1.7 usually leads to an ionic bond, characterized by the complete transfer of electrons and the formation of ions. In molecules with non-polar covalent bonds, any dipoles that form are generally canceled out by the molecule's symmetry, resulting in no net dipole.

Bond Types and Dipole Moments

The three primary types of chemical bonds are non-polar covalent, polar covalent, and ionic. Non-polar covalent bonds involve an equal sharing of electrons between atoms and usually do not create a dipole moment due to the symmetrical distribution of electron density. Polar covalent bonds, in contrast, have unequal sharing of electrons and a resultant dipole moment. Ionic bonds are formed through the complete transfer of electrons, creating ions rather than dipoles. Recognizing these bond types is crucial for understanding molecular properties and interactions.

Quantifying Dipole Moments

The dipole moment is a vector quantity that measures the extent of charge separation in a molecule. It is depicted as an arrow with its head pointing towards the negative pole and its tail at the positive pole, indicating the direction of the dipole. The magnitude of the dipole moment is given by the product of the charge difference (Q) and the distance (r) between the charges: μ=Q*r. Dipole moments are measured in Debye units (D), and the larger the value, the more polar the bond. For a molecule, the overall dipole moment is the vector sum of all bond dipoles, which can cancel each other in symmetrical molecules, leading to a net dipole moment of zero.

Predicting Molecular Dipole Moments

To determine if a molecule has a net dipole moment, one must consider the bond polarities and the molecular geometry. Molecules like phosphorus trichloride (PCl3) have a net dipole moment because of their polar bonds and asymmetrical tetrahedral structure, which includes a lone pair of electrons. In contrast, phosphorus pentachloride (PCl5) has no net dipole moment due to its symmetrical trigonal bipyramidal shape, which allows the bond dipoles to cancel each other out. Carbon dioxide (CO2), being linear, also has no net dipole moment because the two polar C=O bonds are equal and opposite, thus canceling each other.

Dipole Interactions in Molecular Chemistry

Dipole interactions are categorized into ion-dipole, dipole-dipole, and induced-dipole (London dispersion) interactions. Ion-dipole interactions involve the attraction between an ion and the polar end of a molecule, with the interaction strength increasing with the ion's charge. Dipole-dipole interactions are the attractive forces between the positive end of one polar molecule and the negative end of another. Hydrogen bonding is a specific type of dipole-dipole interaction that occurs between a hydrogen atom bonded to nitrogen, oxygen, or fluorine, and an electronegative atom in another molecule. Induced-dipole interactions are temporary attractions that occur when the electron cloud of a non-polar molecule is distorted, leading to a momentary dipole that can induce a similar dipole in a neighboring molecule.

Dipoles in Molecular Structures and Their Effects

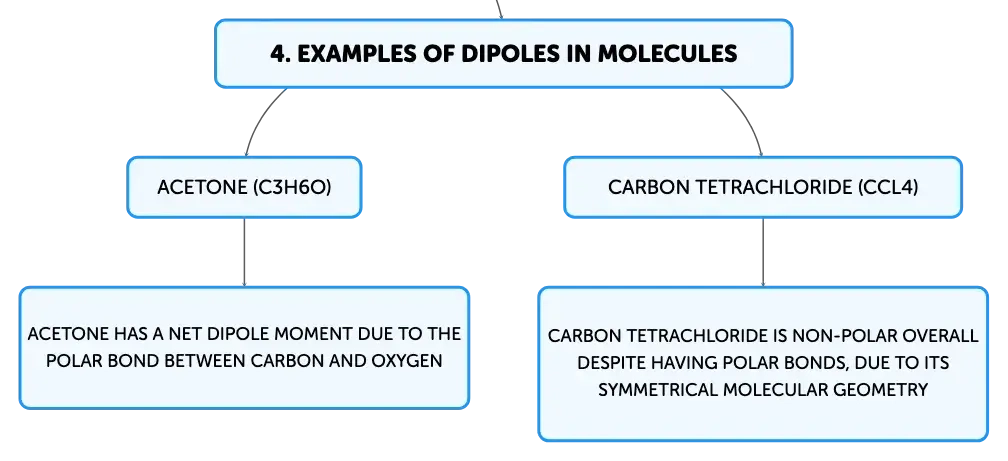

Acetone (C3H6O) is an example of a molecule with a net dipole moment due to the polar bond between carbon and oxygen. Conversely, carbon tetrachloride (CCl4) is non-polar overall despite having polar C-Cl bonds, because its tetrahedral geometry allows the bond dipoles to cancel out. These examples demonstrate that both bond polarity and molecular geometry are essential in determining whether a molecule will have a net dipole moment, which in turn affects its physical properties and chemical behavior.

Concluding Insights on Dipoles in Chemistry

Dipoles are a critical concept in chemistry, arising from the unequal sharing of electrons between atoms with different electronegativities. The dipole moment quantifies a molecule's polarity and is influenced by bond types and molecular geometry. Dipole interactions, including ion-dipole, dipole-dipole, and induced-dipole forces, are fundamental to understanding the properties and behaviors of substances. A thorough grasp of dipoles is essential for comprehending molecular interactions and the structure-function relationships in chemical systems.
