Voltage and its Role in Electrical Circuits

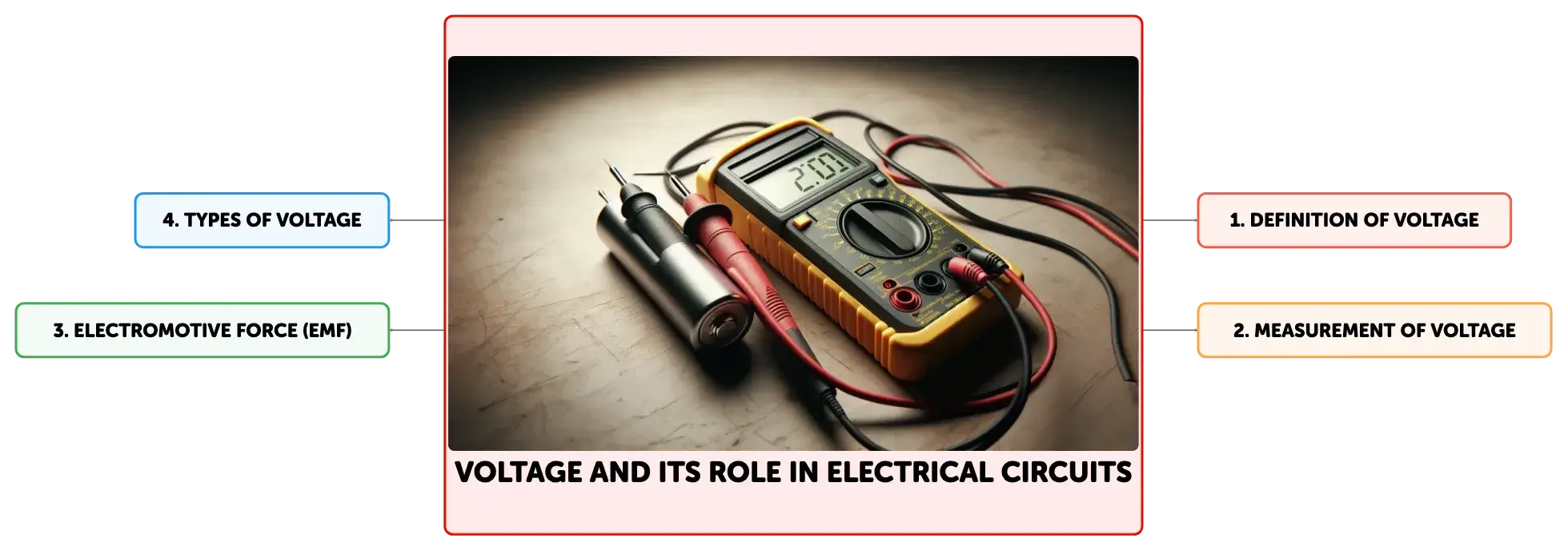

Concept Map
Voltage is the electric potential difference between two points in an electrical circuit, measured in volts. It represents the work needed to move a unit charge and is crucial for the flow of electric current. Understanding voltage involves exploring its measurement techniques, role in EMF, characteristics in DC and AC systems, and its relationship with current and resistance through Ohm's Law.
Summary
Outline
Exploring the Concept of Voltage in Electrical Circuits
Voltage, often symbolized as V, is a critical concept in electrical circuits, representing the electric potential difference between two points. It quantifies the work required to move a unit charge from one point to another and is a driving force for the flow of electric current. Voltage is a scalar quantity and must be measured between two distinct points, as it indicates the potential energy difference that can be converted into kinetic energy within the circuit. The unit of voltage is the volt (V), defined as the potential difference that imparts one joule (J) of energy to a single coulomb (C) of charge.Techniques for Measuring Voltage

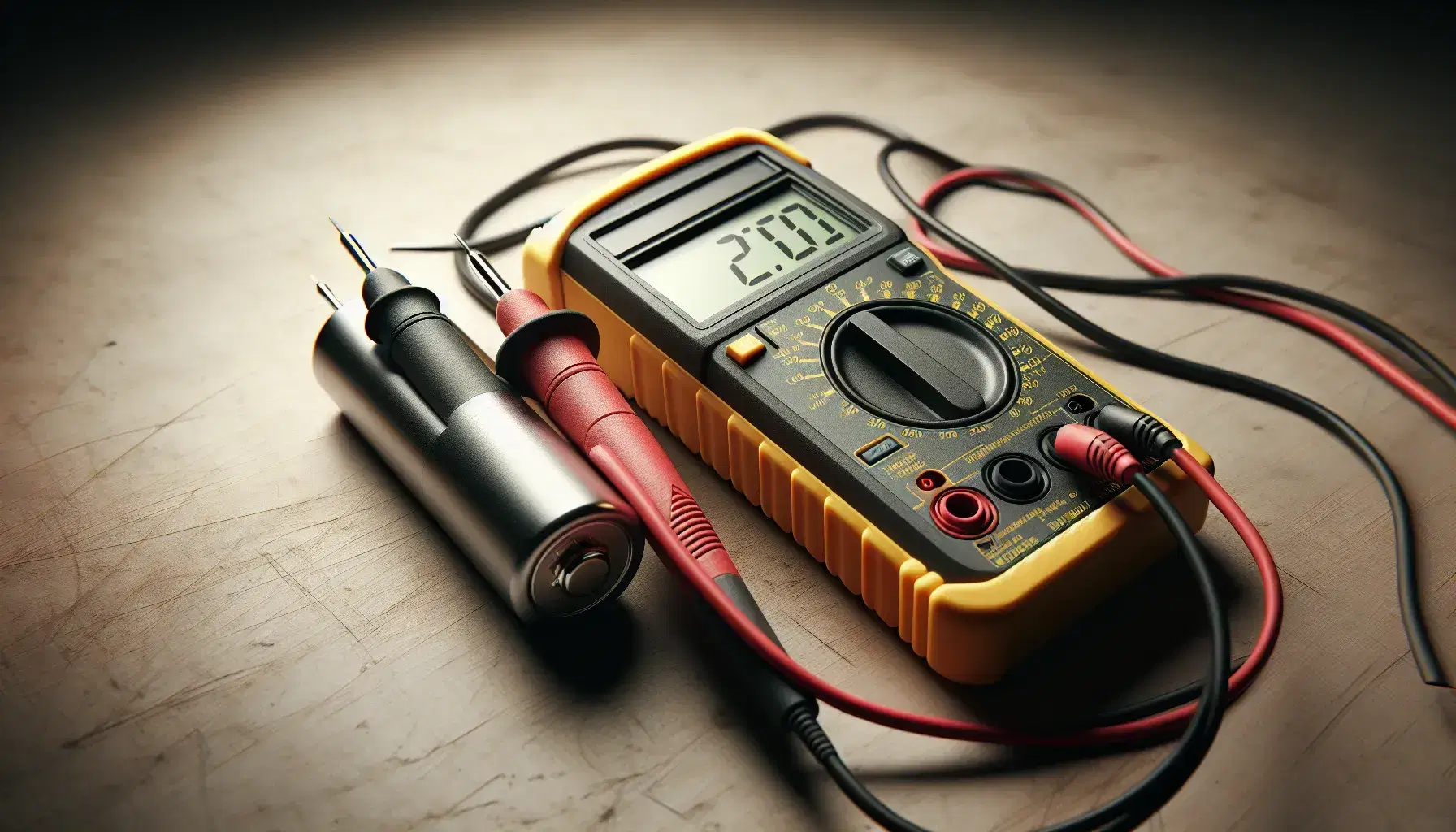

Voltage measurements are conducted using a voltmeter or a multimeter set to the voltage measurement mode. These instruments are designed to be connected in parallel with the circuit element whose voltage is being measured, ensuring that the device's impedance does not significantly affect the current flow through the circuit. Accurate voltage measurement is essential for diagnosing circuit behavior and ensuring the proper functioning of electrical components. Care must be taken to select the appropriate voltage range and to observe polarity when connecting the meter.Voltage as a Function of Work and Charge
The relationship between voltage (V), work (W), and charge (Q) is fundamental to understanding electrical circuits and is given by the equation V = W/Q. This relationship implies that the voltage is proportional to the work done on, or energy transferred to, the charge and inversely proportional to the amount of charge. For instance, if a device requires 10 joules of energy to move 2 coulombs of charge, the voltage across the device is 5 volts. This principle is crucial for calculating the energy consumption of electrical devices and for designing circuits with appropriate power levels.The Role of Electromotive Force in Circuits
Electromotive force (EMF) is a term used to describe the energy supplied by a power source, such as a battery or generator, per unit charge. It is the maximum potential difference between two terminals of a source when no current is flowing. While often equated with voltage, EMF specifically refers to the energy conversion process within the source that drives the flow of charge in a circuit. The EMF must overcome internal resistance within the source to maintain a flow of current, and it is a key parameter in determining the efficiency and power output of electrical sources.Characteristics of DC and AC Voltage
Voltage can be associated with two types of current: direct current (DC) and alternating current (AC). DC voltage is constant and unidirectional, as found in batteries and DC power supplies, making it ideal for electronic devices that require stable voltage levels. AC voltage, on the other hand, varies periodically with time, typically in a sinusoidal manner, as is common in household and industrial power systems. This periodic variation allows for efficient transmission of power over long distances and enables the use of transformers to adjust voltage levels for different applications.Understanding Voltage through Ohm's Law
Ohm's Law is a fundamental principle that relates voltage (V), current (I), and resistance (R) in an electrical circuit. It states that the current through a conductor between two points is directly proportional to the voltage across the two points and inversely proportional to the resistance between them. The formula V = IR encapsulates this relationship and is instrumental in circuit analysis and design. By understanding Ohm's Law, one can predict how changes in voltage will affect current flow and resistance, thereby influencing the performance and safety of electrical systems.Concluding Insights on Voltage
Voltage is a pivotal concept in the realm of electricity, denoting the potential energy per unit charge that facilitates the movement of electrons in a circuit. It is measured in volts and is determined by the work done to move charge between two points. Instruments like voltmeters, connected in parallel, are used to measure voltage accurately. A comprehensive understanding of voltage, including its role in EMF, the distinction between DC and AC voltage, and its relationship with current and resistance as described by Ohm's Law, is indispensable for students and professionals engaged in electrical studies and applications.
Show More

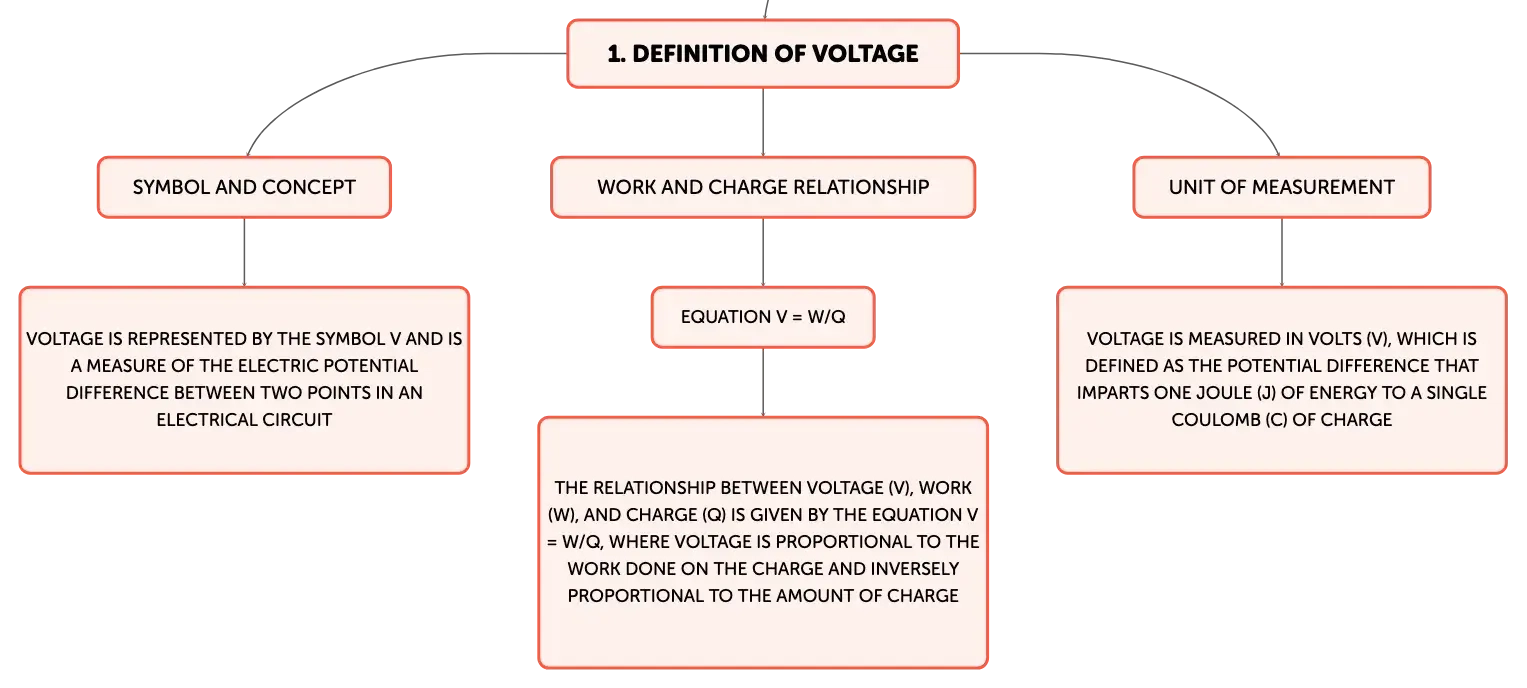

Definition of Voltage
Symbol and Concept
Voltage is represented by the symbol V and is a measure of the electric potential difference between two points in an electrical circuit
Work and Charge Relationship
Equation V = W/Q
The relationship between voltage (V), work (W), and charge (Q) is given by the equation V = W/Q, where voltage is proportional to the work done on the charge and inversely proportional to the amount of charge
Unit of Measurement
Voltage is measured in volts (V), which is defined as the potential difference that imparts one joule (J) of energy to a single coulomb (C) of charge

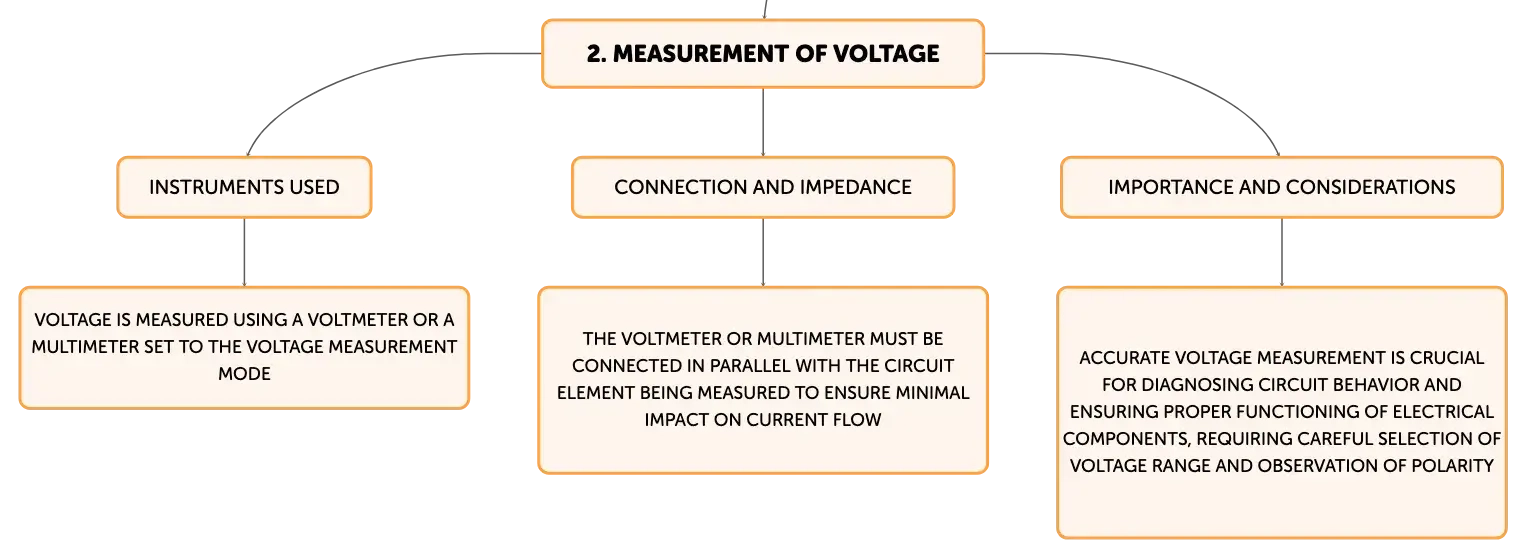

Measurement of Voltage
Instruments Used
Voltage is measured using a voltmeter or a multimeter set to the voltage measurement mode
Connection and Impedance
The voltmeter or multimeter must be connected in parallel with the circuit element being measured to ensure minimal impact on current flow
Importance and Considerations
Accurate voltage measurement is crucial for diagnosing circuit behavior and ensuring proper functioning of electrical components, requiring careful selection of voltage range and observation of polarity

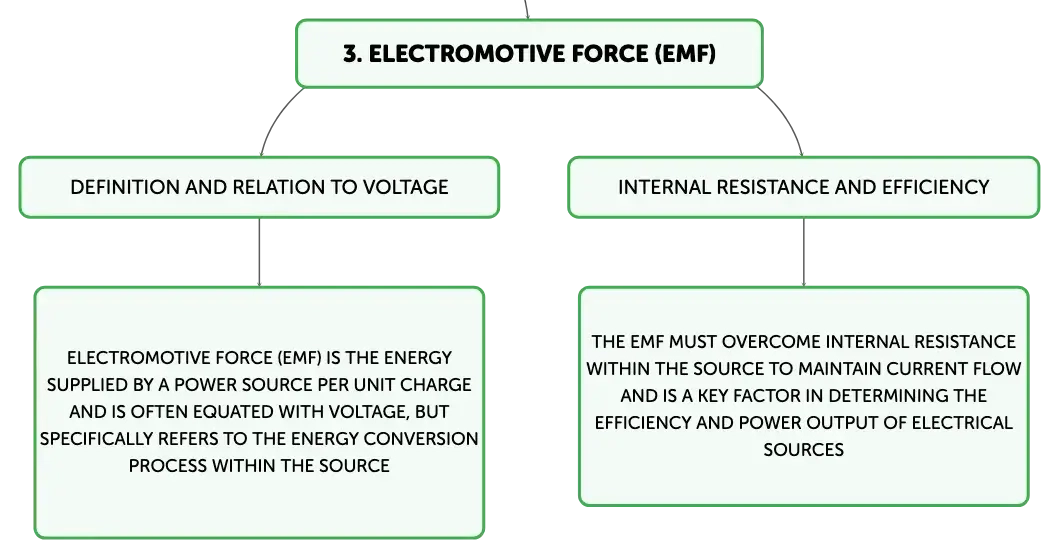

Electromotive Force (EMF)
Definition and Relation to Voltage
Electromotive force (EMF) is the energy supplied by a power source per unit charge and is often equated with voltage, but specifically refers to the energy conversion process within the source
Internal Resistance and Efficiency
The EMF must overcome internal resistance within the source to maintain current flow and is a key factor in determining the efficiency and power output of electrical sources
Types of Voltage
Direct Current (DC)
DC voltage is constant and unidirectional, making it ideal for electronic devices that require stable voltage levels
Alternating Current (AC)
AC voltage varies periodically with time, typically in a sinusoidal manner, allowing for efficient power transmission and use of transformers
Ohm's Law and Relationship to Voltage
Ohm's Law, which states that voltage is directly proportional to current and inversely proportional to resistance, is fundamental in understanding the effects of voltage on current flow and resistance in electrical circuits
Voltage and its Role in Electrical Circuits
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
In electrical circuits, ______ represents the electric potential difference and is symbolized by the letter ______.
Voltage
V
01
Instruments for voltage measurement
Voltmeter or multimeter in voltage mode
02
Importance of accurate voltage measurement
Diagnoses circuit behavior, ensures component functioning
