Column Chromatography

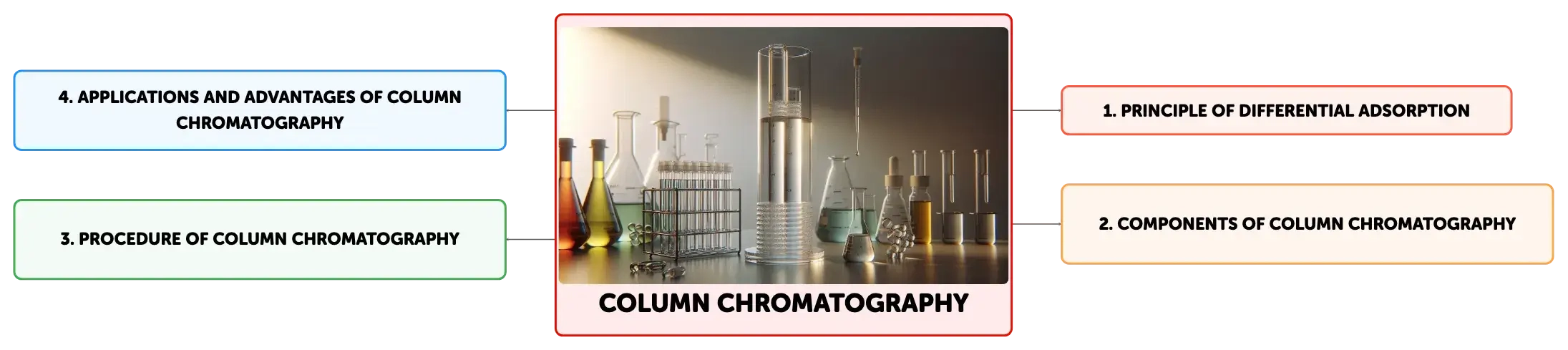

Concept Map
Column chromatography is a fundamental technique in analytical chemistry for separating and purifying compounds in mixtures. It utilizes the differential adsorption principle with a stationary phase and a mobile phase to isolate components. The process is influenced by the properties of the substances and the phases used, and it is crucial for research and development in various fields, including pharmaceuticals and environmental analysis.
Summary
Outline
Fundamentals of Column Chromatography
Column chromatography is an essential technique in analytical chemistry for the separation and purification of compounds within a mixture. It operates on the principle of differential adsorption, with a stationary phase composed of a finely divided solid adsorbent, such as silica gel or alumina, packed into a vertical glass column. The mobile phase, a liquid solvent, percolates through the stationary phase, carrying the sample mixture with it. As the mixture moves down the column, its constituents separate based on their unique interactions with the stationary phase, resulting in the isolation of purified components at different times.Principles of Chromatographic Separation
Chromatography exploits the differential partitioning of components between a mobile phase and a stationary phase to achieve separation. In column chromatography, the sample is applied at the top of the column and the mobile phase is allowed to flow through it. The components of the mixture have different affinities for the stationary phase, causing them to elute at varying rates. The separation is influenced by the polarity, molecular weight, and solubility of the substances, as well as the choice of the mobile phase, which can be optimized to enhance the resolution of the components.Characteristics of the Stationary Phase
The stationary phase in column chromatography is critical to the separation process and is typically a granular solid with a high surface area, such as silica gel or alumina. The properties of the stationary phase, including particle size, surface chemistry, and porosity, are selected based on the nature of the sample and the desired separation. It must be chemically inert to avoid reacting with the sample or the mobile phase. The stationary phase's ability to selectively adsorb and release the components of the mixture is what enables the chromatographic separation.The Mobile Phase in Chromatography
The mobile phase, or eluent, is the solvent system that transports the sample through the stationary phase. Its composition is carefully chosen to optimize the separation of the mixture's components based on their solubility and interaction with the stationary phase. The polarity, pH, and strength of the mobile phase are adjusted to control the rate at which the components move through the column, which is crucial for achieving a successful separation.Understanding Retention Times and Affinity
Retention time is the interval required for a component to pass through the column and is a key parameter in chromatography. It is influenced by the interaction strength between the component and the stationary phase, the flow rate of the mobile phase, and the column's dimensions. Components with a higher affinity for the stationary phase exhibit longer retention times, as they are retained longer within the column. Conversely, those with a greater affinity for the mobile phase elute more quickly. Understanding these interactions allows for the prediction and manipulation of retention times to optimize the separation process.Procedure for Column Chromatography
To perform column chromatography, a column is first prepared by packing it with the stationary phase and equilibrating it with the mobile phase. A sample is then carefully applied to the top of the column, and the mobile phase is introduced to elute the sample through the stationary phase. Fractions are collected at the column's outlet over time, each potentially containing different components of the original mixture. The flow rate and composition of the mobile phase can be varied to refine the separation.Analysis of Chromatographic Results
The separated components are collected in fractions and can be analyzed or further purified as needed. Techniques such as spectroscopy, mass spectrometry, or additional chromatography can be employed to identify and characterize the compounds. The purity of the fractions can be assessed, and if necessary, further purification steps can be taken. The results provide valuable information about the composition and properties of the original mixture, facilitating research and development in various fields.Advantages and Applications of Column Chromatography
Column chromatography is a versatile and widely used technique with several advantages, including the ability to handle a wide range of sample sizes, the flexibility in choosing stationary and mobile phases, and the potential for scale-up. It is employed in numerous applications, from pharmaceuticals to environmental analysis, for tasks such as purifying chemical compounds, isolating natural products, and analyzing complex mixtures. While advanced techniques like high-performance liquid chromatography (HPLC) offer greater speed and resolution, traditional column chromatography remains a valuable tool due to its simplicity, cost-effectiveness, and educational value in teaching the principles of separation science.
Show More

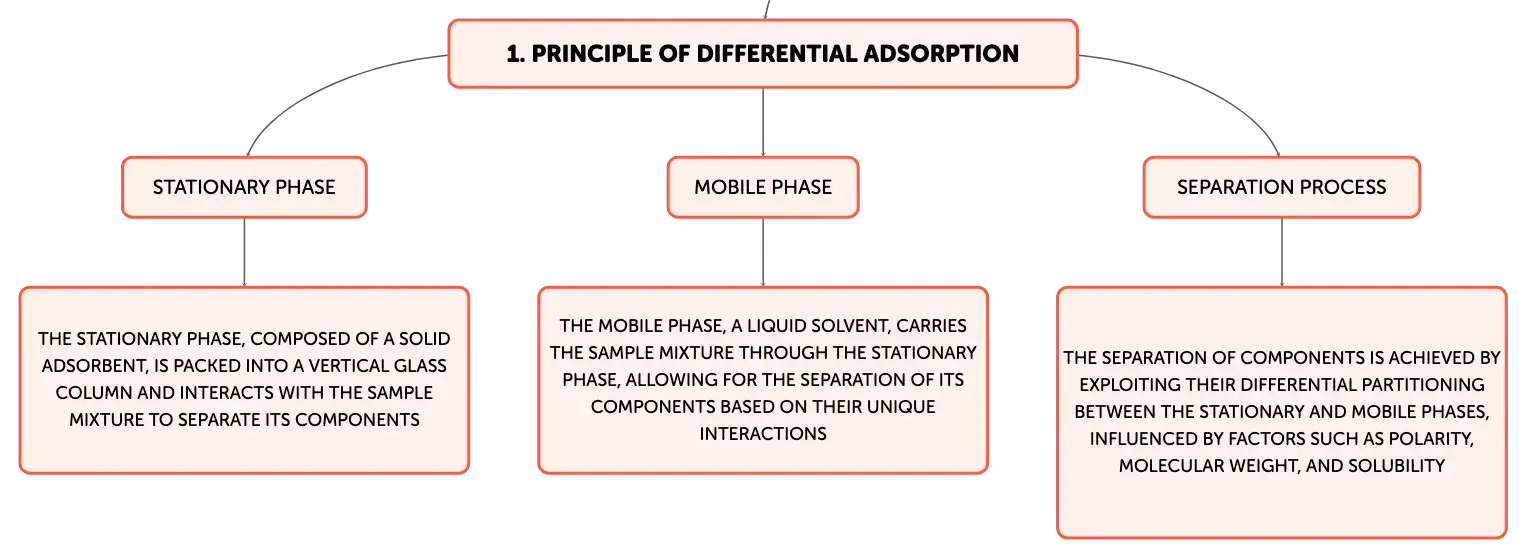

Principle of Differential Adsorption
Stationary Phase
The stationary phase, composed of a solid adsorbent, is packed into a vertical glass column and interacts with the sample mixture to separate its components
Mobile Phase
The mobile phase, a liquid solvent, carries the sample mixture through the stationary phase, allowing for the separation of its components based on their unique interactions
Separation Process
The separation of components is achieved by exploiting their differential partitioning between the stationary and mobile phases, influenced by factors such as polarity, molecular weight, and solubility

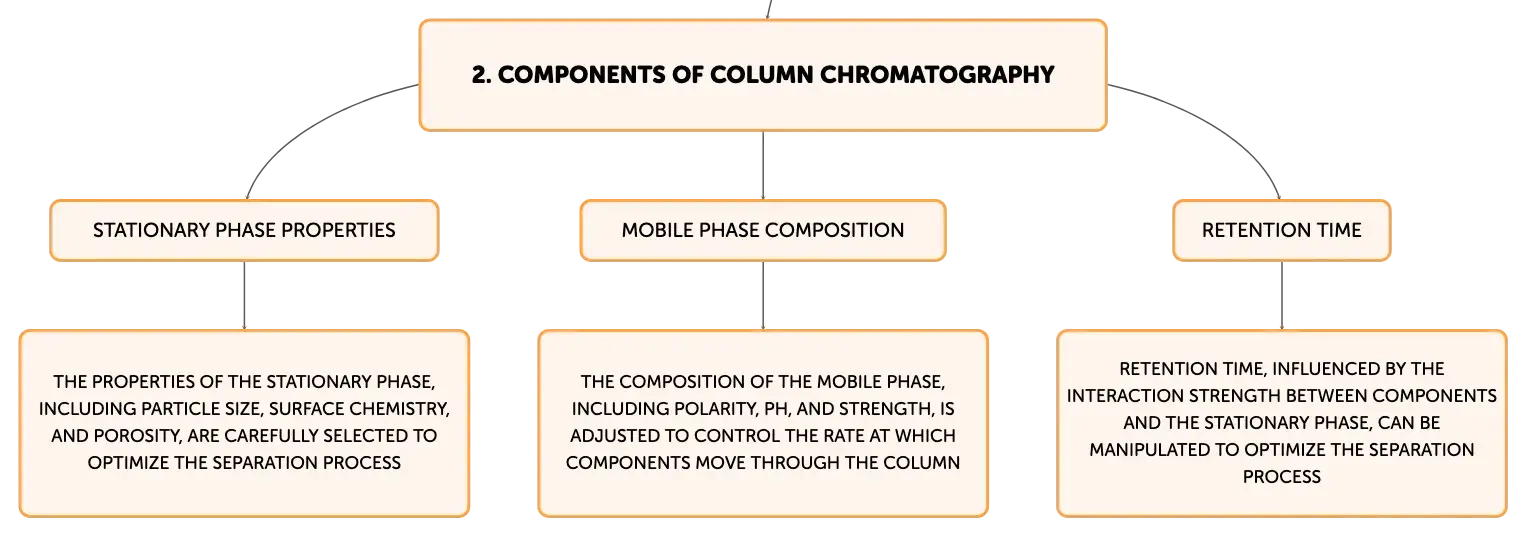

Components of Column Chromatography
Stationary Phase Properties
The properties of the stationary phase, including particle size, surface chemistry, and porosity, are carefully selected to optimize the separation process
Mobile Phase Composition
The composition of the mobile phase, including polarity, pH, and strength, is adjusted to control the rate at which components move through the column
Retention Time
Retention time, influenced by the interaction strength between components and the stationary phase, can be manipulated to optimize the separation process

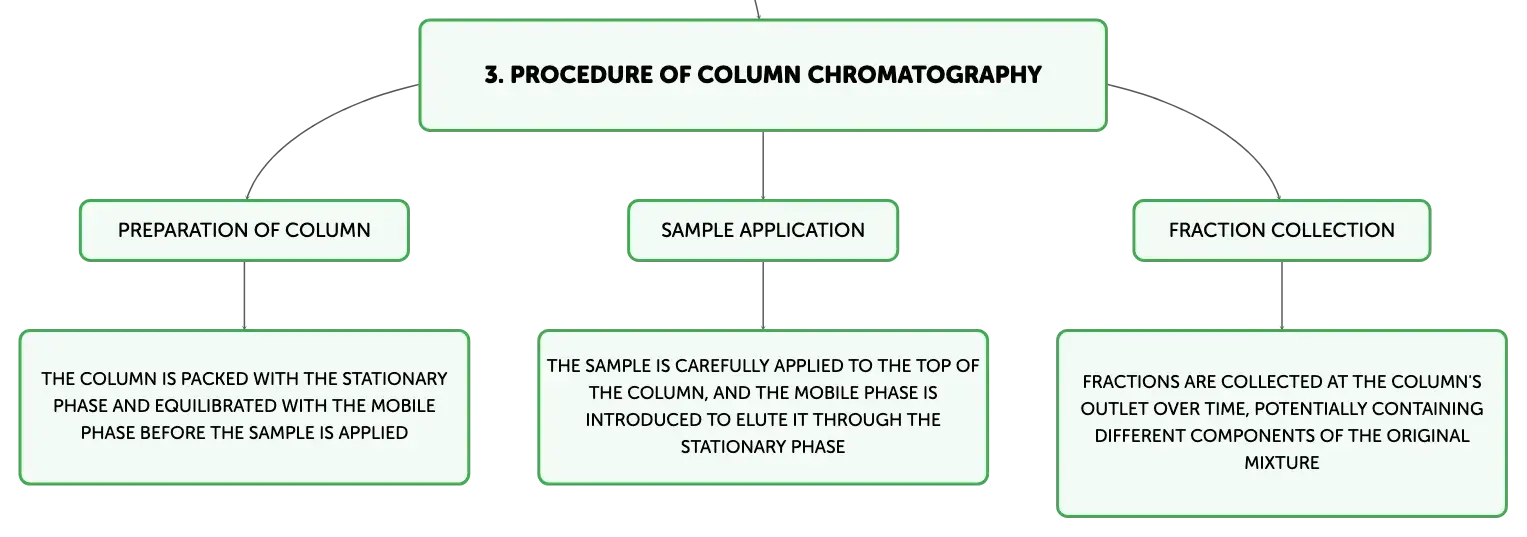

Procedure of Column Chromatography
Preparation of Column
The column is packed with the stationary phase and equilibrated with the mobile phase before the sample is applied
Sample Application
The sample is carefully applied to the top of the column, and the mobile phase is introduced to elute it through the stationary phase
Fraction Collection
Fractions are collected at the column's outlet over time, potentially containing different components of the original mixture

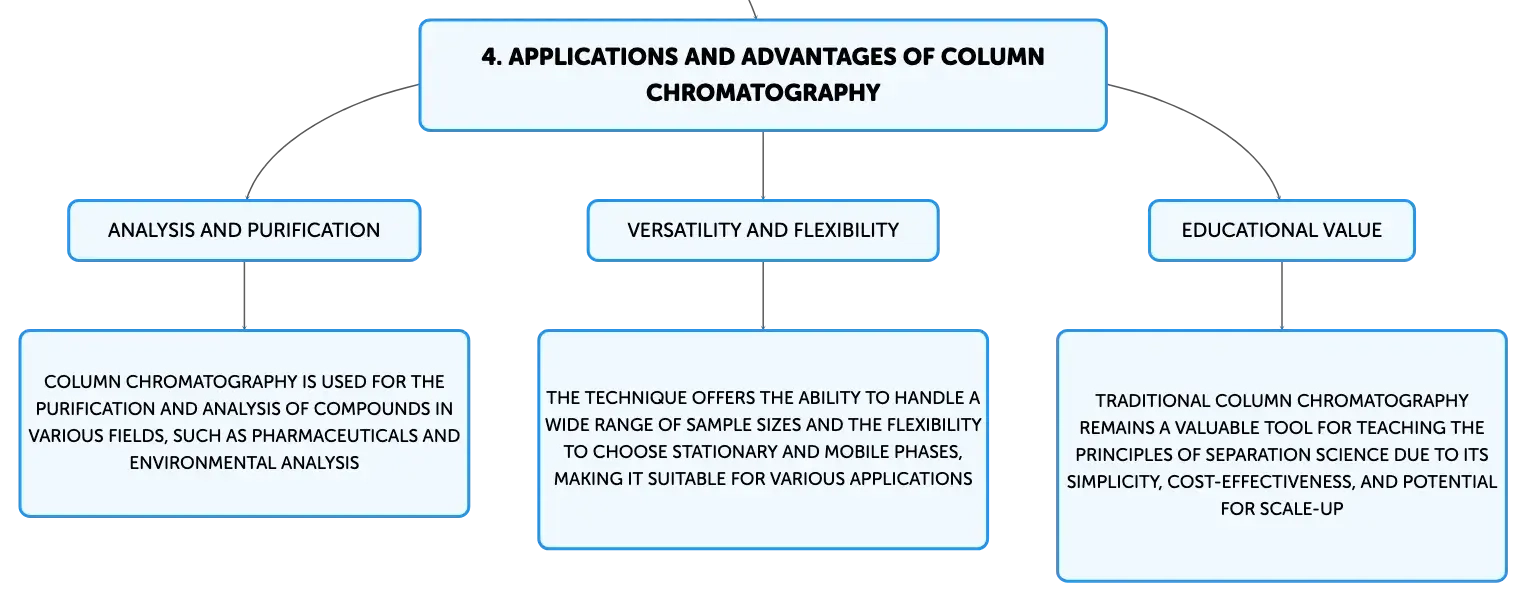

Applications and Advantages of Column Chromatography
Analysis and Purification
Column chromatography is used for the purification and analysis of compounds in various fields, such as pharmaceuticals and environmental analysis
Versatility and Flexibility
The technique offers the ability to handle a wide range of sample sizes and the flexibility to choose stationary and mobile phases, making it suitable for various applications
Educational Value
Traditional column chromatography remains a valuable tool for teaching the principles of separation science due to its simplicity, cost-effectiveness, and potential for scale-up
Column Chromatography
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
The technique relies on ______ adsorption and uses a ______ phase made of a solid like silica gel or alumina in a vertical glass ______.
differential
stationary
column
01
Chromatography Principle
Separation based on differential partitioning between mobile and stationary phases.
02
Column Chromatography Process
Sample applied at column top, mobile phase flows through, components elute at different rates.
