Medical Imaging Techniques

Concept Map

Exploring the roles of PET and CT scans in medical diagnostics, this overview highlights their unique functions. PET scans detect metabolic activity and are crucial for cancer and neurological disorder diagnosis. CT scans provide detailed anatomical images, aiding in identifying structural issues and planning treatments. The integration of both scans offers a comprehensive diagnostic tool, enhancing the precision of medical assessments and treatment plans.

Summary

Outline

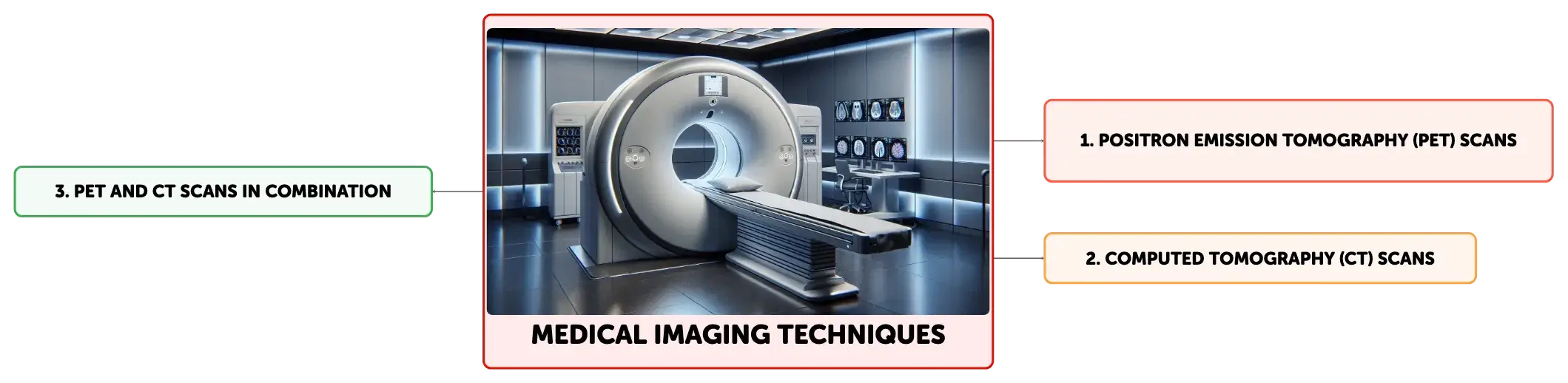

Medical Imaging Techniques

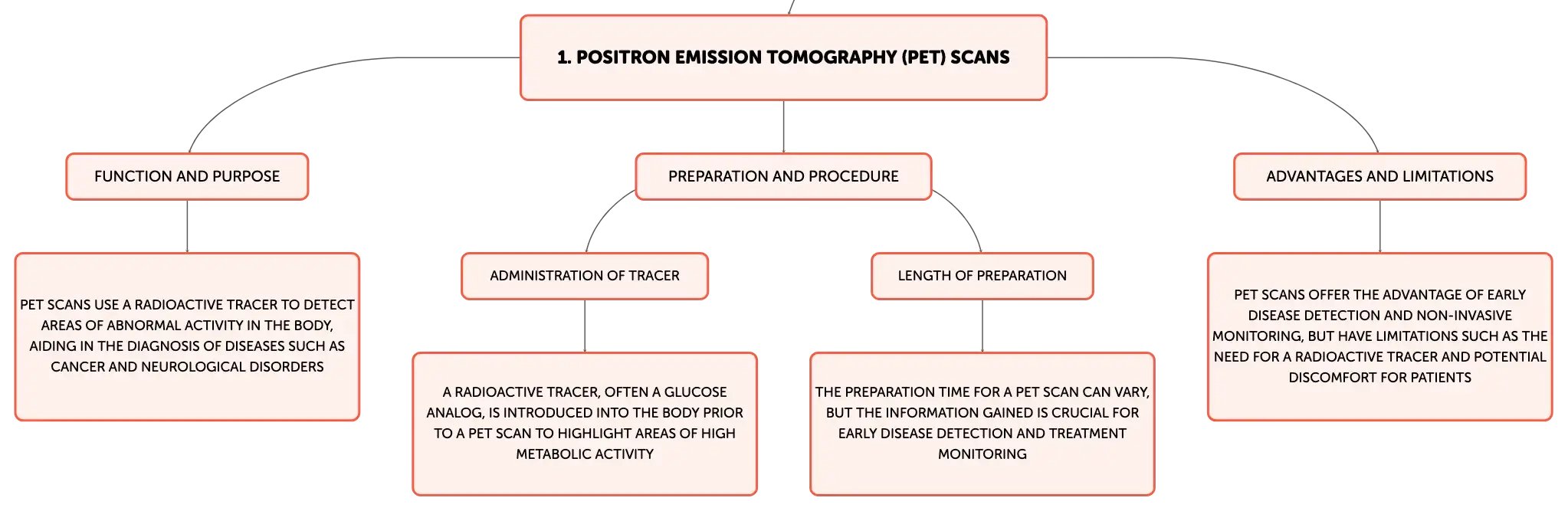

Positron Emission Tomography (PET) Scans

Function and Purpose

PET scans use a radioactive tracer to detect areas of abnormal activity in the body, aiding in the diagnosis of diseases such as cancer and neurological disorders

Preparation and Procedure

Administration of Tracer

A radioactive tracer, often a glucose analog, is introduced into the body prior to a PET scan to highlight areas of high metabolic activity

Length of Preparation

The preparation time for a PET scan can vary, but the information gained is crucial for early disease detection and treatment monitoring

Advantages and Limitations

PET scans offer the advantage of early disease detection and non-invasive monitoring, but have limitations such as the need for a radioactive tracer and potential discomfort for patients

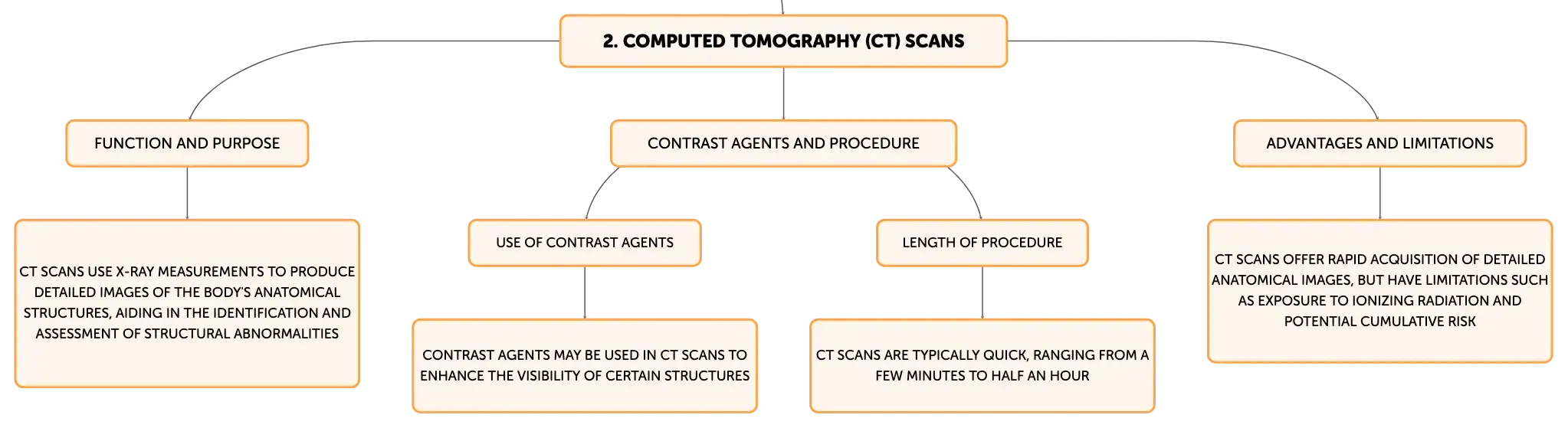

Computed Tomography (CT) Scans

Function and Purpose

CT scans use X-ray measurements to produce detailed images of the body's anatomical structures, aiding in the identification and assessment of structural abnormalities

Contrast Agents and Procedure

Use of Contrast Agents

Contrast agents may be used in CT scans to enhance the visibility of certain structures

Length of Procedure

CT scans are typically quick, ranging from a few minutes to half an hour

Advantages and Limitations

CT scans offer rapid acquisition of detailed anatomical images, but have limitations such as exposure to ionizing radiation and potential cumulative risk

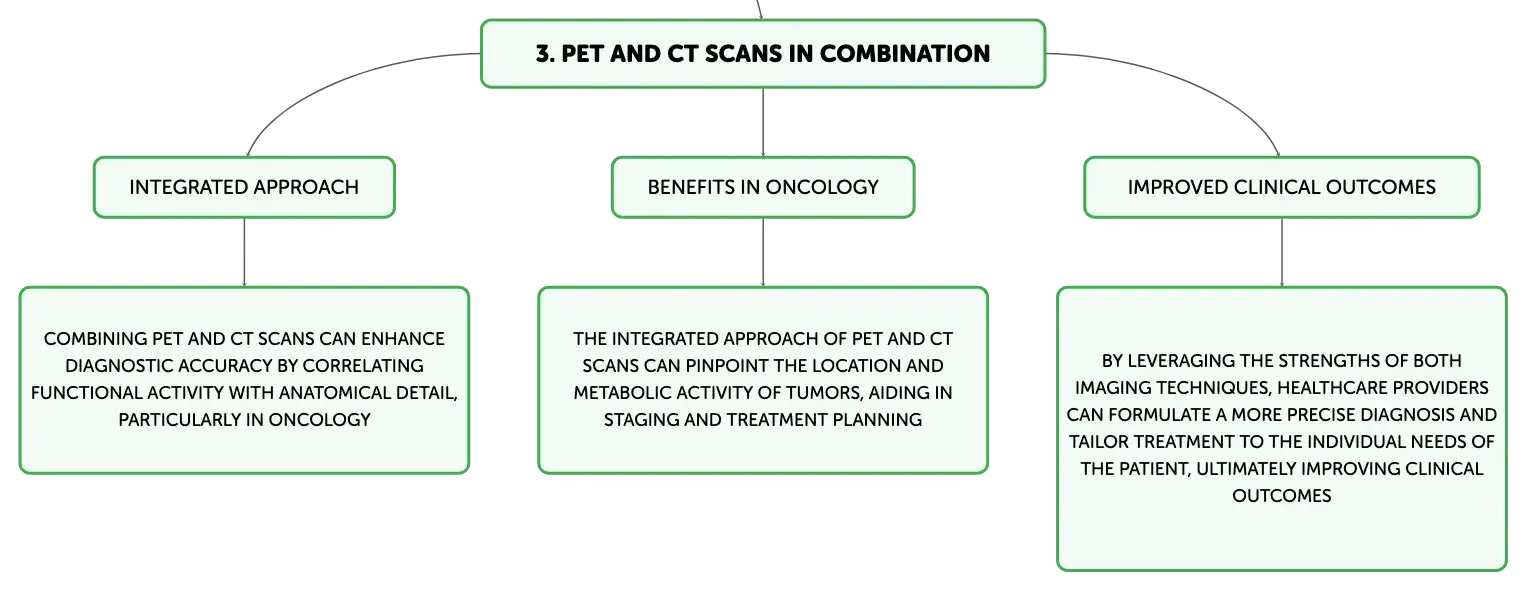

PET and CT Scans in Combination

Integrated Approach

Combining PET and CT scans can enhance diagnostic accuracy by correlating functional activity with anatomical detail, particularly in oncology

Benefits in Oncology

The integrated approach of PET and CT scans can pinpoint the location and metabolic activity of tumors, aiding in staging and treatment planning

Improved Clinical Outcomes

By leveraging the strengths of both imaging techniques, healthcare providers can formulate a more precise diagnosis and tailor treatment to the individual needs of the patient, ultimately improving clinical outcomes

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

______ is essential in modern healthcare, allowing for internal body examination without surgery.

Medical imaging

Radioactive tracer in PET scans

A glucose analog that accumulates in high metabolic areas, emitting positrons for gamma ray production.

PET scan utility in cancer detection

Useful for identifying cancerous tissues due to their high metabolic rate compared to normal tissues.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Close up of a karyotype with chromosomes sorted into pairs, distinct XX or XY sex chromosomes and purple banding pattern on a white background.

Sex Chromosome Variations and Their Effects

Human adrenal gland above a kidney with vial of amber liquid symbolizing hormones, blurred laboratory background.

The Fight-or-Flight Response

Natural landscape with day-night transition, light blue to dark blue sky with sun and moon, field of sunflowers and primroses, tree and animals.

Biological Rhythms

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Exploring Medical Imaging: PET and CT Scans

Medical imaging is a critical tool in modern medicine, providing insights into the human body without the need for invasive procedures. Positron Emission Tomography (PET) and Computed Tomography (CT) scans, formerly known as CAT scans, are two such imaging techniques. PET scans are used to observe metabolic processes and detect areas of abnormal activity, which can be indicative of diseases such as cancer or neurological disorders. CT scans, on the other hand, offer detailed images of the body's anatomical structures, differentiating between various types of tissues with great accuracy. Both imaging modalities have their unique applications and are often used complementarily in clinical practice.

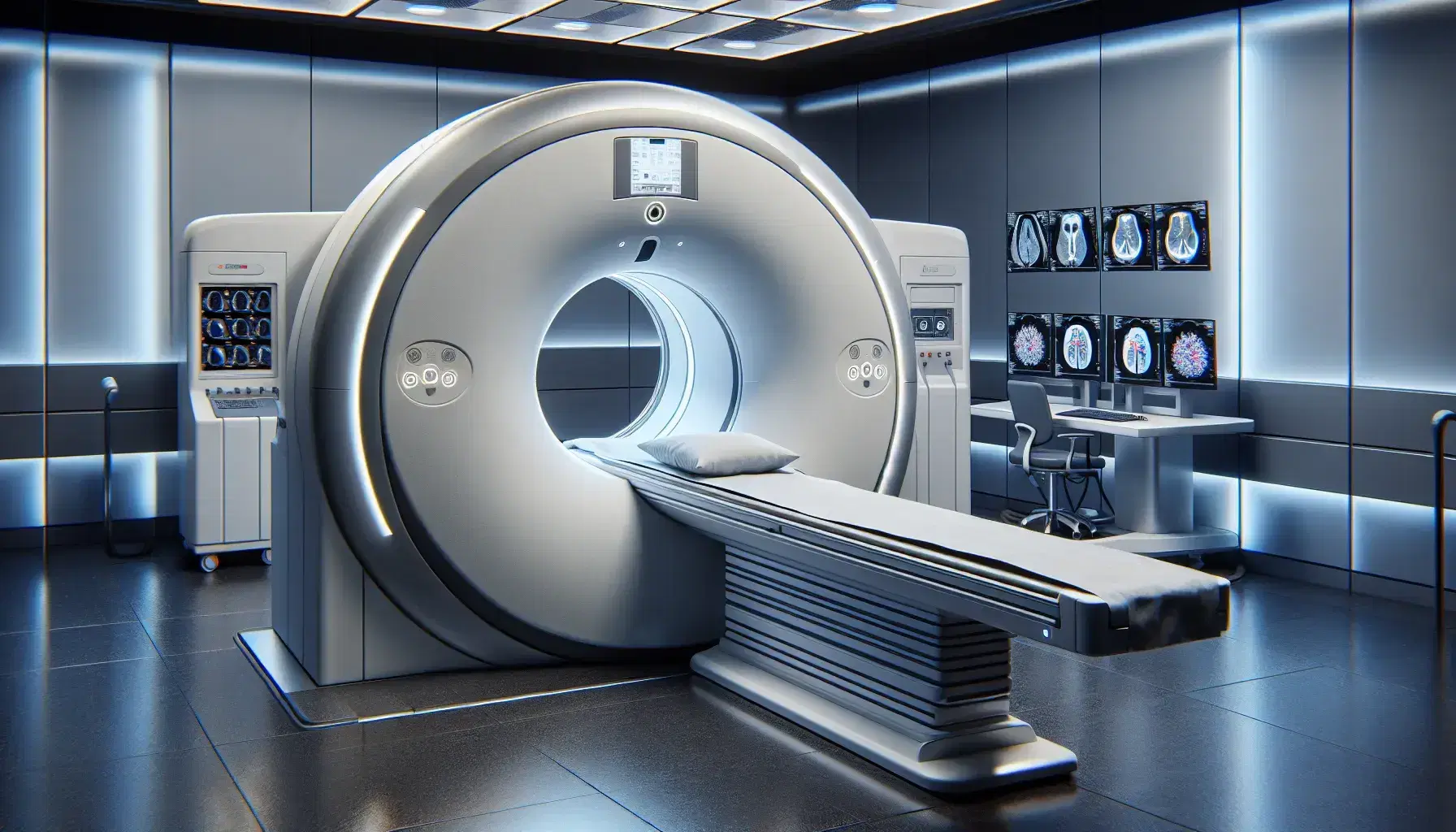

Modern medical imaging room with white and gray CT scanner and metallic PET machine, technology console and healthcare professional.

The Principles and Applications of PET Scans

PET scans function by introducing a radioactive tracer, often a glucose analog, into the body. This tracer accumulates in regions of high metabolic activity and emits positrons that interact with electrons, producing gamma rays. These emissions are captured by the PET scanner to create a detailed image of the body's functional processes. PET scans are particularly useful for detecting cancer, assessing brain function, and evaluating the effectiveness of therapeutic interventions. The preparation for a PET scan includes a period for the tracer to distribute throughout the body, which can vary in length, but the information gained is invaluable for early disease detection and treatment monitoring.

Understanding CT Scan Technology

CT scans employ a series of X-ray measurements taken from different angles to produce cross-sectional images or 'slices' of the body. These slices are then reconstructed by a computer into a three-dimensional image of the scanned area. CT scans can be performed with or without contrast agents, which are substances used to enhance the visibility of certain structures. The procedure is typically quick, ranging from a few minutes to half an hour. CT scans excel at identifying and assessing structural abnormalities, such as fractures, tumors, and vascular diseases, and are invaluable in planning surgical interventions and other treatments.

Distinguishing Between PET and CT Scans

PET and CT scans are distinct in their purpose and the type of information they provide. PET scans are functional imaging tools, highlighting cellular activity and metabolism, while CT scans focus on detailed anatomical visualization. PET scans require the administration of a radioactive tracer and have a longer preparation time, whereas CT scans are generally faster and involve exposure to ionizing radiation. Each modality has its specific indications, and the choice between them depends on the clinical question at hand. In some instances, both scans may be used together to obtain a more comprehensive diagnostic picture.

Benefits and Limitations of PET Scans

PET scans offer the advantage of detecting diseases at an early stage and monitoring physiological functions, particularly in oncology and neurology. They are non-invasive and provide critical information that can guide treatment decisions. However, PET scans have limitations, including the need for a radioactive tracer, which carries a small risk of adverse reactions, and the potential discomfort or anxiety experienced by patients during the procedure. Special considerations are required for patients with certain conditions, such as diabetes, due to the use of glucose-based tracers.

Advantages and Drawbacks of CT Scans

CT scans are valued for their rapid acquisition of detailed anatomical images, which can reduce the need for exploratory surgery and other invasive diagnostic techniques. The use of ionizing radiation, however, poses a risk of cumulative exposure, which must be carefully considered, especially in pediatric and young adult populations. The number of CT scans a patient can undergo is therefore limited, and the procedure is generally avoided during pregnancy to prevent potential harm to the developing fetus.

Integrating PET and CT Scans for Comprehensive Diagnostics

Combining PET and CT scans can enhance diagnostic accuracy by correlating functional activity with anatomical detail. This integrated approach is particularly beneficial in oncology, where it can pinpoint the location and metabolic activity of tumors, aiding in staging and treatment planning. By leveraging the strengths of both imaging techniques, healthcare providers can formulate a more precise diagnosis and tailor treatment to the individual needs of the patient, ultimately improving clinical outcomes.
