Mass Spectrometry and Organic Chemistry

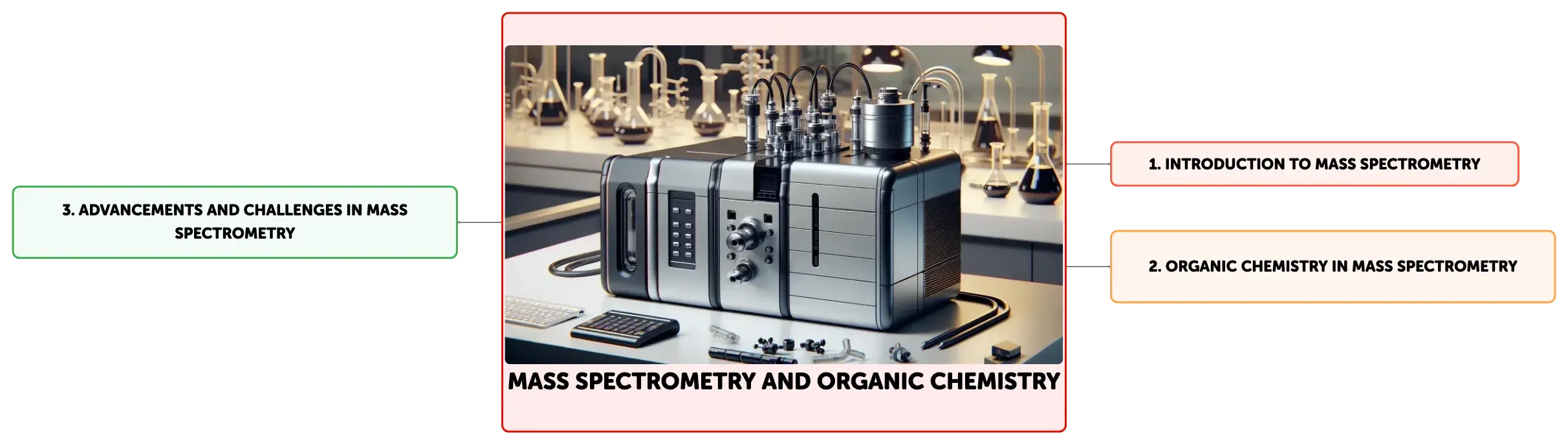

Concept Map
Mass spectrometry is a pivotal analytical technique for determining the molecular composition and structure of chemical substances. It involves ionizing a sample and separating ions by mass-to-charge ratio. The mass spectrum, which displays ion intensity versus mass-to-charge, reveals the molecular weight and structure through peaks. Key concepts include understanding molecular ion peaks, base peaks, fragmentation patterns, and ionization methods like EI and MALDI. Organic chemistry plays a vital role in interpreting these spectra, with specific fragmentation mechanisms such as the McLafferty Rearrangement providing structural insights. Advanced techniques like HRMS and MS/MS offer increased accuracy and structural elucidation, despite challenges in interpretation.
Summary
Outline
Understanding Mass Spectrometry in Chemical Analysis
Mass spectrometry is an analytical technique critical for determining the molecular composition and structure of chemical substances. In this process, a sample is ionized, and the resulting ions are separated based on their mass-to-charge ratio (\( m/z \)). The resulting mass spectrum is a plot of ion intensity versus \( m/z \), where each peak corresponds to an ion of a specific mass. The most intense peak, known as the "base peak," represents the most abundant ion, while the peak corresponding to the intact molecule, often called the "molecular ion" or "parent peak," indicates the molecular weight of the sample. The pattern of peaks, or fragmentation pattern, provides insight into the molecular structure. Interpreting a mass spectrum requires a combination of knowledge about the mass spectrometer, analytical skills, and a solid understanding of organic chemistry to piece together the molecular puzzle and identify the substance in question.Essential Concepts in Mass Spectrometry
Accurate interpretation of mass spectra hinges on understanding several fundamental concepts. The molecular ion peak, denoted as (M+), is typically the peak with the highest \( m/z \) value and represents the unfragmented molecule, giving the molecular weight. The base peak, by contrast, is the result of the most stable ion formed during the fragmentation process. The pattern of fragmentation provides clues to the molecule's structure, such as the presence of specific functional groups and isotopic distributions. Different ionization techniques, such as Electron Ionization (EI) and Matrix-Assisted Laser Desorption/Ionization (MALDI), are employed depending on the nature of the sample and the information sought. EI is a 'hard ionization' technique that induces extensive fragmentation, yielding detailed structural information, while MALDI is a 'soft ionization' technique that preserves the intact molecular ion, useful for analyzing large biomolecules.Organic Chemistry's Contribution to Mass Spectrometry
Organic chemistry is integral to the interpretation of mass spectra. A thorough understanding of ionization-induced fragmentation mechanisms, the behavior of functional groups under ionization conditions, and the recognition of isotopic patterns is essential. For example, the isotopic pattern of bromine, with two peaks of nearly equal intensity separated by two mass units, is indicative of its presence in a compound. Such knowledge is indispensable for chemists in elucidating and confirming the structures of organic molecules.The McLafferty Rearrangement in Mass Spectrometry
The McLafferty Rearrangement is a specific type of fragmentation that is particularly informative for identifying certain functional groups in organic molecules. This rearrangement involves the transfer of a γ-hydrogen atom to a double bond, usually involving oxygen, and the subsequent cleavage of a sigma bond, leading to a characteristic ion and a neutral molecule. The detection of a peak at \( m/z = M - 18 \) (not 28, as previously stated) for molecules containing a ketone group is an example of this rearrangement. Understanding such fragmentation patterns is crucial for deducing the structure of organic compounds and demonstrates the close relationship between mass spectrometry and organic chemistry.Practical Application of Mass Spectra Interpretation
The interpretation of mass spectra is best learned through practical examples. Identifying the molecular ion peak is the initial step, which provides the molecular weight of the compound. Recognizing isotopic patterns, such as those for elements like bromine and chlorine, can facilitate the identification process. For instance, a compound containing bromine will exhibit two significant molecular ion peaks with a 2 amu difference. The Nitrogen Rule is another helpful tool, indicating that compounds with an odd number of nitrogen atoms will have an odd-numbered molecular ion peak. These examples highlight the importance of hands-on experience in becoming proficient at interpreting mass spectra.Advancements and Challenges in Mass Spectrometry
Mass spectrometry continues to evolve with the development of advanced techniques such as High-Resolution Mass Spectrometry (HRMS) and Tandem Mass Spectrometry (MS/MS), which increase the accuracy of molecular identification. HRMS can distinguish between atoms with very similar masses, and MS/MS allows for detailed structural elucidation through sequential fragmentation processes. Despite these advancements, challenges such as complex fragmentation patterns, peak overlap, and signal noise can complicate interpretation. However, the use of soft ionization techniques, high-resolution instruments, and computational analysis can mitigate these issues, enabling precise interpretation of mass spectra and furthering scientific discovery in diverse fields.
Show More

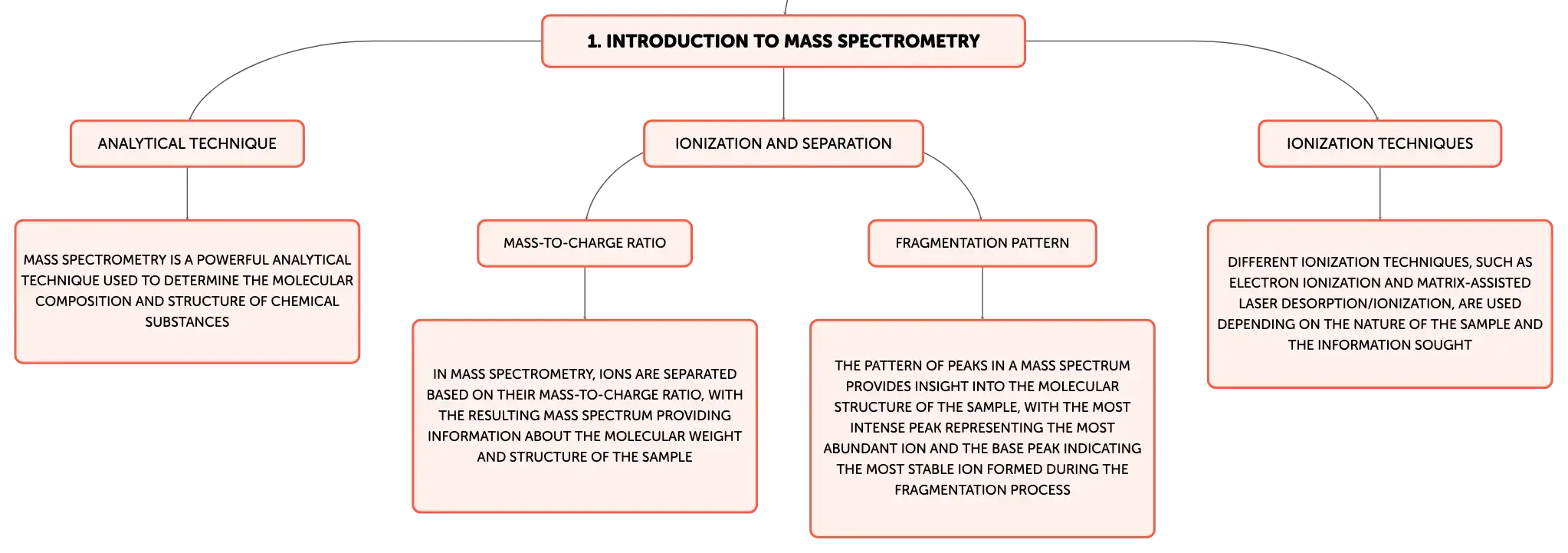

Introduction to Mass Spectrometry
Analytical Technique
Mass spectrometry is a powerful analytical technique used to determine the molecular composition and structure of chemical substances
Ionization and Separation
Mass-to-Charge Ratio
In mass spectrometry, ions are separated based on their mass-to-charge ratio, with the resulting mass spectrum providing information about the molecular weight and structure of the sample
Fragmentation Pattern
The pattern of peaks in a mass spectrum provides insight into the molecular structure of the sample, with the most intense peak representing the most abundant ion and the base peak indicating the most stable ion formed during the fragmentation process
Ionization Techniques
Different ionization techniques, such as Electron Ionization and Matrix-Assisted Laser Desorption/Ionization, are used depending on the nature of the sample and the information sought

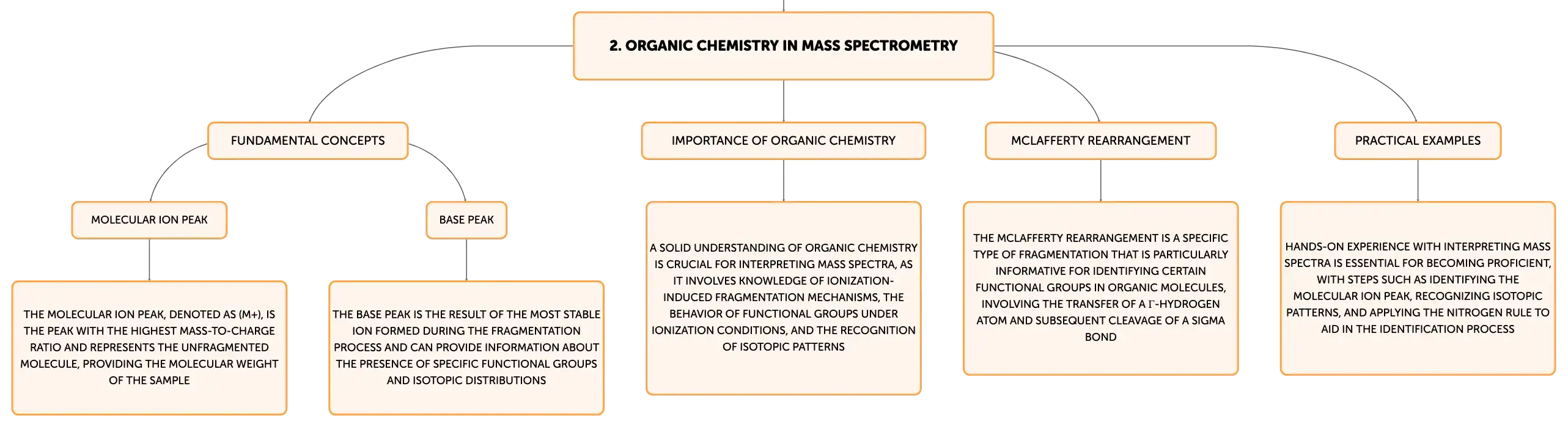

Organic Chemistry in Mass Spectrometry
Fundamental Concepts
Molecular Ion Peak
The molecular ion peak, denoted as (M+), is the peak with the highest mass-to-charge ratio and represents the unfragmented molecule, providing the molecular weight of the sample
Base Peak
The base peak is the result of the most stable ion formed during the fragmentation process and can provide information about the presence of specific functional groups and isotopic distributions
Importance of Organic Chemistry
A solid understanding of organic chemistry is crucial for interpreting mass spectra, as it involves knowledge of ionization-induced fragmentation mechanisms, the behavior of functional groups under ionization conditions, and the recognition of isotopic patterns
McLafferty Rearrangement
The McLafferty Rearrangement is a specific type of fragmentation that is particularly informative for identifying certain functional groups in organic molecules, involving the transfer of a γ-hydrogen atom and subsequent cleavage of a sigma bond
Practical Examples
Hands-on experience with interpreting mass spectra is essential for becoming proficient, with steps such as identifying the molecular ion peak, recognizing isotopic patterns, and applying the Nitrogen Rule to aid in the identification process
Advancements and Challenges in Mass Spectrometry
Advanced Techniques
High-Resolution Mass Spectrometry
High-Resolution Mass Spectrometry can distinguish between atoms with very similar masses, increasing the accuracy of molecular identification
Tandem Mass Spectrometry
Tandem Mass Spectrometry allows for detailed structural elucidation through sequential fragmentation processes
Challenges
Complex Fragmentation Patterns
The complexity of fragmentation patterns can make interpretation of mass spectra challenging
Peak Overlap and Signal Noise
Peak overlap and signal noise can also complicate interpretation, but can be mitigated by using soft ionization techniques, high-resolution instruments, and computational analysis
Mass Spectrometry and Organic Chemistry
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
______ is a vital technique for identifying the molecular composition and structure of chemicals by ionizing a sample and analyzing the ions.
Mass spectrometry
01
The interpretation of a mass spectrum involves expertise in the mass spectrometer, analytical skills, and a thorough grasp of ______ to deduce the molecular structure.
organic chemistry
02
Molecular ion peak significance in mass spectra
Represents unfragmented molecule, indicates molecular weight.
