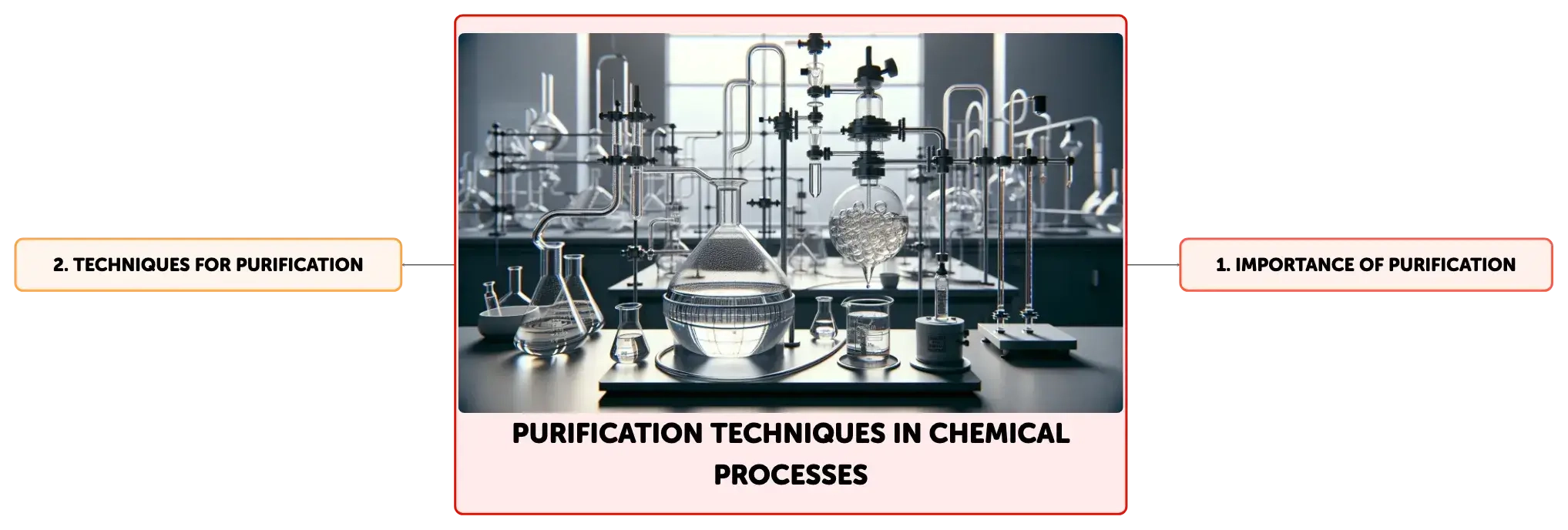

Concept Map

Algorino

Edit available

Purification in chemical processes is vital for isolating desired substances and ensuring product safety and effectiveness. Techniques like filtration, crystallization, liquid-liquid extraction, and distillation are based on physical or chemical properties to achieve purity. The synthesis of aspirin serves as a case study demonstrating the practical application of these methods, highlighting the importance of purification in industries such as pharmaceuticals and food production.

Summary

Outline

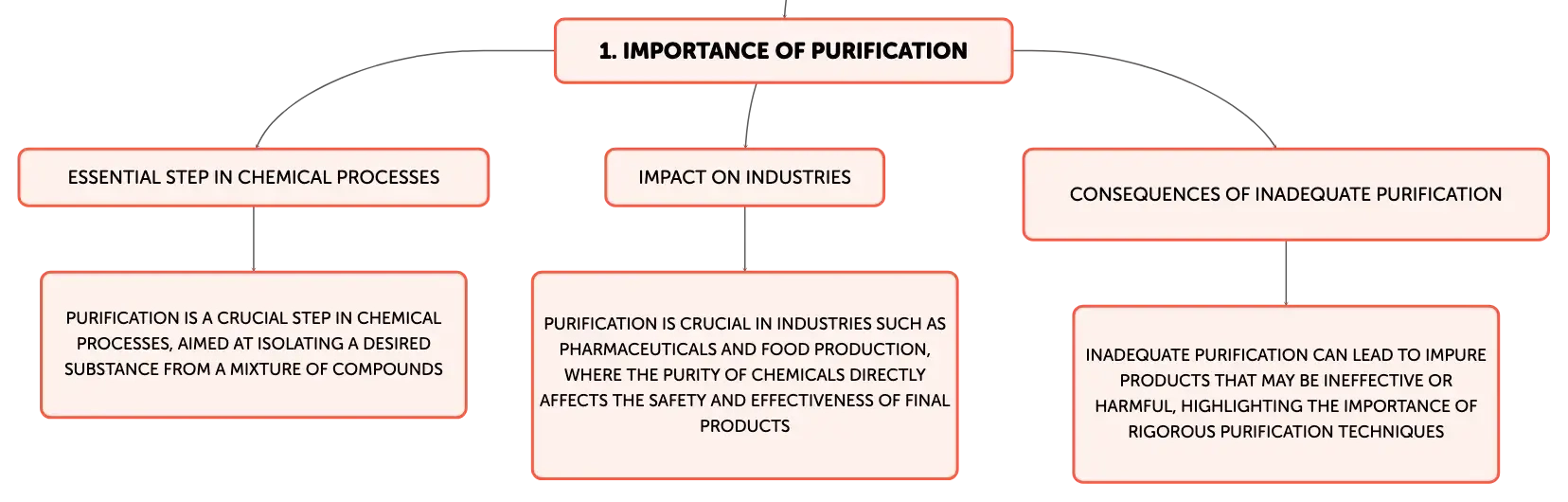

The Role of Purification in Chemical Processes

Purification is an essential step in chemical processes, aimed at isolating a desired substance from a mixture of compounds. It is crucial in various industries, particularly pharmaceuticals and food production, where the purity of chemicals directly affects the safety and effectiveness of the final products. For instance, drug manufacturing requires the isolation of active pharmaceutical ingredients from complex mixtures containing reactants, by-products, and other contaminants. Inadequate purification can lead to impure products that may be ineffective or harmful, underscoring the importance of employing rigorous purification techniques.

Chemical laboratory with distillation equipment, Liebig condenser, rotary evaporator and separating funnel with immiscible liquids.

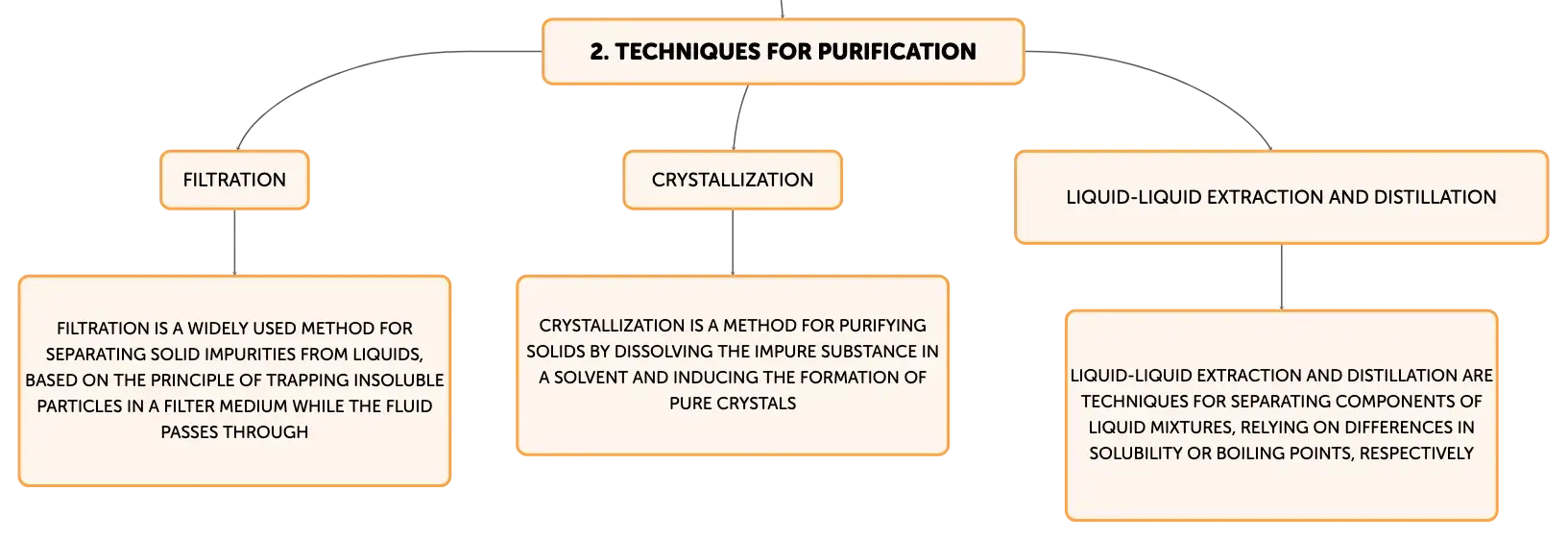

Common Techniques for Purifying Chemicals

A range of techniques is available for purifying chemicals, each based on different physical or chemical properties of the substances involved. Filtration is a widely used method to separate solid impurities from liquids, which can be performed using gravity or vacuum to enhance efficiency. Crystallization is a method for purifying solids that involves dissolving the impure substance in a solvent and then inducing the formation of pure crystals. Liquid-liquid extraction and distillation are techniques for separating components of liquid mixtures, relying on differences in solubility or boiling points, respectively.

Filtration: An Essential Separation Technique

Filtration is a pivotal technique for separating particulate impurities from fluids. It operates on the principle that insoluble particles can be trapped by a filter medium while the fluid passes through. Gravity filtration uses the earth's gravitational pull to facilitate the separation, whereas vacuum filtration employs a vacuum to expedite the process. The choice of filter medium and its pore size is critical to achieving the desired level of purity, with finer filters being capable of removing smaller particles.

Purification of Solids: Drying and Crystallization

The purification of solid materials often involves drying and crystallization. Drying is the process of removing moisture or solvents from a solid, which can be achieved through air exposure, heating, or the use of desiccants. Crystallization is a technique where a solute is dissolved in a hot solvent and then allowed to form pure crystals upon cooling. The resulting crystals are then collected by filtration and dried to remove any remaining solvent, yielding a purified product.

Purifying Liquids: Extraction and Distillation

Liquid extraction and distillation are key methods for purifying liquid mixtures. Liquid extraction utilizes a separation funnel to divide two immiscible liquids based on their differing densities and polarities. Distillation separates components by heating the mixture to vaporize the more volatile substance, which is then condensed back into liquid form. This technique is particularly effective for purifying components with distinct boiling points, allowing for the selective collection of each substance.

Case Study: Purification of Aspirin

The synthesis and purification of aspirin illustrate the practical application of these purification techniques. Aspirin, chemically known as acetylsalicylic acid, is produced by reacting salicylic acid with acetic anhydride, using sulfuric acid as a catalyst. The crude product is then purified through recrystallization, which involves dissolving it in ethanol and adding water to precipitate pure aspirin crystals. The purity of aspirin is typically verified by a melting point analysis, where the measured melting point of the product is compared to the known value for pure aspirin, with any discrepancy indicating the presence of impurities.

Conclusion: The Importance of Purification Techniques

In conclusion, the purification of chemical substances is a critical aspect of chemical processes, encompassing a variety of techniques tailored to the properties of the substances being purified. Methods such as filtration, crystallization, extraction, and distillation are indispensable in both academic and industrial settings. Mastery of these techniques is essential for the production of pure, high-quality chemicals, which is a cornerstone of scientific research and the development of safe, effective pharmaceuticals and food products.
