Mass Spectrometry

Mass spectrometry is an analytical technique for measuring the mass-to-charge ratio of ions, aiding in molecular identification and quantification. It's essential in analytical chemistry, pharmacology, and proteomics, with applications in environmental monitoring, biomedical research, and food safety. The text delves into the fundamentals, workflow, and diverse applications of mass spectrometry, including Time-of-Flight analysis and isotope ratio analysis, providing insights into its critical role across various industries.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Define mass-to-charge ratio (m/z).

Click to check the answer

m/z is the ratio of an ion's mass to its charge, used to identify/quantify molecules in mass spectrometry.

2

Describe ionization in mass spectrometry.

Click to check the answer

Ionization is the process of converting molecules into charged ions, typically by electron impact or chemical ionization.

3

Function of mass analyzer in mass spectrometry.

Click to check the answer

Mass analyzer separates ions based on m/z ratios, enabling their identification by generating a mass spectrum.

4

In mass spectrometry, the sample is ionized using techniques like EI or ______.

Click to check the answer

MALDI

5

Role of mass spectrometry in environmental science

Click to check the answer

Detects pollutants, monitors environmental health.

6

Mass spectrometry in biomedical research

Click to check the answer

Identifies disease biomarkers, accelerates drug development.

7

Mass spectrometry's function in food safety

Click to check the answer

Finds contaminants, verifies product authenticity.

8

In ______, the sample is ionized, ions are accelerated, they travel through a ______, and their flight time is measured to ascertain the ______.

Click to check the answer

TOF MS flight tube m/z ratio

9

Definition of m/z ratio in mass spectrometry

Click to check the answer

Mass-to-charge ratio; key measurement in mass spectrometry indicating mass of ion relative to its charge.

10

Role of isotopic abundance in relative atomic mass

Click to check the answer

Isotopic abundance impacts weighted average calculation of an element's atomic mass, influencing its relative value.

11

Use of carbon-12 standard in atomic mass determination

Click to check the answer

Carbon-12 is the reference for measuring relative atomic mass, with a defined value of 12 atomic mass units.

12

______ is a pivotal method for analyzing the relative quantities of an element's ______ in a given sample.

Click to check the answer

Mass spectrometry isotopes

13

The isotopic analysis of ______ via mass spectrometry can disclose past ______ conditions by studying the ratios of isotopes such as ______ to ______.

Click to check the answer

ice cores atmospheric temperatures oxygen-18 oxygen-16

14

Ionization Methods in Mass Spectrometry

Click to check the answer

Understand techniques like ESI, MALDI, EI for ionizing samples in mass spectrometry.

15

Mass Spectrometer Components

Click to check the answer

Learn functions of parts: ion source, mass analyzer, detector, and their role in spectrometry.

16

Interpreting Mass Spectra

Click to check the answer

Practice reading spectra to identify molecular weight, isotopic distribution, and fragmentation patterns.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Chemistry

Heteroatoms in Organic Chemistry

View document

Chemistry

Thin Layer Chromatography (TLC)

View document

Chemistry

Alkene Nomenclature

View document

Chemistry

Cycloaddition Reactions in Organic Chemistry

View document

Fundamentals of Mass Spectrometry and Its Importance

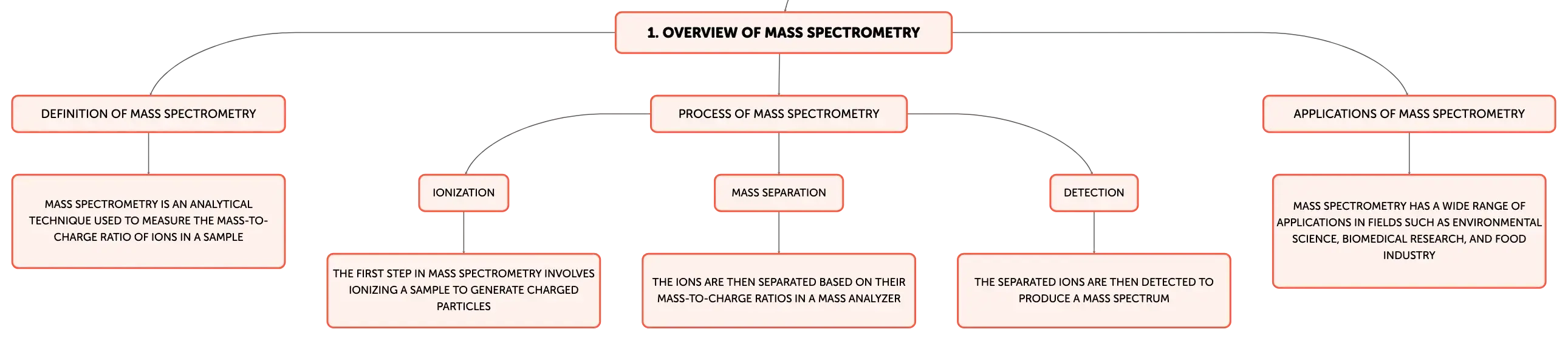

Mass spectrometry is a powerful analytical tool used to measure the mass-to-charge ratio (m/z) of ions, enabling the identification and quantification of a substance's molecular constituents. This technique is pivotal in fields such as analytical chemistry, pharmacology, and proteomics, offering detailed insights into molecular structures and compositions. The process involves ionizing a sample to generate charged particles, which are then separated based on their m/z ratios in a mass analyzer, and subsequently detected to produce a mass spectrum. Each spectrum serves as a distinctive molecular signature, which is crucial for analyzing complex mixtures, elucidating chemical structures, and determining substance concentrations with high precision.
Modern mass spectrometer in laboratory with amber liquid vial, safety gloves and protective glasses on dark gray bench.

Principal Components and Workflow of Mass Spectrometry

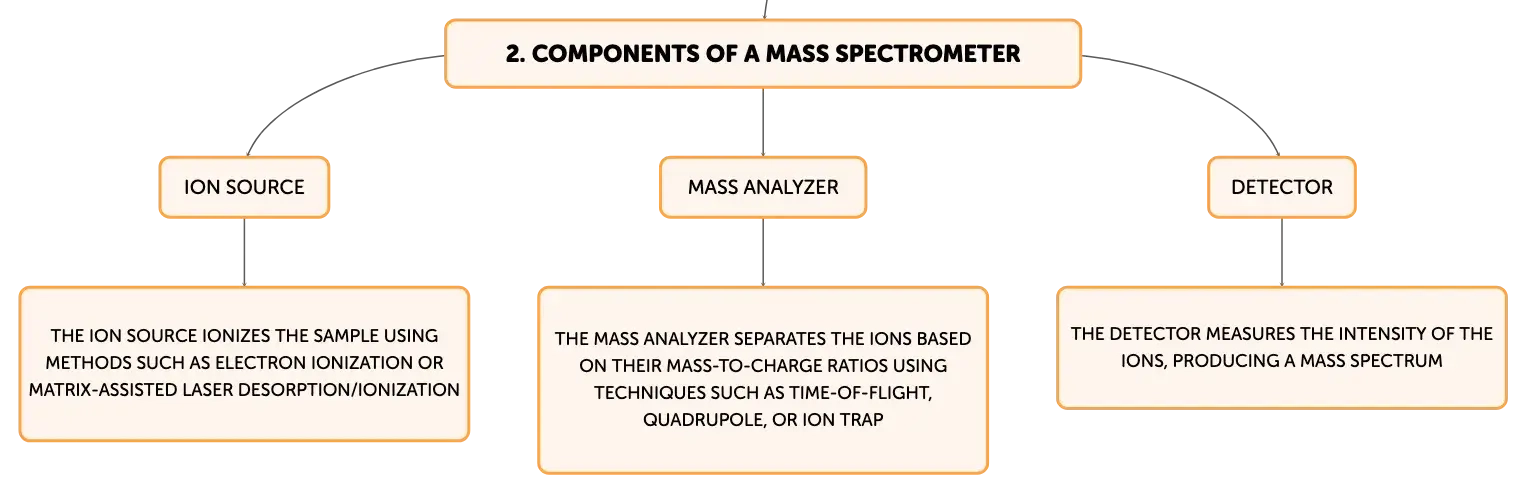

A mass spectrometer consists of three core components: an ion source, a mass analyzer, and a detector. The ion source, employing methods such as Electron Ionization (EI) or Matrix-Assisted Laser Desorption/Ionization (MALDI), ionizes the sample. The mass analyzer, which can be a Time-of-Flight (TOF), Quadrupole, or Ion Trap among others, separates the ions by their m/z ratios. The detector then measures the intensity of the ions, culminating in a mass spectrum. The procedure initiates with meticulous sample preparation, followed by ionization, mass separation, and detection, with each stage being vital for the integrity and accuracy of the final data.

Diverse Applications of Mass Spectrometry Across Industries

The precision of mass spectrometry has transformed the analysis of substances in various domains. In environmental science, it plays a critical role in detecting pollutants and monitoring environmental health. In the biomedical field, it is used for discovering biomarkers for diseases and expediting drug discovery. In the food industry, it ensures safety and quality by detecting contaminants and verifying the authenticity of products. These applications highlight the method's adaptability and its significant contributions to enhancing public health, safety, and environmental conservation.

Time-of-Flight Mass Spectrometry (TOF MS) Explained

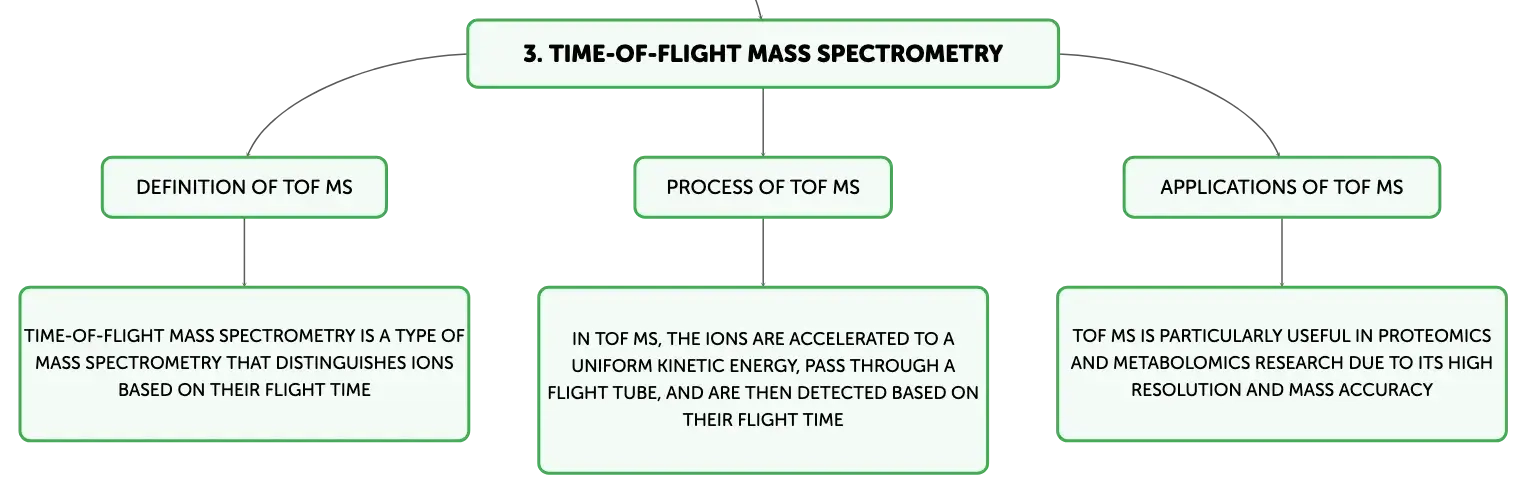

Time-of-Flight Mass Spectrometry (TOF MS) is a specific type of mass spectrometry that distinguishes ions based on the time they take to traverse a known distance, correlating to their m/z ratios. Esteemed for its high resolution and mass accuracy, TOF MS is particularly beneficial in proteomics and metabolomics research. The technique involves ionizing the sample, accelerating the ions to a uniform kinetic energy, allowing them to pass through a flight tube, and then detecting them. The flight time is precisely measured to determine the m/z ratio, offering comprehensive molecular characterization of the sample.

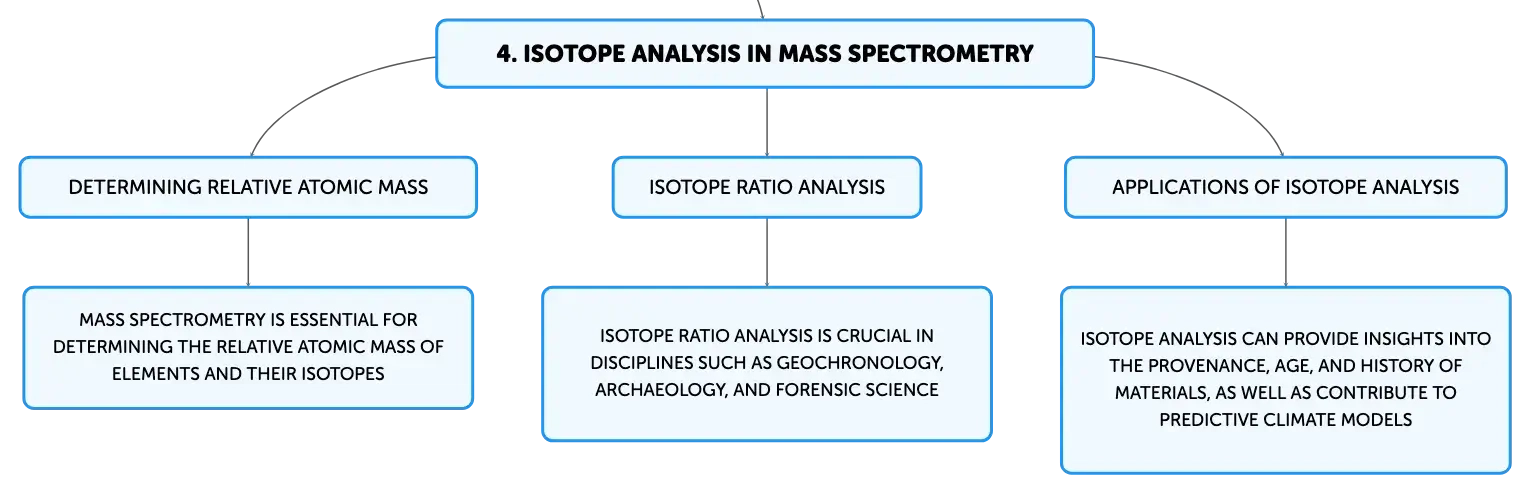

Measuring Relative Atomic Mass with Mass Spectrometry

Mass spectrometry is indispensable for determining the relative atomic mass of elements and their isotopes. By accurately measuring the m/z ratio of ions, it provides precise atomic mass and isotopic abundance data, which are essential for understanding the chemical behavior of elements. The relative atomic mass is the weighted average of the masses of an element's isotopes, based on their natural abundances, relative to the carbon-12 standard. For instance, the relative atomic mass of chlorine is derived from the mass spectrum by analyzing the peaks corresponding to its isotopes, chlorine-35 and chlorine-37, and considering their natural abundances.

Isotope Ratio Analysis via Mass Spectrometry

Mass spectrometry is a key technique for isotope ratio analysis, which determines the proportions of an element's isotopes within a sample. This analysis is crucial in disciplines such as geochronology, archaeology, and forensic science, offering insights into the provenance, age, and history of materials. In climatology, for example, the isotopic analysis of ice cores using mass spectrometry can reveal historical atmospheric temperatures by examining the ratios of isotopes like oxygen-18 to oxygen-16. These precise isotopic measurements are invaluable for reconstructing past climate events and contributing to predictive climate models.

Preparing for Mass Spectrometry Examination Questions

Students preparing for examinations involving mass spectrometry should anticipate questions that test their understanding of ionization methods, the components of mass spectrometers, and the interpretation of mass spectra. Mastery of fundamental concepts, hands-on practice with spectral data, familiarity with relevant mathematical equations, and the ability to apply theoretical knowledge to practical situations are crucial for success. Reviewing previous examination papers and gaining a thorough understanding of isotopic patterns, such as those exhibited by chlorine, will enhance the ability to decipher complex spectra and apply this knowledge in a practical context.
