Covalent Network Solids

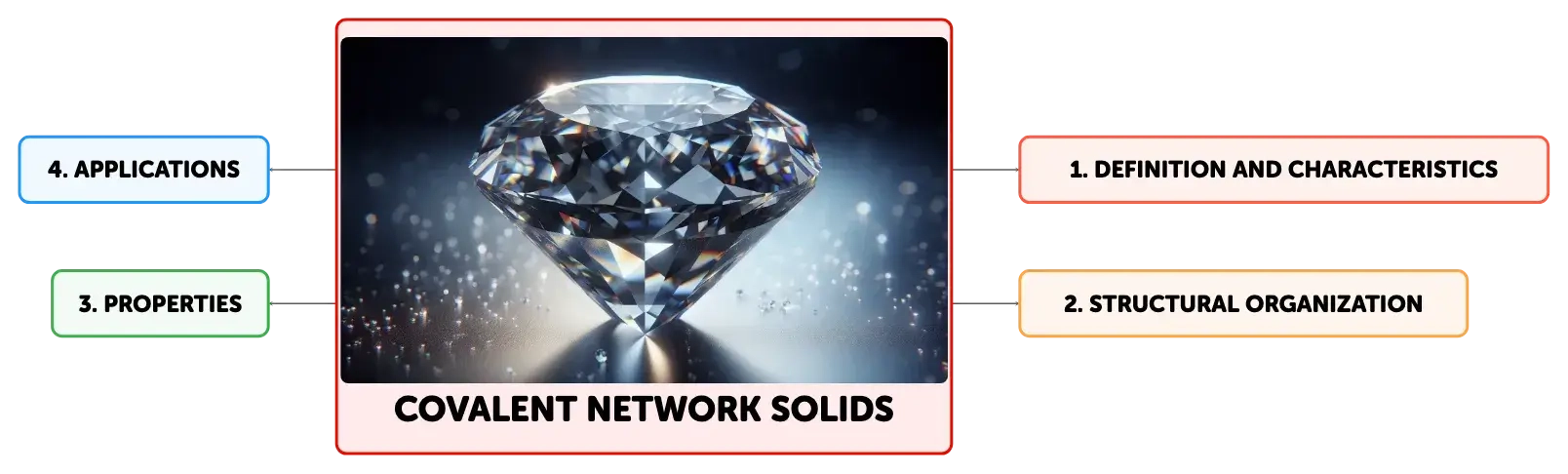

Covalent network solids are materials with a vast array of covalent bonds forming a single macromolecule. They exhibit remarkable hardness, high melting points, and variable electrical conductivity. Examples include diamond, known for its hardness and insulating properties, and graphite, recognized for its conductivity and lubricative qualities. The text explores both crystalline and amorphous forms, such as quartz and glassy silicon dioxide, highlighting their structural differences and impact on material properties.
See moreCharacteristics of Covalent Network Solids

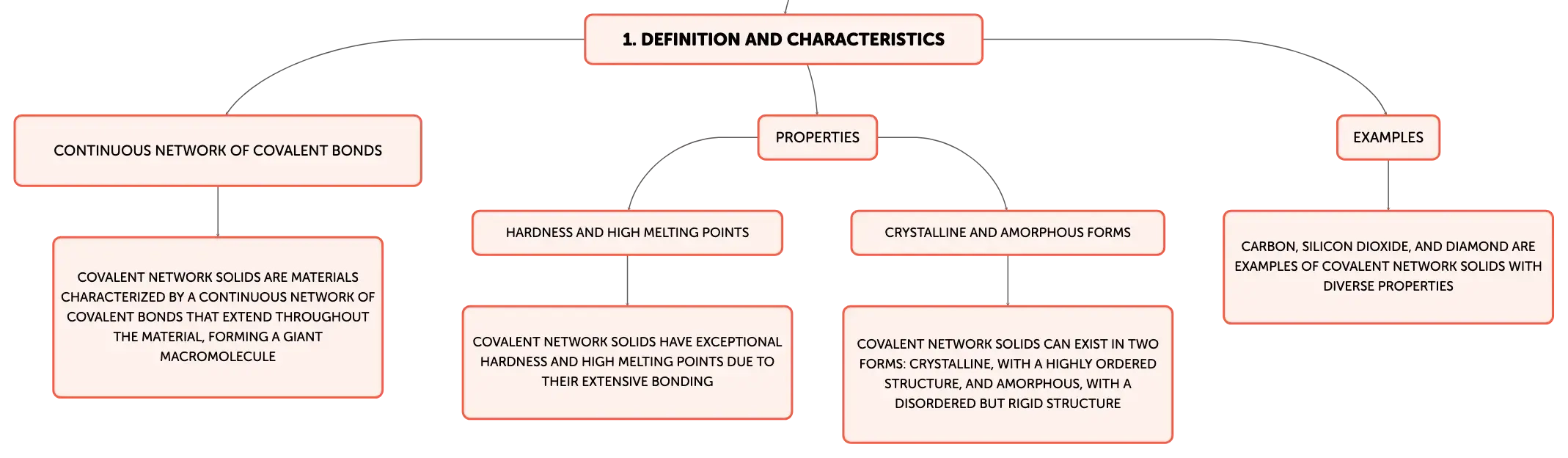

Covalent network solids are a class of materials characterized by a continuous network of covalent bonds that extend throughout the material, forming a giant macromolecule. These bonds result from the sharing of electrons between adjacent non-metal atoms. Unlike substances that are composed of discrete molecular units, covalent network solids are single entities with no individual molecules. This extensive bonding confers upon them remarkable properties such as exceptional hardness and high melting points. They can be found in two forms: crystalline, which have a highly ordered structure with repeating patterns, and amorphous, which lack long-range order but maintain the rigidity typical of solids.Crystalline Versus Amorphous Network Solids

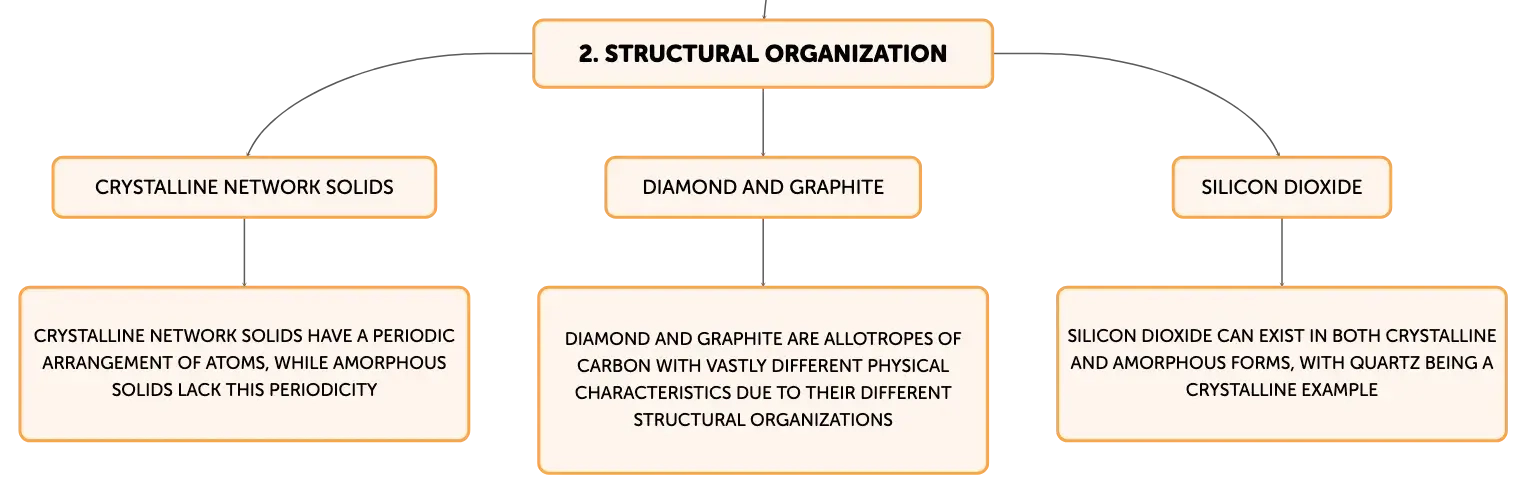

Covalent network solids are differentiated by their structural organization into crystalline or amorphous forms. Crystalline network solids possess a periodic arrangement of atoms, which can be described by unit cells that repeat in three-dimensional space, much like the pattern of a tiled floor. Diamond, a well-known form of carbon, exemplifies a crystalline network solid with a tetrahedral arrangement of carbon atoms. On the other hand, amorphous network solids, such as glassy silicon dioxide, do not exhibit such periodicity. Their atoms are arranged in a random, non-repeating manner, which results in a structure that is rigid like a solid but disordered like a liquid on a microscopic scale.Diverse Examples of Covalent Network Solids
The range of materials that fall under the category of covalent network solids illustrates their structural and property diversity. Carbon, for instance, forms both diamond and graphite, which are allotropes with vastly different physical characteristics. Diamond owes its extraordinary hardness to a three-dimensional network of strong covalent bonds, while graphite consists of two-dimensional layers of carbon atoms held together by weaker van der Waals forces, allowing for electrical conductivity and lubricative properties. Silicon dioxide, another example, occurs naturally as quartz in a crystalline form, which is more ordered and durable than its amorphous glass counterpart.Distinctive Properties of Covalent Network Solids

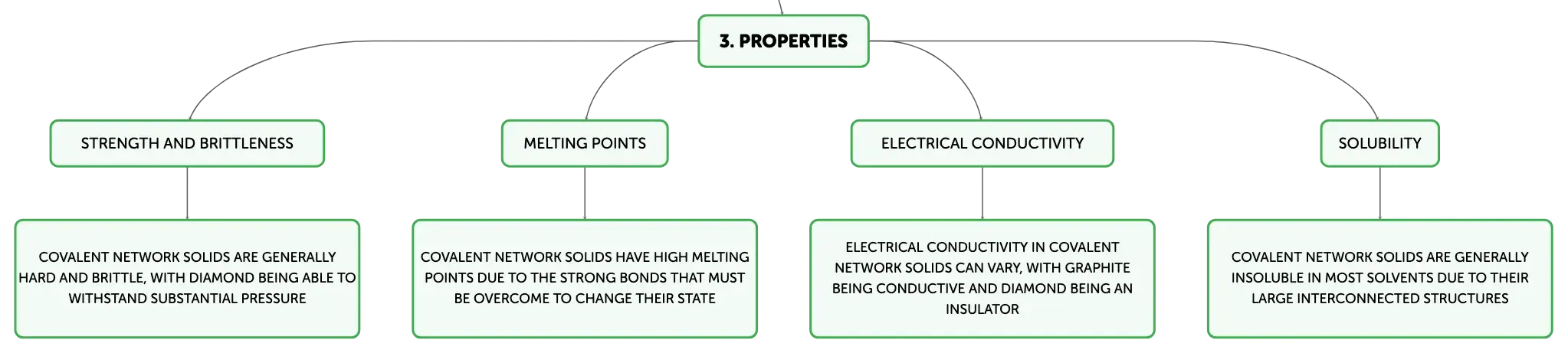

The distinctive properties of covalent network solids are a direct consequence of their extensive covalent bonding. These materials are generally hard and brittle, with diamond being the quintessential example of a material that can endure substantial pressure. Amorphous solids, while still rigid, are typically less strong than their crystalline counterparts. The melting points of covalent network solids are notably high, reflecting the strong bonds that must be overcome to change their state. Electrical conductivity is variable; for example, graphite is conductive due to its delocalized electrons, whereas diamond is an excellent insulator. Additionally, covalent network solids are insoluble in most solvents due to their large interconnected structures.Concluding Insights on Covalent Network Solids

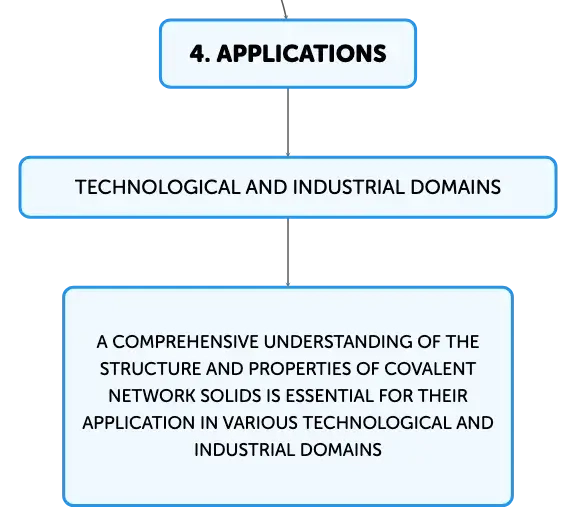

To conclude, covalent network solids are materials that can be classified as either crystalline or amorphous based on their atomic arrangements. They are composed of a vast, interconnected network of covalent bonds, forming a single macromolecule rather than discrete molecules. Their hardness, melting point, electrical conductivity, and solubility are all influenced by the nature of these bonds and any additional intermolecular forces. While crystalline solids like diamond are noted for their strength and insulating properties, layered materials such as graphite are recognized for their electrical conductivity. A comprehensive understanding of the structure and properties of covalent network solids is essential for their application in various technological and industrial domains.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
These materials exhibit ______ hardness and ______ melting points due to their extensive bonding.
Click to check the answer
2
Example of crystalline network solid
Click to check the answer
3
Characteristic of amorphous network solids
Click to check the answer
4
Unit cells in crystalline solids
Click to check the answer
5
Carbon forms two distinct ______, diamond and graphite, with differing physical properties.
Click to check the answer
6
______ dioxide naturally exists as quartz, which is more structured and resilient than its amorphous glass form.
Click to check the answer
7
Example of a hard covalent network solid
Click to check the answer
8
Comparison between amorphous and crystalline solids strength
Click to check the answer
9
Solubility of covalent network solids in solvents
Click to check the answer
10
______, known for its hardness and insulating properties, is an example of a crystalline covalent network solid.
Click to check the answer
