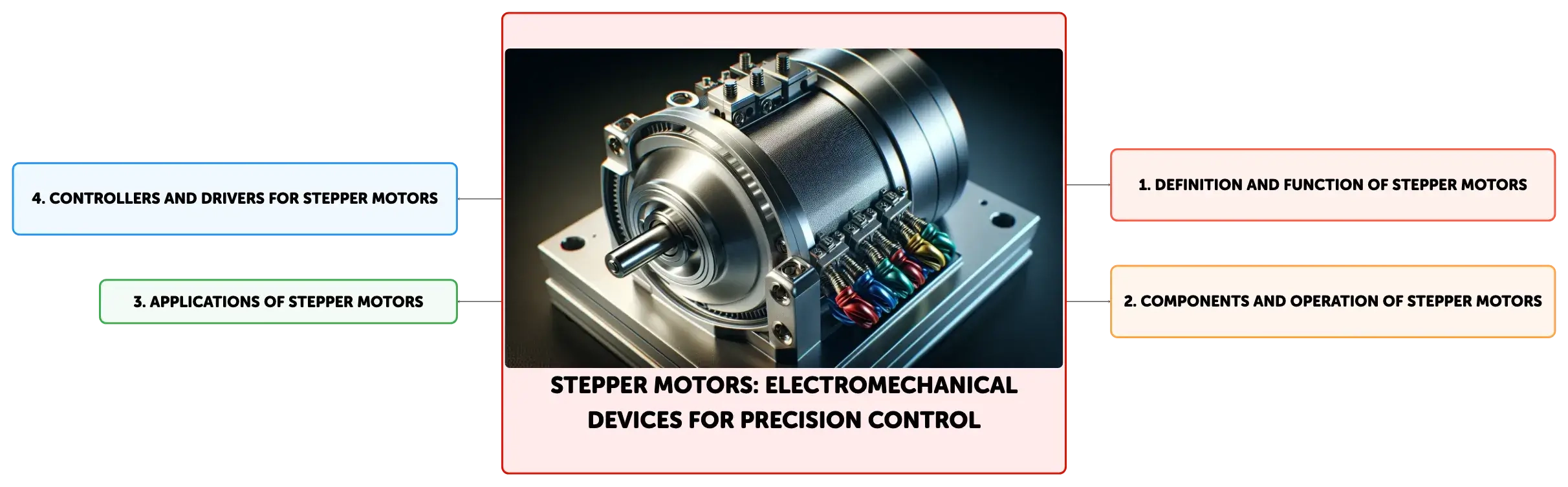

Stepper Motors: Electromechanical Devices for Precision Control

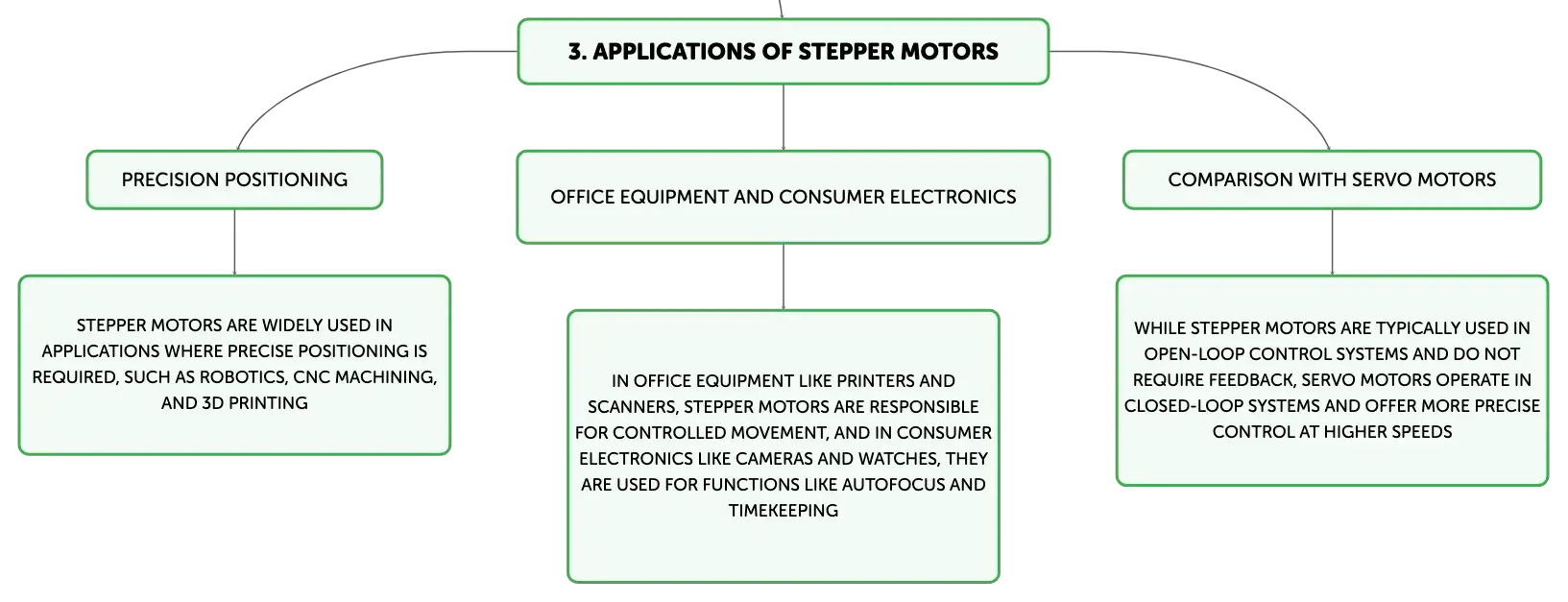

Applications of Stepper Motors

Stepper motors are widely used in applications where precise positioning is required. They are a popular choice in the fields of robotics, CNC machining, and 3D printing due to their accuracy and repeatability. In office equipment like printers and scanners, stepper motors are responsible for the controlled movement of paper and optical components. Their ability to maintain a high torque at low speeds also makes them suitable for applications such as camera focus mechanisms, fluid control devices, and timekeeping mechanisms in clocks and watches.

Stepper Motors Versus Servo Motors

Stepper motors and servo motors are both used for controlled motion applications, but they operate differently. Stepper motors are typically run in an open-loop control system and do not require feedback for basic operation, making them simpler and more cost-effective. However, they can lose steps if overloaded, leading to positioning errors. Servo motors, on the other hand, operate in a closed-loop control system with feedback, allowing for dynamic response to load changes and more precise control at higher speeds. The choice between a stepper and a servo motor will depend on the specific requirements of the application, such as cost, complexity, speed, and precision.

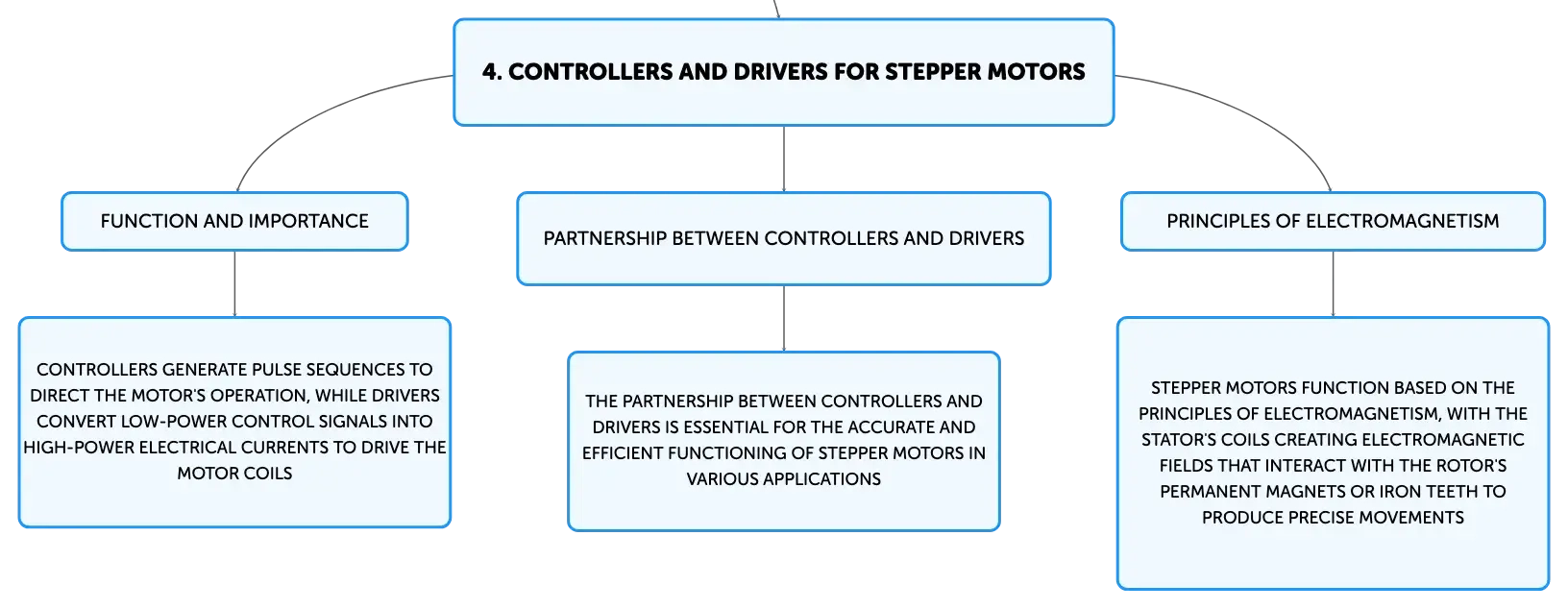

Controlling Stepper Motors: Controllers and Drivers

The precise operation of stepper motors is managed by a combination of controllers and drivers. Controllers are sophisticated electronic devices that generate pulse sequences to direct the motor's operation, including its speed, direction, and position. Drivers act as power amplifiers that take the low-power control signals from the controller and convert them into high-power electrical currents to drive the motor coils. This partnership between controllers and drivers is essential for the accurate and efficient functioning of stepper motors in various applications.

Electromagnetic Principles Behind Stepper Motors

Stepper motors function based on the principles of electromagnetism. The motor's stator is equipped with coils that, when energized, create electromagnetic fields. These fields interact with permanent magnets or iron teeth on the rotor, causing it to move in precise increments, or steps. The motor's resolution, defined as the number of steps per revolution, is a critical factor in determining its precision. The speed of the motor is directly related to the pulse frequency supplied by the controller, allowing for controlled acceleration and deceleration during operation.

The Ubiquity of Stepper Motors in Modern Technology

Stepper motors are ubiquitous in modern technology, playing vital roles in both consumer and industrial applications. They are found in digital cameras for autofocus and zoom functions, in vehicles for precise control of engine components, and in medical devices for accurate positioning and movement. Their reliability and precision are also crucial in the manufacturing sector, where they contribute to the automation of production lines. The adaptability and control offered by stepper motors make them indispensable in the advancement of various technologies and industries.
