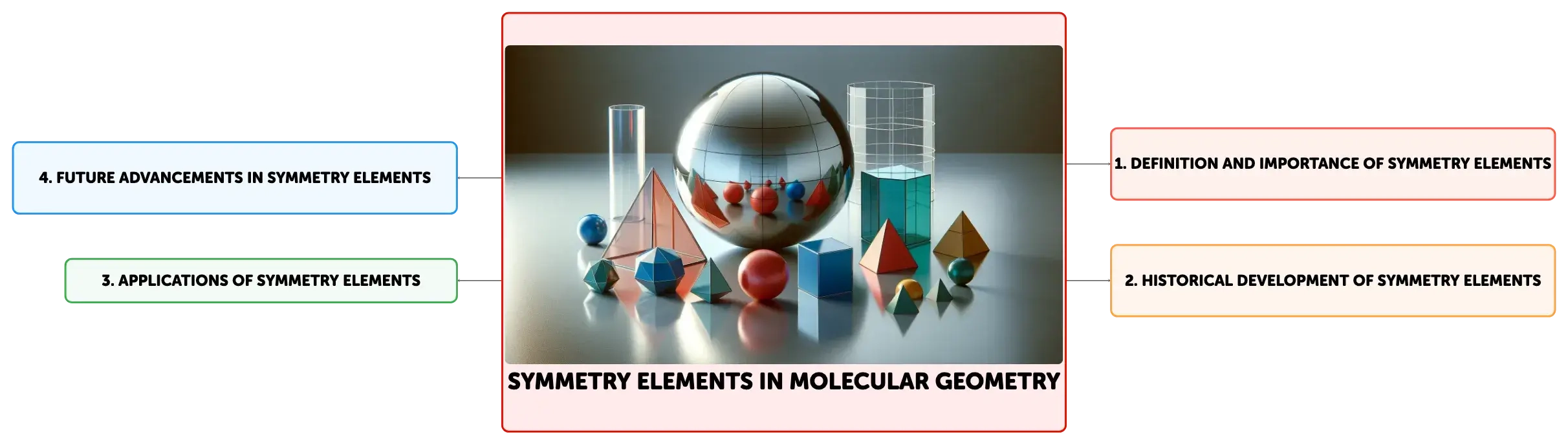

Symmetry Elements in Molecular Geometry

Symmetry elements in molecular chemistry are crucial for understanding molecular geometry and behavior. They include centers of symmetry, planes of symmetry, axes of symmetry, and improper axes of symmetry. These elements help classify molecules into point groups, influencing their spectroscopic signatures and physical and chemical properties. Their application extends to organic chemistry, affecting stereochemistry and chirality, and plays a significant role in chemical analysis and synthesis.

See more

1/5

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

List symmetry elements in molecules.

Click to check the answer

Center of symmetry, planes of symmetry, axes of symmetry, improper axes of symmetry.

2

Define molecule's point group importance.

Click to check the answer

Point group determines spectroscopic signatures and predicts physical/chemical properties.

3

Explain improper axes of symmetry role.

Click to check the answer

Improper axes combine rotation and reflection, affecting molecular interactions and reactions.

4

The study of ______ in natural forms began in the early ______ century, with ______ and ______ as early pioneers in crystal symmetry.

Click to check the answer

symmetry 19th François-Vincent Raspail Louis Pasteur

5

Group theory, which became integral to molecular modeling and crystallography, emerged in the early ______ century, with contributions from ______ and ______.

Click to check the answer

20th Hermann Sachse Ernst Graf

6

Symmetry elements in architecture and art

Click to check the answer

Macroscopic designs often incorporate symmetry for aesthetic balance and visual appeal.

7

Bilateral symmetry in living organisms

Click to check the answer

Common form of symmetry in biology, where organism has left-right mirror image halves, often linked to efficient movement and predation.

8

In the study of crystal structures, the ______ of ______ and ______ results in their distinct physical traits.

Click to check the answer

symmetry diamond graphite

9

Symmetry operations in molecules

Click to check the answer

Include rotation, reflection, inversion, improper rotation; transformations leaving molecule unchanged.

10

Purpose of classifying molecules into point groups

Click to check the answer

Facilitates prediction of chemical behavior; aids understanding of molecular symmetry.

11

In organic chemistry, the lack of specific ______ elements in ______ molecules leads to the formation of enantiomers.

Click to check the answer

symmetry chiral

12

______ in the field of symmetry are anticipated to improve synthetic methods, drug development, and the creation of materials with ______ properties.

Click to check the answer

Advancements tailored

13

Role of symmetry in molecular geometry

Click to check the answer

Symmetry elements determine the spatial arrangement of atoms in a molecule, influencing its shape and size.

14

Symmetry's impact on spectroscopic analysis

Click to check the answer

Symmetry elements help interpret spectroscopic data by indicating energy levels and transitions within a molecule.

15

Symmetry influence on molecular properties

Click to check the answer

Symmetry dictates molecular characteristics such as polarity and thermal stability, affecting reactivity and physical properties.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Chemistry

Thin Layer Chromatography (TLC)

Chemistry

Ruff Degradation: A Key Technique in Carbohydrate Chemistry

Chemistry

Organic Chemistry and Its Applications

Chemistry

Cycloaddition Reactions in Organic Chemistry

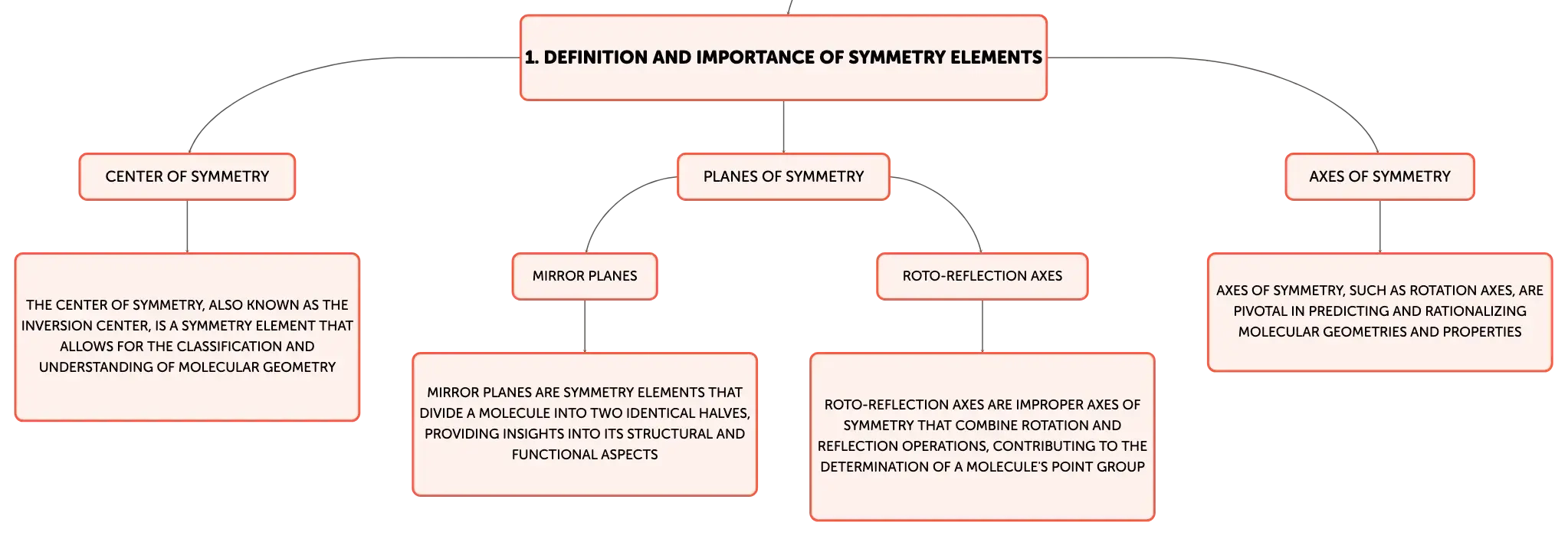

Fundamentals of Symmetry Elements in Molecular Chemistry

Symmetry elements are integral to the study of molecular geometry, providing a means to classify and understand the spatial arrangement of atoms within a molecule. These elements include the center of symmetry (inversion center), planes of symmetry (mirror planes), axes of symmetry (rotation axes), and improper axes of symmetry (roto-reflection axes). They are pivotal in determining a molecule's point group, which is essential for interpreting its spectroscopic signatures and predicting physical and chemical properties. Understanding these symmetry elements is crucial for chemists to comprehend how molecules interact, react, and participate in various chemical processes.
Three-dimensional geometric shapes on reflective surface with metallic sphere, red tetrahedron, blue cube, transparent cylinder and green cone.

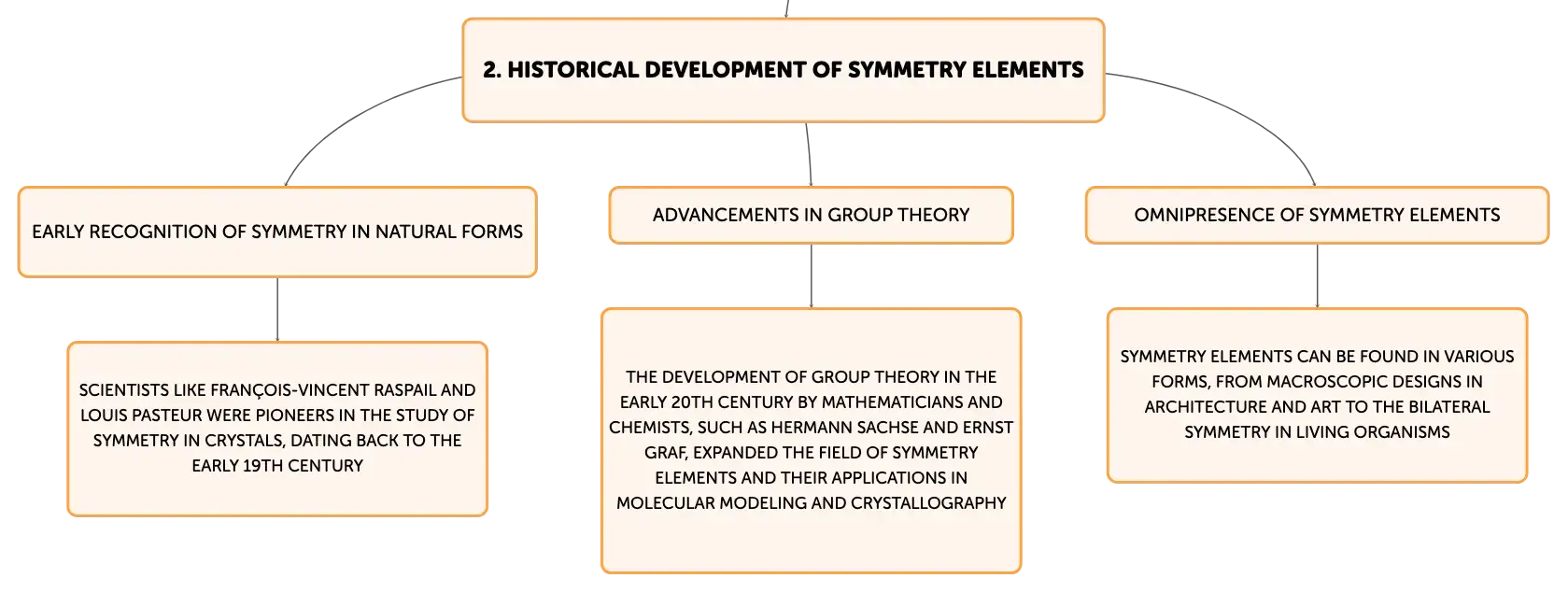

Evolution of Symmetry Elements in Scientific Thought

The recognition of symmetry in natural forms dates back to the early 19th century, with scientists such as François-Vincent Raspail and Louis Pasteur pioneering the study of symmetry in crystals. The field expanded with the advent of group theory in the early 20th century, thanks to the work of mathematicians and chemists like Hermann Sachse and Ernst Graf. This theoretical framework has since become a cornerstone of molecular modeling and crystallography, allowing for a systematic approach to understanding the structural and functional aspects of molecules and materials.

Symmetry Elements in Nature and Chemical Compounds

Symmetry elements are omnipresent, from the macroscopic designs in architecture and art to the bilateral symmetry in living organisms. In chemistry, the hexagonal structure of benzene exemplifies molecular symmetry, featuring a six-fold rotational axis and multiple mirror planes. These symmetry elements contribute to the molecule's chemical inertness and stability, influencing its behavior in various chemical reactions and applications.

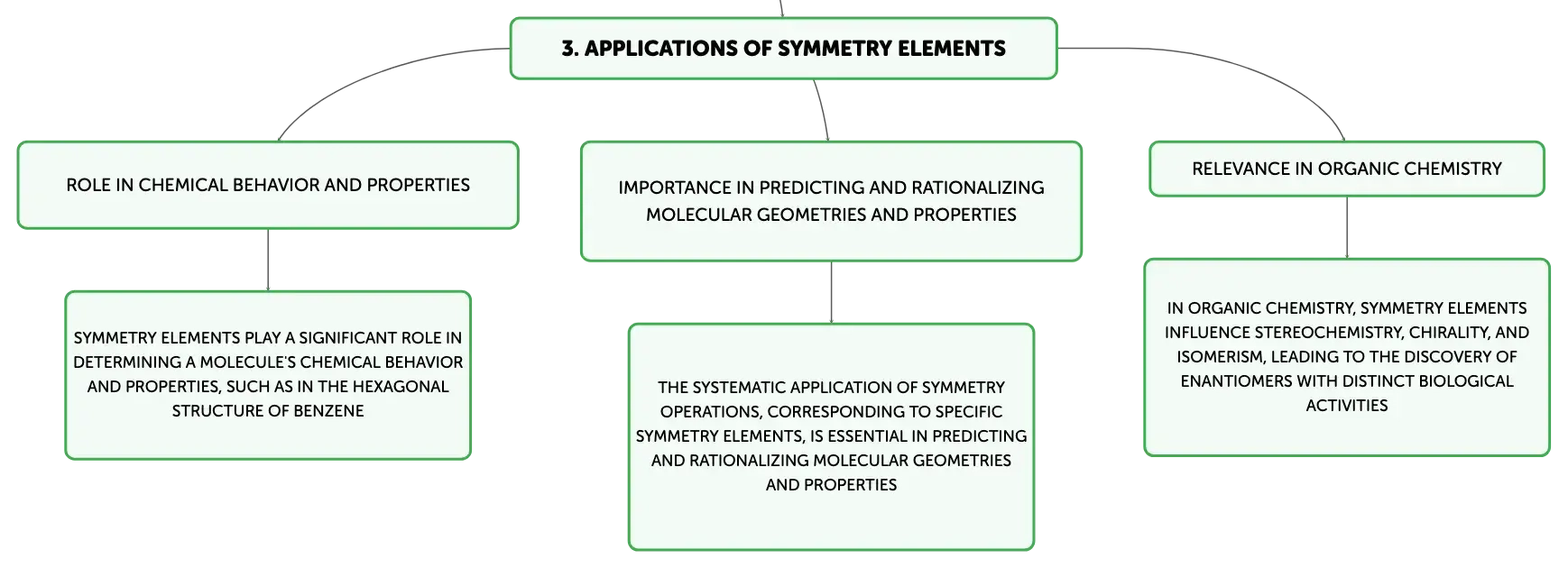

Applications of Symmetry Elements in Chemical Analysis and Synthesis

Symmetry elements are indispensable tools in predicting and rationalizing molecular geometries and properties. They play a significant role in the determination of crystal structures, where the symmetry of diamond and graphite leads to their unique physical characteristics. In spectroscopy, symmetry elements are fundamental in interpreting infrared (IR), nuclear magnetic resonance (NMR), and Raman spectra, which provide insights into molecular vibrations, bonding, and structure.

Relationship Between Symmetry Elements and Operations

Symmetry elements serve as the reference points for symmetry operations, which are transformations that leave a molecule appearing unchanged. These operations, including rotation, reflection, inversion, and improper rotation, correspond to specific symmetry elements. The systematic application of these operations is essential for the classification of molecules into point groups, which is a key step in predicting chemical behavior and understanding molecular symmetry.

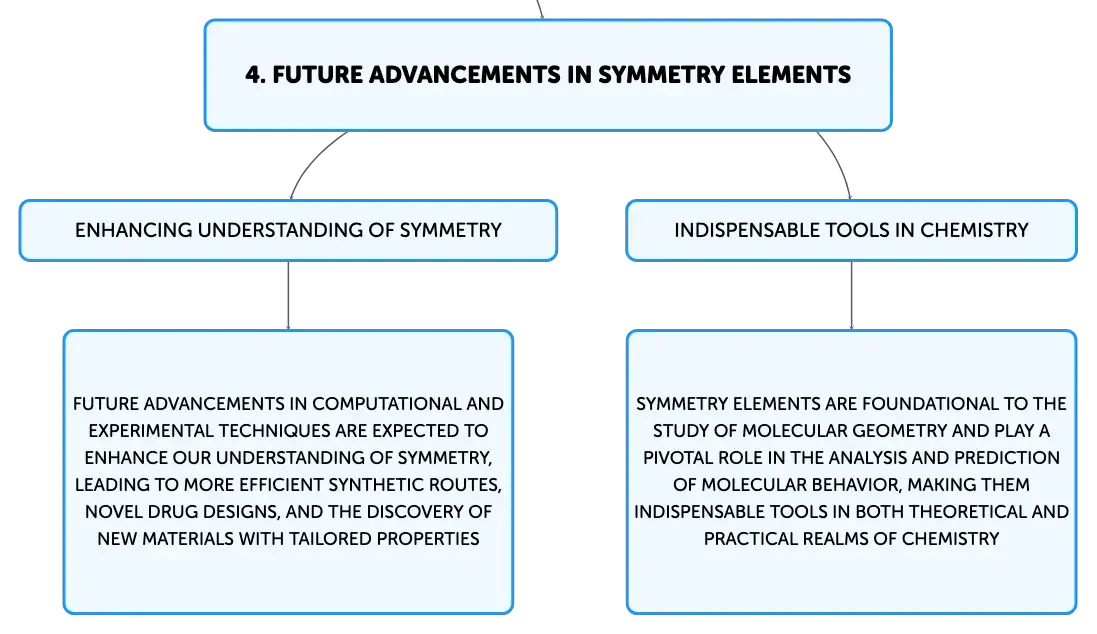

Significance of Symmetry Elements in Organic Chemistry and Prospective Advances

Symmetry elements are particularly relevant in organic chemistry, where they influence stereochemistry, chirality, and isomerism. The absence of certain symmetry elements in chiral molecules results in enantiomers—non-superimposable mirror images with distinct biological activities. Future advancements in computational and experimental techniques are expected to enhance our understanding of symmetry, leading to more efficient synthetic routes, novel drug designs, and the discovery of new materials with tailored properties.

Concluding Insights on Symmetry Elements in Chemistry

Symmetry elements are foundational to the study of molecular geometry and play a pivotal role in the analysis and prediction of molecular behavior. They are crucial for molecular modeling, understanding spectroscopic data, and elucidating structural details. The interplay between symmetry elements and operations is fundamental to molecular classification and property prediction. In organic chemistry, these concepts are vital for interpreting vibrational spectra and anticipating characteristics such as polarity and thermal stability. Symmetry elements are, therefore, indispensable in both the theoretical and practical realms of chemistry.
