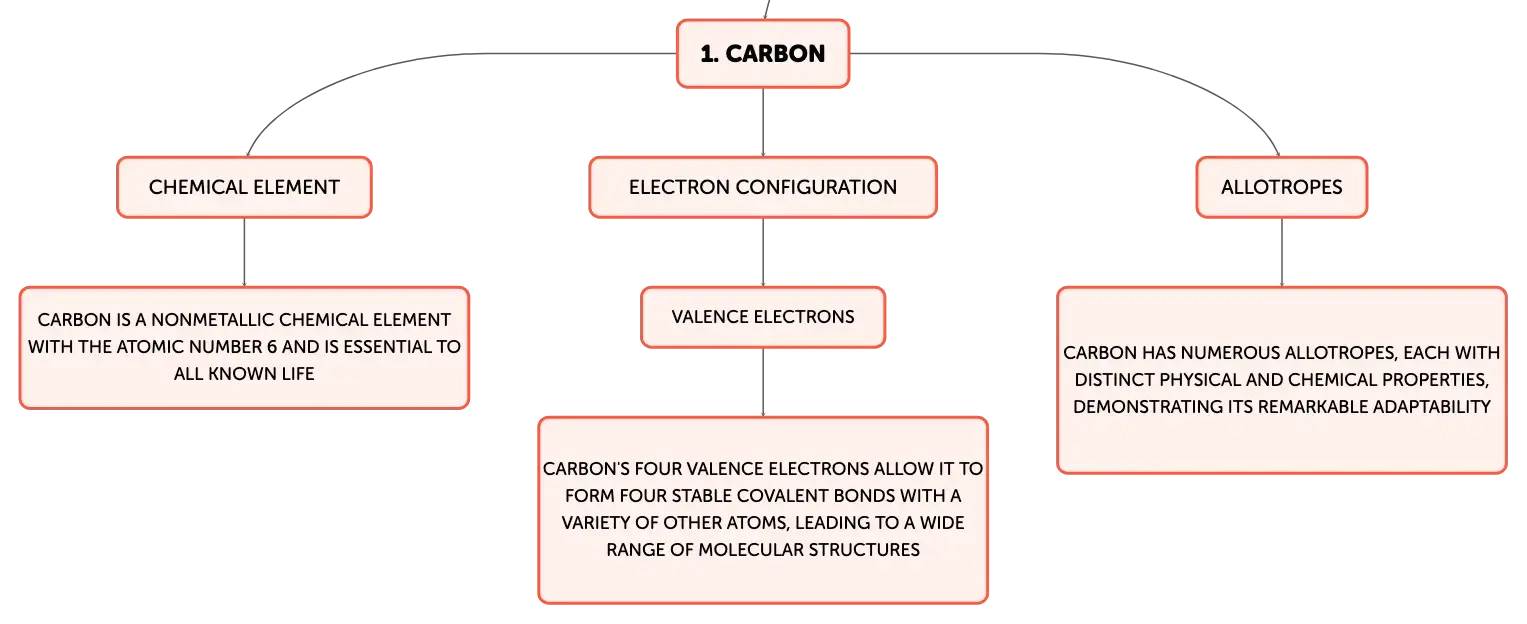

The Elemental Nature of Carbon

Carbon, a nonmetallic chemical element with the atomic number 6, is a cornerstone of organic chemistry and is essential to all known life. It constitutes about 18.5 percent of the human body's mass and is the primary component of organic molecules. Carbon atoms have six protons and six electrons, with four valence electrons available for bonding. This unique electron configuration enables carbon to form four stable covalent bonds with a variety of other atoms, including itself, leading to an extensive array of molecular structures. The versatility of carbon bonding results in numerous allotropes, each with distinct physical and chemical properties, demonstrating carbon's remarkable adaptability.

Three-dimensional models of carbon allotropes: transparent diamond, black graphene sheet and pencil graphite cylinder on gray background.

Understanding Carbon Allotropes

Carbon allotropes are various structural forms of carbon, each with the same chemical composition but differing in physical and chemical properties due to their distinct atomic arrangements. The most familiar carbon allotropes are diamond and graphite, which are purely carbon but exhibit contrasting characteristics. Diamond has a tetrahedral lattice that confers hardness and high thermal conductivity, while graphite consists of planar hexagonal layers that allow for electrical conductivity and lubrication. These allotropes exemplify carbon's capacity to form materials with a wide range of properties, which can be harnessed for diverse technological applications.

The Lattice Structure of Diamond

Diamond, renowned for its brilliance and hardness, is an allotrope of carbon in which each atom is tetrahedrally coordinated with four other carbon atoms. This creates a rigid three-dimensional lattice that extends throughout the material. The strength of these covalent bonds gives diamond its extraordinary hardness, making it the hardest known natural material. It also has a high melting point and is an excellent thermal conductor. However, diamond is an electrical insulator, as it lacks free charge carriers. Its resistance to chemical attack and its high refractive index make it valuable not only in jewelry but also in industrial applications and scientific instruments.

Graphite's Layered Composition

Graphite is another carbon allotrope, distinguished by its layered structure. Each layer is composed of carbon atoms arranged in a hexagonal lattice where each atom is bonded to three neighbors, resulting in a planar sheet. The fourth valence electron of each carbon atom contributes to a cloud of electrons that can move freely within the layers, granting graphite its electrical conductivity. The layers are held together by van der Waals forces, which are much weaker than the covalent bonds within the layers, making graphite soft and cleavable. This property is exploited in applications such as lubricants and the familiar use as pencil "lead."

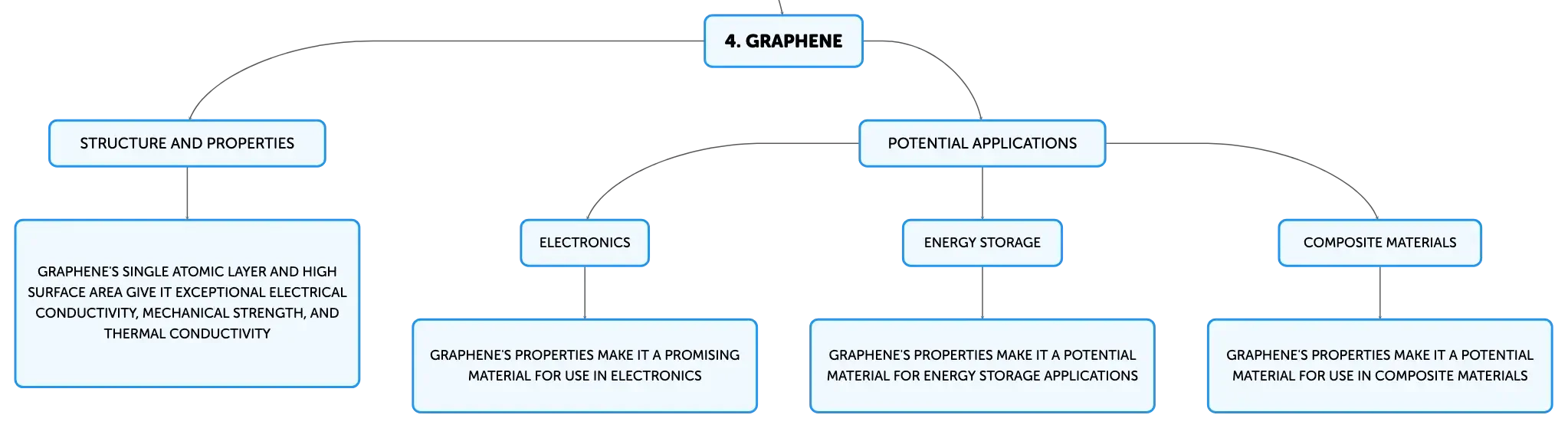

Graphene: The Revolutionary Single Layer of Graphite

Graphene is a single atomic layer of graphite and represents a breakthrough in material science as the thinnest, strongest known material. Despite being only one atom thick, graphene exhibits exceptional electrical conductivity, mechanical strength, and thermal conductivity. Its two-dimensional structure and high surface area endow it with unique properties that have potential applications in electronics, energy storage, and composite materials. The discovery of graphene has opened new horizons in nanotechnology and materials engineering, with ongoing research exploring its full capabilities.

Comparing Diamond and Graphite

Diamond and graphite, while both composed of carbon, have starkly different properties due to their distinct atomic structures. Diamond's tetrahedral bonding creates a three-dimensional network that imparts hardness and thermal conductivity, making it suitable for cutting tools and heat sinks. Graphite's planar hexagonal layers facilitate electrical conductivity and lubrication, which are valuable for electrodes and lubricants. The contrasting characteristics of these allotropes illustrate the diverse potential of carbon structures and underscore the importance of understanding material properties for their effective use in various technological and industrial applications.
