The First Derivative Test in Calculus

Exploring the Mathematics of Roller Coasters with Calculus

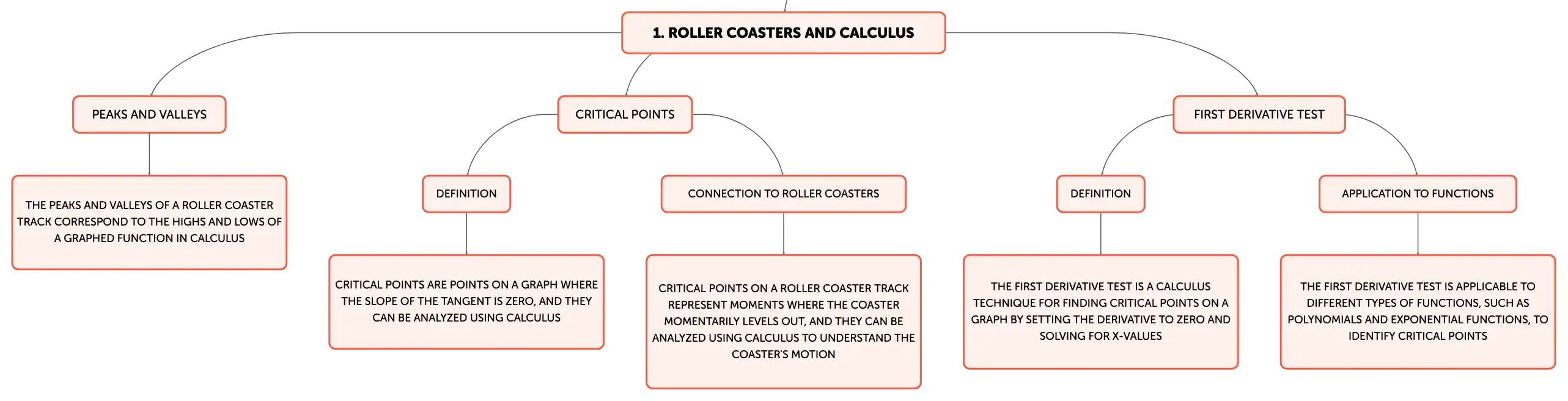

Roller coasters offer more than just thrills; they are a practical demonstration of calculus in action. The peaks and valleys of a roller coaster track correspond to the highs and lows of a graphed function, with the smooth transitions between them representing critical points where the slope is zero. These points, where the coaster momentarily levels out, can be analyzed using calculus to understand the coaster's motion. This connection between amusement park rides and mathematical principles provides an engaging way to explore the applications of calculus.

The First Derivative Test and Identifying Stationary Points

The First Derivative Test is a crucial calculus technique for finding critical or stationary points on a graph, where the slope of the tangent is zero. To apply this test, one must differentiate the function, set the derivative to zero, and solve for the x-values within the function's domain. These x-values correspond to potential local maxima, minima, or points of inflection. This test is essential for analyzing the behavior of functions and understanding their graphical representations.

Demonstrating the First Derivative Test with Polynomial Functions

Consider the polynomial function \( f(x) = x^2 + 6x + 10 \). Differentiating and setting the derivative to zero yields the critical point \( x = -3 \). However, not all functions exhibit critical points. For instance, the exponential function \( g(x) = e^x \) has a derivative that is always positive, indicating that it has no critical points. It is crucial to consider the domain and the nature of the function when identifying critical points.

The Relationship Between Critical Points and Local Extrema

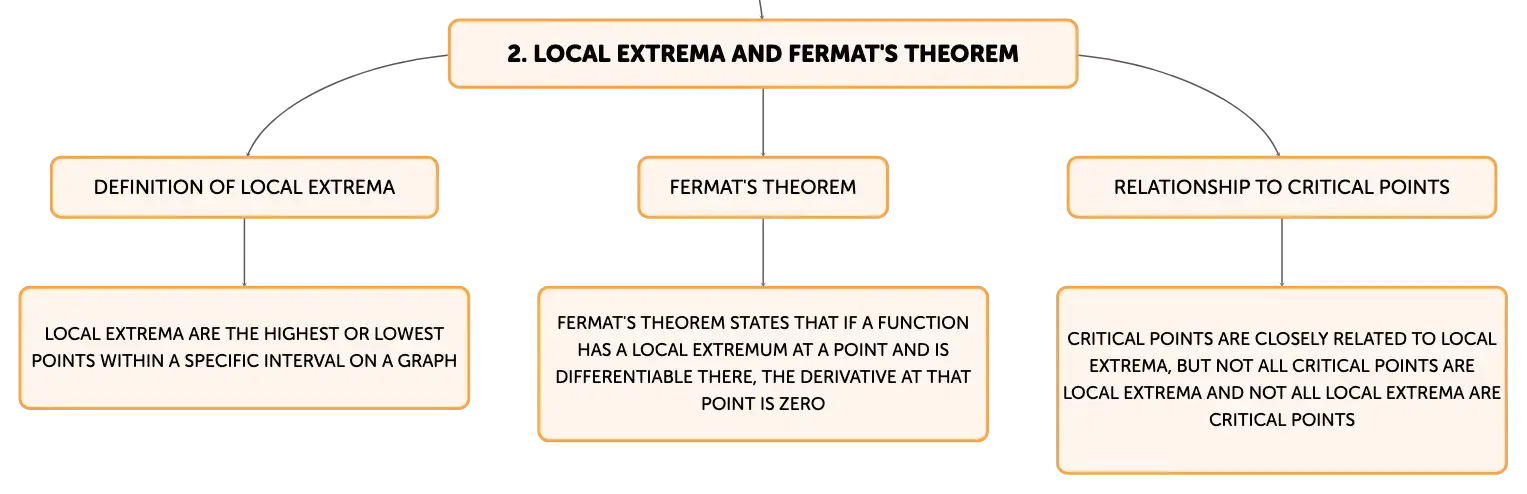

Critical points are closely related to local extrema, which are the highest or lowest points within a specific interval on a graph. Fermat's Theorem states that if a function has a local extremum at a point and is differentiable there, the derivative at that point is zero. However, the presence of a critical point does not guarantee a local extremum, and not all local extrema occur at critical points. For example, the function \( f(x) = x^3 - 2 \) has a critical point at \( x = 0 \) but no local extremum, while \( g(x) = |x - 2| + 1 \) has a local minimum at \( x = 2 \) but is not differentiable there, so it is not a critical point.

Extending the First Derivative Test to Functions of Several Variables

The First Derivative Test is also applicable to functions with multiple variables by finding and setting the partial derivatives to zero. For a function like \( f(x, y) = x^2 - xy + 2y \), the critical points are determined by solving the system of equations from the partial derivatives, leading to a critical point at \( (2, 4) \). As the number of variables increases, the complexity of finding critical points grows, necessitating the solution of more equations.

Varied Applications of the First Derivative Test

The First Derivative Test is versatile, applicable to functions of different forms, such as \( f(x) = x^4 - 2x^2 + 1 \) and \( g(x) = \sin{x} \). For the polynomial function, the derivative reveals critical points at \( x = 0, 1, -1 \). The sine function has an infinite number of critical points at every \( \pi/2 \) plus any integer multiple of \( \pi \), illustrating the test's broad utility in function analysis.

Distinguishing Between the First and Second Derivative Tests

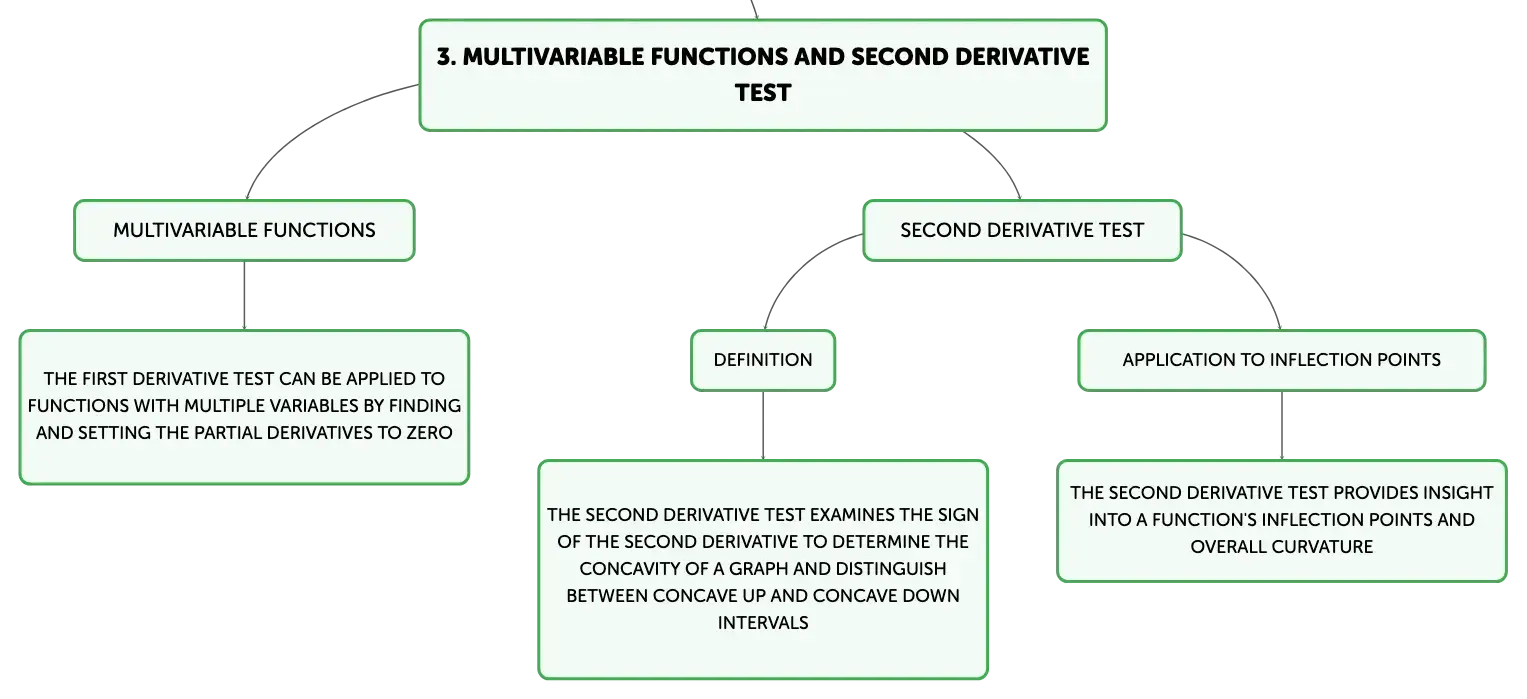

The First Derivative Test identifies critical points but does not indicate the concavity of a function or whether a critical point is a maximum or minimum. The Second Derivative Test complements the first by examining the sign of the second derivative to determine the concavity of the graph and to distinguish between concave up and concave down intervals, providing insight into the function's inflection points and overall curvature.

Concluding Insights on the First Derivative Test

The First Derivative Test is an invaluable tool for pinpointing where a function's derivative is zero, indicating critical points. It is a foundational concept in calculus that links to the analysis of local extrema through Fermat's Theorem. It is important to recognize that not all critical points are local extrema and not all local extrema are critical points. The test applies to both single-variable and multivariable functions, with increased complexity as the number of variables grows. Mastery of the First Derivative Test is essential for students to fully understand the behavior and graphical representation of functions.
