Euclidean Geometry

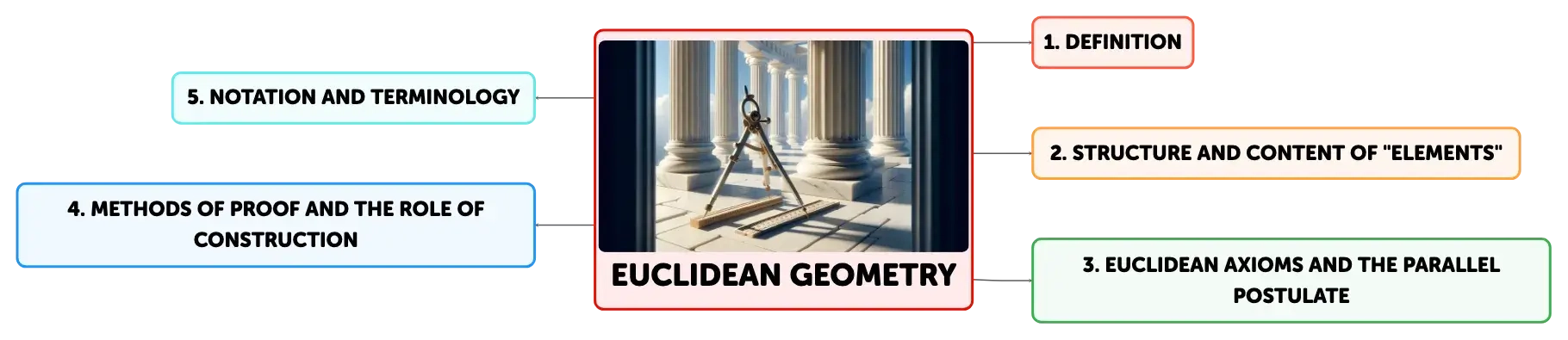

Concept Map
Euclidean geometry, established by the mathematician Euclid, is a cornerstone of mathematical study, dealing with space and shape. It is based on five postulates, including the controversial parallel postulate, which led to the exploration of non-Euclidean geometries. Euclid's
Summary
Outline
The Foundations of Euclidean Geometry
Euclidean geometry, named after the ancient Greek mathematician Euclid, is a mathematical system that is foundational to the study of space and shape. Euclid's seminal work, "Elements," is a collection of 13 books that systematically lays out the principles of this geometry through definitions, postulates (axioms), common notions, and propositions (theorems and problems). The postulates are basic assumptions accepted without proof, such as the ability to draw a straight line from any point to any other point. Euclidean geometry is deductive in nature; it builds complex theorems upon simpler, previously established ones. The "Elements" begins with concepts of plane geometry, which are essential to secondary education, and extends to three-dimensional geometry, while also incorporating aspects of what we now call algebra and number theory, albeit within a geometric framework.The Structure and Content of "Elements"
"Elements" is a masterful compilation that organizes the geometric and mathematical knowledge of Euclid's time. Its structure is such that it overshadowed previous works, leading to their obscurity. The treatise is methodically divided into 13 books. Books I through IV and VI focus on plane geometry, covering fundamental theorems such as the properties of triangles and the Pythagorean theorem. Book V introduces the theory of proportion, applicable to both numbers and magnitudes, and Books VII through X are concerned with number theory, where Euclid presents numbers as lengths and areas and proves the infinitude of prime numbers. Books XI through XIII address solid geometry, examining the properties of three-dimensional figures and culminating in the construction of the five regular Platonic solids.Euclidean Axioms and the Parallel Postulate
Euclidean geometry is built upon five fundamental postulates that Euclid assumed to be self-evident. These include the ability to draw a straight line between any two points, to extend a line segment indefinitely, to draw a circle given any center and radius, that all right angles are equal, and the parallel postulate. The parallel postulate states that given a line and a point not on it, there is exactly one line parallel to the given line that passes through the point. This postulate was controversial due to its less obvious nature and led to centuries of attempts to prove it using the other axioms. Its uniqueness is highlighted by the development of non-Euclidean geometries, where the parallel postulate is replaced with an alternative, leading to different geometric properties.Methods of Proof and the Role of Construction in Euclidean Geometry
Euclidean geometry is notable for its emphasis on construction. Euclid's proofs often involve creating figures with a compass and straightedge, demonstrating the existence and properties of geometric objects. This constructive approach is a hallmark of Euclidean methodology, contrasting with some modern mathematical practices that may assume existence without explicit construction. Euclidean proofs utilize logical arguments, including direct proof, proof by contradiction, and geometric construction. The method of superposition, where one figure is placed over another to show congruence or similarity, is also used. These rigorous proof techniques ensure that geometric truths are established with certainty and clarity.Notation and Terminology in Euclidean Geometry
In Euclidean geometry, notation is essential for clarity and precision. Points are labeled with capital letters, and geometric figures are named by listing the points that define them, such as triangle ABC for a triangle with vertices at points A, B, and C. Euclidean geometry also introduces the concepts of complementary and supplementary angles, which are pairs of angles that add up to a right angle (90 degrees) and a straight angle (180 degrees), respectively. Euclid's original work did not use modern angle measurement units such as degrees or radians, and his terminology for lines was more general; he specified "straight lines" when necessary to distinguish them from curves. Modern geometry has expanded upon Euclid's foundations with more precise definitions and measurements, but the essence of his geometric principles remains integral to the field.
Show More

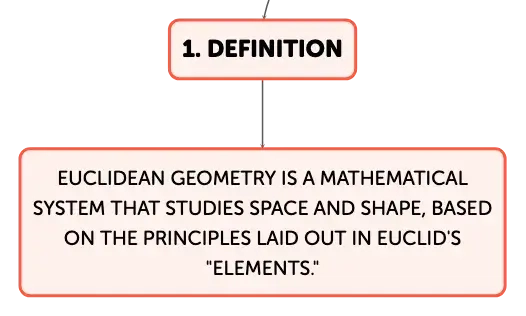

Definition
Euclidean geometry is a mathematical system that studies space and shape, based on the principles laid out in Euclid's "Elements."

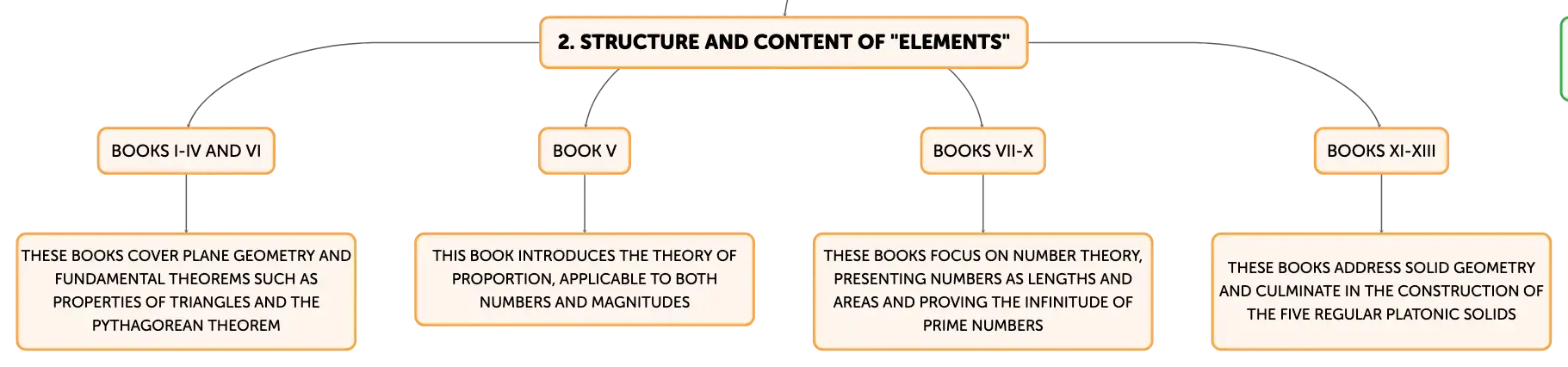

Structure and Content of "Elements"
Books I-IV and VI
These books cover plane geometry and fundamental theorems such as properties of triangles and the Pythagorean theorem
Book V
This book introduces the theory of proportion, applicable to both numbers and magnitudes
Books VII-X
These books focus on number theory, presenting numbers as lengths and areas and proving the infinitude of prime numbers
Books XI-XIII
These books address solid geometry and culminate in the construction of the five regular Platonic solids

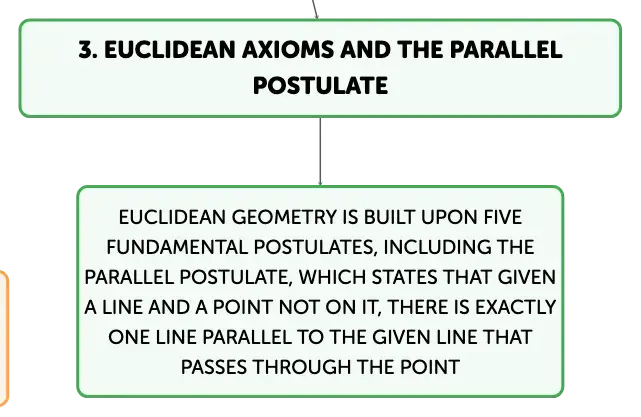

Euclidean Axioms and the Parallel Postulate
Euclidean geometry is built upon five fundamental postulates, including the parallel postulate, which states that given a line and a point not on it, there is exactly one line parallel to the given line that passes through the point

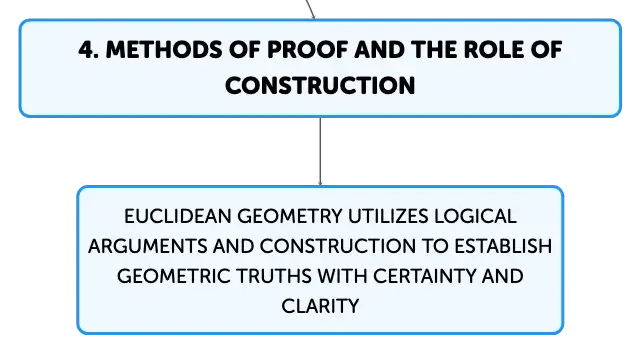

Methods of Proof and the Role of Construction
Euclidean geometry utilizes logical arguments and construction to establish geometric truths with certainty and clarity

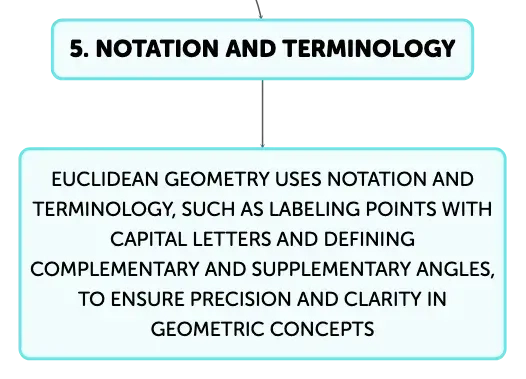

Notation and Terminology
Euclidean geometry uses notation and terminology, such as labeling points with capital letters and defining complementary and supplementary angles, to ensure precision and clarity in geometric concepts
Euclidean Geometry
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
Euclidean geometry foundational principles
Based on definitions, postulates, common notions, propositions; deductive, building complex theorems from simpler ones.
01
Euclid's postulates example
One postulate states a straight line can be drawn connecting any two points.
02
Euclid's 'Elements' structure
13 books starting with plane geometry, extending to 3D geometry, includes early algebra and number theory.
