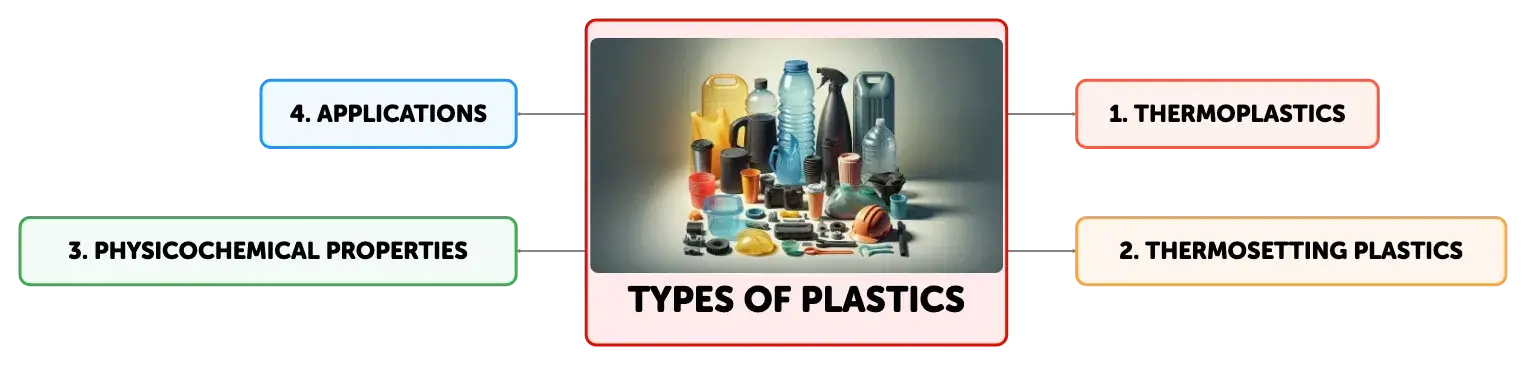

Exploring the world of plastics, this content delves into the differences between thermoplastics and thermosetting plastics. It examines their molecular structures, such as the linear chains in thermoplastics that allow for melting and reshaping, versus the cross-linked networks in thermosets that result in a rigid form. The text also discusses the physicochemical properties that influence their uses, the role of monomers in determining polymer characteristics, and the polymerization processes that create these materials.

Distinction Between Thermoplastics and Thermosetting Plastics

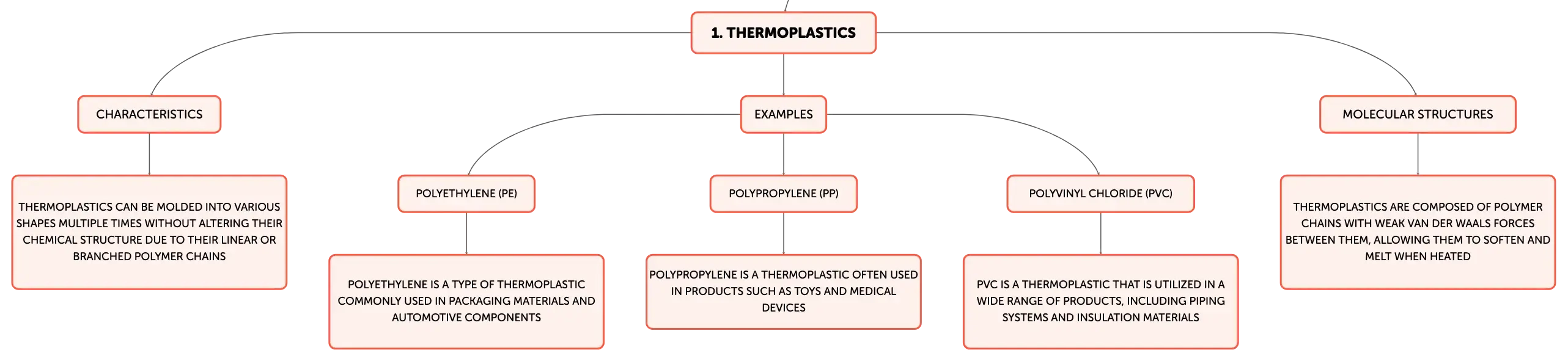

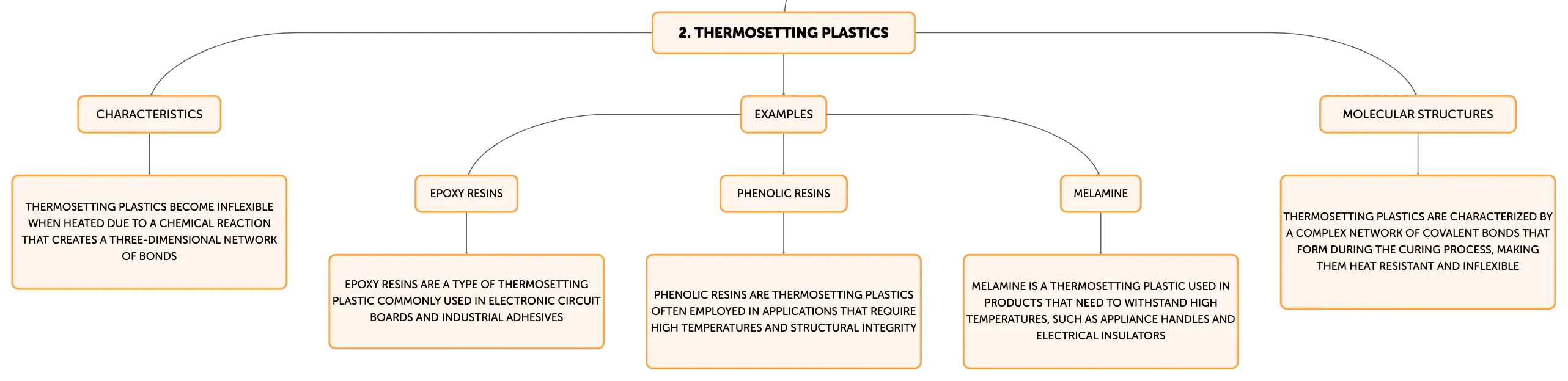

Thermoplastics and thermosetting plastics represent two primary classes of plastics, each with distinct characteristics and applications. Thermoplastics are polymers that become pliable upon heating and can be molded into various shapes, which can be repeated multiple times without altering their chemical structure. This reversible process is due to their linear or branched polymer chains, which allow them to melt and solidify cyclically. Examples of thermoplastics include Polyethylene (PE), Polypropylene (PP), and Polyvinyl Chloride (PVC), which are utilized in a wide range of products from packaging materials to automotive components. In contrast, thermosetting plastics irreversibly set into a hardened state when heated due to a chemical reaction that creates a three-dimensional network of bonds, rendering them inflexible. Common thermosetting plastics such as Epoxy Resins, Phenolic Resins, and Melamine are employed in applications that require materials to withstand high temperatures and maintain structural integrity, such as in electronic circuit boards and industrial adhesives.
Variety of plastic objects on light background: transparent bottle, red cup, yellow bag, black kettle, green utensil, orange hard hat, container and gear.

Molecular Structures of Thermoplastics and Thermosets

The molecular structures of thermoplastics and thermosetting plastics are fundamental to their respective properties and behaviors. Thermoplastics are composed of polymer chains with weak van der Waals forces between them, which facilitates their ability to soften and melt when heated. This property is beneficial for recycling and manufacturing processes that require material reshaping. Conversely, thermosetting plastics are characterized by a complex network of covalent bonds that form during the curing process, resulting in materials that are robust and heat resistant. Due to their cross-linked nature, thermosets cannot be remolded once cured, which limits their recyclability but makes them ideal for high-stress and high-temperature environments.

Show More

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

00

Characteristics of Thermoplastics

Linear/branched chains, meltable, re-moldable, chemically stable during heating/cooling cycles.

01

Examples of Thermoplastics

Polyethylene (PE), Polypropylene (PP), Polyvinyl Chloride (PVC) - used in packaging, automotive.

02

Characteristics of Thermosetting Plastics

Heat causes irreversible setting, three-dimensional bonding, inflexible once hardened.
