Hückel's Rule: A Guideline for Aromaticity in Organic Chemistry
Concept Map
Hückel's Rule is a fundamental principle in organic chemistry, used to assess the aromaticity of cyclic, planar molecules with delocalized π electrons. It requires a molecule to be cyclic, planar, have a conjugated π system, and adhere to the 4n+2 π electron rule for aromaticity. This rule distinguishes between aromatic and antiaromatic compounds, influencing stability and reactivity. Its applicability extends to complex structures like heterocycles and polycyclic aromatic hydrocarbons, although it has limitations.
Summary
Outline
Exploring the Concept of Aromaticity with Hückel's Rule
Hückel's Rule, established by Erich Hückel in 1931, is a quintessential guideline in organic chemistry for determining the aromaticity of planar, cyclic molecules with delocalized π electrons. Aromatic compounds, exemplified by benzene, exhibit remarkable stability and unique chemical properties due to a delocalized π electron system. To be classified as aromatic under Hückel's Rule, a molecule must fulfill several criteria: it must form a ring (cyclic), be flat (planar), have a conjugated system of π electrons (alternating single and double bonds), and contain a π electron count that satisfies the \(4n+2\) rule, where \(n\) is a whole number starting from zero.The Criteria for Aromaticity According to Hückel's Rule
Hückel's Rule articulates four essential criteria for a molecule to be considered aromatic. The molecule must form a ring structure (cyclic), maintain flatness (planar) to allow p orbitals to overlap for π electron delocalization, exhibit a conjugated system of π electrons (alternating single and double bonds), and have a π electron count that adheres to the \(4n+2\) rule, with \(n\) being a non-negative integer. This \(4n+2\) π electron requirement is pivotal in conferring aromatic status to a molecule, which is synonymous with increased stability and distinctive reactivity.Applying Hückel's Rule to Determine Aromaticity
To apply Hückel's Rule, one must systematically evaluate a molecule's aromatic potential. Initially, the molecule's cyclic nature and planarity are confirmed. Subsequently, the presence of a conjugated π electron system is established. The final step involves counting the π electrons to ensure they conform to the \(4n+2\) rule. This methodical approach is crucial for discerning the aromatic character of molecules and anticipating their chemical behaviors.Differentiating Aromatic from Antiaromatic Compounds
Hückel's Rule is pivotal for distinguishing aromatic compounds from antiaromatic ones. Aromatic compounds meet all four criteria of Hückel's Rule, including the \(4n+2\) π electron count, resulting in substantial stability due to electron delocalization. Antiaromatic compounds, while also cyclic, planar, and conjugated, do not follow the \(4n+2\) rule but instead have a π electron count that fits the \(4n\) rule, leading to decreased stability. Recognizing this distinction is essential for predicting the stability and chemical properties of cyclic compounds.Broad Applicability of Hückel's Rule Across Molecular Structures
Hückel's Rule extends beyond simple aromatic compounds like benzene to encompass complex structures such as heterocycles and polycyclic aromatic hydrocarbons. For example, pyridine, with its six π electrons, complies with the \(4n+2\) rule, and naphthalene, with ten π electrons, also satisfies the rule for \(n=2\). These instances illustrate the rule's wide-ranging utility in identifying aromaticity in a variety of organic compounds, thereby aiding in the understanding of their stability and reactivity.The Influence and Limitations of Hückel's Rule in Organic Chemistry
Hückel's Rule has significantly shaped the understanding of molecular stability and aromaticity within organic chemistry, contributing to advancements in fields such as pharmaceuticals and synthetic materials. Nevertheless, the rule has its constraints; it is most applicable to monocyclic, planar molecules and may not accurately predict the behavior of non-planar or polycyclic structures where π electron delocalization is compromised. Moreover, exceptions to the rule exist, such as cyclooctatetraene, which, despite possessing eight π electrons, is nonaromatic due to its non-planar geometry.The Educational Value of Hückel's Rule in Chemistry
Hückel's Rule is a foundational concept in the chemistry curriculum, enabling students to classify molecules and predict their chemical behavior effectively. Its straightforwardness and accuracy make it an essential component of the chemist's toolkit, influencing the teaching and advancement of organic chemistry. Despite its limitations, Hückel's Rule remains a pivotal concept that continues to guide chemists in the exploration and understanding of aromatic compounds.
Show More
Introduction to Hückel's Rule
Definition of Hückel's Rule
Hückel's Rule is a guideline used in organic chemistry to determine the aromaticity of planar, cyclic molecules with delocalized π electrons
History of Hückel's Rule
Established by Erich Hückel in 1931
Hückel's Rule was first introduced by Erich Hückel in 1931
Quintessential guideline in organic chemistry
Hückel's Rule is considered a quintessential guideline in organic chemistry for determining aromaticity
Purpose of Hückel's Rule
Hückel's Rule is used to identify aromatic compounds, which exhibit unique stability and chemical properties due to delocalized π electron systems

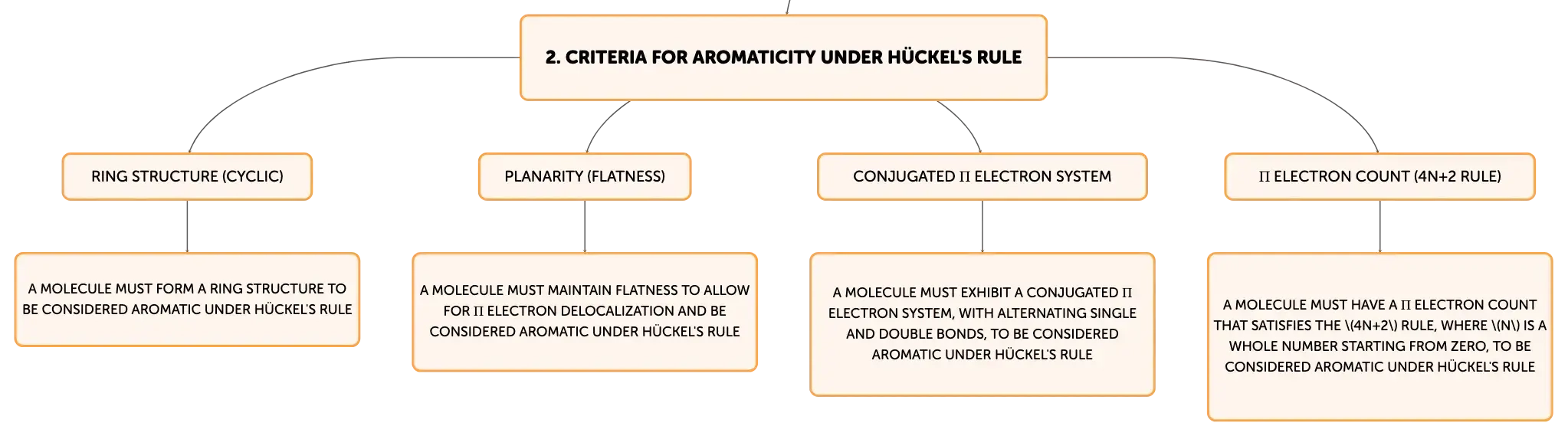

Criteria for Aromaticity under Hückel's Rule
Ring Structure (Cyclic)
A molecule must form a ring structure to be considered aromatic under Hückel's Rule
Planarity (Flatness)
A molecule must maintain flatness to allow for π electron delocalization and be considered aromatic under Hückel's Rule
Conjugated π Electron System
A molecule must exhibit a conjugated π electron system, with alternating single and double bonds, to be considered aromatic under Hückel's Rule
π Electron Count (4n+2 Rule)
A molecule must have a π electron count that satisfies the \(4n+2\) rule, where \(n\) is a whole number starting from zero, to be considered aromatic under Hückel's Rule

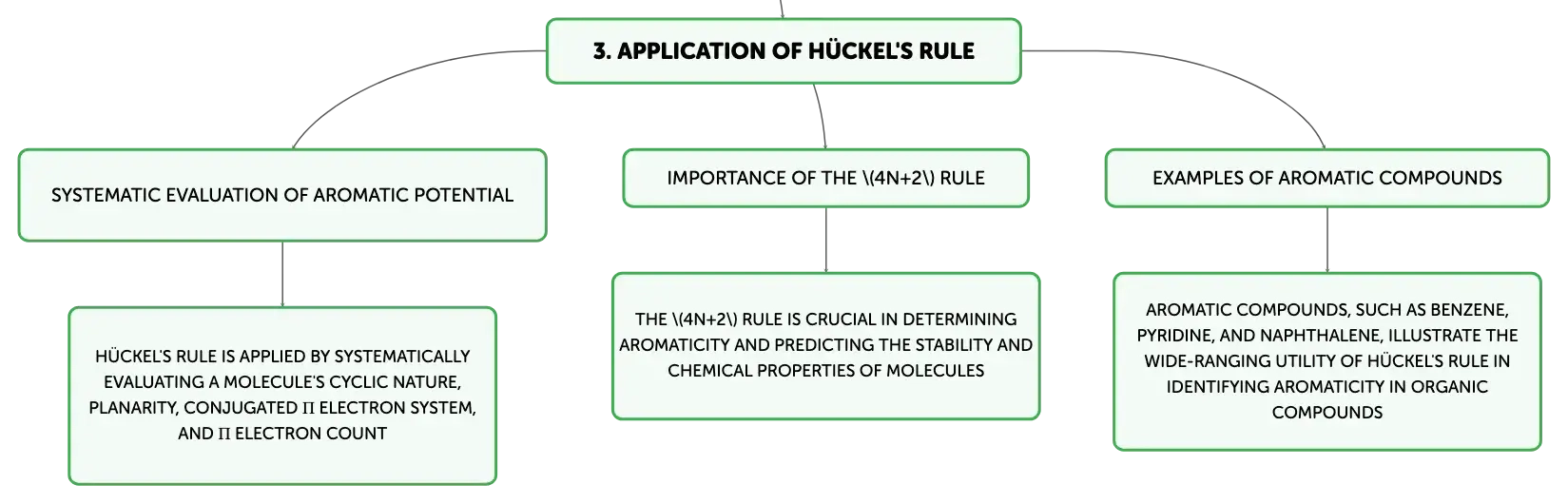

Application of Hückel's Rule
Systematic Evaluation of Aromatic Potential
Hückel's Rule is applied by systematically evaluating a molecule's cyclic nature, planarity, conjugated π electron system, and π electron count
Importance of the \(4n+2\) Rule
The \(4n+2\) rule is crucial in determining aromaticity and predicting the stability and chemical properties of molecules
Examples of Aromatic Compounds
Aromatic compounds, such as benzene, pyridine, and naphthalene, illustrate the wide-ranging utility of Hückel's Rule in identifying aromaticity in organic compounds

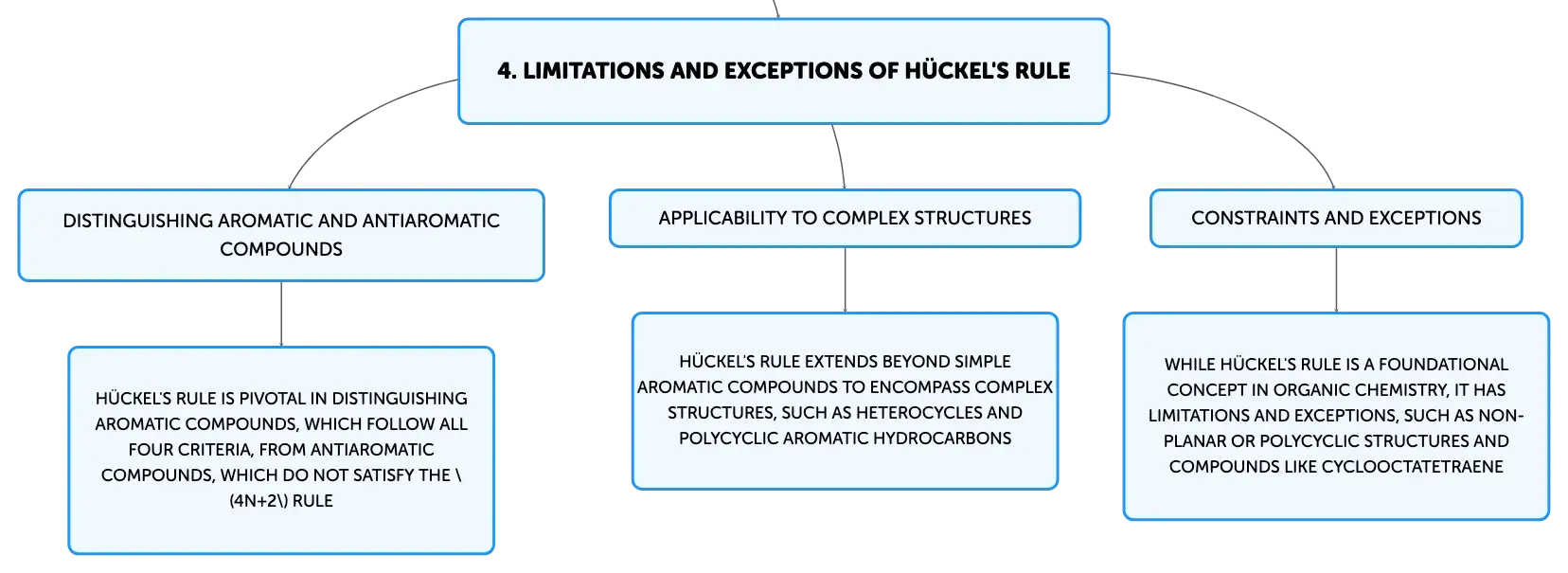

Limitations and Exceptions of Hückel's Rule
Distinguishing Aromatic and Antiaromatic Compounds
Hückel's Rule is pivotal in distinguishing aromatic compounds, which follow all four criteria, from antiaromatic compounds, which do not satisfy the \(4n+2\) rule
Applicability to Complex Structures
Hückel's Rule extends beyond simple aromatic compounds to encompass complex structures, such as heterocycles and polycyclic aromatic hydrocarbons
Constraints and Exceptions
While Hückel's Rule is a foundational concept in organic chemistry, it has limitations and exceptions, such as non-planar or polycyclic structures and compounds like cyclooctatetraene
Hückel's Rule: A Guideline for Aromaticity in Organic Chemistry
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
The last step in applying Hückel's Rule is to count the π electrons to see if they follow the ______ rule.
4n+2
01
Define Hückel's Rule.
Hückel's Rule states that a planar, monocyclic molecule is aromatic if it has (4n+2) π electrons.
02
Impact of Hückel's Rule on pharmaceuticals and synthetic materials.
Hückel's Rule aids in understanding molecular stability and aromaticity, influencing the design of stable, reactive compounds in these fields.
