Classical Mechanics

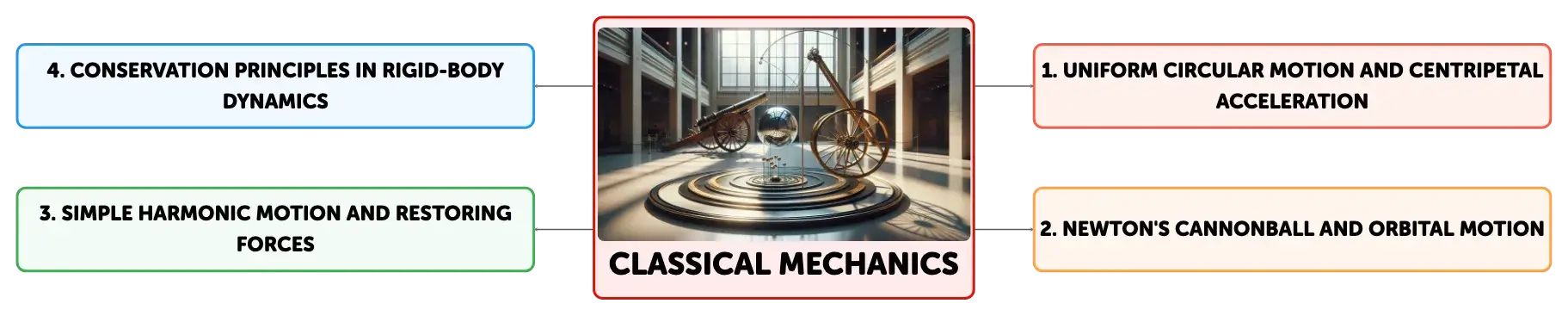

Concept Map
The main topics covered include uniform circular motion and the role of centripetal force, Newton's cannonball thought experiment for understanding orbital motion, the principles of simple harmonic motion (SHM) and the conservation of momentum in rigid-body dynamics, as well as the intricacies of gravitational forces and their impact on orbital dynamics. Additionally, the text delves into the concept of chaotic behavior in classical mechanics, highlighting the sensitivity of such systems to initial conditions and their implications across various scientific fields.
Summary
Outline
Uniform Circular Motion and Centripetal Acceleration
Uniform circular motion occurs when an object moves in a circular path at a constant speed. The net force acting on the object, called the centripetal force, is crucial for changing the direction of the object's velocity without altering its speed. This force is always directed radially inward toward the center of the circle. For an object of mass \( m \) moving in a circle with radius \( r \) at a constant speed \( v \), the centripetal acceleration \( a \) is given by \( a = \frac{v^2}{r} \). Consequently, the magnitude of the centripetal force \( F \) is \( F = \frac{mv^2}{r} \). This concept is fundamental in understanding the motion of satellites and planets, where gravity provides the necessary centripetal force to maintain their orbits.Newton's Cannonball and Orbital Motion
Newton's cannonball is a famous thought experiment that demonstrates the principles of projectile motion and the conditions required for orbital motion. If a cannonball is fired horizontally from a mountaintop, it will fall towards the Earth due to gravity. If the cannonball is fired with increasing horizontal speed, it will travel farther before hitting the ground. At a specific horizontal speed, known as the orbital velocity, the cannonball will fall towards the Earth at the same rate as the Earth's surface curves away from it, thus achieving a stable orbit. This thought experiment illustrates the concept that an object must reach a critical horizontal velocity to remain in orbit around a planet, assuming no atmospheric drag or other perturbations.Simple Harmonic Motion and Restoring Forces
Simple harmonic motion (SHM) is a type of periodic motion where the restoring force is directly proportional to the displacement and acts in the opposite direction. This motion is exemplified by a mass attached to a spring that is stretched or compressed from its equilibrium position. The force exerted by the spring is \( F = -kx \), where \( k \) is the spring constant and \( x \) is the displacement from equilibrium. The motion of the mass can be described by the equation \( x(t) = A \cos(\omega t + \phi) \), where \( A \) is the amplitude, \( \omega = \sqrt{\frac{k}{m}} \) is the angular frequency, and \( \phi \) is the phase constant. SHM is a foundational concept for understanding a variety of physical systems, including pendulums and molecules in a crystal lattice, and can be extended to include damping and driving forces, which lead to phenomena such as resonance.Conservation Principles in Rigid-Body Dynamics
Rigid-body dynamics involves the study of objects that do not deform under the influence of forces, allowing for the separation of motion into translational and rotational components. The translational motion of a rigid body's center of mass follows Newton's first law, moving at a constant velocity unless acted upon by an external force. Rotational motion introduces the moment of inertia, which is the rotational equivalent of mass, and angular momentum, which is analogous to linear momentum. Torque is the rotational equivalent of force and affects the angular momentum of the body. The principle of conservation of angular momentum states that in the absence of external torques, the total angular momentum of a system remains constant. This principle is analogous to the conservation of linear momentum, which holds in the absence of external forces.Gravitational Forces and Orbital Dynamics
Newton's law of universal gravitation states that every two masses exert an attractive force on each other, which is directly proportional to the product of their masses and inversely proportional to the square of the distance between their centers. This force is responsible for the elliptical orbits of planets and satellites, as described by Kepler's laws of planetary motion. The shape of an orbit—whether it is an ellipse, parabola, or hyperbola—depends on the total energy and angular momentum of the orbiting body. The introduction of a third body complicates the system, leading to the three-body problem, which generally cannot be solved analytically. Numerical simulations are often used to study such complex gravitational interactions.Chaotic Behavior in Classical Mechanics
Classical mechanics acknowledges the existence of chaotic systems, which are highly sensitive to initial conditions. A small change in the initial state of a chaotic system can result in dramatically different behavior over time. This unpredictability is a hallmark of chaotic systems, which include the three-body problem, double pendulums, and turbulent fluid flow. The study of chaos is important for understanding the limitations of long-term predictions in dynamical systems and has implications for various fields, including meteorology, astrophysics, and engineering. Despite the deterministic nature of Newtonian mechanics, the complexity of chaotic systems often necessitates the use of statistical or probabilistic methods to describe their behavior over long timescales.
Show More

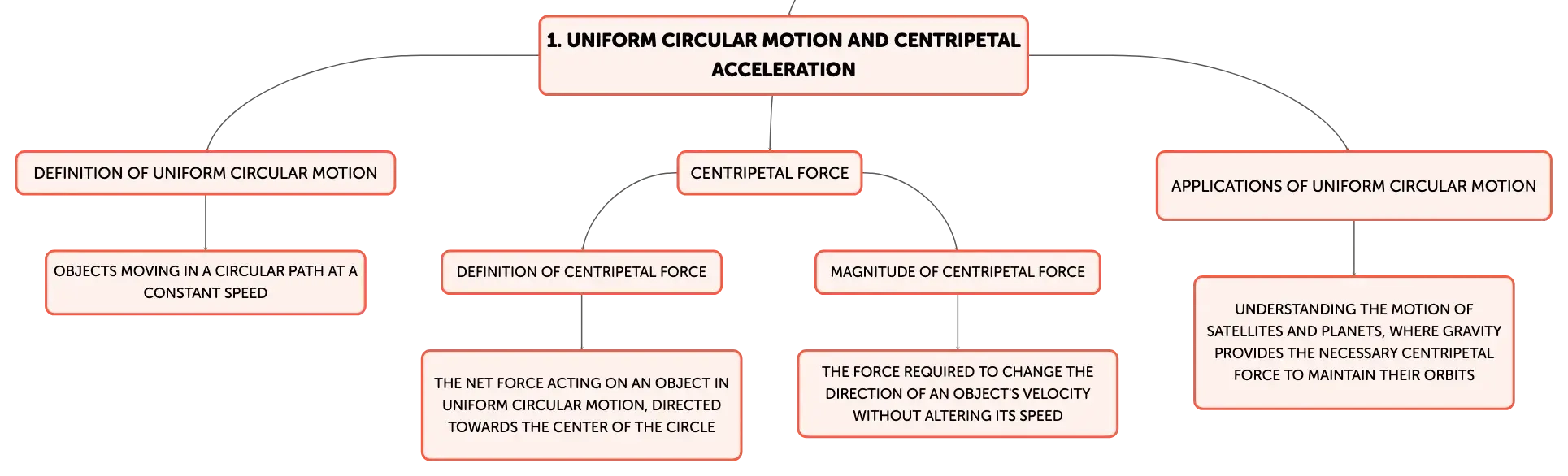

Uniform Circular Motion and Centripetal Acceleration
Definition of Uniform Circular Motion
Objects moving in a circular path at a constant speed
Centripetal Force
Definition of Centripetal Force
The net force acting on an object in uniform circular motion, directed towards the center of the circle
Magnitude of Centripetal Force
The force required to change the direction of an object's velocity without altering its speed
Applications of Uniform Circular Motion
Understanding the motion of satellites and planets, where gravity provides the necessary centripetal force to maintain their orbits

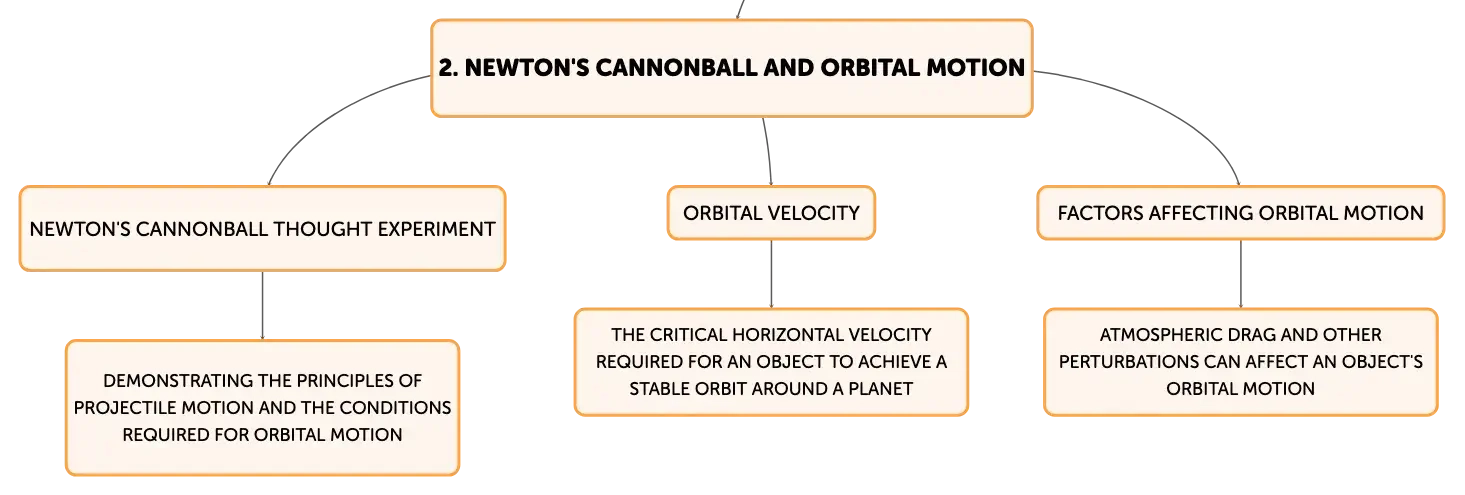

Newton's Cannonball and Orbital Motion
Newton's Cannonball Thought Experiment
Demonstrating the principles of projectile motion and the conditions required for orbital motion
Orbital Velocity
The critical horizontal velocity required for an object to achieve a stable orbit around a planet
Factors Affecting Orbital Motion
Atmospheric drag and other perturbations can affect an object's orbital motion

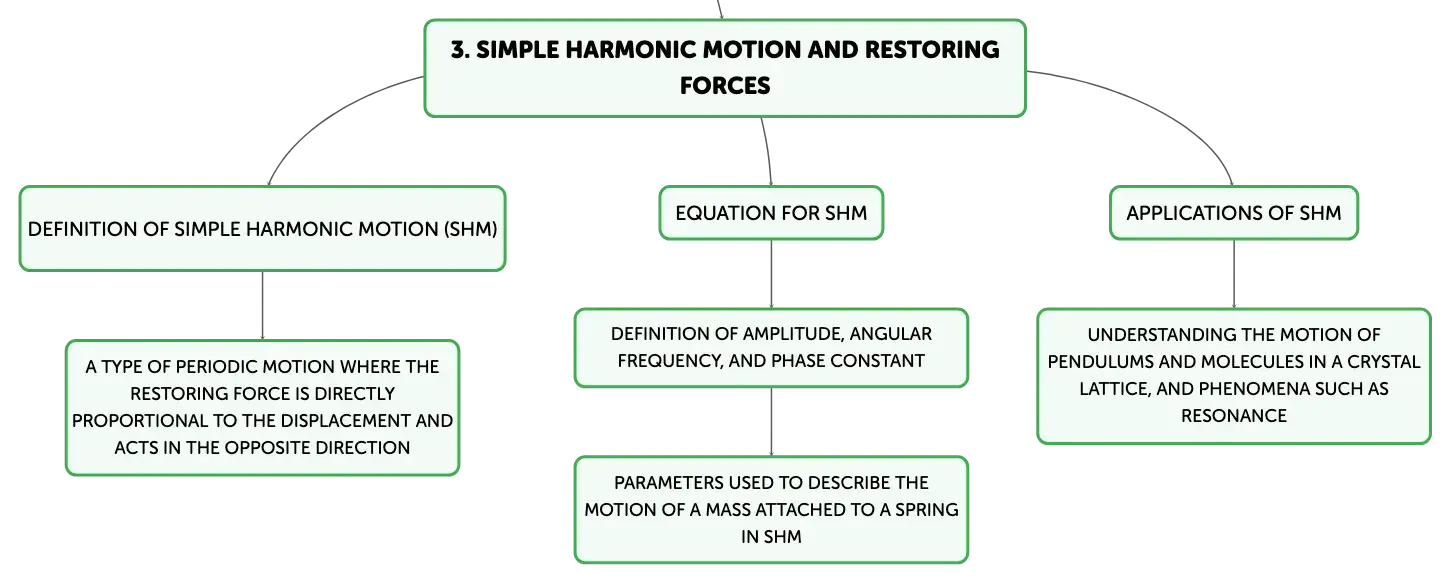

Simple Harmonic Motion and Restoring Forces
Definition of Simple Harmonic Motion (SHM)
A type of periodic motion where the restoring force is directly proportional to the displacement and acts in the opposite direction
Equation for SHM
Definition of Amplitude, Angular Frequency, and Phase Constant
Parameters used to describe the motion of a mass attached to a spring in SHM
Applications of SHM
Understanding the motion of pendulums and molecules in a crystal lattice, and phenomena such as resonance

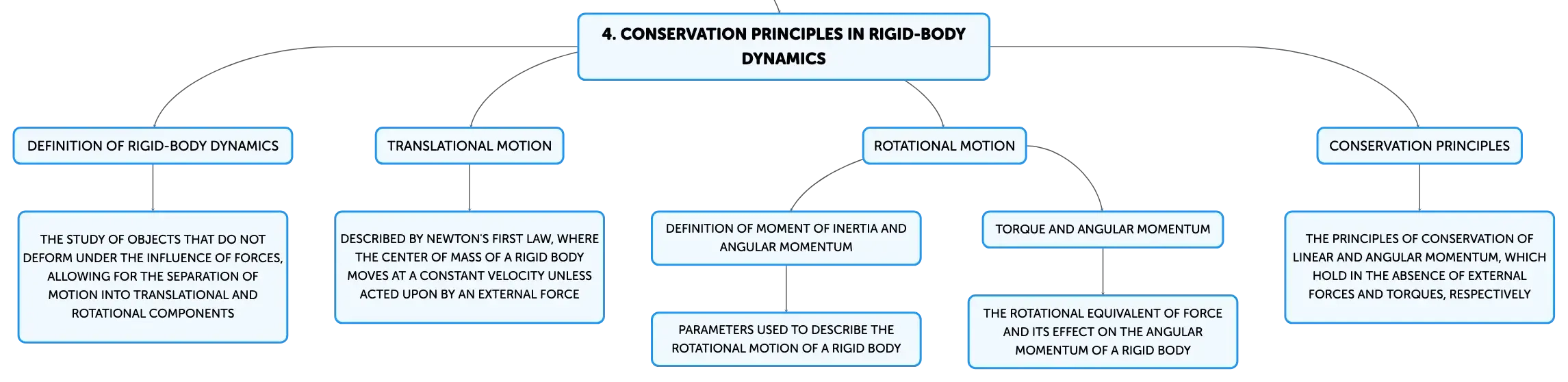

Conservation Principles in Rigid-Body Dynamics
Definition of Rigid-Body Dynamics
The study of objects that do not deform under the influence of forces, allowing for the separation of motion into translational and rotational components
Translational Motion
Described by Newton's first law, where the center of mass of a rigid body moves at a constant velocity unless acted upon by an external force
Rotational Motion
Definition of Moment of Inertia and Angular Momentum
Parameters used to describe the rotational motion of a rigid body
Torque and Angular Momentum
The rotational equivalent of force and its effect on the angular momentum of a rigid body
Conservation Principles
The principles of conservation of linear and angular momentum, which hold in the absence of external forces and torques, respectively
Classical Mechanics
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Projectile motion principles in Newton's cannonball experiment
Cannonball falls due to gravity; horizontal speed determines travel distance before hitting ground.
01
Orbital velocity significance in Newton's experiment
Critical horizontal speed where cannonball's fall matches Earth's curvature, achieving stable orbit.
02
Assumptions in Newton's cannonball thought experiment
No atmospheric drag or other perturbations; ideal conditions for theoretical orbital motion.
