Infrared Spectroscopy

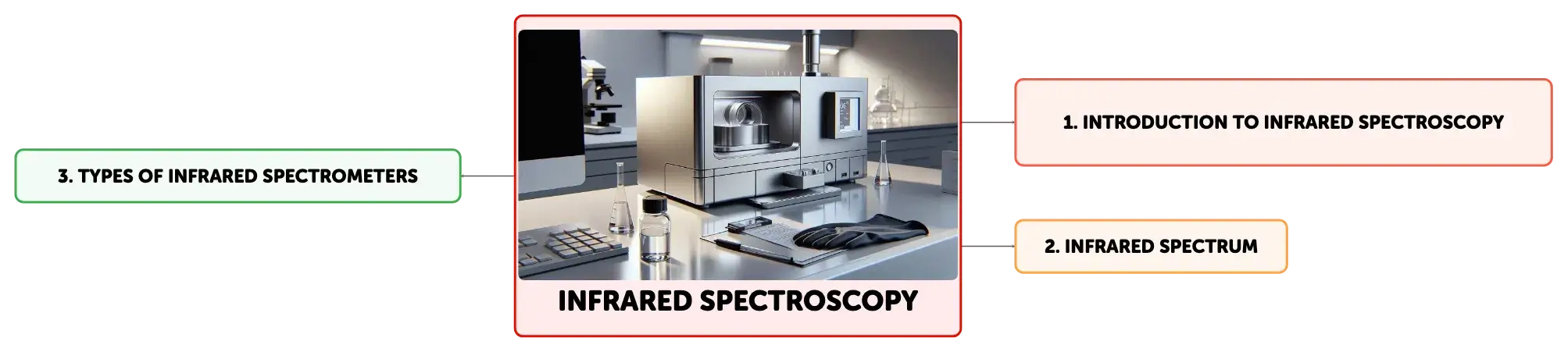

Concept Map
Infrared spectroscopy is a vital tool in organic chemistry for identifying compounds and their structures. It utilizes infrared radiation to detect molecular vibrations, revealing functional groups and compound purity. The text compares Dispersive and Fourier Transform Infrared Spectrometers, highlighting FTIR's rapid data acquisition and sensitivity. Key components of FTIR include an infrared light source, beam splitter, and detector, which together provide a detailed absorption spectrum used to deduce molecular structures.
Summary
Outline
Exploring the Role of Infrared Spectroscopy in Organic Chemistry
Infrared spectroscopy is an indispensable technique in organic chemistry for identifying and characterizing organic compounds. It involves the interaction of infrared radiation with molecular vibrations, which leads to absorption at specific wavelengths corresponding to the vibrational energies of the chemical bonds within the molecules. The resulting absorption spectrum acts as a distinctive molecular fingerprint, allowing chemists to infer the presence of certain functional groups and assess the purity and physical properties of the compound under investigation.Varieties and Key Components of Infrared Spectrometers
Infrared spectrometers come in various forms, including Dispersive Infrared Spectrometers and Fourier Transform Infrared Spectrometers (FTIR). FTIR spectrometers are particularly renowned for their efficiency and are characterized by their use of an interferometer to produce a detailed spectrum. Essential components of an FTIR spectrometer include a stable infrared light source, a beam splitter, a movable mirror, and a detector. These elements collaborate to capture a broad range of infrared frequencies, ensuring the spectrometer's sensitivity and accuracy in detecting molecular vibrations.Fundamental Principles of Infrared Spectroscopy
The principle underlying infrared spectroscopy is the measurement of the absorption and transmission of infrared light by a sample. The spectrometer emits infrared light that interacts with the sample, causing molecular vibrations that are then detected. The resulting interference pattern is recorded by the detector and transformed into a spectrum using the Fourier Transform method. This spectrum provides a visual representation of the molecular vibrations, which corresponds to the molecular structure of the sample.Deciphering the Infrared Spectrum
An infrared spectrum is a plot that shows the intensity of light absorption or transmission across different frequencies. Specific absorption peaks correspond to the vibrational frequencies of functional groups within the molecule. For instance, a peak at approximately 1700 cm^-1 typically indicates the presence of a carbonyl group, while a peak near 3300 cm^-1 often signifies an alcohol group. By examining these characteristic peaks, chemists can deduce the molecular structure and functional groups present in the sample.Procedure for Infrared Spectroscopic Analysis
Conducting an infrared spectroscopic analysis involves preparing the sample, calibrating the spectrometer, and recording the spectrum. The sample is prepared in a form suitable for analysis, and the spectrometer is set to the correct resolution and scan range. A background spectrum is obtained to correct for any ambient infrared absorption. The sample is then introduced, and the resulting spectrum is collected and analyzed to provide insights into the molecular structure and characteristics of the substance.Techniques and Concepts in Infrared Spectroscopy
Infrared spectroscopy encompasses techniques such as Transmission, where infrared light passes directly through the sample, and Reflectance, which involves measuring the light reflected from the sample's surface. These techniques rely on the principle that molecular vibrations absorb infrared radiation at frequencies that match their natural vibrational frequencies. The absorption is dependent on the change in the molecule's dipole moment during vibration, which explains why homonuclear diatomic molecules like O2 and N2 are inactive in the infrared region.Comparing Dispersive and Fourier Transform Infrared Spectroscopy
Dispersive Infrared Spectrometers (DIS) and Fourier Transform Infrared Spectrometers (FTIR) differ fundamentally in their method of operation. DIS instruments use prisms or diffraction gratings to disperse light into its component wavelengths, measuring them sequentially. This method provides high spectral resolution but is generally slower and less sensitive than FTIR. Conversely, FTIR spectrometers collect all wavelengths at once using an interferometer, which allows for rapid data acquisition and enhanced sensitivity. The choice between DIS and FTIR depends on the analysis requirements, with FTIR often being the preferred method in contemporary chemical and materials research laboratories due to its comprehensive and rapid data collection capabilities.
Show More

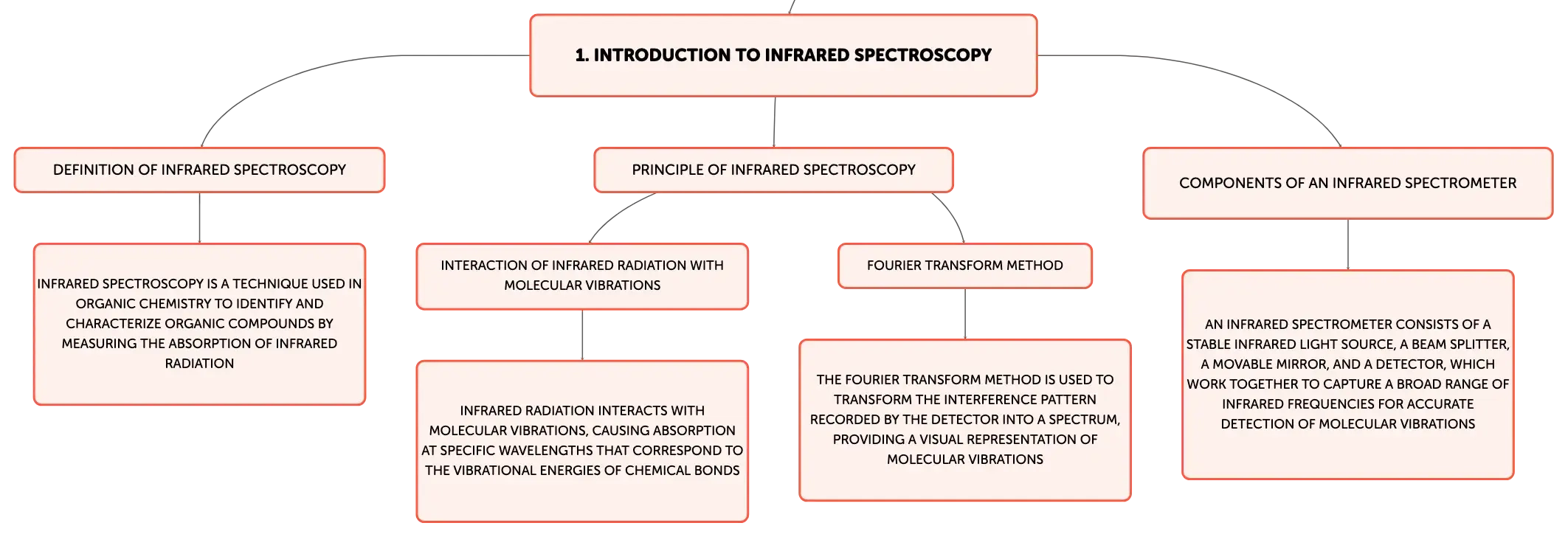

Introduction to Infrared Spectroscopy
Definition of Infrared Spectroscopy
Infrared spectroscopy is a technique used in organic chemistry to identify and characterize organic compounds by measuring the absorption of infrared radiation
Principle of Infrared Spectroscopy
Interaction of Infrared Radiation with Molecular Vibrations
Infrared radiation interacts with molecular vibrations, causing absorption at specific wavelengths that correspond to the vibrational energies of chemical bonds
Fourier Transform Method
The Fourier Transform method is used to transform the interference pattern recorded by the detector into a spectrum, providing a visual representation of molecular vibrations
Components of an Infrared Spectrometer
An infrared spectrometer consists of a stable infrared light source, a beam splitter, a movable mirror, and a detector, which work together to capture a broad range of infrared frequencies for accurate detection of molecular vibrations

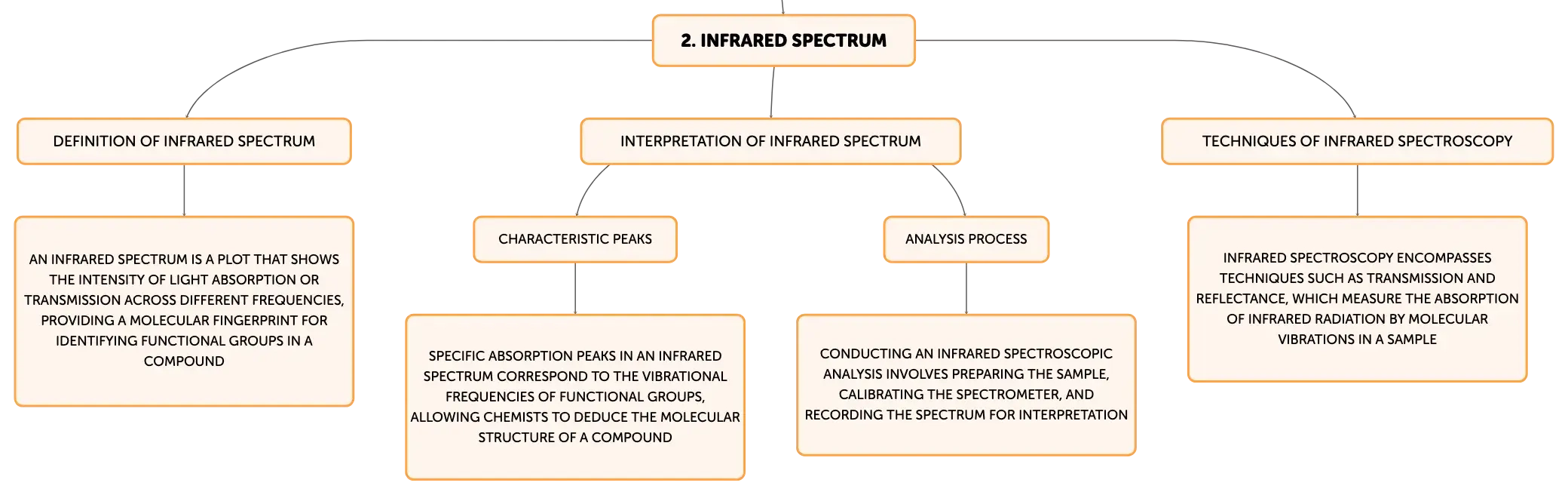

Infrared Spectrum
Definition of Infrared Spectrum
An infrared spectrum is a plot that shows the intensity of light absorption or transmission across different frequencies, providing a molecular fingerprint for identifying functional groups in a compound
Interpretation of Infrared Spectrum
Characteristic Peaks
Specific absorption peaks in an infrared spectrum correspond to the vibrational frequencies of functional groups, allowing chemists to deduce the molecular structure of a compound
Analysis Process
Conducting an infrared spectroscopic analysis involves preparing the sample, calibrating the spectrometer, and recording the spectrum for interpretation
Techniques of Infrared Spectroscopy
Infrared spectroscopy encompasses techniques such as Transmission and Reflectance, which measure the absorption of infrared radiation by molecular vibrations in a sample
Types of Infrared Spectrometers
Dispersive Infrared Spectrometers (DIS)
DIS instruments use prisms or diffraction gratings to disperse light into its component wavelengths, providing high spectral resolution but slower data acquisition
Fourier Transform Infrared Spectrometers (FTIR)
FTIR spectrometers use an interferometer to collect all wavelengths at once, allowing for rapid data acquisition and enhanced sensitivity
Comparison of DIS and FTIR
The choice between DIS and FTIR depends on the analysis requirements, with FTIR being the preferred method in contemporary chemical and materials research laboratories due to its comprehensive and rapid data collection capabilities
Infrared Spectroscopy
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Infrared radiation interaction with molecules
Infrared radiation causes molecular vibrations, leading to absorption at wavelengths matching vibrational energies of chemical bonds.
01
Infrared absorption spectrum purpose
Serves as a molecular fingerprint to identify functional groups, assess purity, and determine physical properties of organic compounds.
02
Functional group identification via IR spectroscopy
Specific absorption bands correspond to different functional groups, allowing chemists to deduce their presence in a compound.
