The Born-Haber Cycle and Lattice Enthalpy

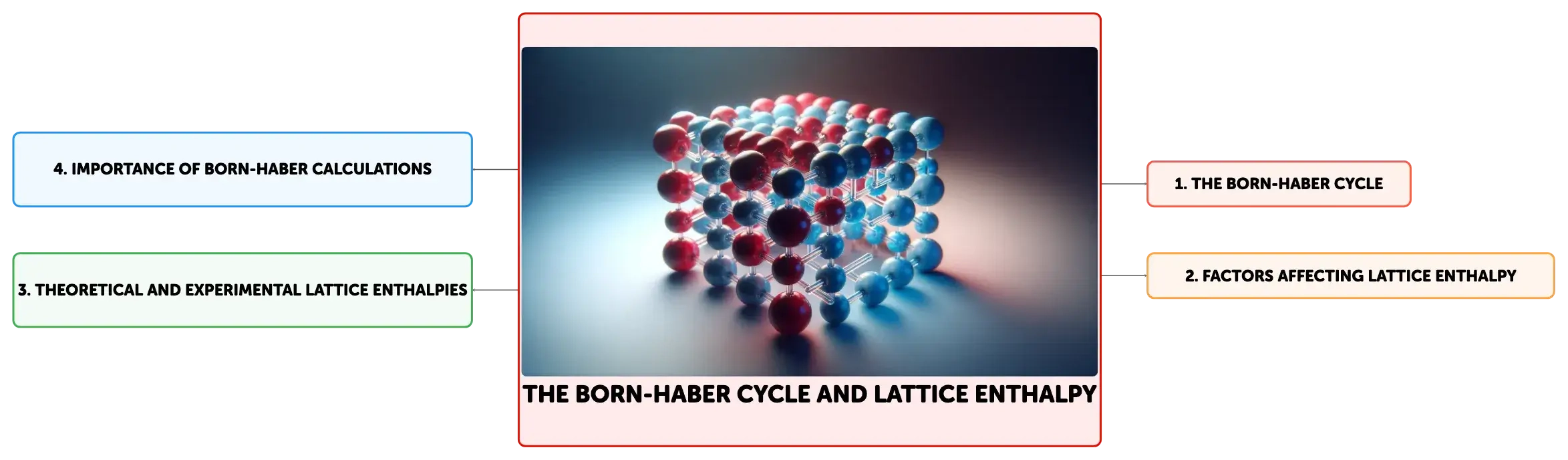

Concept Map
The Born-Haber cycle is a fundamental concept in chemistry that explains the energy changes during the formation of ionic compounds. It uses Hess's Law to calculate lattice enthalpy, a measure of the energy needed to separate one mole of an ionic solid into gaseous ions. Factors like ionic charges and ion sizes impact lattice enthalpy, with greater charges and smaller ions increasing it. The cycle also helps distinguish between ionic and covalent characteristics in bonds, based on the comparison of theoretical and experimental enthalpy values.
Summary
Outline
Exploring the Born-Haber Cycle for Ionic Compound Formation
The Born-Haber cycle is an indispensable concept in chemistry that elucidates the formation of ionic compounds through a series of energy changes. By invoking Hess's Law, which asserts that the total enthalpy change of a reaction is invariant with respect to the reaction pathway, the cycle facilitates the computation of otherwise challenging enthalpy values, such as lattice enthalpy. Lattice enthalpy, the energy required to dissociate one mole of an ionic solid into its constituent gaseous ions, is calculated using the equation: ∆HΘLE = ∆HΘf - [ (∆HΘat (cation)) + (∆HΘat (anion)) + IE1 + EA1 ], where ∆HΘf denotes the enthalpy of formation, ∆HΘat represents the atomization enthalpy for the cation and anion, IE1 is the first ionization energy, and EA1 is the electron affinity.Determining Lattice Enthalpy via Born-Haber Cycles
To ascertain the lattice enthalpy of an ionic solid like potassium chloride (KCl), one must construct a Born-Haber cycle, apply Hess's Law to the cycle's steps, and then insert the known enthalpy values for formation, atomization, ionization, and electron affinity. For KCl, the lattice enthalpy is determined by subtracting the sum of the atomization enthalpies of potassium and chlorine, the ionization energy of potassium, and the electron affinity of chlorine from the enthalpy of formation of KCl. This methodology is similarly employed for other ionic compounds, such as magnesium oxide (MgO), where the calculation includes two ionization energies to account for magnesium's divalent charge.Influences on Lattice Enthalpy Values
Lattice enthalpy is significantly affected by the ionic charges and the sizes of the ions. Greater ionic charges enhance electrostatic attractions, leading to increased lattice enthalpies. In contrast, larger ions have more diffuse electron clouds, which weaken electrostatic attractions and reduce lattice enthalpies. This is exemplified in the comparison of sodium chloride (NaCl) and magnesium oxide (MgO), with MgO exhibiting a higher lattice enthalpy due to the divalent charges on magnesium and oxygen ions, as opposed to the monovalent charges on sodium and chloride ions.Theoretical Versus Experimental Lattice Enthalpies
Theoretical lattice enthalpies, derived from models assuming ideal ionic behavior within a crystal, can deviate from values obtained experimentally through Born-Haber cycles. Minor discrepancies suggest that the compound is predominantly ionic. However, significant differences indicate covalent character within the bonding, implying that electrons are not wholly transferred but are partially shared, leading to polarization of the anion by a small, highly charged cation.Covalent Characteristics and Anion Polarization in Ionic Bonds
Covalent characteristics in ionic bonds emerge when the electronegativity difference is insufficient for complete electron transfer, resulting in anion polarization. This occurs when a small, highly charged cation distorts the electron cloud of the anion, creating a partial electron sharing akin to a covalent bond. The extent of polarization, and thus the degree of covalent character, is influenced by the cation's polarizing power and the anion's polarizability. Consequently, compounds with smaller cations and larger anions tend to exhibit more pronounced covalent characteristics and greater disparities between theoretical and experimental lattice enthalpies.Born-Haber Calculations as an Educational Instrument
Proficiency in Born-Haber calculations is crucial for students to grasp the energetics behind ionic compounds. These calculations shed light on both the experimental and theoretical aspects of lattice enthalpies, the determinants affecting them, and the distinctions between ionic and covalent bonding. Engaging with these concepts allows students to deepen their understanding of chemical bonding and the properties of ionic substances, which are essential elements of the chemistry curriculum.
Show More

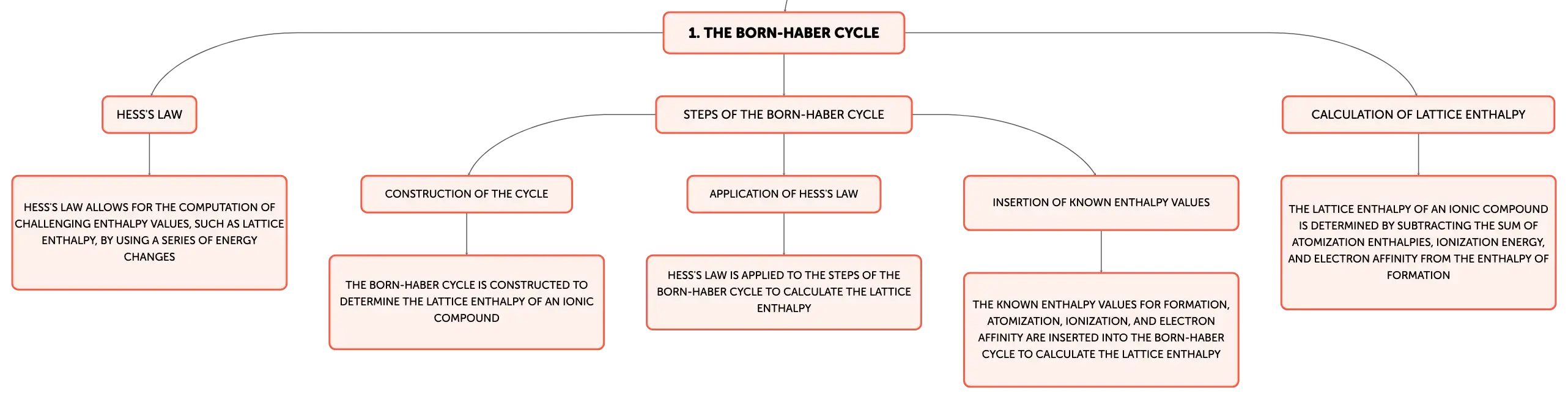

The Born-Haber Cycle
Hess's Law
Hess's Law allows for the computation of challenging enthalpy values, such as lattice enthalpy, by using a series of energy changes
Steps of the Born-Haber Cycle
Construction of the cycle
The Born-Haber cycle is constructed to determine the lattice enthalpy of an ionic compound
Application of Hess's Law
Hess's Law is applied to the steps of the Born-Haber cycle to calculate the lattice enthalpy
Insertion of known enthalpy values
The known enthalpy values for formation, atomization, ionization, and electron affinity are inserted into the Born-Haber cycle to calculate the lattice enthalpy
Calculation of Lattice Enthalpy
The lattice enthalpy of an ionic compound is determined by subtracting the sum of atomization enthalpies, ionization energy, and electron affinity from the enthalpy of formation

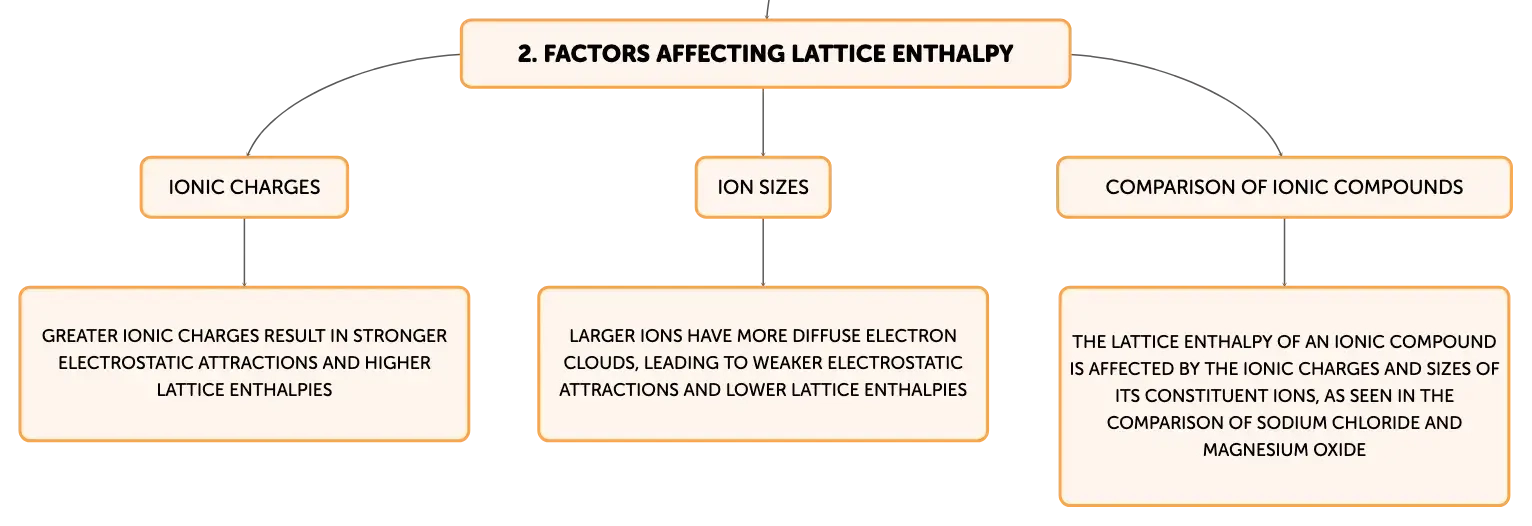

Factors Affecting Lattice Enthalpy
Ionic Charges
Greater ionic charges result in stronger electrostatic attractions and higher lattice enthalpies
Ion Sizes
Larger ions have more diffuse electron clouds, leading to weaker electrostatic attractions and lower lattice enthalpies
Comparison of Ionic Compounds
The lattice enthalpy of an ionic compound is affected by the ionic charges and sizes of its constituent ions, as seen in the comparison of sodium chloride and magnesium oxide

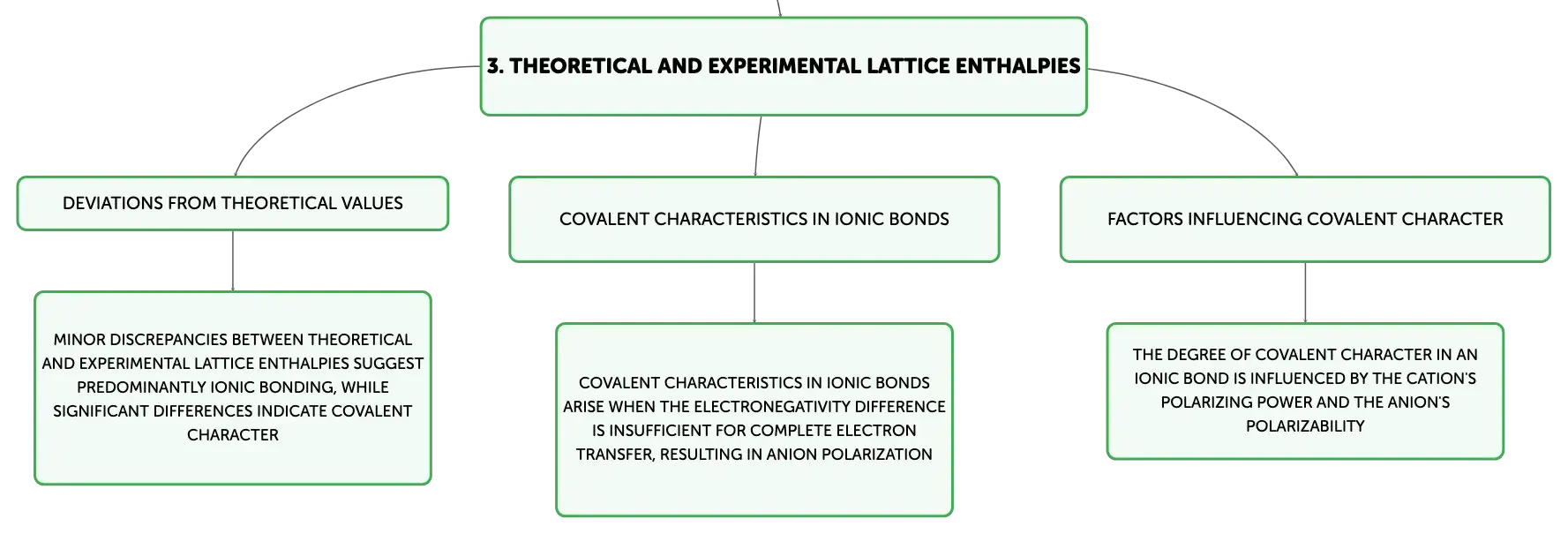

Theoretical and Experimental Lattice Enthalpies
Deviations from Theoretical Values
Minor discrepancies between theoretical and experimental lattice enthalpies suggest predominantly ionic bonding, while significant differences indicate covalent character
Covalent Characteristics in Ionic Bonds
Covalent characteristics in ionic bonds arise when the electronegativity difference is insufficient for complete electron transfer, resulting in anion polarization
Factors Influencing Covalent Character
The degree of covalent character in an ionic bond is influenced by the cation's polarizing power and the anion's polarizability

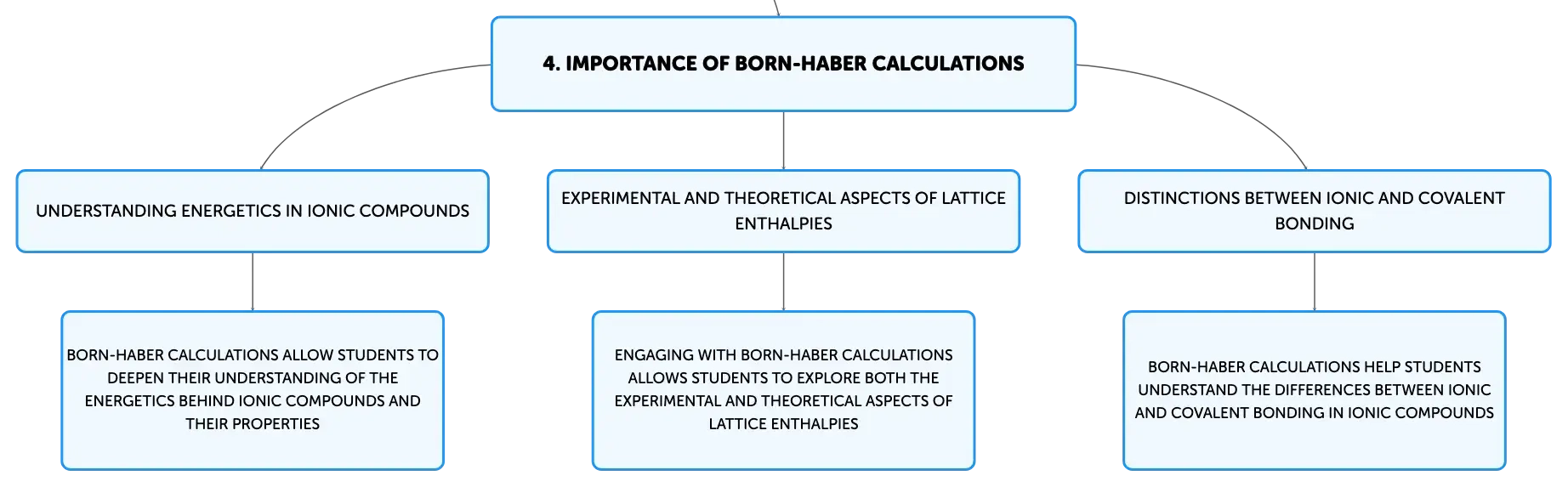

Importance of Born-Haber Calculations
Understanding Energetics in Ionic Compounds
Born-Haber calculations allow students to deepen their understanding of the energetics behind ionic compounds and their properties
Experimental and Theoretical Aspects of Lattice Enthalpies
Engaging with Born-Haber calculations allows students to explore both the experimental and theoretical aspects of lattice enthalpies
Distinctions between Ionic and Covalent Bonding
Born-Haber calculations help students understand the differences between ionic and covalent bonding in ionic compounds
The Born-Haber Cycle and Lattice Enthalpy
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Lattice enthalpy, the energy to break down one mole of an ionic solid into gaseous ions, is determined by the formula: ∆HΘLE = ∆HΘf - [ (∆HΘat (______)) + (∆HΘat (______)) + IE1 + EA1 ].
cation
anion
01
Born-Haber cycle application
Applies Hess's Law to relate lattice enthalpy to other enthalpy changes.
02
Enthalpy values in lattice enthalpy calculation
Includes formation, atomization, ionization, and electron affinity enthalpies.
