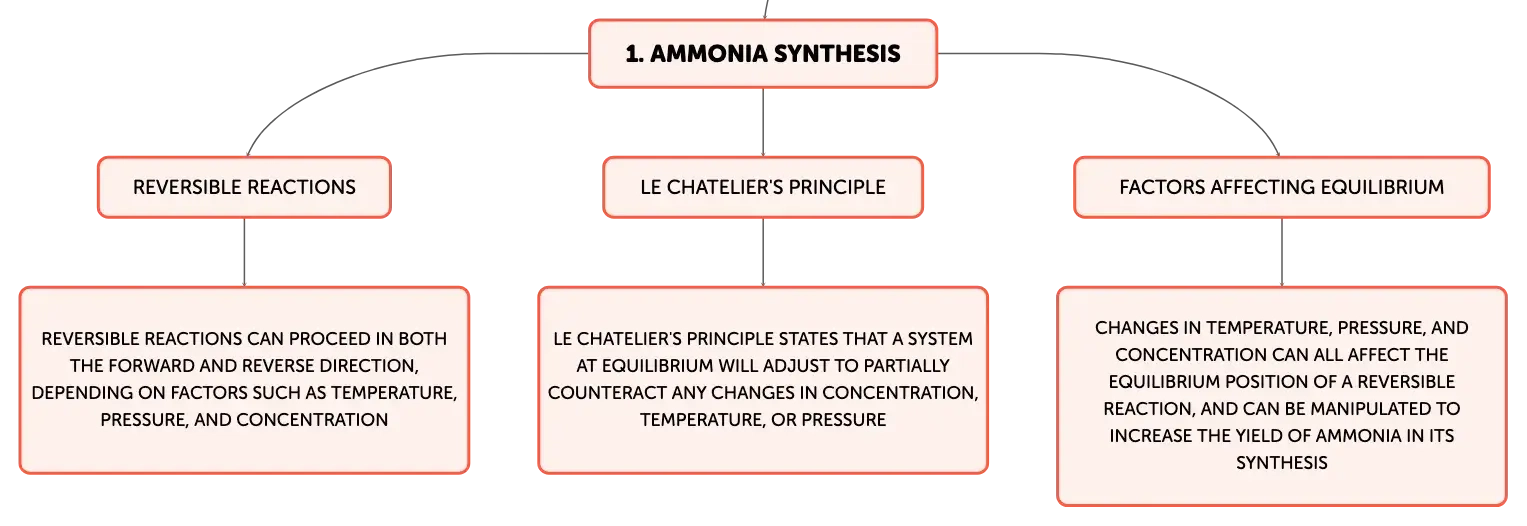

Understanding Ammonia Synthesis and Le Chatelier's Principle

Ammonia (NH3) is a pivotal compound in numerous industrial applications, including the manufacture of fertilizers, synthetic fibers, and plastics. Its synthesis from nitrogen and hydrogen gases is an archetypal reversible reaction, characterized by the ability of the products to revert to reactants under specific conditions. At standard atmospheric pressure and temperature, the equilibrium yield of ammonia is low. To enhance the production of ammonia, the reaction conditions can be adjusted in accordance with Le Chatelier’s principle. This principle is a cornerstone of chemical equilibrium theory, describing how a system at equilibrium responds to external changes to maintain a state of balance.

Modern industrial plant with steel pipe network, valves with red and green knobs, spherical tank and cylindrical towers under blue sky.

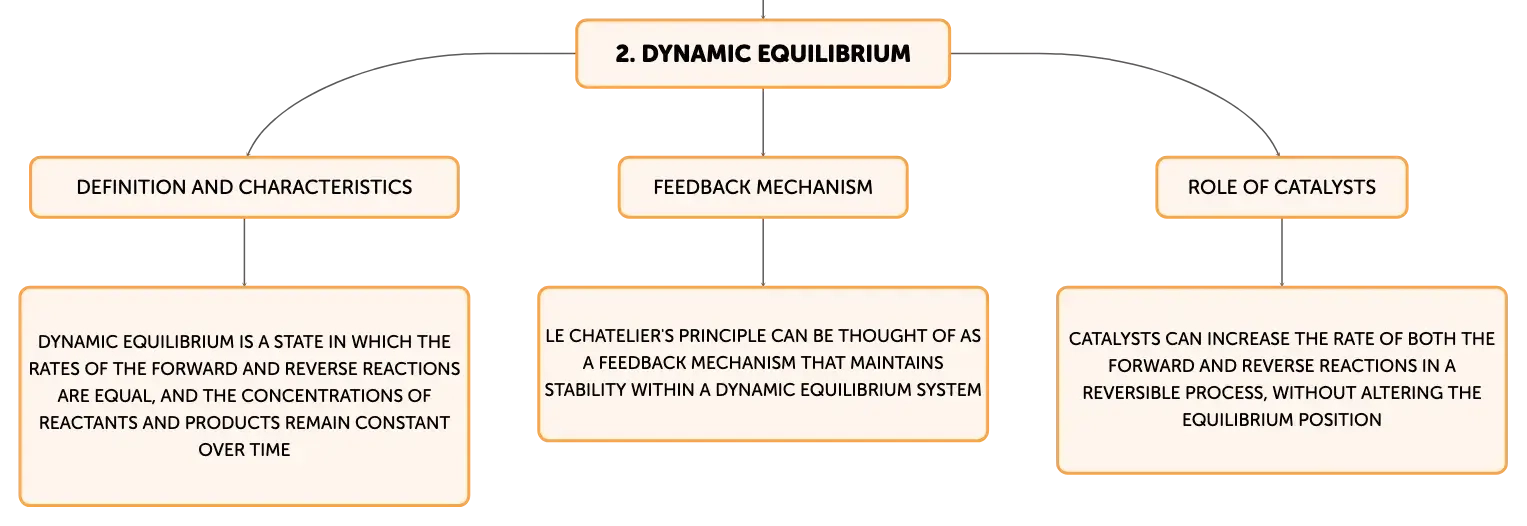

Reversible Reactions and Dynamic Equilibrium

Reversible reactions are chemical processes that can proceed in both the forward direction (reactants to products) and the reverse direction (products to reactants). The direction in which the reaction is favored depends on various factors, including temperature, pressure, and concentration. When the system reaches a state of dynamic equilibrium, the rates of the forward and reverse reactions are equal, and the concentrations of reactants and products remain constant over time. This equilibrium state is dynamic because the reactions continue to occur, but there is no net change in the concentrations of the substances involved.

The Essence of Le Chatelier’s Principle

Le Chatelier’s principle is a predictive tool used to determine the effect of a change in conditions on a system at equilibrium. It states that if a system at equilibrium is subjected to a change in concentration, temperature, or pressure, the system will adjust itself to partially counteract the imposed change. This adjustment involves shifting the equilibrium position to favor the reaction that will absorb the added factor or produce more of the reduced factor. The principle is analogous to a feedback mechanism that maintains stability within a dynamic system.

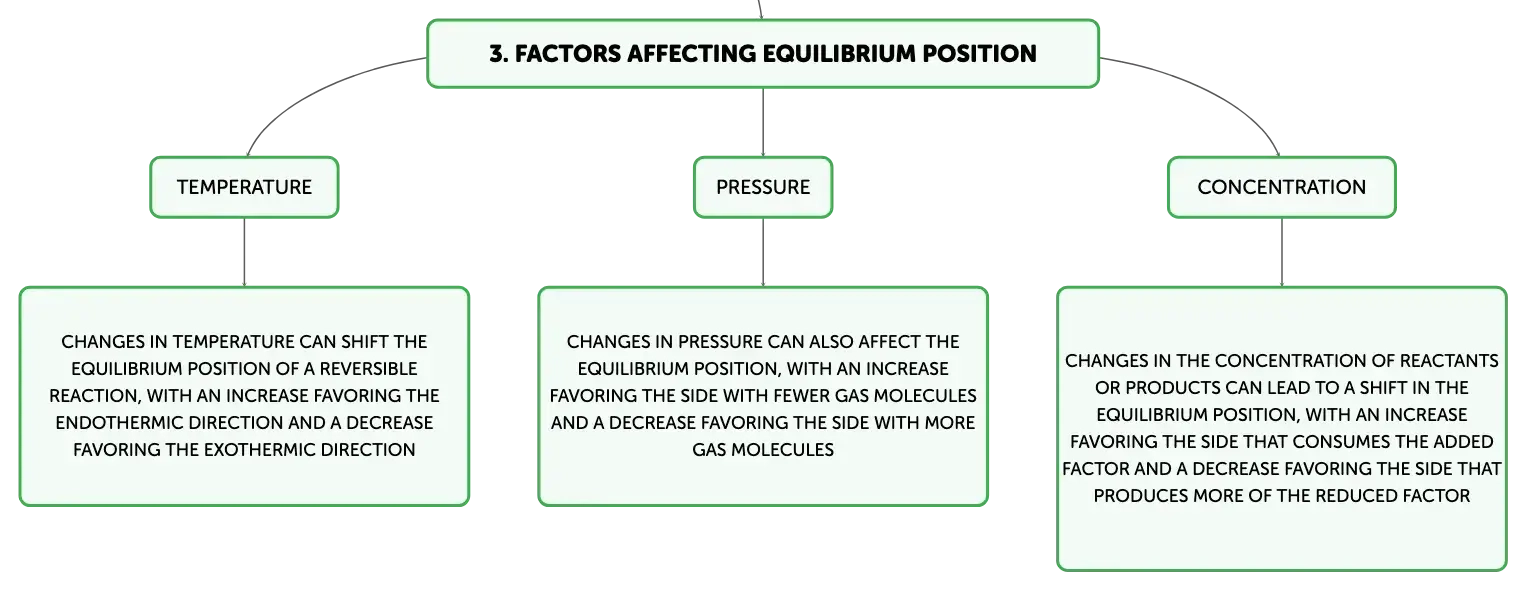

Temperature Effects on Equilibrium According to Le Chatelier’s Principle

Temperature is a critical factor influencing the position of equilibrium. An increase in temperature generally favors the endothermic direction of a reversible reaction, which absorbs heat, causing the equilibrium to shift in a way that absorbs the excess thermal energy. Conversely, a decrease in temperature typically favors the exothermic direction, which releases heat, thereby shifting the equilibrium to produce more heat. In the context of ammonia synthesis, an increase in temperature would shift the equilibrium toward the decomposition of ammonia, while a decrease would favor ammonia formation.

Influence of Concentration Changes on Equilibrium

Changes in the concentration of reactants or products can lead to a shift in the equilibrium position of a reversible reaction. If the concentration of a reactant is increased, the system will respond by shifting the equilibrium toward the product side to consume the additional reactant. If the concentration of a product is increased, the system will shift the equilibrium toward the reactant side to consume the excess product. In the synthesis of ammonia, increasing the concentration of nitrogen and hydrogen gases will shift the equilibrium toward the production of more ammonia.

Pressure's Role in Shifting Equilibrium

In reactions involving gases, changes in pressure can significantly affect the equilibrium position. According to Le Chatelier’s principle, an increase in pressure will shift the equilibrium toward the side with fewer gas molecules, as this reduces the overall pressure. Conversely, a decrease in pressure will shift the equilibrium toward the side with more gas molecules. In the Haber process for ammonia synthesis, the forward reaction results in fewer gas molecules than the reactants, so an increase in pressure favors the production of ammonia, while a decrease in pressure favors the reactants.

The Impact of Catalysts on Reaching Equilibrium

Catalysts are substances that increase the rate of both the forward and reverse reactions in a reversible process, without being consumed or altering the final equilibrium position. Their role is to reduce the time it takes for a reaction to reach equilibrium, which is particularly beneficial in industrial processes. While catalysts do not change the equilibrium concentrations of reactants and products, they are indispensable for enhancing the efficiency and economics of reactions such as the industrial synthesis of ammonia.

Key Takeaways from Le Chatelier's Principle

Le Chatelier's principle offers critical insights into the manipulation of chemical equilibria. It elucidates that an increase in temperature favors endothermic reactions, while a decrease favors exothermic reactions. Pressure changes affect the direction of equilibrium in reactions involving gases, and changes in concentration prompt the system to adjust in opposition to the change. Catalysts, while not affecting the equilibrium position, are vital for accelerating the reaction rate. Mastery of these concepts is essential for the optimization of chemical processes, such as the industrial synthesis of ammonia, to achieve desired outcomes efficiently.
