Simplicial Complexes: Bridging Algebra and Geometry

Simplicial complexes are key constructs in topology, built from simplices like points, lines, and triangles. They model space's shape and connectivity, aiding in the study of topological spaces through homology and triangulation. These complexes find applications in engineering, computer graphics, and data analysis, showcasing their interdisciplinary significance.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Definition of a simplex

Click to check the answer

A simplex is a basic building block in topology, including points (0-simplices), line segments (1-simplices), triangles (2-simplices), and higher-dimensional analogs.

2

Formation of a simplicial complex

Click to check the answer

A simplicial complex is formed by connecting simplices together at their faces, creating a discrete model for space.

3

Role of simplicial complexes in algebraic topology

Click to check the answer

Simplicial complexes are used in algebraic topology to study the shape and connectivity of spaces through discrete models.

4

A ______ ______ consists of simplices arranged according to specific rules to form a unified structure suitable for topological analysis.

Click to check the answer

simplicial complex

5

Definition of topology

Click to check the answer

Study of properties of space preserved under continuous deformations: stretching, twisting, bending.

6

Role of homology in topology

Click to check the answer

Quantifies 'holes' in spaces at various dimensions, essential for understanding topological structures.

7

Continuous deformations vs. tearing/gluing

Click to check the answer

Topology focuses on changes without altering connectivity or creating new connections, unlike tearing or gluing.

8

In computational fields like computer graphics and network topology, the ______ between elements are more crucial than their geometric traits.

Click to check the answer

relationships

9

Geometric realization of simplicial complexes

Click to check the answer

Constructing a geometric object that represents the abstract simplicial structure.

10

Role of simplicial complexes in topological data analysis

Click to check the answer

Used to uncover patterns in complex datasets by analyzing shapes and structures.

11

Importance of simplicial complexes in structural engineering

Click to check the answer

Informs design and stability of constructions by providing a geometric framework.

12

In ______ theory, ______ complexes are utilized to investigate a space's connectivity through cycles and boundaries.

Click to check the answer

Homology chain

13

Define simplicial complexes.

Click to check the answer

Simplicial complexes are structures formed by joining simplices (points, line segments, triangles, etc.) in a way that satisfies two conditions: every face of a simplex is also a simplex, and the intersection of any two simplices is either empty or a simplex.

14

Explain the significance of simplicial complexes in topology.

Click to check the answer

Simplicial complexes are crucial in topology as they provide a discrete framework for studying the properties of continuous shapes and spaces, enabling the application of combinatorial and algebraic techniques to topological problems.

15

In ______, simplicial complexes help model complex structures like geodesic domes and are used in ______ ______ methods.

Click to check the answer

engineering finite element

16

Simplicial complexes contribute to the ______ of virtual environments by providing detailed representations of 3D objects in ______ and ______.

Click to check the answer

realism video games films

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Mathematics

Parametric Equations and Integration

View document

Mathematics

The Importance of Equations in Mathematics and Beyond

View document

Mathematics

Understanding the Vertex in Quadratic Functions

View document

Mathematics

Rearrangement in Mathematics

View document

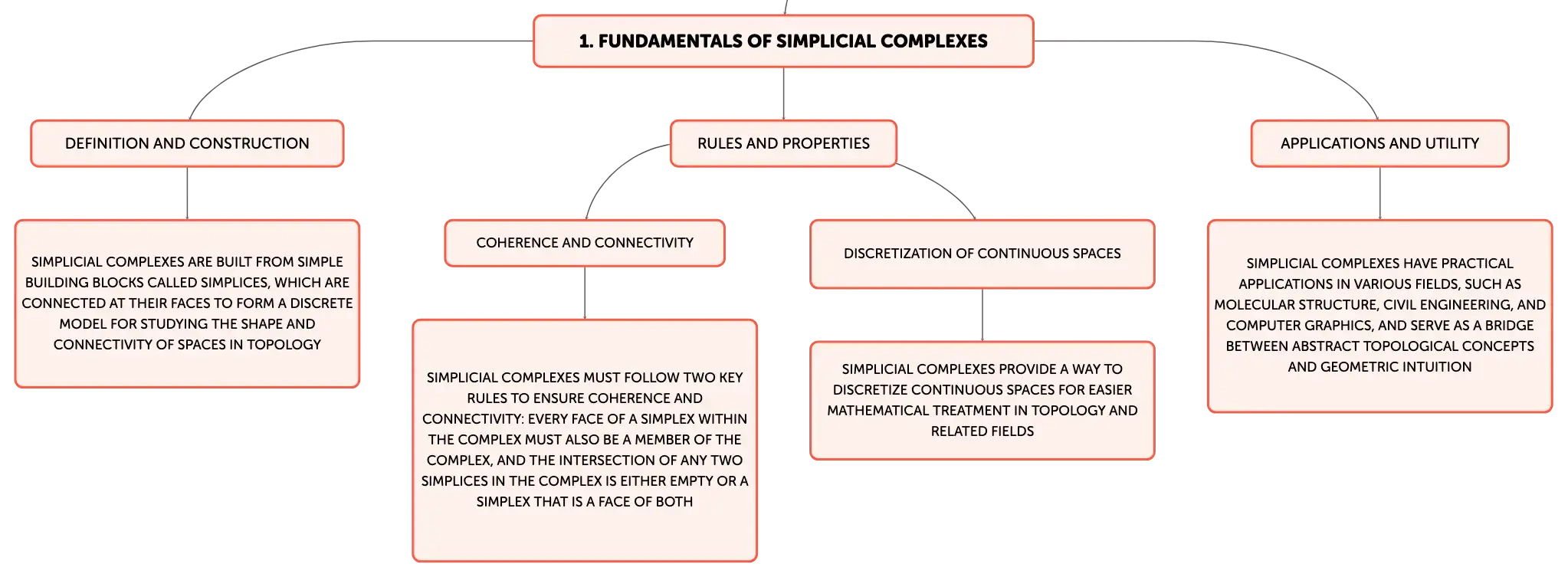

Introduction to Simplicial Complexes

Simplicial complexes are fundamental constructs in the field of topology, which is concerned with the properties of space that are preserved under continuous transformations. These complexes are built from simple building blocks called simplices, which include points (0-simplices), line segments (1-simplices), triangles (2-simplices), and their higher-dimensional counterparts. By connecting these simplices together at their faces, we can form a simplicial complex, which serves as a discrete model for studying the shape and connectivity of spaces in algebraic topology and related fields.
Three-dimensional wireframe sculpture of interconnected triangles against a gradient blue to white background, highlighting a complex geometric form.

Mathematical Definition of Simplicial Complexes

A simplicial complex is a collection of simplices that assembles into a larger configuration under two key rules: every face of a simplex within the complex must also be a member of the complex, and the intersection of any two simplices in the complex is either empty or a simplex that is a face of both. This precise definition ensures that the complex forms a coherent whole, which can be analyzed for its topological and combinatorial properties. Simplicial complexes provide a way to discretize continuous spaces for easier mathematical treatment.

The Importance of Simplicial Complexes in Topology

Simplicial complexes are invaluable tools in topology, a branch of mathematics that studies the properties of space that remain unchanged under continuous deformations such as stretching, twisting, and bending, but not tearing or gluing. They allow topologists to construct and analyze complex shapes by breaking them down into simpler components. Homology is a central concept in this context, providing a way to quantify the 'holes' in a space at various dimensions, which is crucial for understanding the underlying structure of topological spaces.

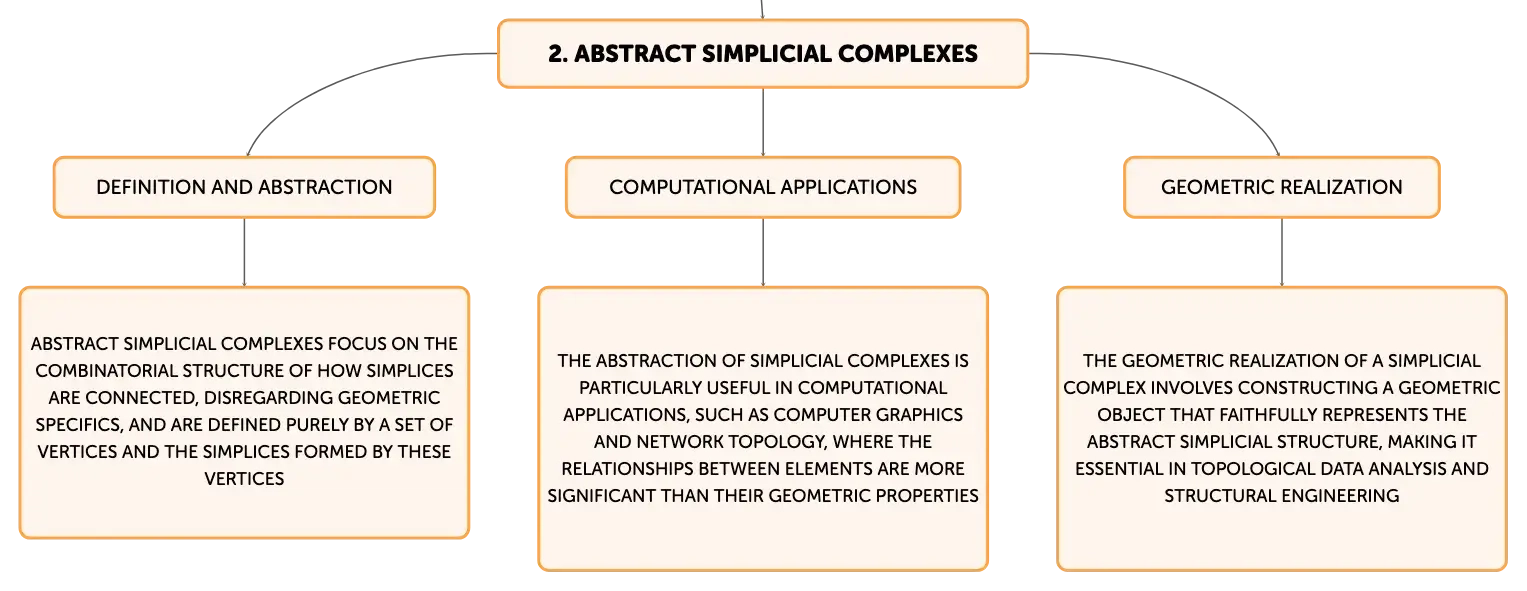

Abstract Simplicial Complexes and Their Combinatorial Nature

Abstract simplicial complexes focus on the combinatorial structure of how simplices are connected, disregarding the geometric specifics such as size and angles. They are defined purely by a set of vertices and the simplices formed by these vertices, with the requirement that every subset of a simplex is also a simplex in the complex. This abstraction is particularly useful in computational applications, such as computer graphics and network topology, where the relationships between elements are more significant than their geometric properties.

Geometric Realization and Applications of Simplicial Complexes

Simplicial complexes have practical applications that extend beyond theoretical mathematics. They are used in the study of the molecular structure of materials, the design of civil engineering projects, and the analysis of three-dimensional shapes. The geometric realization of a simplicial complex involves constructing a geometric object that faithfully represents the abstract simplicial structure. This process is essential in topological data analysis, which seeks to uncover patterns in complex datasets, and in structural engineering, where it informs the design and stability of constructions.

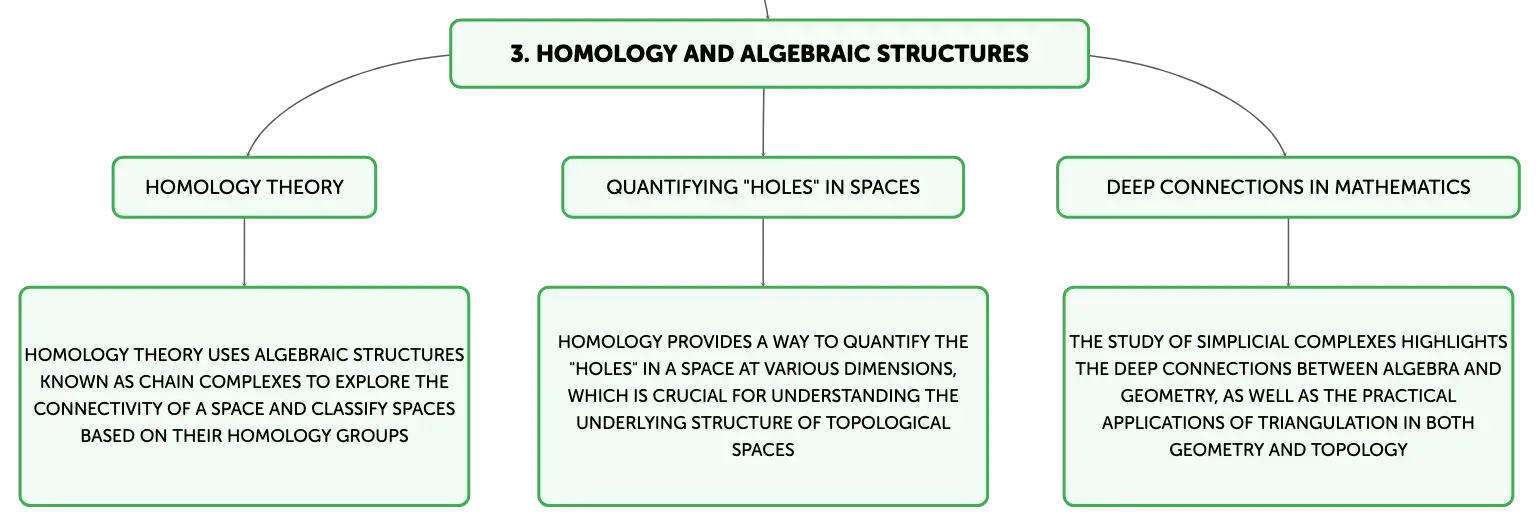

Algebraic Structures Derived from Simplicial Complexes

The study of simplicial complexes intertwines algebra and geometry, providing a framework for understanding the topology of spaces. Homology theory, in particular, uses algebraic structures known as chain complexes to explore the connectivity of a space. By examining the cycles and boundaries within these complexes, mathematicians can classify spaces based on their homology groups, which reflect the number and types of 'holes' present in different dimensions, offering a powerful tool for analyzing topological spaces.

Triangulation and Geometric Analysis Using Simplicial Complexes

Simplicial complexes bridge the gap between abstract topological concepts and geometric intuition. By breaking down spaces into simplices, they facilitate the visualization and analysis of complex shapes. Triangulation, the process of dividing a geometric object into simplices, is a fundamental technique in both geometry and topology. It allows for the application of algebraic methods to geometric problems, highlighting the deep connections between different areas of mathematics.

Diverse Applications of Simplicial Complexes Across Disciplines

The practical applications of simplicial complexes are diverse and span multiple disciplines. In engineering, they are essential for modeling and understanding the behavior of complex structures, such as in the analysis of geodesic domes and finite element methods. In computer graphics, simplicial complexes are used to create detailed representations of three-dimensional objects, enhancing the realism of virtual environments in video games and films. These examples underscore the broad utility of simplicial complexes in addressing real-world challenges and driving technological progress.
