Relative Configuration in Organic Chemistry

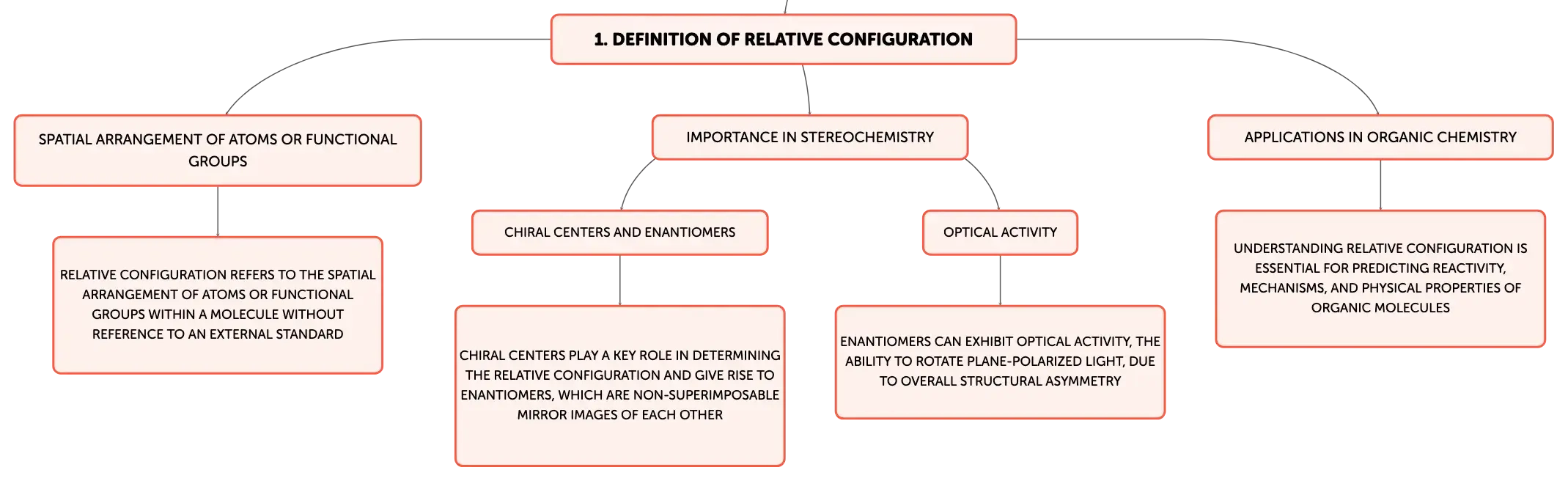

Understanding Relative Configuration in Organic Chemistry

Relative configuration in organic chemistry refers to the spatial arrangement of atoms or functional groups within a molecule relative to each other, without reference to an external standard. This concept is crucial for understanding the stereochemistry of molecules, particularly when discussing stereoisomers—molecules with the same molecular formula and connectivity but different three-dimensional orientations of their atoms. Chiral centers, typically carbon atoms bonded to four distinct substituents, play a key role in determining the relative configuration and give rise to enantiomers, which are stereoisomers that are non-superimposable mirror images of each other. These enantiomers can exhibit optical activity, the ability to rotate plane-polarized light, a phenomenon that can also occur in molecules without chiral centers due to overall structural asymmetry.

The Significance of Relative Configuration in Chemistry

Understanding relative configuration is essential for predicting the reactivity, mechanisms, and physical properties of organic molecules. It allows chemists to delve into the intricacies of molecular interactions and is indispensable for elucidating the structure of complex organic compounds. To interpret relative configuration, chemists identify a reference framework within the molecule, often called the stable skeleton, and compare the spatial arrangement of atoms or groups around this framework. For instance, the isomers of 2,3-dimethylbutane can be distinguished by their relative configuration when one isomer is rotated by 180 degrees to form a mirror image of the other. Knowledge of relative configuration is not only crucial for understanding chemical reactivity and stability but also has profound implications for biological processes.

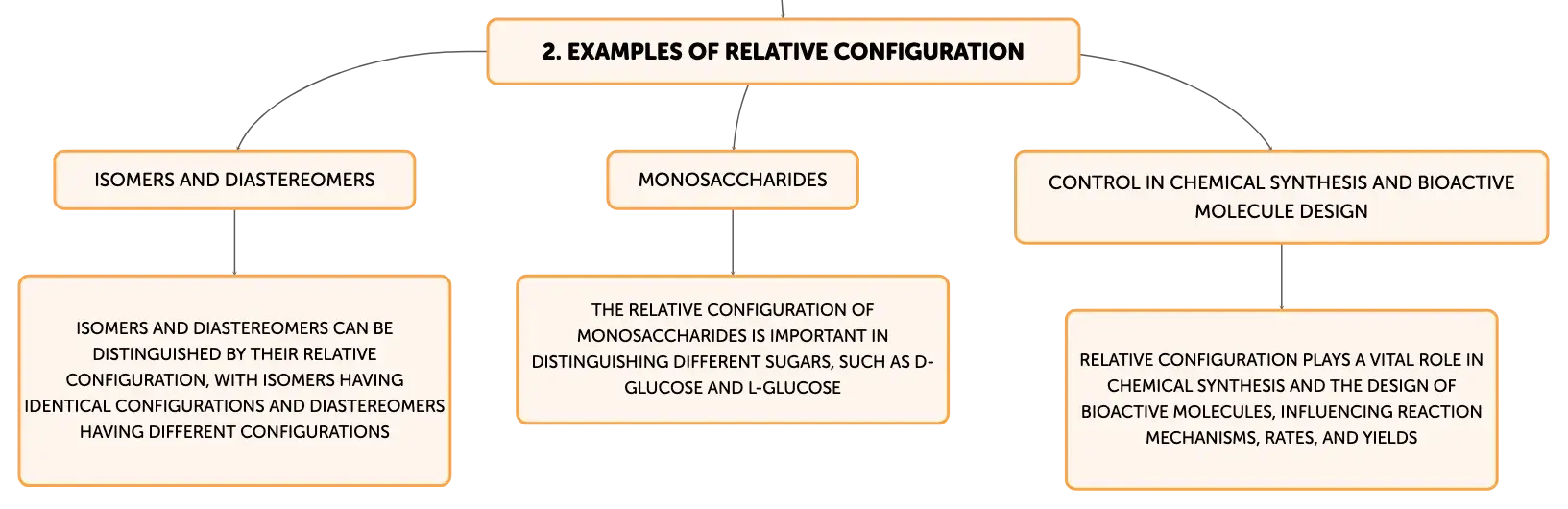

Examples Demonstrating Relative Configuration

To grasp the concept of relative configuration, it is instructive to examine stereoisomers such as enantiomers and diastereomers. Enantiomers are non-superimposable mirror images with identical relative configurations, analogous to a pair of hands. Diastereomers, on the other hand, are not mirror images and possess different relative configurations, leading to distinct physical properties and separability during purification processes. Tartaric acid serves as a classic example, existing in three forms: two enantiomers with opposite configurations at each chiral center, and a meso form with an internal plane of symmetry. Similarly, compounds like 2,3-dichlorobutane with multiple chiral centers are characterized by their relative configurations.

Relative Configuration in Monosaccharides

The relative configuration of monosaccharides is a key factor in distinguishing different sugars. Glucose, for instance, can occur as D-glucose or L-glucose, with the designation based on the relative configuration of the hydroxyl group on the penultimate chiral carbon in the Fischer projection. This system also applies to other sugars such as D-Ribose and D-2-Deoxyribose, the sugar components of RNA and DNA, respectively. Although D-2-Deoxyribose lacks a hydroxyl group at the second carbon, it shares the same relative configuration as D-Ribose. Changes in relative configuration, such as the mutarotation of D-Glucose, are fundamental to the chemistry of carbohydrates and their biological functions.

Applications of Relative Configuration in Synthesis and Drug Design

The control of relative configuration is vital in chemical synthesis and the design of bioactive molecules. In synthetic chemistry, it influences reaction mechanisms, rates, and yields. Techniques such as stereoselective and asymmetric synthesis depend on manipulating relative configuration to produce specific stereoisomers. For example, the stereoselective synthesis of E-alkenes from alkynes using a Lindlar’s catalyst is governed by the relative configuration of the catalyst's active sites. In the realm of bioactive molecule design, relative configuration determines the degree of biological activity and specificity of interactions with biological systems. This is particularly important in drug design, where the three-dimensional structure of molecules, including antibiotics like vancomycin and teicoplanin, is crucial for their binding to bacterial cell wall targets.

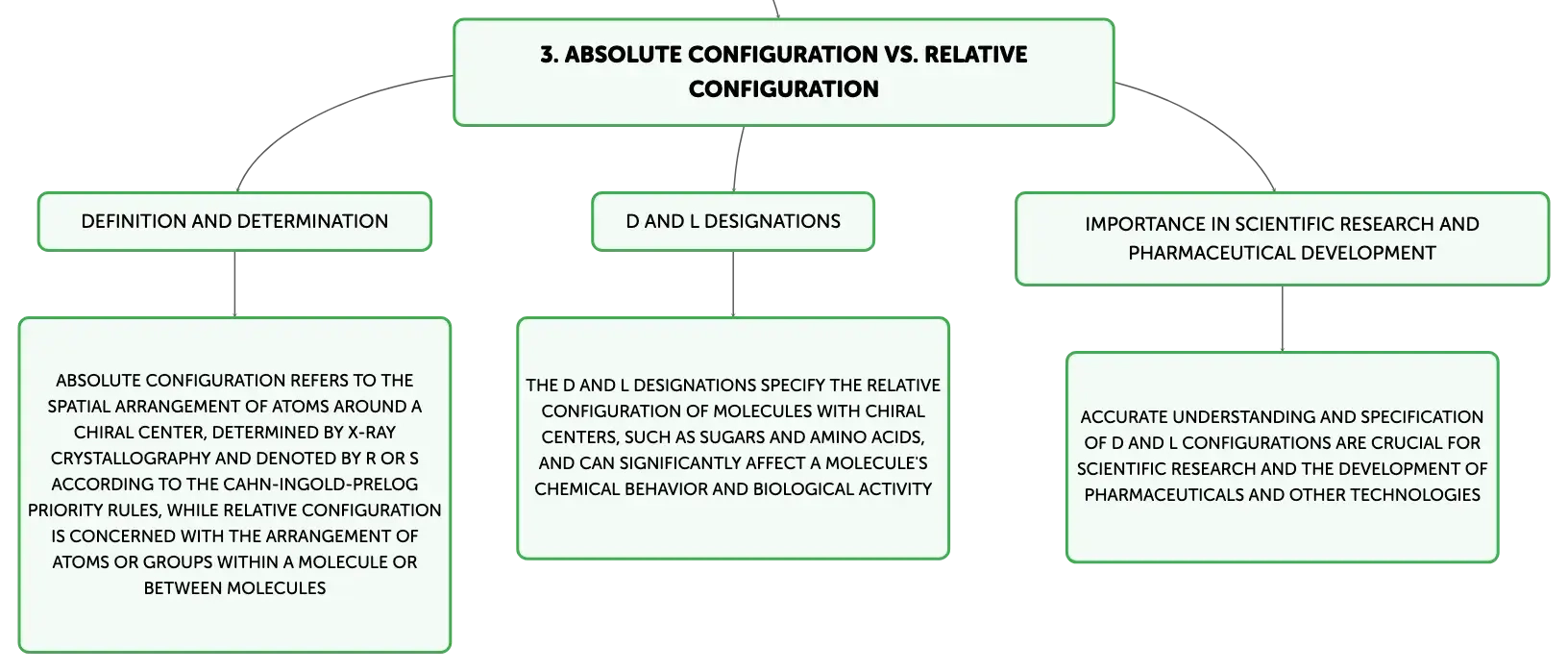

Differentiating Absolute from Relative Configuration

Distinguishing between absolute and relative configuration is essential in stereochemistry. Absolute configuration refers to the spatial arrangement of atoms around a chiral center, determined by x-ray crystallography and denoted by R (rectus) or S (sinister) according to the Cahn–Ingold–Prelog (CIP) priority rules. In contrast, relative configuration is concerned with the arrangement of atoms or groups within a molecule or between molecules, without reference to a universal standard. Determining relative configuration often involves chemical reactions or analytical techniques to compare the spatial orientation of atoms or groups, sometimes by converting the molecule into a known compound without altering the configuration at the chiral centers.

The Impact of D and L Configurations in Stereochemistry

The D and L designations, derived from the Latin 'Dexter' (right) and 'Laevus' (left), specify the relative configuration of molecules with chiral centers, such as sugars and amino acids. These designations are based on the configuration of glyceraldehyde and are represented in the Fischer projection by the position of the hydroxyl group on the reference carbon. The D or L configuration can significantly affect a molecule's chemical behavior and biological activity, as seen in enzyme-substrate specificity, pharmaceutical effects, and nutritional value. For example, most naturally occurring amino acids are in the L-form and are incorporated into proteins by living organisms. The thalidomide tragedy underscored the critical importance of stereochemistry in drug design, as enantiomers with the same D or L designation can have drastically different physiological effects. Accurate understanding and specification of D and L configurations are crucial for scientific research and the development of pharmaceuticals and other technologies.
