Geometrical Isomerism

Geometrical isomerism is a form of stereoisomerism where molecules with identical structural formulas exhibit different spatial atom arrangements due to restricted bond rotation. This phenomenon is prevalent in alkenes and cyclic compounds, leading to cis and trans isomers with distinct physical and chemical properties. Understanding isomerism is vital for applications in polymer production, food industry, and pharmaceuticals, where isomer forms can affect the efficacy and safety of chemical products.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

In ______ compounds and alkenes with a carbon-carbon double bond, the rigidity causes the formation of distinct isomers known as cis and trans.

Click to check the answer

cyclic

2

Tetrahedral carbon atom model significance

Click to check the answer

Foundation for understanding isomerism; proposed by Van't Hoff and Le Bel; explains spatial atom arrangement.

3

Emil Fischer's contribution to stereochemistry

Click to check the answer

Developed Fischer projection; crucial for depicting 3D molecules in 2D; aids in studying isomers.

4

Vladimir Markovnikov's role in stereochemistry

Click to check the answer

Formulated Markovnikov's rule; predicts outcome of addition reactions; vital for understanding chemical behavior of isomers.

5

In the molecule ______, the cis and trans isomers are differentiated by the positions of the ______ groups around the double bond.

Click to check the answer

2-butene methyl

6

The spatial arrangement of substituents affects a molecule's ______, ______, and ______, as seen in geometrical isomers like pent-2-ene and 1,2-dichlorocyclopentane.

Click to check the answer

boiling points solubility reactivity

7

Impact of isomerism on polymer properties

Click to check the answer

Isomeric forms affect polymer strength and flexibility, crucial for industrial applications.

8

Role of isomerism in hydrogenation of oils

Click to check the answer

Trans isomers solidify vegetable oils in margarine production, utilized by food industry.

9

Isomerism in drug activity

Click to check the answer

Drug efficacy can depend on isomeric form; e.g., cisplatin's anticancer effect is isomer-specific.

10

- isomerism is a type of geometrical isomerism where substituents are on the same or opposite sides of a double bond or ring.

Click to check the answer

Cis trans

11

The - isomerism, governed by the --______ priority rules, is used when cis-trans naming is insufficient due to different substituents on a double bond.

Click to check the answer

E Z Cahn Ingold Prelog

12

Influence of lone pairs on molecular geometry

Click to check the answer

Lone pairs repel more strongly than bonded pairs, causing deviations in expected molecular shapes.

13

Optical activity in geometrical isomers

Click to check the answer

Some geometrical isomers rotate plane-polarized light, indicating chirality despite lack of asymmetric carbon.

14

Contributions of Van't Hoff and Le Bel

Click to check the answer

Developed theories on tetrahedral carbon atoms, explaining molecular chirality and isomerism.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Chemistry

Heteroatoms in Organic Chemistry

View document

Chemistry

Alkene Nomenclature

View document

Chemistry

Ruff Degradation: A Key Technique in Carbohydrate Chemistry

View document

Chemistry

Cycloaddition Reactions in Organic Chemistry

View document

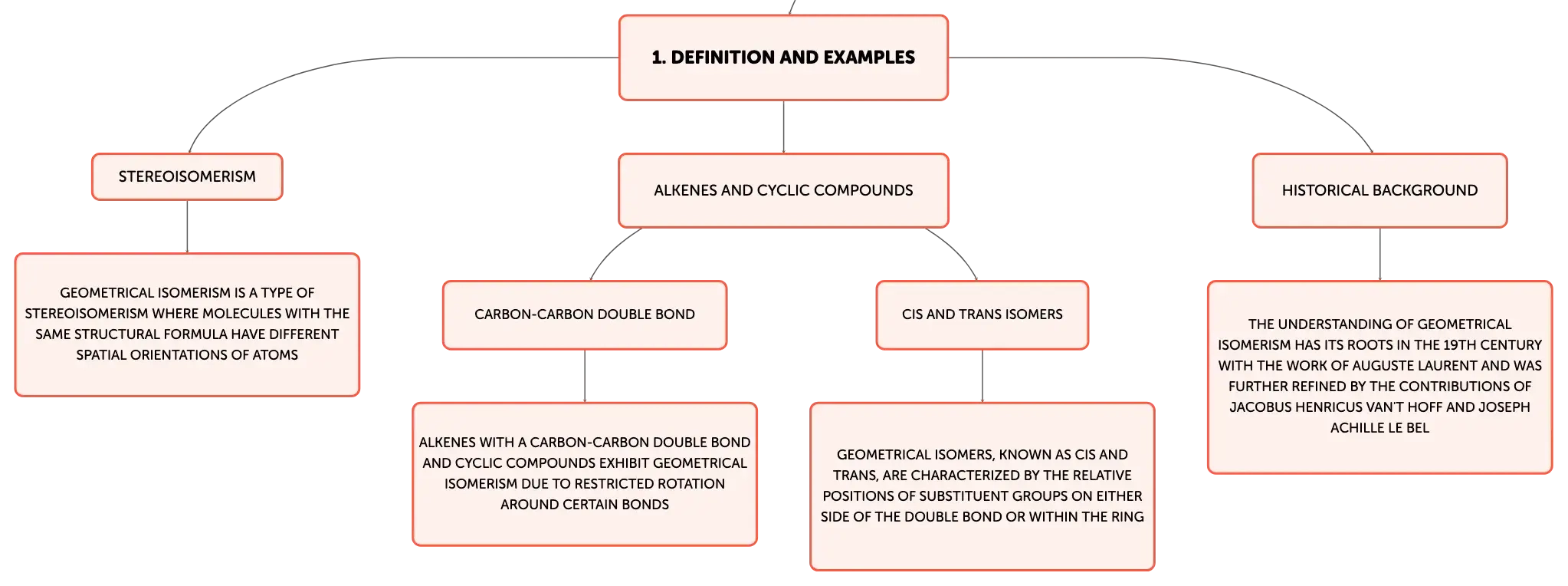

Fundamentals of Geometrical Isomerism

Geometrical isomerism is a type of stereoisomerism where molecules with the same structural formula have different spatial orientations of atoms due to restricted rotation around certain bonds. This phenomenon is commonly observed in alkenes with a carbon-carbon double bond and in cyclic compounds, where the rigidity of the structure leads to the formation of distinct isomers. These isomers, known as cis and trans, are characterized by the relative positions of substituent groups on either side of the double bond or within the ring. For instance, in cis-2-butene, the methyl groups are on the same side of the double bond, whereas in trans-2-butene, they are on opposite sides, despite both having the molecular formula \( C_{4}H_{8} \).
Three-dimensional molecular models with colored spheres for atoms and sticks for bonds on a white background, highlighting structural diversity.

Historical Insights into Geometrical Isomerism

The understanding of geometrical isomerism has its roots in the 19th century with the work of Auguste Laurent and was further refined by the contributions of Jacobus Henricus Van't Hoff and Joseph Achille Le Bel, who independently proposed the tetrahedral carbon atom model. This model laid the groundwork for the study of isomerism, including geometrical isomerism. In the 20th century, the work of Emil Fischer and Vladimir Markovnikov, among others, expanded the field of stereochemistry, which encompasses the study of spatial arrangements of atoms in molecules. Their contributions have been essential in explaining the behavior of isomers and their distinct chemical and physical properties.

Examples Demonstrating Geometrical Isomerism

Geometrical isomerism can be illustrated through various examples, from simple alkenes to more complex cyclic compounds. In 2-butene, the cis and trans isomers differ in the placement of methyl groups around the central double bond. Similarly, in compounds like pent-2-ene and 1,2-dichlorocyclopentane, the geometrical isomers are distinguished by the relative positions of substituents around the double bond or within the ring. These differences in spatial arrangement can have profound effects on the physical and chemical properties of the molecules, such as boiling points, solubility, and reactivity.

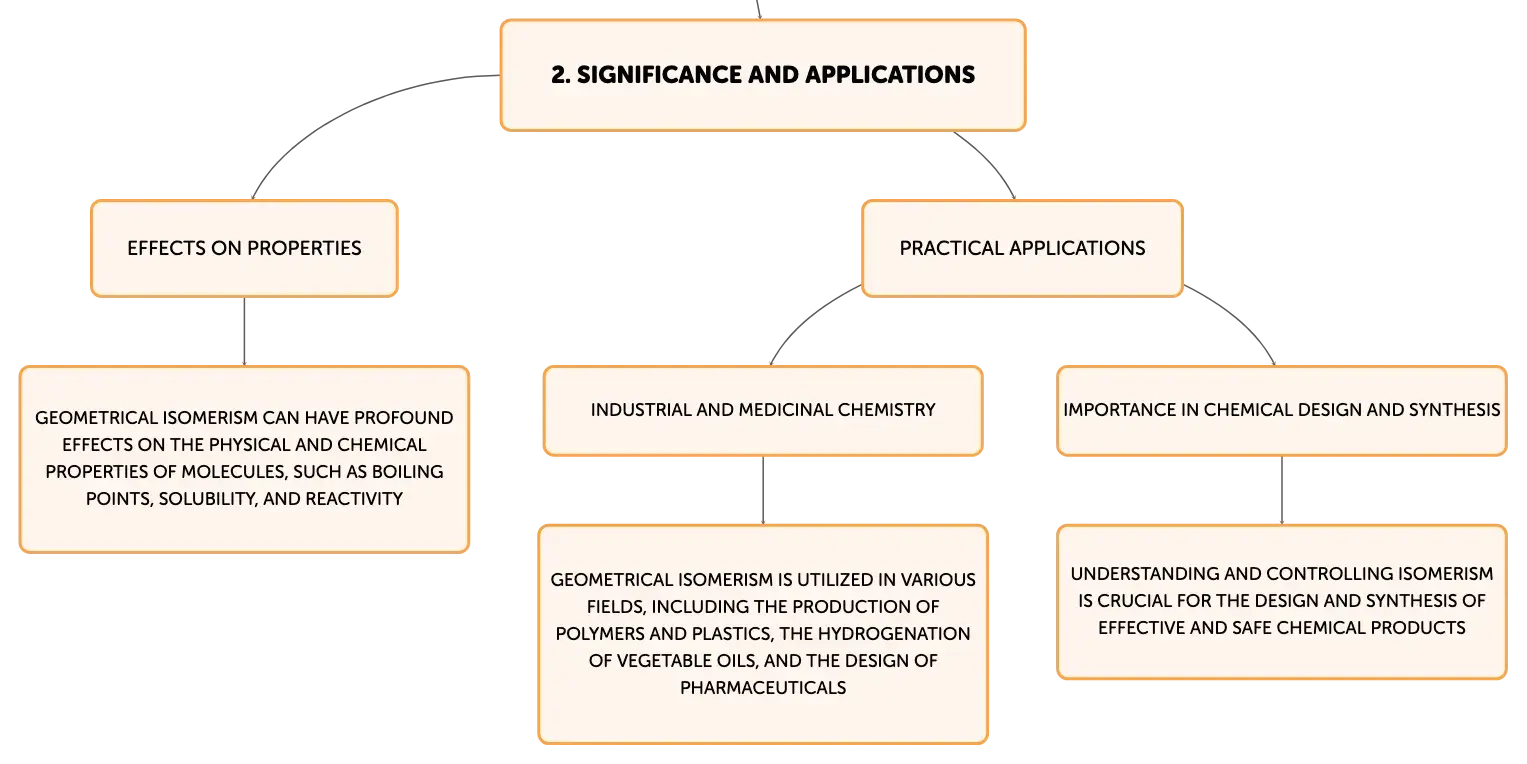

Industrial and Medicinal Relevance of Geometrical Isomerism

The practical significance of geometrical isomerism extends to various fields, including industrial and medicinal chemistry. In the production of polymers and plastics, the isomeric form can influence the material's strength and flexibility. The food industry utilizes isomerism in the hydrogenation of vegetable oils to produce margarine, where the trans isomeric form contributes to a solid consistency. In pharmaceuticals, the activity of drugs can be highly dependent on isomerism; for example, the anticancer drug cisplatin relies on its specific geometrical isomer for its therapeutic effect. Thus, understanding and controlling isomerism is crucial for the design and synthesis of effective and safe chemical products.

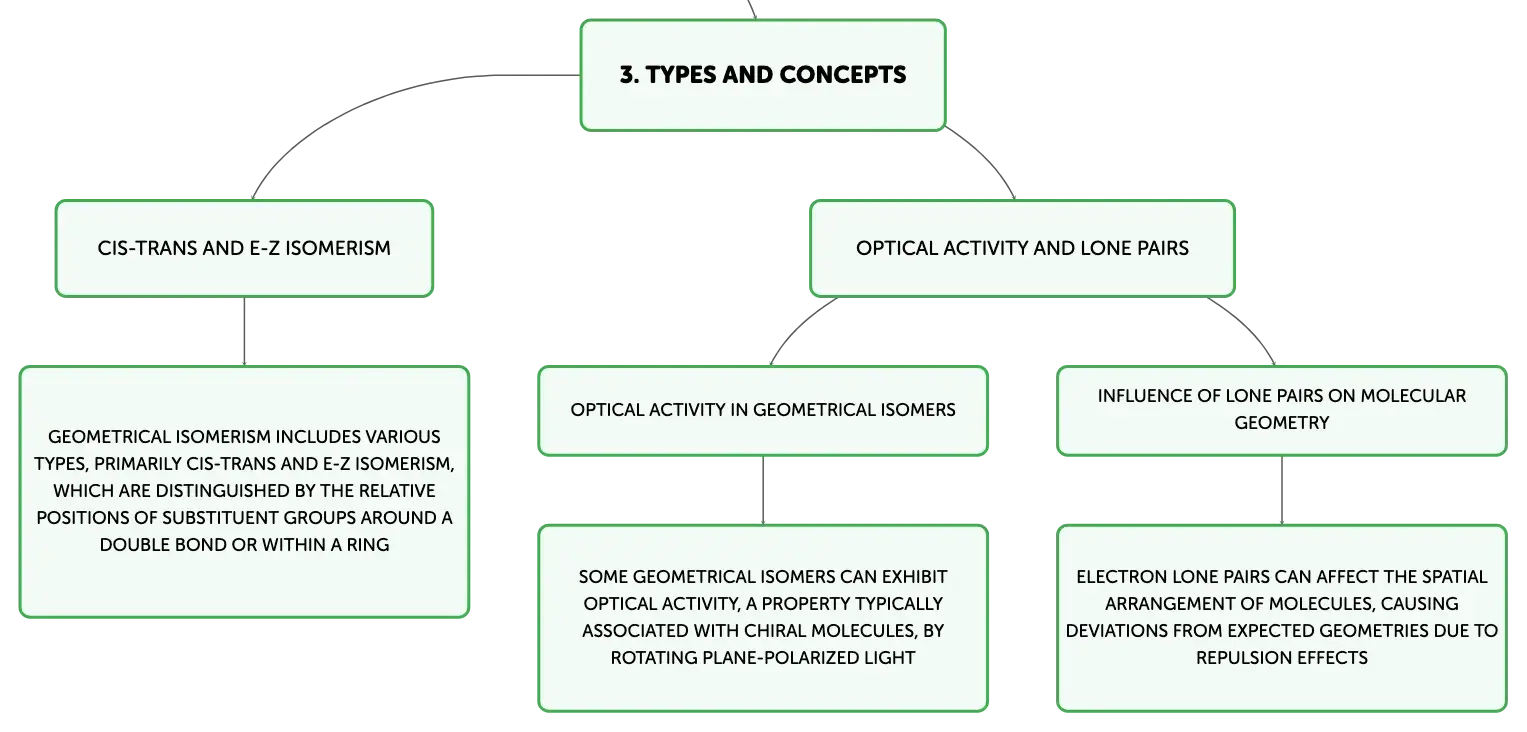

Classifying Geometrical Isomerism

Geometrical isomerism includes various types, primarily cis-trans and E-Z isomerism. Cis-trans isomerism refers to the arrangement of substituent groups in relation to a double bond or ring structure, where groups are either on the same side (cis) or opposite sides (trans). E-Z isomerism, which is determined by the Cahn-Ingold-Prelog priority rules, is used when there are different substituents attached to the double bond, and the simple cis-trans nomenclature is inadequate. Mastery of these classifications is essential for chemists to accurately describe molecular structures and predict their chemical behaviors and interactions.

Advanced Concepts and Pioneering Researchers in Geometrical Isomerism

The study of geometrical isomerism encompasses advanced concepts such as the influence of lone pairs on molecular geometry and the occurrence of optical activity in certain isomers. Some geometrical isomers can exhibit optical activity by rotating plane-polarized light, a property typically associated with chiral molecules. The spatial arrangement in molecules can also be affected by electron lone pairs, which can cause deviations from expected geometries due to repulsion effects. The foundational work of chemists like Van't Hoff, Le Bel, Fischer, and Markovnikov has been instrumental in exploring these complex aspects of geometrical isomerism, enhancing our understanding of molecular structure and its implications for chemical reactivity and properties.
