Standard electrode potential (E°) is a fundamental concept in electrochemistry, representing the potential difference of an electrode compared to the standard hydrogen electrode. It's crucial for predicting redox reaction directions and chemical spontaneity. Measured under strict conditions, E° values guide the behavior of electrodes and are influenced by temperature, pressure, and concentration. They also relate to Gibbs free energy, aiding in assessing reaction feasibility and are applied in environmental science, metallurgy, energy storage, medicine, and industrial processes.
Summary
Outline
Exploring the Concept of Standard Electrode Potential
Standard electrode potential, symbolized as E°, is a key concept in electrochemistry that quantifies the electric potential difference of a half-cell, or electrode, in comparison to the standard hydrogen electrode (SHE), which is arbitrarily assigned a potential of zero volts. This thermodynamic property is pivotal for predicting the direction of redox reactions and determining the spontaneity of chemical processes. Standard potentials are measured under strict conditions: a constant temperature of 298 K (25°C), a pressure of 1 bar, and solute concentrations of 1 molar. These standardized conditions allow for the comparison of the relative tendencies of different chemical species to gain electrons and undergo reduction, thus serving as a guide for the expected behavior of electrodes in an electrochemical cell.Measuring Standard Electrode Potentials and Their Significance
The standard electrode potential of a half-cell is determined by connecting it to the SHE and measuring the voltage difference under standard conditions. These potentials are systematically cataloged, providing a reference for calculating the potentials of other half-cells. Standard reduction potentials are listed, reflecting the voltage produced when a half-cell is reduced. A positive standard potential indicates a strong tendency to be reduced, making the substance a good oxidizing agent, while a negative standard potential suggests a greater likelihood of acting as a reducing agent. Mastery of these tables is essential for chemists to accurately predict the flow of electrons and the outcomes of electrochemical reactions.Influences on Standard Electrode Potential Values
The standard potential values can be influenced by a variety of factors. Temperature variations can affect the equilibrium constants of redox reactions, thereby altering standard potentials. Changes in pressure, especially for reactions involving gases, can affect the activities of the reactants or products and thus influence the standard potentials. Deviations in concentration from the standard 1 molar can lead to changes in potential. The material properties of electrodes, such as their crystalline structure and purity, also have a significant impact on their standard potentials. Furthermore, the physical state of an element, such as the various allotropes of carbon, can have different standard potentials due to their unique thermodynamic characteristics.The Link Between Standard Potential and Gibbs Free Energy
The standard electrode potential is directly related to the Gibbs free energy change (ΔG°) of a reaction through the equation ΔG° = -nFE°, where 'n' represents the number of moles of electrons exchanged in the half-reaction, 'F' is the Faraday constant, and 'E°' is the standard cell potential. This equation shows that a negative ΔG° corresponds to a spontaneous reaction under standard conditions, while a positive ΔG° indicates a non-spontaneous reaction. This relationship highlights the significance of standard potential in assessing the thermodynamic feasibility of chemical reactions and the performance of electrochemical cells.Real-World Applications of Standard Electrode Potentials
Standard electrode potentials have a wide array of practical applications across various fields. In environmental science, they are used to evaluate the contamination levels of heavy metals in aquatic systems. In metallurgy, standard potentials facilitate the electrorefining process, which purifies metals by exploiting the differing standard potentials of metal impurities. Energy storage technologies, such as batteries and fuel cells, depend on standard potentials to maximize their charge-discharge cycles and overall efficiency. In the field of medicine, biosensors employ enzymes that catalyze reactions with known standard potentials to detect specific biomolecules. Additionally, industrial electrolysis processes, including the production of chlorine and sodium hydroxide, rely on standard potentials for their operational design and efficiency enhancement.Predicting Redox Reaction Spontaneity Using Standard Potential Tables
Standard potential tables are indispensable for predicting whether redox reactions will occur spontaneously under standard conditions. By comparing the standard potentials of the reactants and products, chemists can ascertain the likelihood of a reaction proceeding spontaneously. The standard cell potential (E° cell) is calculated by subtracting the standard reduction potential of the anode from that of the cathode. A positive E° cell value signifies a thermodynamically favorable and spontaneous reaction. For conditions that deviate from the standard, the Nernst equation is employed to adjust the standard potential, accounting for the actual concentrations of reactants and products, as well as temperature, to determine the real cell potential.The Role of Standard Potential in Aqueous Solutions
In aqueous solutions, the standard electrode potential is affected by the solvent's properties, such as its dielectric constant and the solvation effects on ions, which influence their activity and, consequently, the standard potential. The pH of the solution and the presence of complexing agents can also modify ion activities. Standard potentials in aqueous solutions are crucial for designing batteries, predicting corrosion rates, and are employed in analytical techniques like cyclic voltammetry to ascertain the concentrations of electroactive species. Furthermore, they are essential in biological systems, such as in cellular respiration and photosynthesis, where the standard potentials of the involved species dictate the efficiency of energy production within cells.
Show More

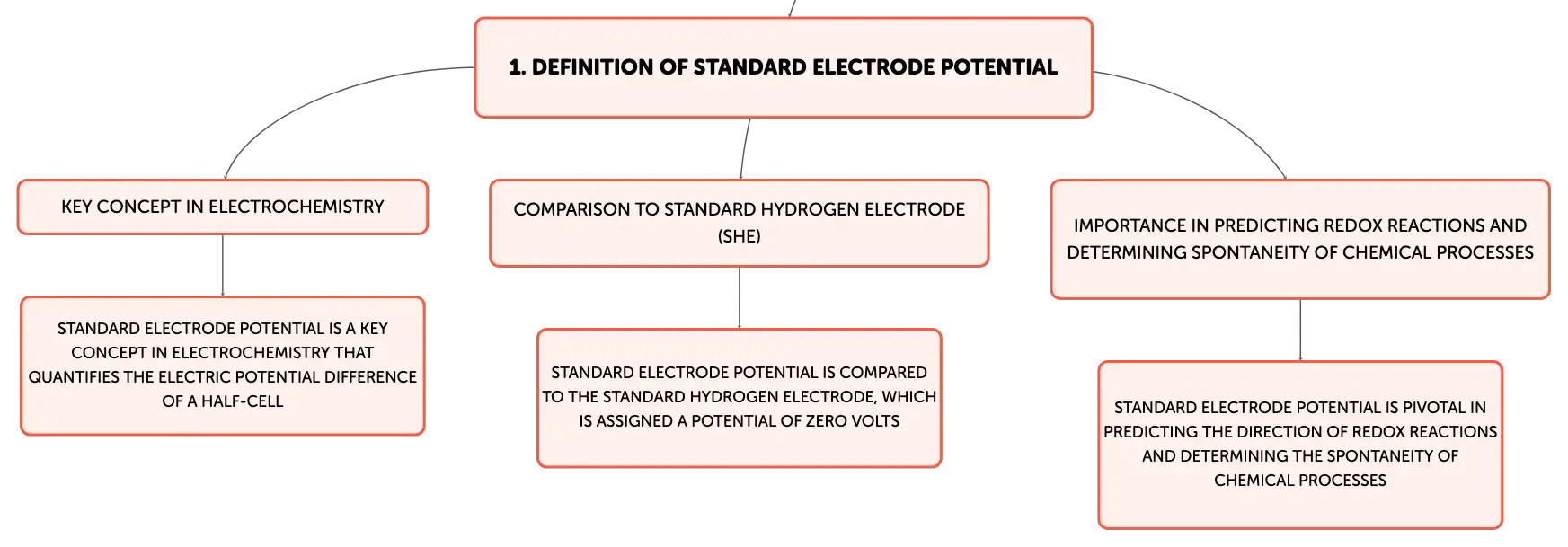

Definition of Standard Electrode Potential
Key concept in electrochemistry
Standard electrode potential is a key concept in electrochemistry that quantifies the electric potential difference of a half-cell
Comparison to Standard Hydrogen Electrode (SHE)
Standard electrode potential is compared to the standard hydrogen electrode, which is assigned a potential of zero volts
Importance in predicting redox reactions and determining spontaneity of chemical processes
Standard electrode potential is pivotal in predicting the direction of redox reactions and determining the spontaneity of chemical processes

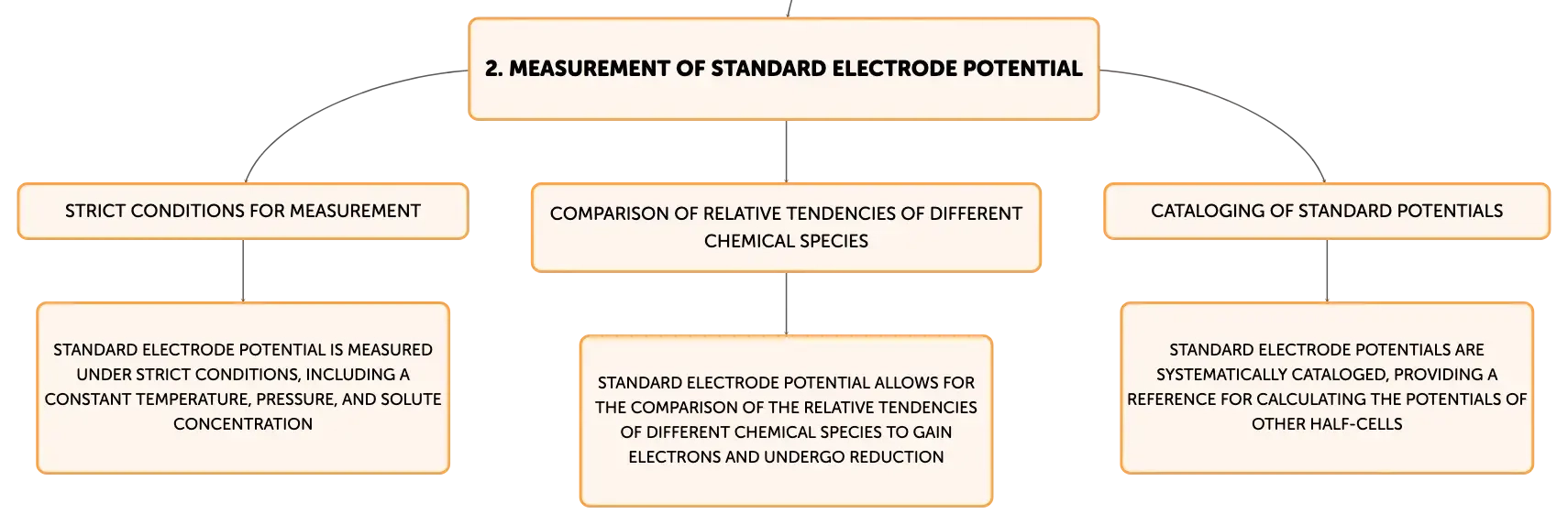

Measurement of Standard Electrode Potential
Strict conditions for measurement
Standard electrode potential is measured under strict conditions, including a constant temperature, pressure, and solute concentration
Comparison of relative tendencies of different chemical species
Standard electrode potential allows for the comparison of the relative tendencies of different chemical species to gain electrons and undergo reduction
Cataloging of standard potentials
Standard electrode potentials are systematically cataloged, providing a reference for calculating the potentials of other half-cells

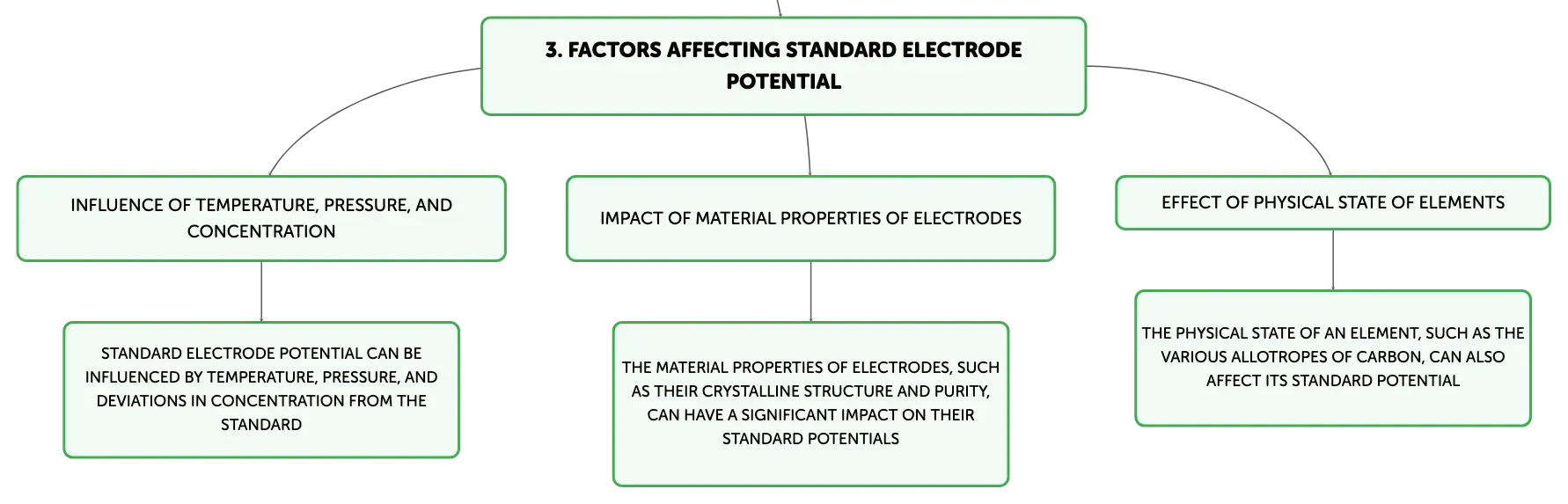

Factors Affecting Standard Electrode Potential
Influence of temperature, pressure, and concentration
Standard electrode potential can be influenced by temperature, pressure, and deviations in concentration from the standard
Impact of material properties of electrodes
The material properties of electrodes, such as their crystalline structure and purity, can have a significant impact on their standard potentials
Effect of physical state of elements
The physical state of an element, such as the various allotropes of carbon, can also affect its standard potential

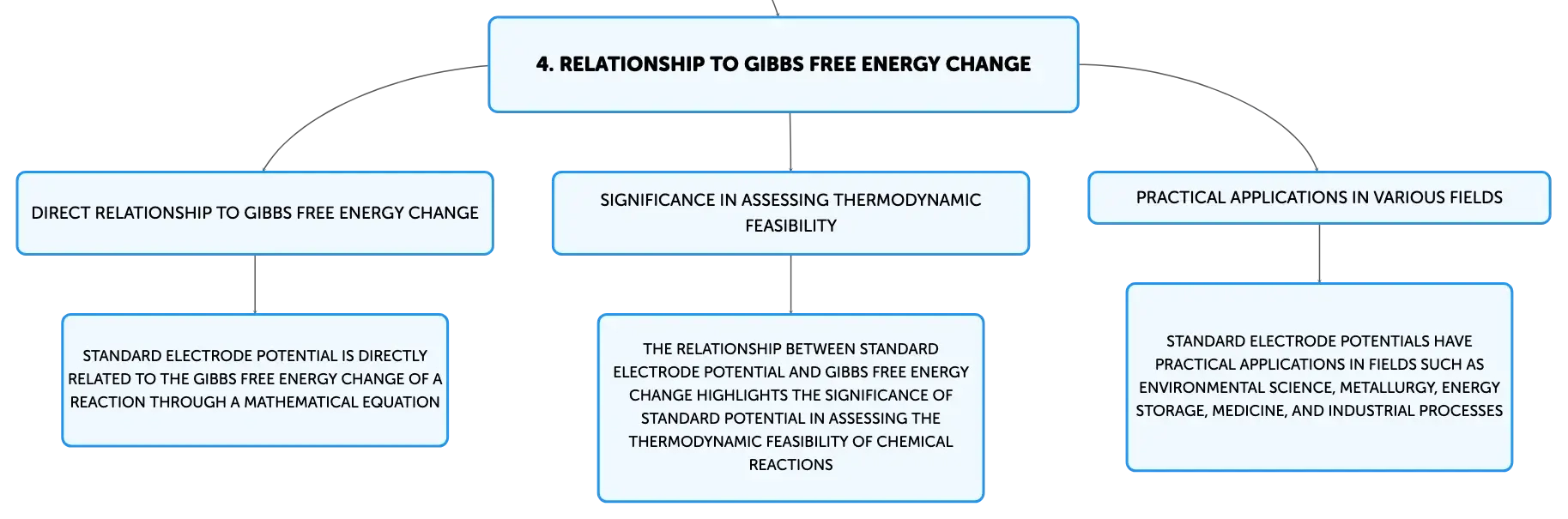

Relationship to Gibbs Free Energy Change
Direct relationship to Gibbs free energy change
Standard electrode potential is directly related to the Gibbs free energy change of a reaction through a mathematical equation
Significance in assessing thermodynamic feasibility
The relationship between standard electrode potential and Gibbs free energy change highlights the significance of standard potential in assessing the thermodynamic feasibility of chemical reactions
Practical applications in various fields
Standard electrode potentials have practical applications in fields such as environmental science, metallurgy, energy storage, medicine, and industrial processes
Standard Electrode Potential
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Symbol for standard electrode potential
E° represents standard electrode potential.
01
Role of standard hydrogen electrode (SHE)
SHE serves as zero volts reference for measuring electrode potentials.
02
Importance of standard conditions (298 K, 1 bar, 1 M)
Ensures comparability of electrode potentials across different chemicals.
