Electrochemical Cells

Electrochemical cells are pivotal in converting chemical energy to electrical energy and vice versa. They operate through redox reactions, with oxidation at the anode and reduction at the cathode. The text delves into voltaic and electrolytic cells, their components, thermodynamics, and the direction of electron flow. These cells are fundamental in various applications, from powering devices to industrial chemical production.

See more

1/4

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Anode function in electrochemical cells

Click to check the answer

Oxidation occurs at the anode, where electrons are released from the chemical species.

2

Cathode function in electrochemical cells

Click to check the answer

Reduction takes place at the cathode, where electrons are accepted by the chemical species.

3

Purpose of salt bridge or membrane in electrochemical cells

Click to check the answer

Allows ion exchange to maintain charge balance while physically separating oxidation and reduction half-reactions.

4

Electrolytic cells require ______ energy to initiate non-spontaneous ______ reactions.

Click to check the answer

electrical chemical

5

Components of a half-cell in a voltaic cell

Click to check the answer

Each half-cell contains an electrode immersed in an electrolyte solution.

6

Function of a salt bridge in a voltaic cell

Click to check the answer

Connects two half-cells and allows ion flow to maintain electrical neutrality.

7

During electrolysis, electrons are forced to move from the ______ to the ______ using an external power source.

Click to check the answer

cathode anode

8

Function of electrodes in electrochemical cells

Click to check the answer

Facilitate redox reactions by providing surface for electron exchange.

9

Role of salt bridge or ion-permeable membrane

Click to check the answer

Maintains electrical neutrality by enabling ion transfer between half-cells.

10

Electrochemical cells are key in examining and utilizing the ______ of redox reactions.

Click to check the answer

thermodynamics

11

The ______ ______ potential is the voltage of a cell under standard conditions and is derived from standard electrode potentials.

Click to check the answer

standard cell

12

Location of oxidation in an electrochemical cell

Click to check the answer

Oxidation occurs at the anode.

13

Location of reduction in an electrochemical cell

Click to check the answer

Reduction takes place at the cathode.

14

These cells can either produce or use electrical energy, and are categorized as either ______ or ______ cells.

Click to check the answer

voltaic electrolytic

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Chemistry

Cycloaddition Reactions in Organic Chemistry

Chemistry

Organic Chemistry and Its Applications

Chemistry

Heteroatoms in Organic Chemistry

Chemistry

Alkene Nomenclature

Fundamentals of Electrochemical Cells

Electrochemical cells are devices that convert chemical energy into electrical energy or vice versa through redox (reduction-oxidation) reactions. These reactions involve the transfer of electrons between chemical species. In an electrochemical cell, oxidation occurs at the anode, and reduction takes place at the cathode. The two half-reactions are physically separated but connected by an external circuit that allows electrons to flow and a salt bridge or membrane that permits the exchange of ions to maintain charge balance. This setup is crucial for a wide range of applications, from batteries to electrolysis.
Laboratory equipment for electrochemical experiments with glass beakers, electrodes, copper wire and mortar on reflecting table.

Types of Electrochemical Cells

Electrochemical cells are broadly classified into two categories: voltaic (or galvanic) cells and electrolytic cells. Voltaic cells convert the energy released from spontaneous redox reactions into electrical energy, while electrolytic cells use electrical energy to drive non-spontaneous chemical reactions. Voltaic cells consist of two separate half-cells linked by a salt bridge and an external circuit, whereas electrolytic cells often have both electrodes immersed in a single solution without a salt bridge.

The Operation of Voltaic Cells

Voltaic cells operate based on spontaneous redox reactions that release energy. This energy is harnessed as electrical energy, which can be measured with a voltmeter. Each half-cell in a voltaic cell contains an electrode and an electrolyte solution, with the two half-cells connected by a salt bridge. The flow of electrons through the external circuit from the anode to the cathode can be used to power electronic devices.

Functioning of Electrolytic Cells

Electrolytic cells facilitate non-spontaneous chemical reactions through the application of an external voltage. In these cells, an external power source, such as a battery or power supply, is used to force electrons to move in the opposite direction of a voltaic cell, from the cathode to the anode. This process, known as electrolysis, is used in various industrial processes, including the extraction of metals and the production of chemicals like chlorine and sodium hydroxide.

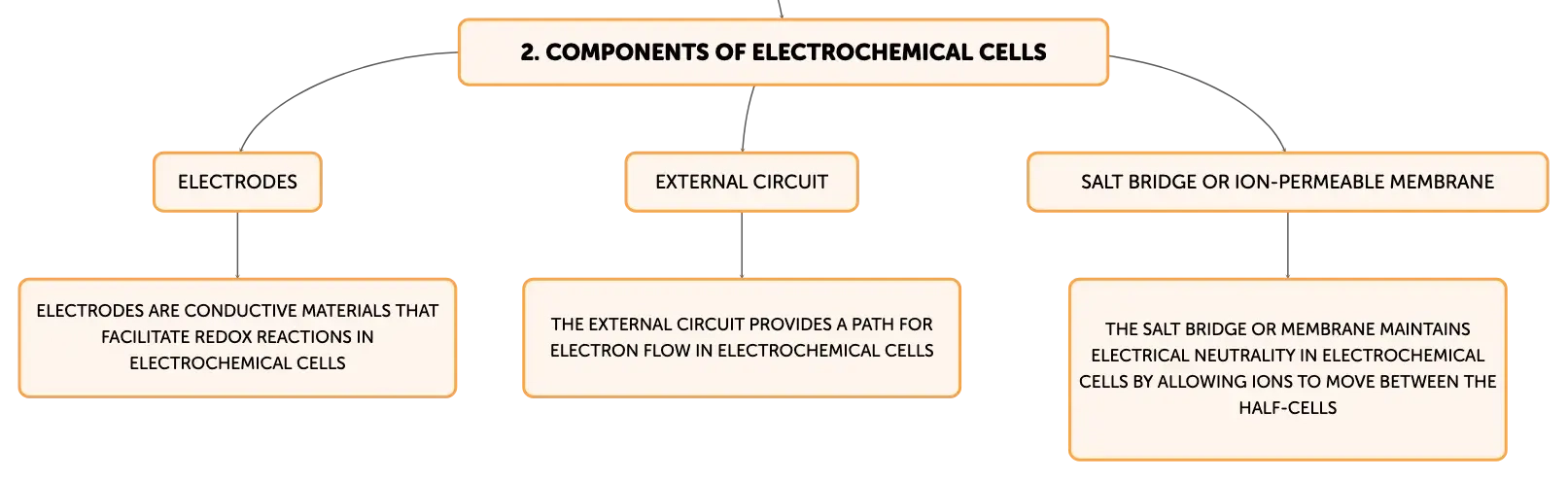

Essential Components of Electrochemical Cells

The key components of an electrochemical cell include electrodes (anode and cathode), an external circuit, and a salt bridge or ion-permeable membrane. Electrodes are conductive materials that facilitate the redox reactions. The external circuit provides a path for electron flow, and the salt bridge or membrane maintains electrical neutrality by allowing ions to move between the half-cells. Additional elements such as separators may be used to prevent the mixing of different electrolytes.

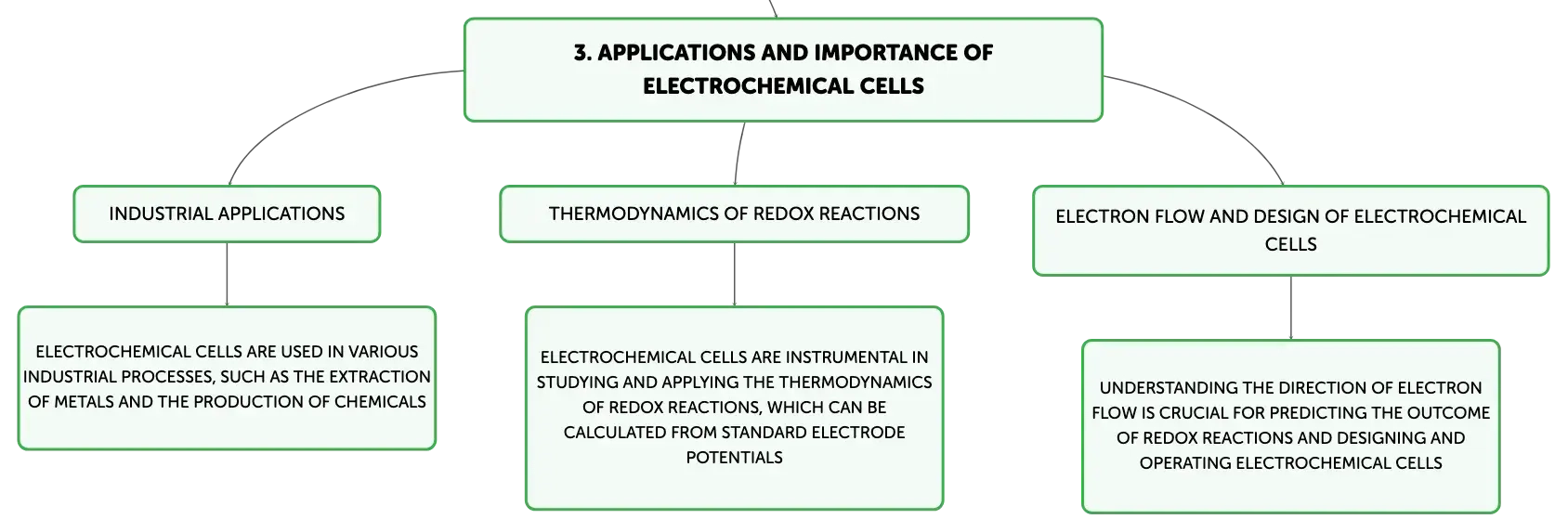

Thermodynamics and Applications of Electrochemical Cells

Electrochemical cells are instrumental in studying and applying the thermodynamics of redox reactions. The standard cell potential, which is the voltage of a cell under standard conditions, can be calculated from the standard electrode potentials. These potentials are measured relative to the standard hydrogen electrode. The cell potential is related to the Gibbs free energy change of the reaction, which indicates the maximum work that can be extracted from the cell, and the equilibrium constant, which predicts the ratio of products to reactants at equilibrium.

Direction of Electron Flow in Redox Reactions

The direction of electron flow in an electrochemical cell is from the anode, where oxidation occurs, to the cathode, where reduction takes place. This flow is driven by the potential difference between the electrodes. Understanding the electron flow is essential for predicting the outcome of redox reactions and for the proper design and operation of electrochemical cells.

Concluding Insights on Electrochemical Cells

Electrochemical cells are integral to numerous scientific and industrial processes, enabling the controlled study and application of redox reactions. They are distinguished by their ability to either generate or consume electrical energy, depending on whether they are voltaic or electrolytic cells. Mastery of the principles governing electrochemical cells allows for the precise measurement and prediction of electrical and chemical phenomena, underscoring their importance in the field of physical chemistry.
