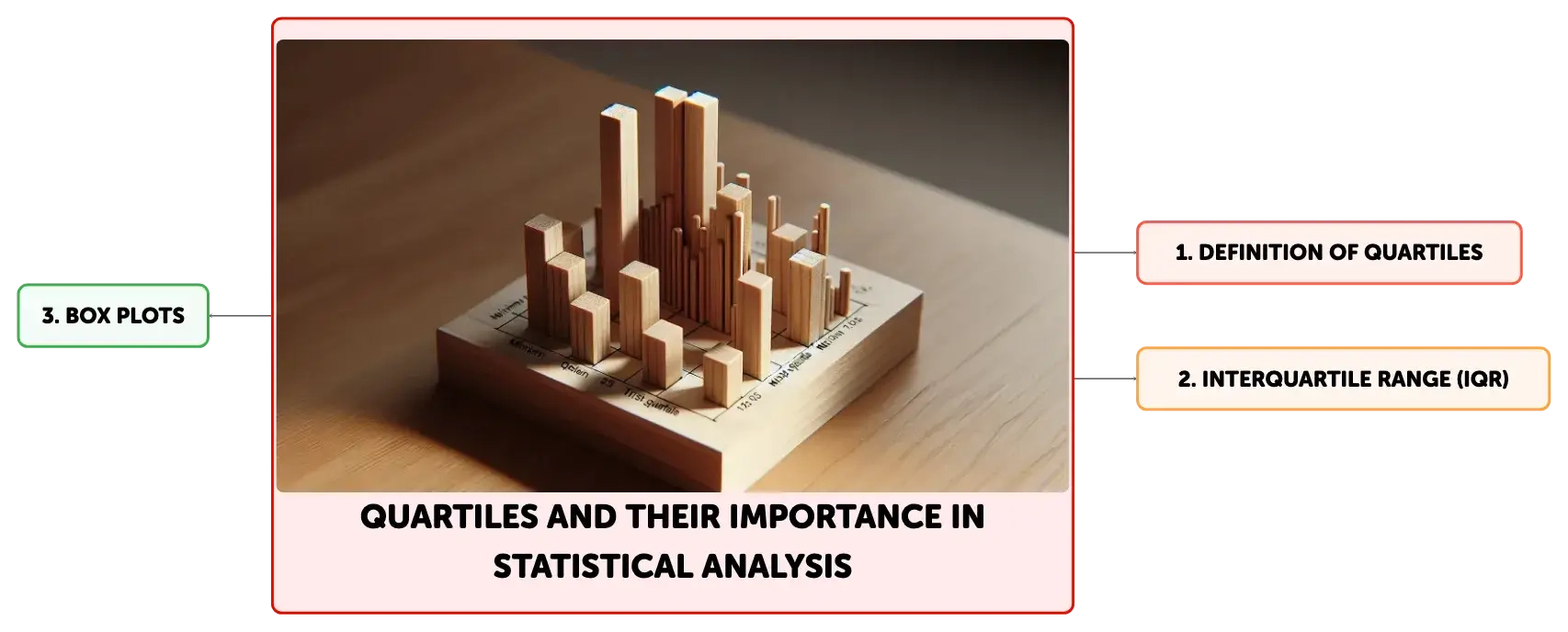

Quartiles and Their Importance in Statistical Analysis

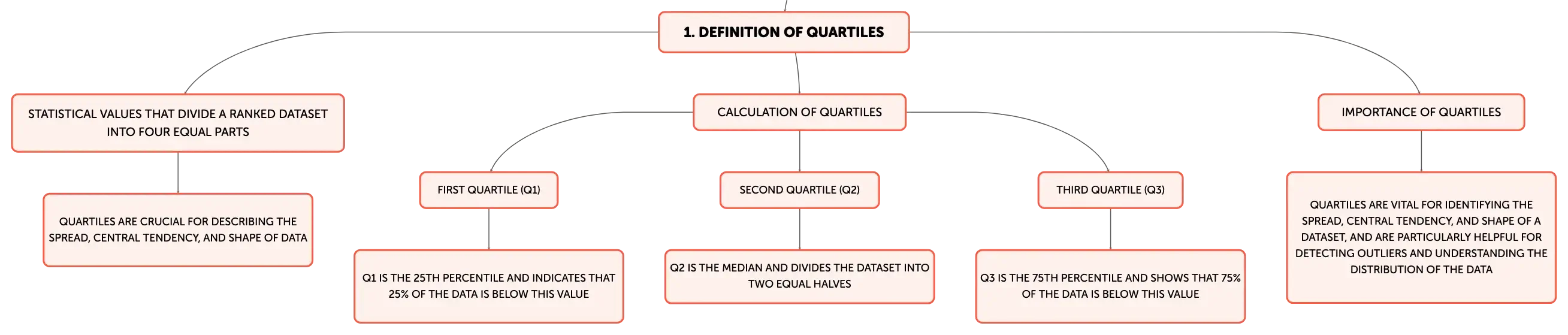

Understanding Quartiles in Data Analysis

Quartiles are statistical values that divide a ranked dataset into four equal parts, each representing a key percentile in the distribution of the data. They are crucial for describing the spread, central tendency, and shape of the data. The first quartile (Q1) is the 25th percentile, the second quartile (Q2) is the 50th percentile (also the median), and the third quartile (Q3) is the 75th percentile. Q1 indicates that 25% of the data is below this value, and Q3 shows that 75% of the data is below this value, with Q2 bisecting the dataset into two equal halves.

Calculating the First Quartile (Q1)

To calculate the first quartile (Q1), the data must be ordered from smallest to largest. If the dataset has an odd number of observations, the median is found and excluded to determine the lower half of the data. The median of this lower half is Q1. If the dataset has an even number of observations, the lower half is determined without excluding any data points, and the median of this subset is Q1. For example, in a dataset of 1, 3, 3, 4, 5, 8, 9, 12, the first quartile is 3, which is the median of the lower half (1, 3, 3, 4).

Determining the Second Quartile (Q2)

The second quartile (Q2), or median, is the value that divides the dataset into two equal parts. For an odd number of observations, it is the central value. For an even number of observations, it is the average of the two central values. In the dataset 23, 45, 46, 62, 77, 78, 89, 98, the median is 69.5, calculated as the average of 62 and 77, the two middle values.

Finding the Third Quartile (Q3)

The third quartile (Q3) is found by applying the same method used for Q1 but on the upper half of the dataset. For an odd number of observations, the median is excluded from the upper half before calculating the median of the remaining values. For an even number of observations, the median of the upper half is used directly. In the dataset 1, 3, 3, 4, 5, 8, 9, 12, the third quartile is 9, which is the median of the upper half (5, 8, 9, 12).

The Importance of Quartiles in Statistical Analysis

Quartiles are vital in statistical analysis for identifying the spread, central tendency, and shape of a dataset. They are particularly helpful for detecting outliers and for understanding the distribution of the data. Quartiles provide a concise summary of large datasets and are integral to the computation of the interquartile range (IQR), which quantifies the dispersion of the middle 50% of the data.

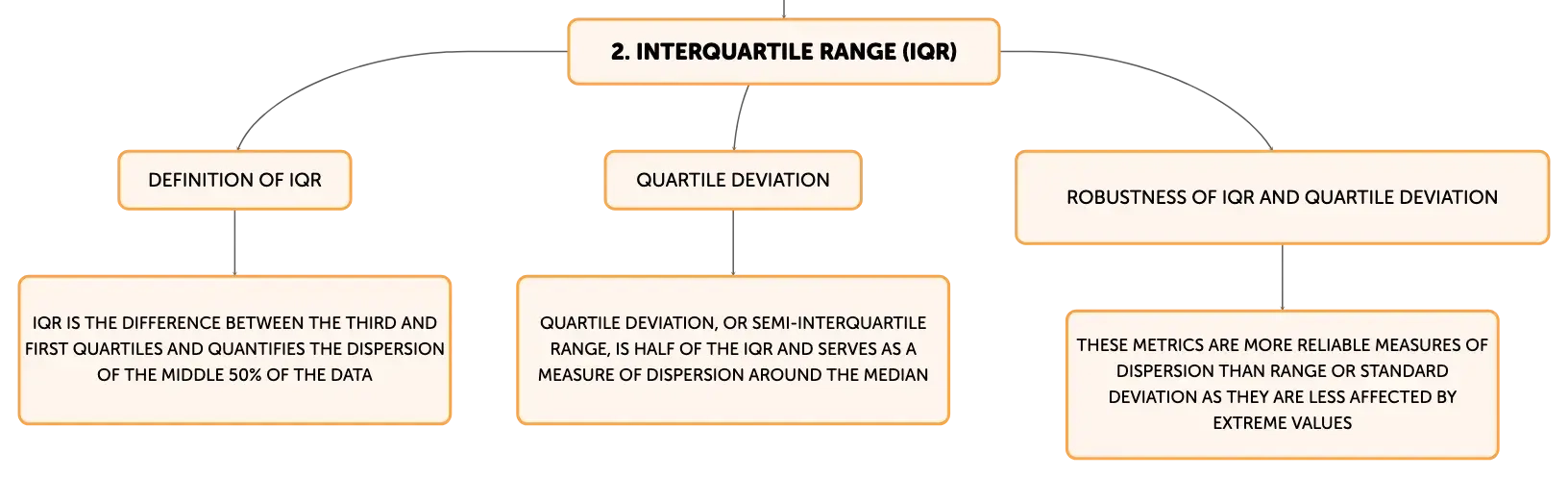

Interquartile Range and Quartile Deviation

The interquartile range (IQR) is the difference between the third and first quartiles (IQR = Q3 - Q1) and delineates the span within which the central 50% of the data lies. The quartile deviation, or semi-interquartile range, is half of the IQR and serves as a measure of dispersion around the median, calculated as (Q3 - Q1) / 2. These metrics are robust against extreme values and provide a more reliable measure of dispersion than range or standard deviation.

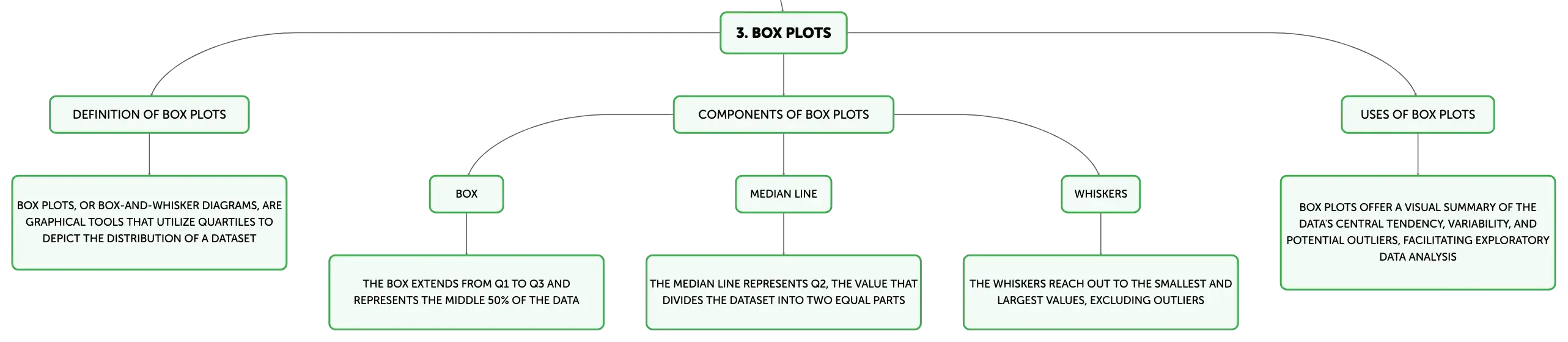

Visualizing Data with Box Plots

Box plots, or box-and-whisker diagrams, are graphical tools that utilize quartiles to depict the distribution of a dataset. They consist of a box extending from Q1 to Q3, with a line at the median (Q2), and whiskers that reach out to the smallest and largest values, excluding outliers. Box plots offer a visual summary of the data's central tendency, variability, and potential outliers, facilitating exploratory data analysis.

Quartiles and Interquartile Range - Key Takeaways

Quartiles segment a dataset into four equal parts, with Q1, Q2, and Q3 marking the 25th, 50th, and 75th percentiles, respectively. The interquartile range (IQR) captures the spread of the middle 50% of the data, while the quartile deviation indicates dispersion around the median. These statistical tools are indispensable for comprehensive data analysis, providing insights into the data's distribution, pinpointing outliers, and succinctly summarizing large datasets. Box plots leverage quartiles to visually represent data, enhancing the interpretation and comparison of datasets.
