Valence Shell Electron Pair Repulsion (VSEPR) Theory

Exploring the Fundamentals of VSEPR Theory

Valence Shell Electron Pair Repulsion (VSEPR) theory is an essential model in chemistry for predicting the three-dimensional arrangement of atoms within a molecule. It is based on the premise that groups of valence electrons around a central atom will position themselves as far apart as possible to minimize repulsion. This theory helps to explain the spatial orientation of molecules by considering both bonding pairs of electrons, which form the chemical bonds, and nonbonding or lone pairs, which are not shared with other atoms but still contribute to the shape of the molecule.

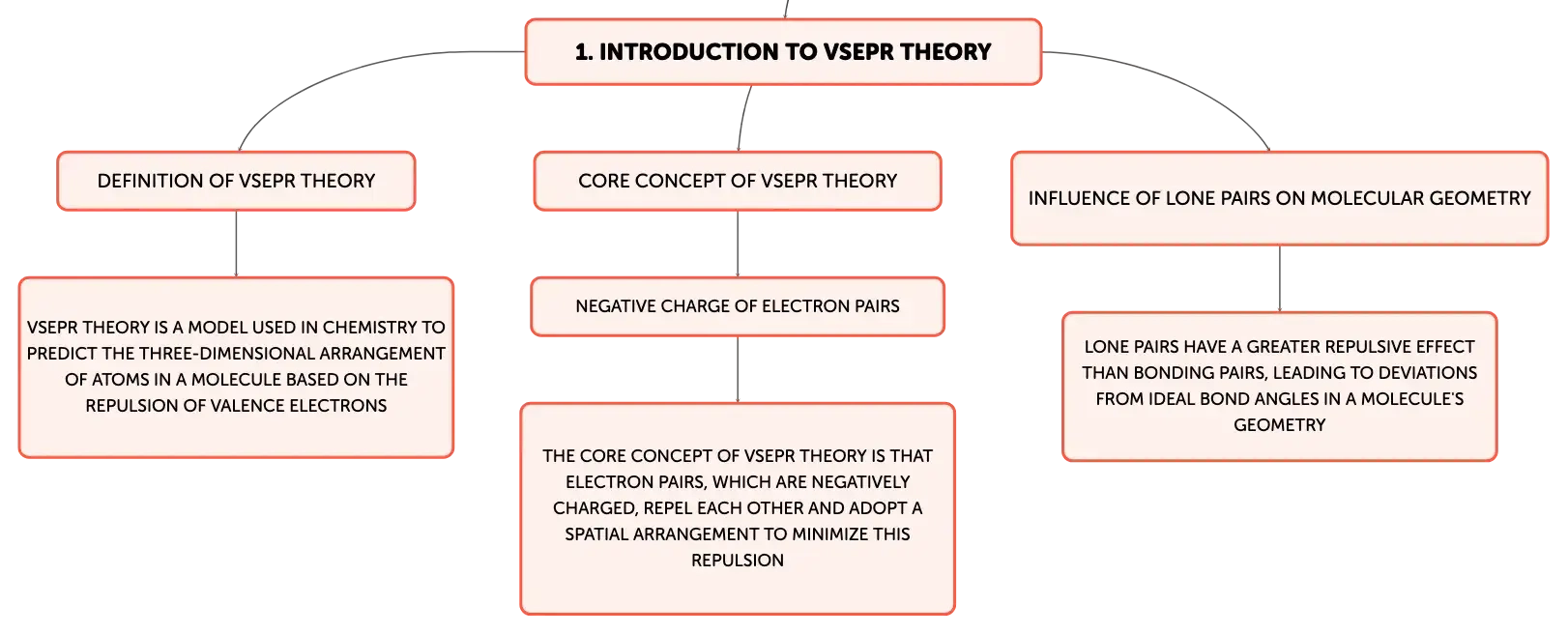

Core Concepts of Electron Pair Repulsion

The VSEPR theory is founded on the core concept that electron pairs are negatively charged and repel each other. This repulsion forces electron pairs to adopt a spatial arrangement that reduces this repulsion to a minimum, resulting in predictable molecular geometries. Additionally, it is important to note that lone pairs are generally more repulsive than bonding pairs because they occupy more space around the central atom, leading to smaller bond angles in the molecule's geometry.

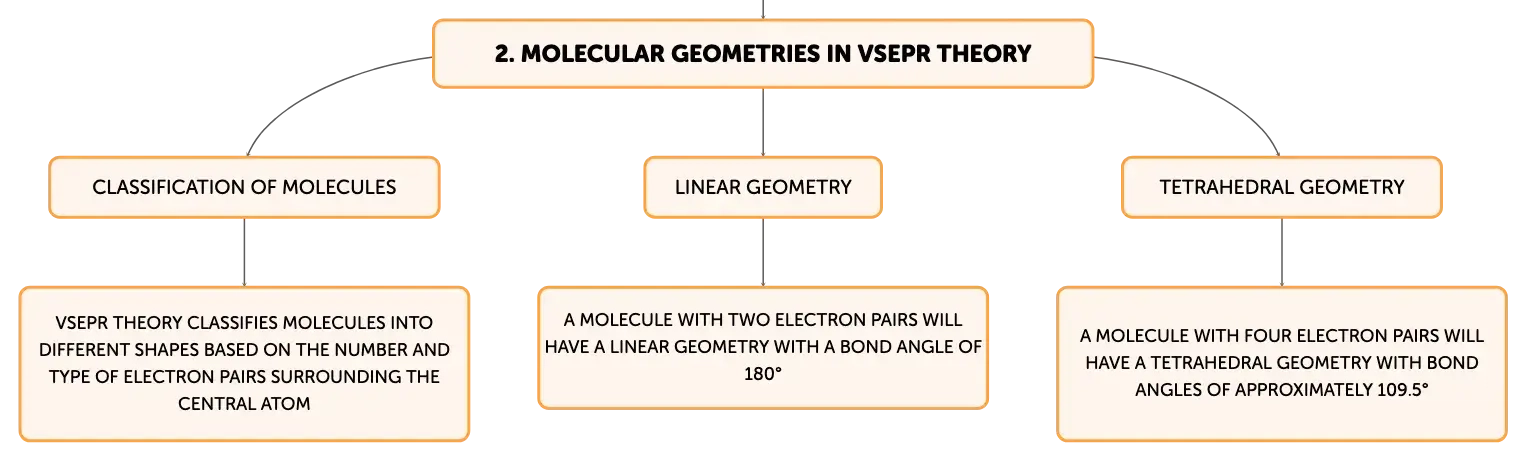

Predicting Molecular Shapes and Bond Angles

VSEPR theory classifies molecules into various shapes based on the number and type of electron pairs surrounding the central atom. A molecule with two electron pairs will form a linear geometry with a bond angle of 180°. Three electron pairs create a trigonal planar shape with bond angles of 120°. Four electron pairs lead to a tetrahedral geometry with bond angles of about 109.5°. For molecules with five and six electron pairs, more complex geometries such as trigonal bipyramidal and octahedral shapes emerge, with corresponding bond angles that depend on the specific distribution of bonding and lone pairs.

The Impact of Lone Pairs on Molecular Structures

Lone pairs exert a significant influence on molecular geometry by causing deviations from ideal bond angles. In a tetrahedral molecule with one lone pair, the geometry becomes trigonal pyramidal, and with two lone pairs, the molecule adopts a bent or angular shape. These deviations are due to the increased repulsion exerted by lone pairs compared to bonding pairs, which is a crucial consideration when determining the actual shape and properties of a molecule.

Addressing Complexities in Heteronuclear Molecules

While VSEPR theory is highly effective for homonuclear molecules, where the central atom is surrounded by identical atoms, it encounters complexities with heteronuclear molecules that have different types of atoms attached to the central atom. In such cases, additional factors such as differences in bond lengths, bond strengths, and the distribution of electron density must be considered. The theory is most straightforward when applied to molecules with the general formula ABn, where 'A' is the central atom and 'B' represents one or more types of identical atoms bonded to 'A'.

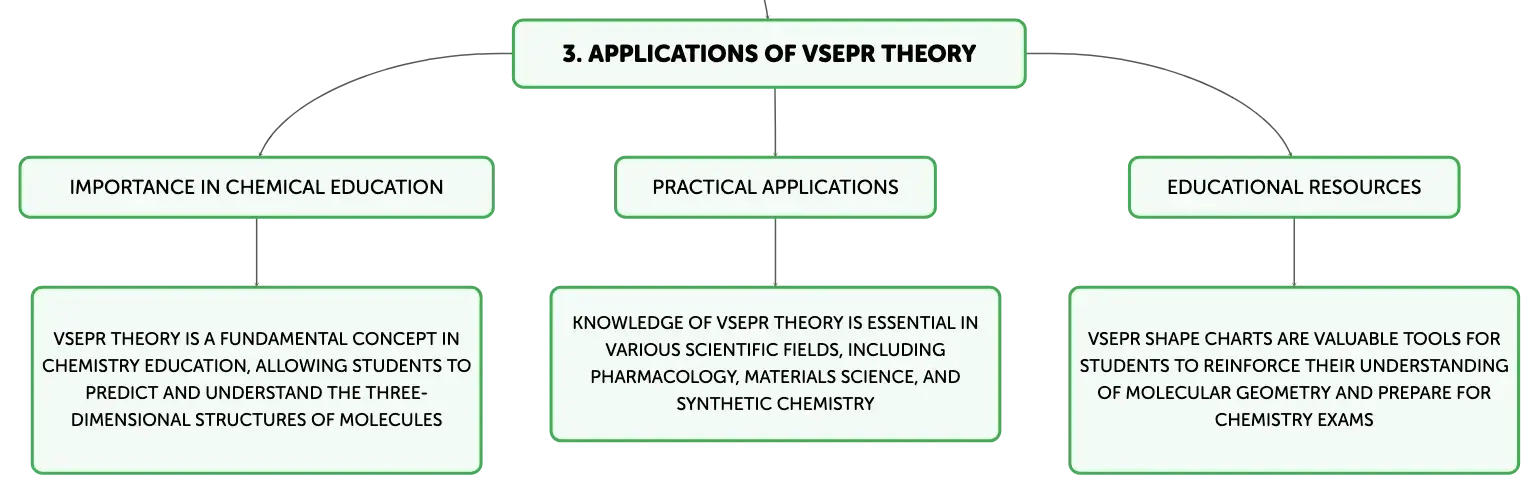

VSEPR Theory in Chemical Education

VSEPR theory is a cornerstone of chemical education, equipping students with the ability to predict and visualize the three-dimensional structures of molecules. Mastery of this theory enables students to comprehend the spatial arrangement of molecules, which is fundamental to understanding their physical and chemical properties. This knowledge is invaluable not only for academic success but also for practical applications in various scientific disciplines, including pharmacology, materials science, and synthetic chemistry.

Utilizing VSEPR Molecular Shape Charts

Educational resources often feature VSEPR shape charts that summarize the typical molecular geometries, their bond angles, and the influence of lone pairs on these structures. These charts are indispensable tools for students, providing a quick reference to reinforce their grasp of molecular geometry concepts and to assist in the preparation for chemistry exams.
