Electrochemical Cells: Converting Chemical Energy into Electrical Energy

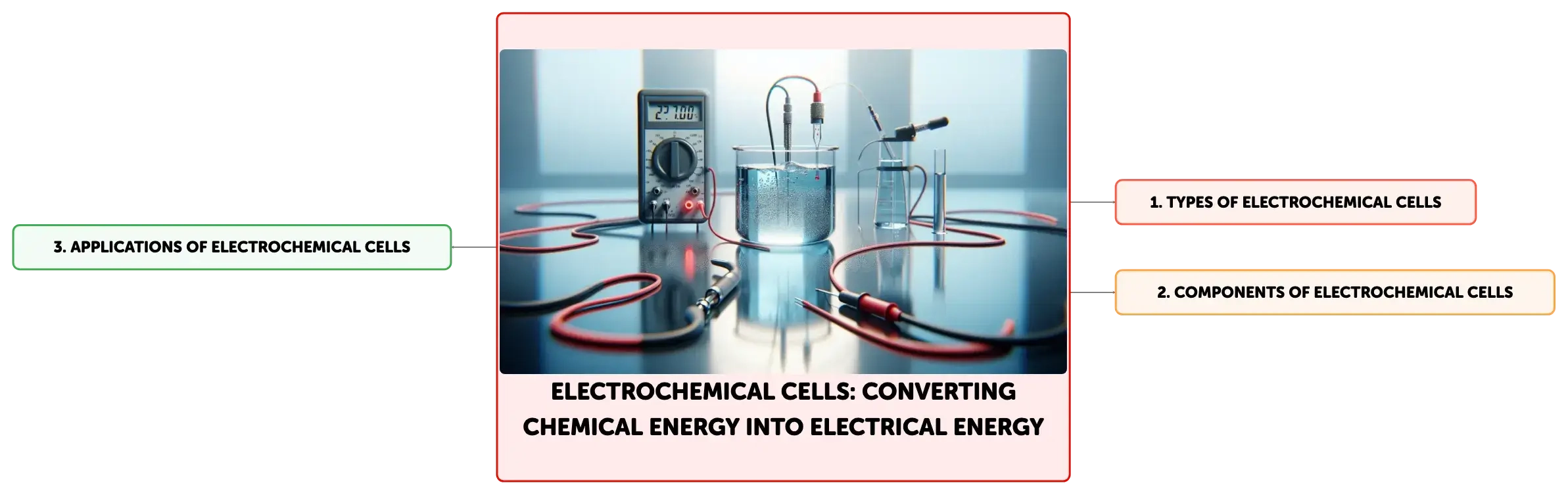

Concept Map
Electrochemical cells are crucial for converting chemical energy to electrical energy and vice versa. This overview discusses Galvanic and electrolytic cells, their anode and cathode functions, and applications like batteries and electrolysis. The role of these cells in sustainable energy, particularly hydrogen fuel production, is also highlighted.
Summary
Outline
Exploring the Fundamentals of Electrochemical Cells
Electrochemical cells are pivotal in converting chemical energy into electrical energy and vice versa, through redox reactions where oxidation and reduction occur simultaneously. There are two primary types of electrochemical cells: Galvanic (or voltaic) cells, which generate electrical energy from spontaneous chemical reactions, and electrolytic cells, which consume electrical energy to drive nonspontaneous chemical reactions. In Galvanic cells, the anode is the source of electrons (negative) and the cathode is the electron acceptor (positive), while in electrolytic cells, the anode is positive and the cathode is negative due to the direction of the external electrical current applied. Understanding the flow of electrons and the role of each component is essential for comprehending how these cells operate.The Function of Anodes and Cathodes in Electrochemical Cells
The anode and cathode are critical to the operation of electrochemical cells, acting as the sites for oxidation and reduction, respectively. In Galvanic cells, the anode's oxidation reaction releases electrons into the external circuit, traveling towards the cathode, where they are consumed in the reduction reaction, thus generating an electric current. In contrast, electrolytic cells require an external power source to force electrons to flow from the anode to the cathode, driving the nonspontaneous chemical reactions. This principle is applied in industrial processes such as electroplating, where a thin layer of metal is deposited onto an object for protection or aesthetic purposes.Diagrammatic Representation of Electrochemical Cells
Diagrams of electrochemical cells provide insight into their operation. Galvanic cells are typically represented with a salt bridge connecting two half-cells, which allows for the flow of ions to maintain electrical neutrality and sustain the electron flow through the external circuit. This setup can power electronic devices such as calculators or watches. Electrolytic cells, on the other hand, often omit the salt bridge as they rely on an external power source to maintain the flow of electrons. The diagrams highlight the source of electrical energy and the direction of electron flow, which are crucial for understanding the cell's functionality.Everyday Applications of Galvanic and Electrolytic Cells
Galvanic and electrolytic cells are ubiquitous in daily life. Disposable batteries are a common example of Galvanic cells, providing electrical energy through spontaneous reactions. Rechargeable batteries exemplify electrolytic cells, where the application of an external electric current reverses the chemical reactions to restore the battery's charge. Electrolysis of water, which produces hydrogen and oxygen gases, is another application of electrolytic cells, requiring precise voltage control and having significant implications for renewable energy technologies, such as hydrogen-powered vehicles.Distinguishing Between Galvanic and Electrolytic Cells
Although Galvanic and electrolytic cells are based on redox reactions, they exhibit key differences. Both involve oxidation at the anode and reduction at the cathode, but the electron flow and reaction spontaneity set them apart. Galvanic cells support spontaneous reactions with a negative anode and a positive cathode, while electrolytic cells drive nonspontaneous reactions with the polarity reversed. A thorough understanding of these distinctions is vital for effectively utilizing electrochemical cells in a range of applications, from portable electronics to large-scale industrial processes.Electrochemical Cells and the Advancement of Sustainable Energy
Electrochemical cells, especially electrolytic cells, are integral to the advancement of sustainable energy solutions. Electrolysis, which can split water into hydrogen and oxygen, offers a method for producing clean fuel in the form of hydrogen for fuel cells. These fuel cells generate electricity through the reaction of hydrogen with oxygen, with water as the only emission, presenting a clean alternative to fossil fuels. As the world seeks to reduce reliance on nonrenewable energy sources, the role of electrochemical cells in fostering sustainable energy practices is becoming increasingly critical, with the potential to transform energy consumption and reduce greenhouse gas emissions.
Show More

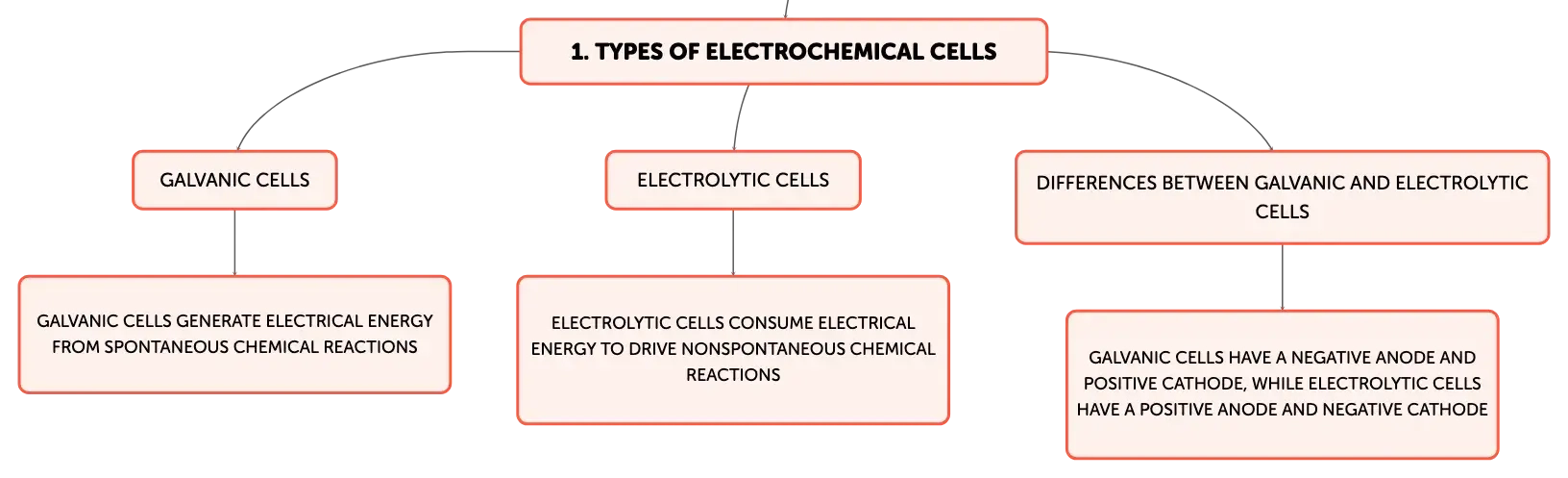

Types of Electrochemical Cells
Galvanic Cells
Galvanic cells generate electrical energy from spontaneous chemical reactions
Electrolytic Cells
Electrolytic cells consume electrical energy to drive nonspontaneous chemical reactions
Differences between Galvanic and Electrolytic Cells
Galvanic cells have a negative anode and positive cathode, while electrolytic cells have a positive anode and negative cathode

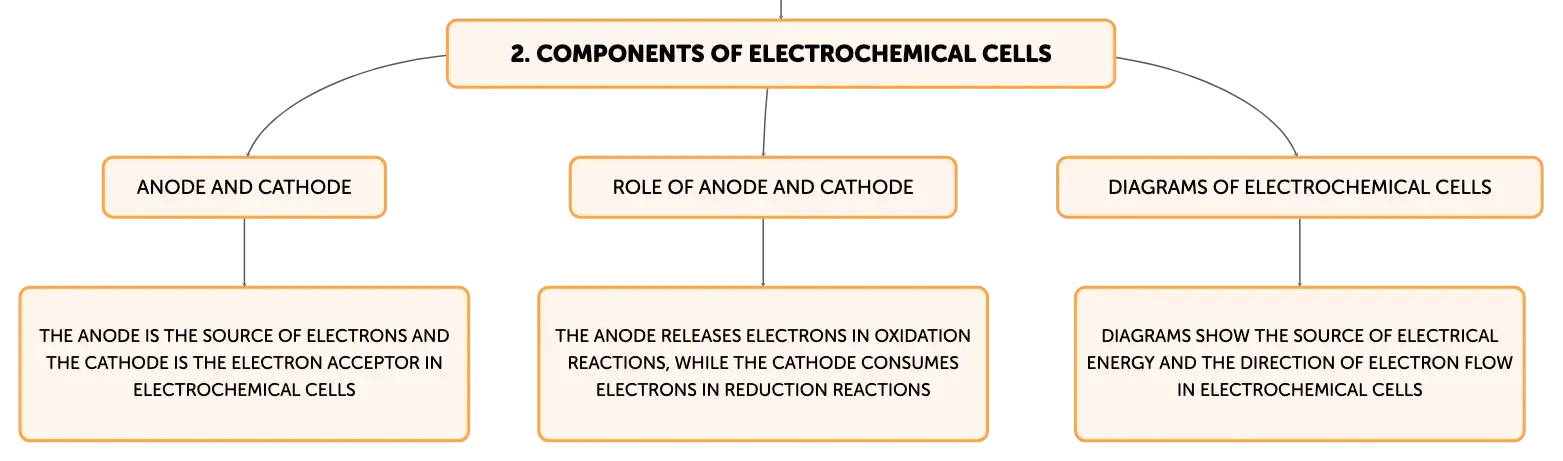

Components of Electrochemical Cells
Anode and Cathode
The anode is the source of electrons and the cathode is the electron acceptor in electrochemical cells
Role of Anode and Cathode
The anode releases electrons in oxidation reactions, while the cathode consumes electrons in reduction reactions
Diagrams of Electrochemical Cells
Diagrams show the source of electrical energy and the direction of electron flow in electrochemical cells

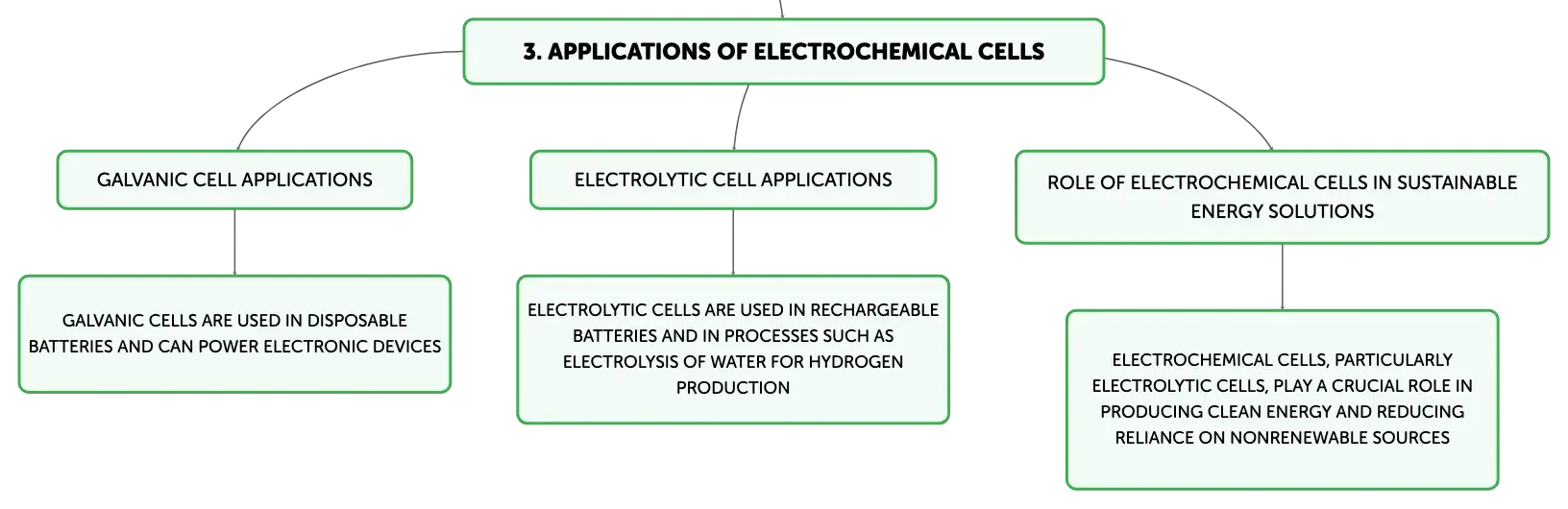

Applications of Electrochemical Cells
Galvanic Cell Applications
Galvanic cells are used in disposable batteries and can power electronic devices
Electrolytic Cell Applications
Electrolytic cells are used in rechargeable batteries and in processes such as electrolysis of water for hydrogen production
Role of Electrochemical Cells in Sustainable Energy Solutions
Electrochemical cells, particularly electrolytic cells, play a crucial role in producing clean energy and reducing reliance on nonrenewable sources
Electrochemical Cells: Converting Chemical Energy into Electrical Energy
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Purpose of Galvanic vs. Electrolytic Cells
Galvanic cells convert chemical energy to electrical energy; electrolytic cells use electrical energy to drive chemical reactions.
01
Anode and Cathode in Galvanic Cells
In Galvanic cells, anode is negative and supplies electrons; cathode is positive and accepts electrons.
02
Anode and Cathode in Electrolytic Cells
In electrolytic cells, anode is positive due to external current; cathode is negative and receives electrons.
