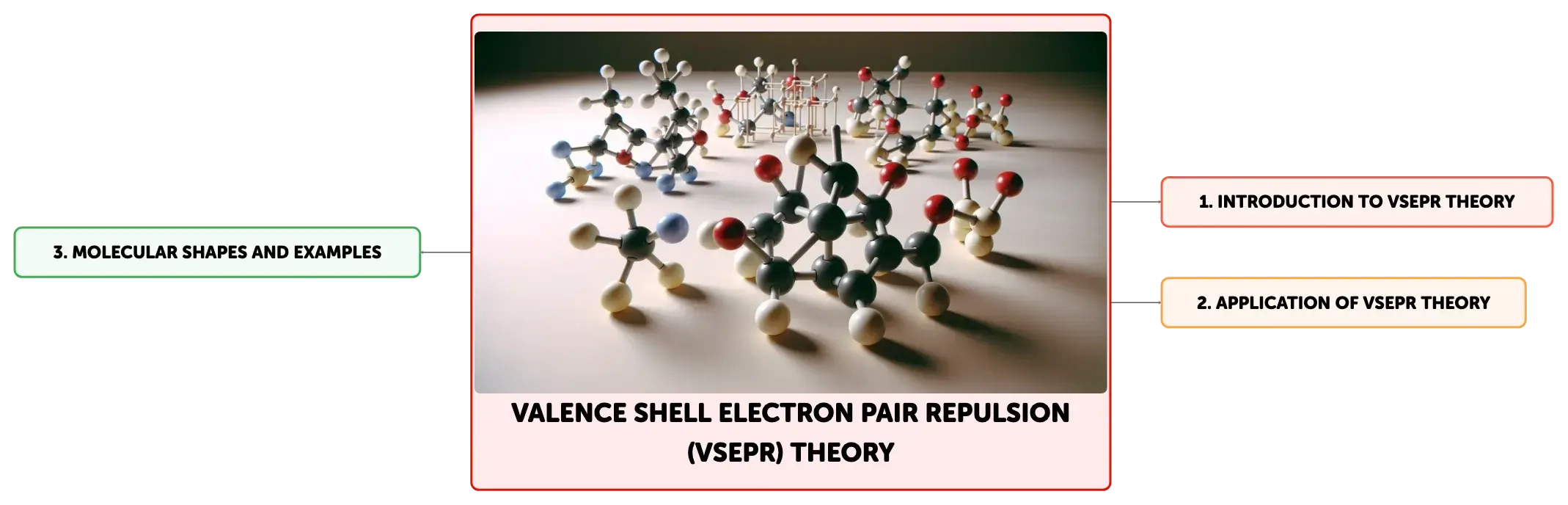

Valence Shell Electron Pair Repulsion (VSEPR) Theory

VSEPR theory explains molecular structures by considering the repulsion between electron pairs in an atom's valence shell. It predicts shapes from linear to octahedral based on electron domains, with lone pairs influencing bond angles and geometry. Examples like H2O, NH3, CO2, BCl3, CH4, PF5, and SF6 showcase its application in determining molecular configurations.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

VSEPR Theory: Electron Pair Repulsion Effect

Click to check the answer

Electron pairs in atom's valence shell repel each other, influencing molecule's 3D shape.

2

VSEPR Theory: Bonding vs. Non-bonding Pairs

Click to check the answer

Both bonding electron pairs and non-bonding lone pairs contribute to repulsion, affecting geometry.

3

VSEPR Theory: Determining Molecular Shape

Click to check the answer

Molecular geometry is determined by minimizing repulsion between all electron pairs in valence shell.

4

The ______ of electron groups around a central atom in a molecule is influenced by their need to be as far apart as possible.

Click to check the answer

spatial arrangement

5

Lewis Structure Representation

Click to check the answer

Shows valence electrons as dots, bonds as lines, differentiates atoms by shared pairs and lone pairs.

6

Electron Domain Identification

Click to check the answer

Determines number and arrangement of bonding and non-bonding electron pairs around central atom.

7

Influence of Electron Domain Geometry

Click to check the answer

Affects molecule's overall shape by dictating spatial arrangement of electron domains.

8

In the presence of ______, the idealized shapes and bond angles predicted by VSEPR theory may be ______.

Click to check the answer

lone pairs altered

9

Lone pair vs bonding pair repulsion

Click to check the answer

Lone pairs have greater electron density, causing more repulsion than bonding pairs.

10

Water molecule shape

Click to check the answer

Water has a bent shape due to two lone pairs on oxygen reducing the H-O-H angle below 109.5°.

11

Ammonia molecule geometry

Click to check the answer

Ammonia is trigonal pyramidal; lone pair on nitrogen reduces bond angles to about 107°.

12

According to VSEPR theory, the molecule with a trigonal planar shape is ______.

Click to check the answer

boron trichloride (BCl3)

13

The molecule ______ is used to illustrate the octahedral geometry in VSEPR theory.

Click to check the answer

sulfur hexafluoride (SF6)

14

VSEPR theory core principle

Click to check the answer

Predicts 3D molecular geometry based on electron pair repulsion.

15

Electron domain configurations range in VSEPR

Click to check the answer

Ranges from two to six, affecting molecular shape.

16

Common molecular shapes in VSEPR

Click to check the answer

Includes linear, trigonal planar, tetrahedral, trigonal bipyramidal, octahedral.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Chemistry

Ruff Degradation: A Key Technique in Carbohydrate Chemistry

View document

Chemistry

Enolate Ions: Key Intermediates in Organic Chemistry

View document

Chemistry

Alkene Nomenclature

View document

Chemistry

Cycloaddition Reactions in Organic Chemistry

View document

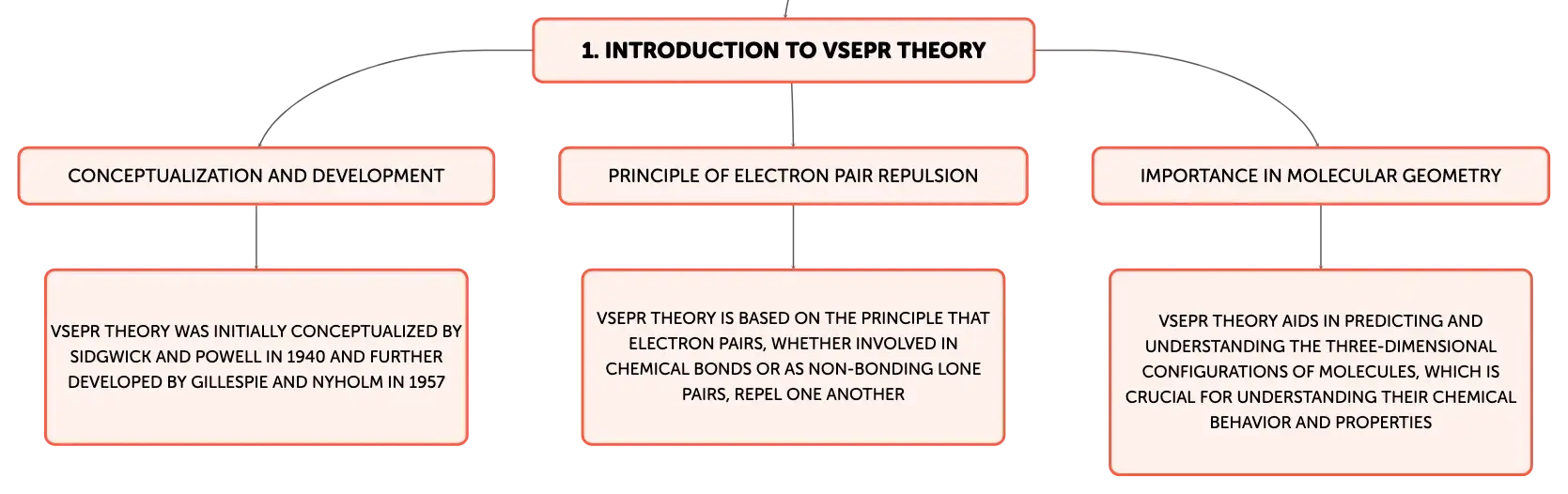

Foundations of VSEPR Theory

Valence Shell Electron Pair Repulsion (VSEPR) theory is a fundamental model in chemistry that elucidates the three-dimensional molecular structures based on the repulsion between electron pairs in the valence shell of atoms. Initially conceptualized by Sidgwick and Powell in 1940 and further developed by Gillespie and Nyholm in 1957, the theory is grounded on the principle that electron pairs, whether involved in chemical bonds or as non-bonding lone pairs, repel one another. This repulsion governs the spatial arrangement of atoms in a molecule, leading to a geometry that minimizes electron pair repulsion and defines the molecule's shape.
Three-dimensional molecular models on light table with colored spheres and stick connections representing atoms and chemical bonds.

Understanding Electron Pair Repulsion and Molecular Geometry

VSEPR theory asserts that all electron groups (lone pairs, single bonds, double bonds, triple bonds, or unpaired electrons) around a central atom repel each other due to their negative charge. The spatial arrangement of these electron groups is thus determined by the need to minimize this repulsion, resulting in a molecular geometry that maximizes the distance between them. This model simplifies the prediction of molecular shapes and aids in the comprehension of their three-dimensional configurations, which is crucial for understanding the chemical behavior and properties of molecules.

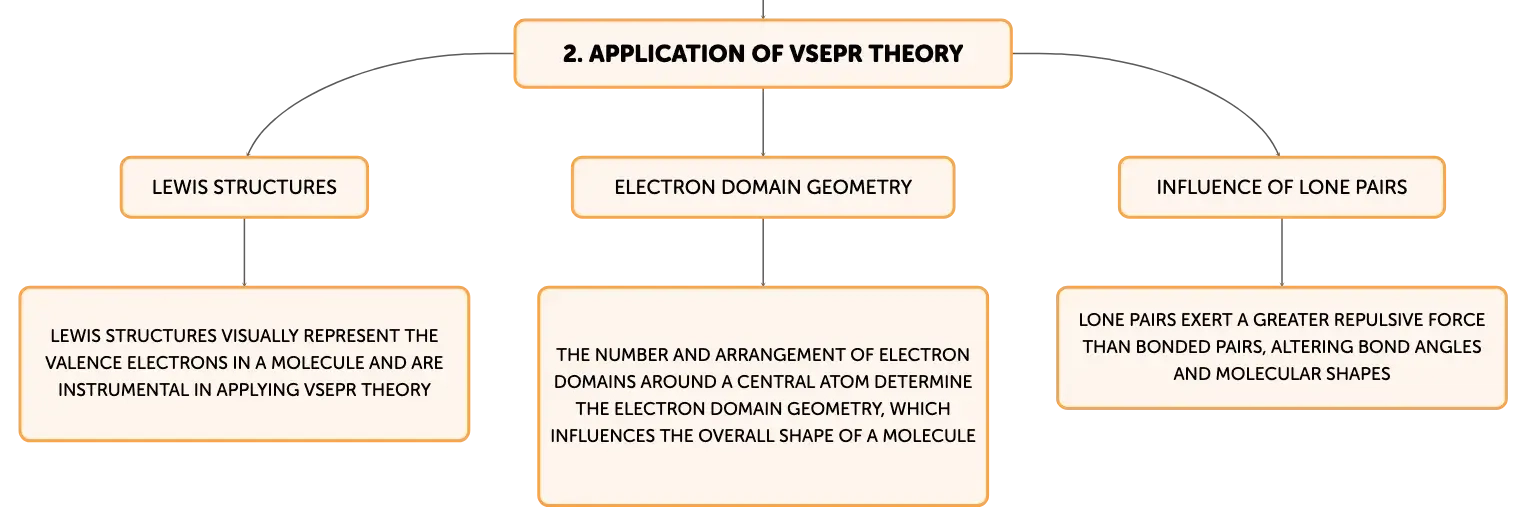

Lewis Structures and Electron Domains

Lewis structures, or electron dot diagrams, are instrumental in the application of VSEPR theory as they visually represent the valence electrons in a molecule. These diagrams differentiate between atoms connected by shared electron pairs (bonds) and atoms with non-bonding lone pairs. In a Lewis structure, bonds are depicted as lines between atoms, while lone pairs are shown as pairs of dots on individual atoms. Identifying the number and arrangement of these electron domains is essential for predicting the electron domain geometry around a central atom, which influences the molecule's overall shape.

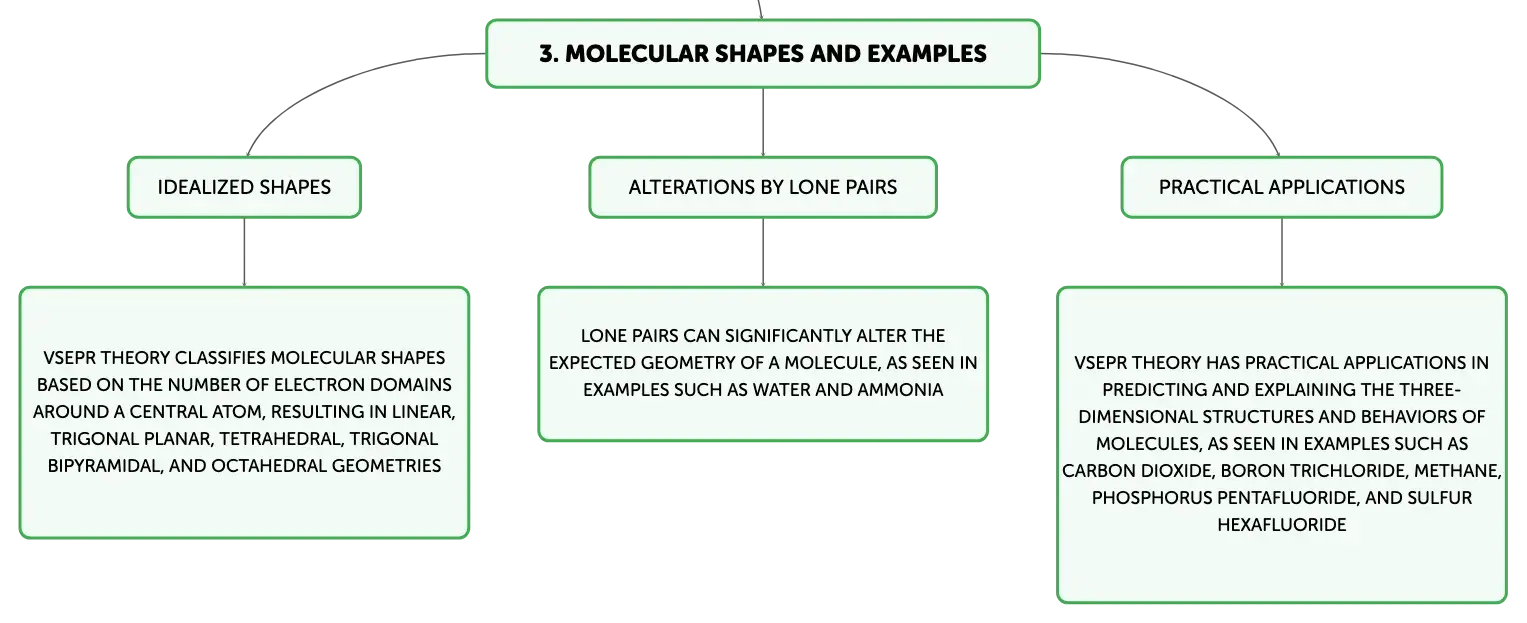

Molecular Geometries Derived from VSEPR Theory

The VSEPR theory classifies molecular shapes based on the number of electron domains around a central atom. Two electron domains lead to a linear geometry with a bond angle of 180°. Three domains result in a trigonal planar shape with 120° bond angles. Four domains create a tetrahedral geometry with 109.5° bond angles. Five domains give rise to a trigonal bipyramidal shape, and six domains form an octahedral geometry with 90° and 180° bond angles. However, these idealized shapes can be altered by the presence of lone pairs, which exert a greater repulsive force than bonded pairs, affecting bond angles and the resulting molecular geometry.

Influence of Lone Pairs on Molecular Shapes

Lone pairs are more repulsive than bonding pairs due to their greater electron density, leading to adjustments in bond angles and molecular shapes. In water (H2O), the two lone pairs on the oxygen atom force the hydrogen atoms to adopt a bent shape with a smaller angle than the tetrahedral 109.5°. Ammonia (NH3) has a trigonal pyramidal shape because its lone pair pushes the hydrogen atoms, reducing the bond angles from the ideal tetrahedral angle to about 107°. These examples illustrate how lone pairs can significantly alter the expected geometry of a molecule.

Real-World Applications and Examples of VSEPR Theory

VSEPR theory has practical applications in predicting and explaining the three-dimensional structures and behaviors of molecules. Carbon dioxide (CO2) is a linear molecule, boron trichloride (BCl3) exhibits trigonal planar geometry, and methane (CH4) is a perfect example of tetrahedral geometry. Phosphorus pentafluoride (PF5) and sulfur hexafluoride (SF6) demonstrate trigonal bipyramidal and octahedral geometries, respectively. These molecules exemplify the predictive accuracy of VSEPR theory and underscore its importance in the field of chemistry.

Key Takeaways from VSEPR Theory

VSEPR theory is an indispensable part of molecular chemistry, offering a systematic method for predicting the three-dimensional arrangement of atoms in molecules. It considers the repulsive forces between electron pairs to infer the most probable molecular geometry. The theory accommodates a range of electron domain configurations, from two to six, leading to linear, trigonal planar, tetrahedral, trigonal bipyramidal, and octahedral shapes. Despite its simplifications, VSEPR theory remains a vital conceptual tool for chemists to visualize and rationalize molecular structures and interactions.
