Polar Coordinates and Derivatives

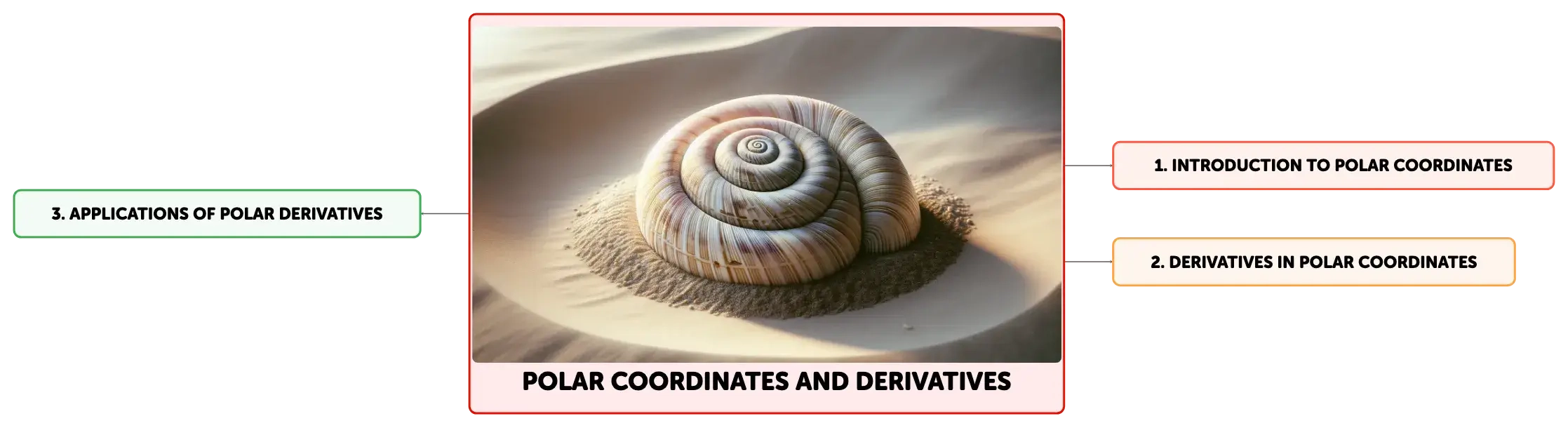

Concept Map
Polar coordinates and their derivatives are crucial in representing points and analyzing curves with radial symmetry. This system uses a radius and an angle to describe positions in a plane, making it ideal for figures like flower petals or celestial paths. Understanding derivatives in polar coordinates is key for calculating tangent slopes and analyzing curve behavior, which is vital in physics and kinematics for motion studies.
Summary
Outline
Exploring Polar Coordinates and Their Applications
Polar coordinates provide an alternative to the Cartesian coordinate system for representing points in a plane, using a radius and an angle relative to a central point known as the pole. This system is particularly adept at describing figures with radial symmetry, such as the petals of a flower or the paths of celestial bodies. In polar coordinates, a point is represented by a pair \((r, \theta)\), where \(r\) is the radial distance from the pole, and \(\theta\) is the angle measured in radians from the polar axis (typically the positive x-axis). This framework is essential for analyzing complex shapes and motions that are more naturally expressed in terms of radius and angle.Derivatives in Polar Coordinates and Their Interpretation
Derivatives in polar coordinates provide information about how a curve changes as the angle \(\theta\) varies. The radial derivative, \(\frac{\mathrm{d}r}{\mathrm{d}\theta}\), describes the rate of change of the radius with respect to the angle. For example, the derivative of the polar function \(r = a\theta\), representing an Archimedean spiral, is a constant \(a\), indicating a steady increase in radius per unit angle. However, this derivative alone does not yield the slope of the curve at a point. To find the slope of the tangent line in Cartesian terms, one must consider both \(r\) and \(\theta\) and their rates of change, which is critical for applications in various scientific and engineering disciplines.Calculating Tangent Line Slopes in Polar Coordinates
The slope of a tangent line to a polar curve at a given point can be calculated using the formula \(\frac{\mathrm{d}y}{\mathrm{d}x} = \frac{r'\sin(\theta) + r\cos(\theta)}{r'\cos(\theta) - r\sin(\theta)}\), where \(r' = \frac{\mathrm{d}r}{\mathrm{d}\theta}\). This formula converts the polar information into the slope of the tangent in Cartesian coordinates. A vertical tangent occurs when the denominator equals zero, which is a meaningful condition in polar coordinates. This conversion is essential for analyzing the behavior of curves and for solving problems that require an understanding of the instantaneous direction of a curve.Step-by-Step Guide to Differentiating Polar Functions
Differentiating polar functions involves a systematic approach. Begin by finding the derivative of the radial function \(r(\theta)\) with respect to \(\theta\), using standard differentiation techniques. Then, apply the polar derivative formula to relate this derivative to the slope of the tangent line in Cartesian coordinates. Substitute the values of \(r(\theta)\) and its derivative into the formula and simplify to find the slope. This methodical process is crucial for understanding the geometric properties of polar curves and for solving practical problems that involve these curves.Types of Derivatives in Polar Coordinate Systems
There are two primary derivatives encountered in polar coordinates. The first is the radial derivative, \(r'(\theta) = \frac{\mathrm{d}r}{\mathrm{d}\theta}\), which is computed directly from the radial function. The second is the slope of the tangent line to the curve in Cartesian coordinates, \(\frac{\mathrm{d}y}{\mathrm{d}x}\). This latter derivative is often the focus when discussing the behavior of polar curves, as it provides a deeper understanding of the curve's geometry and is integral to many practical applications.Polar Derivatives in Physics and Kinematics
Polar derivatives play a vital role in physics, especially in kinematics, the study of motion. When polar coordinates are expressed as functions of time, \(r(t)\) and \(\theta(t)\), their time derivatives represent the radial and angular velocities of an object. The radial velocity, \(v_r = \frac{\mathrm{d}r}{\mathrm{d}t}\), measures the speed at which an object moves toward or away from the pole, while the angular velocity, \(\omega = \frac{\mathrm{d}\theta}{\mathrm{d}t}\), indicates the rate of rotation around the pole. These concepts are fundamental to the analysis of motion in polar coordinates and are widely used in orbital mechanics and other areas of physics.Enhancing Understanding Through Polar Derivative Examples
Practical examples and exercises are essential for mastering polar derivatives. Working through problems involving the differentiation of polar functions, such as a limaçon or a rose curve, helps solidify the application of differentiation rules and the use of the polar derivative formula. These exercises often involve trigonometric identities and algebraic manipulation. Demonstrating that a tangent line to a curve like \(r(\theta) = 3\) at \(\theta = 0\) is vertical illustrates the use of the polar derivative formula and the concept of infinite slope in polar coordinates. Through these examples, students gain a comprehensive understanding of polar derivatives and their diverse applications.
Show More

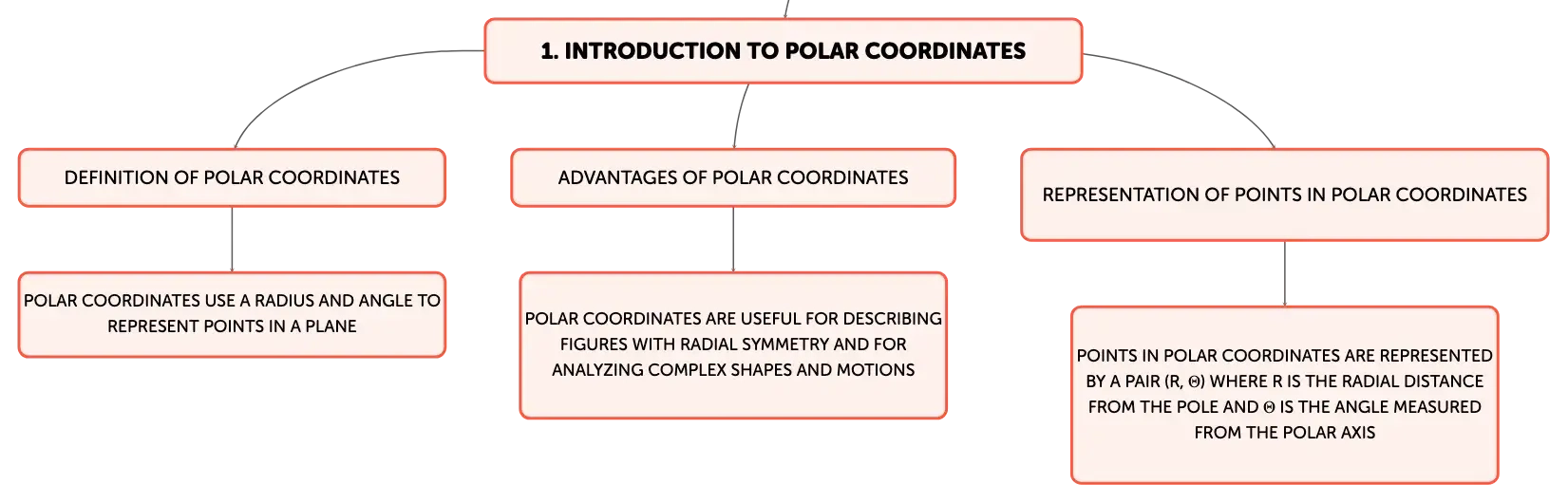

Introduction to Polar Coordinates
Definition of Polar Coordinates
Polar coordinates use a radius and angle to represent points in a plane
Advantages of Polar Coordinates
Polar coordinates are useful for describing figures with radial symmetry and for analyzing complex shapes and motions
Representation of Points in Polar Coordinates
Points in polar coordinates are represented by a pair (r, θ) where r is the radial distance from the pole and θ is the angle measured from the polar axis

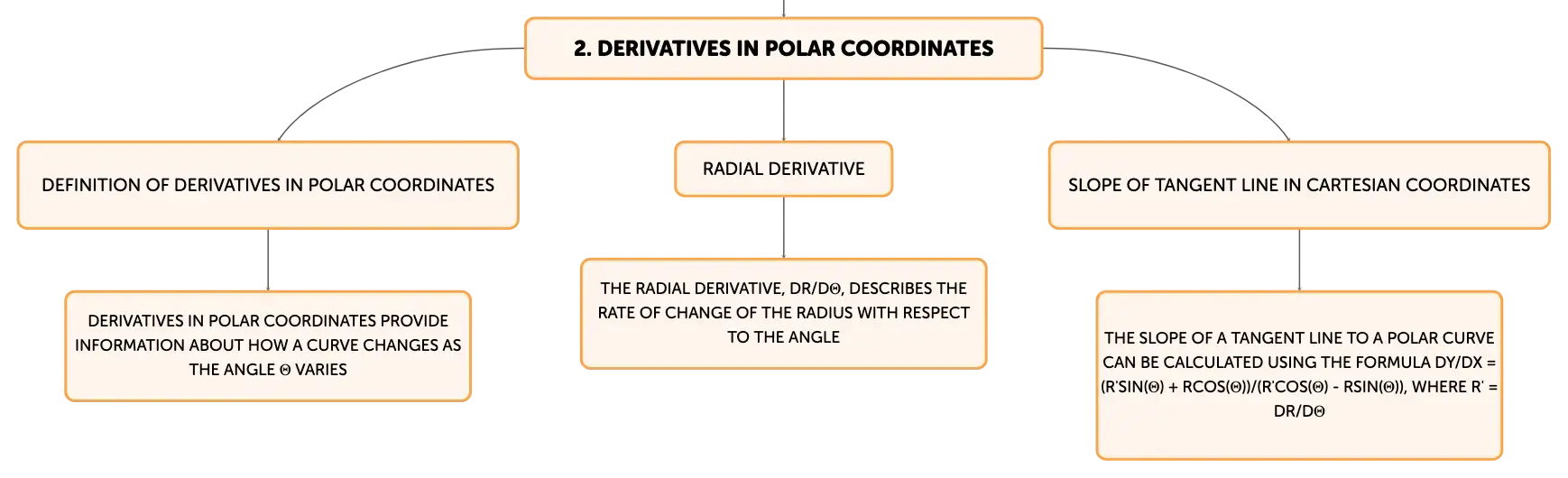

Derivatives in Polar Coordinates
Definition of Derivatives in Polar Coordinates
Derivatives in polar coordinates provide information about how a curve changes as the angle θ varies
Radial Derivative
The radial derivative, dr/dθ, describes the rate of change of the radius with respect to the angle
Slope of Tangent Line in Cartesian Coordinates
The slope of a tangent line to a polar curve can be calculated using the formula dy/dx = (r'sin(θ) + rcos(θ))/(r'cos(θ) - rsin(θ)), where r' = dr/dθ

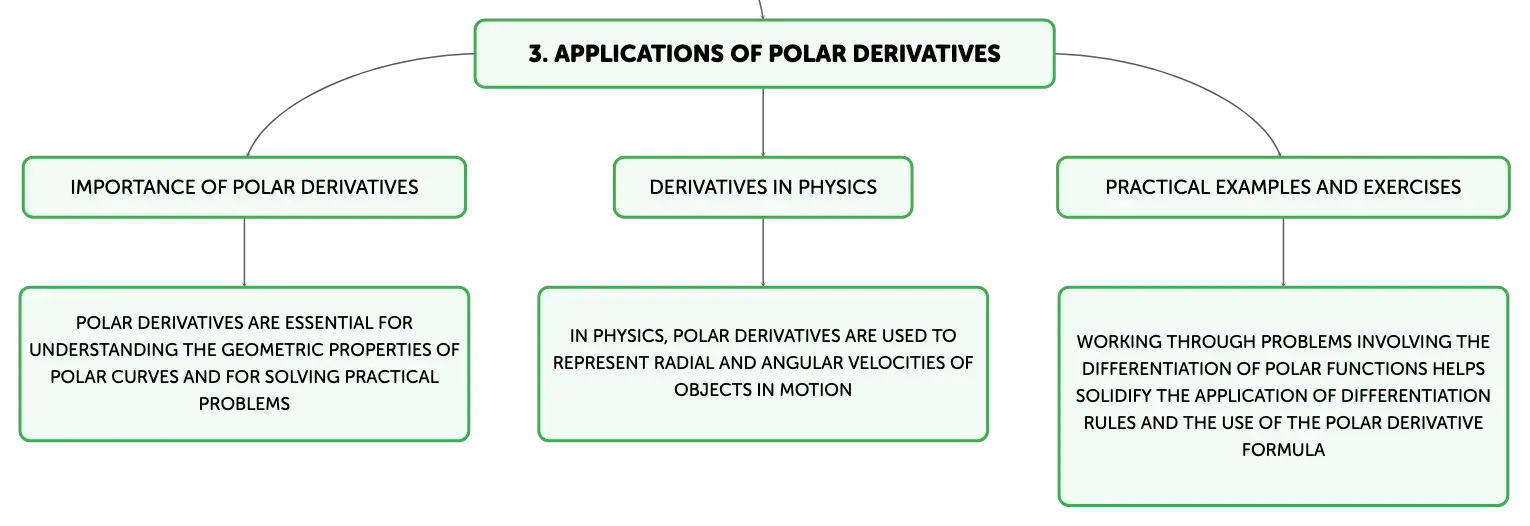

Applications of Polar Derivatives
Importance of Polar Derivatives
Polar derivatives are essential for understanding the geometric properties of polar curves and for solving practical problems
Derivatives in Physics
In physics, polar derivatives are used to represent radial and angular velocities of objects in motion
Practical Examples and Exercises
Working through problems involving the differentiation of polar functions helps solidify the application of differentiation rules and the use of the polar derivative formula
Polar Coordinates and Derivatives
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Polar coordinates components
Radius (r) - distance from pole; Angle (θ) - radians from polar axis.
01
Polar axis reference
Polar axis is typically the positive x-axis in Cartesian coordinates.
02
Advantage of polar coordinates
Simplifies description of radially symmetric shapes and rotational paths.
