Benzyne: A Versatile Intermediate in Organic Chemistry

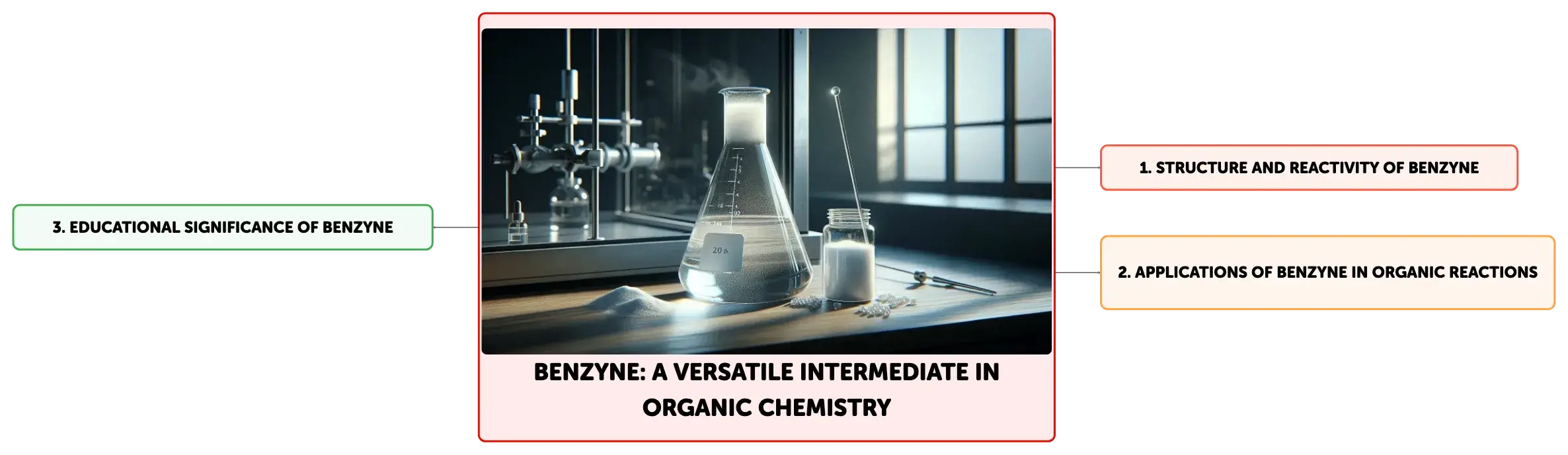

Concept Map
Benzyne is a highly reactive intermediate with a distinctive structure, featuring a benzene ring with a triple bond. It's formed from halobenzene via a strong base and is crucial in nucleophilic aromatic substitution (NAS) and Diels-Alder reactions. Understanding Benzyne's reactivity aids in synthesizing complex organic compounds and offers educational insights into reaction mechanisms.
Summary
Outline
Exploring the Structure and Reactivity of Benzyne
Benzyne, a highly reactive intermediate in organic chemistry, is an unsaturated hydrocarbon with a unique structure that deviates from typical aromatic compounds. It features a benzene ring with a triple bond, resulting in a strained alkyne within an aromatic system. Contrary to aromatic compounds that follow Hückel's rule with (4n + 2) pi electrons, Benzyne has only six pi electrons but lacks the continuous overlap of p orbitals due to the triple bond. This structural anomaly prevents Benzyne from being classified as aromatic. Despite this, Benzyne exhibits resonance stabilization, albeit less than benzene, as the triple bond's electrons can be delocalized over the ring, creating several resonance forms. This delocalization contributes to Benzyne's high reactivity, making it a valuable intermediate in various organic reactions.The Formation Mechanism of Benzyne
Benzyne is typically generated through a two-step mechanism involving a halobenzene precursor. The process begins with the abstraction of a proton by a strong base, such as an amide ion, from an ortho-position relative to the halogen on the halobenzene, forming an aryne intermediate. Subsequent elimination of the halide ion, facilitated by the base, leads to the formation of the benzyne intermediate. The efficiency of this process is influenced by several factors, including the strength of the base, the nature of the halogen leaving group, and the reaction conditions such as temperature and solvent. The transient existence of Benzyne necessitates its immediate participation in subsequent reactions, making the understanding of its formation critical for its successful utilization in synthetic chemistry.Benzyne's Role in Nucleophilic Aromatic Substitution Reactions
Benzyne is a key intermediate in nucleophilic aromatic substitution (NAS) reactions, which differ from the classic electrophilic aromatic substitution. In NAS, Benzyne is generated under strong base conditions and can rapidly react with nucleophiles. The nucleophile attacks the electron-deficient benzyne ring, forming a new sigma bond. This reaction pathway is particularly useful for introducing substituents that are difficult to install using traditional electrophilic substitution. For example, the reaction of Benzyne with water yields phenol, while reactions with amines or alcohols produce anilines and phenolic ethers, respectively. These transformations are instrumental in the synthesis of a wide array of organic compounds and are fundamental to the study of reaction mechanisms in organic chemistry.Benzyne and the Diels-Alder Reaction
In addition to its role in NAS reactions, Benzyne can participate in the Diels-Alder reaction, a [4+2] cycloaddition that is a cornerstone of synthetic organic chemistry. Benzyne acts as a dienophile, albeit an unusual one due to its triple bond and electron-deficient character. When it reacts with a diene, a new six-membered ring is formed, which can be further functionalized or serve as a building block for more complex molecules. The ability of Benzyne to engage in the Diels-Alder reaction expands the scope of this powerful synthetic tool, allowing for the construction of diverse polycyclic aromatic compounds. This aspect of Benzyne chemistry is a testament to its versatility and underscores its significance in advancing synthetic methodologies.Educational Significance of Benzyne in Organic Chemistry
The study of Benzyne offers invaluable educational insights into the dynamics of reactive intermediates in organic chemistry. By exploring the generation, structure, and diverse reactivity of Benzyne, students can deepen their comprehension of fundamental concepts such as molecular stability, resonance, and reaction mechanisms. Benzyne serves as an exemplary case study that illustrates the complex interplay between structure and reactivity in organic molecules. It also provides a platform for students to learn about synthetic strategies and the design of chemical reactions. As a topic of both academic and practical importance, Benzyne is an essential subject for students pursuing a deeper understanding of organic chemistry.
Show More

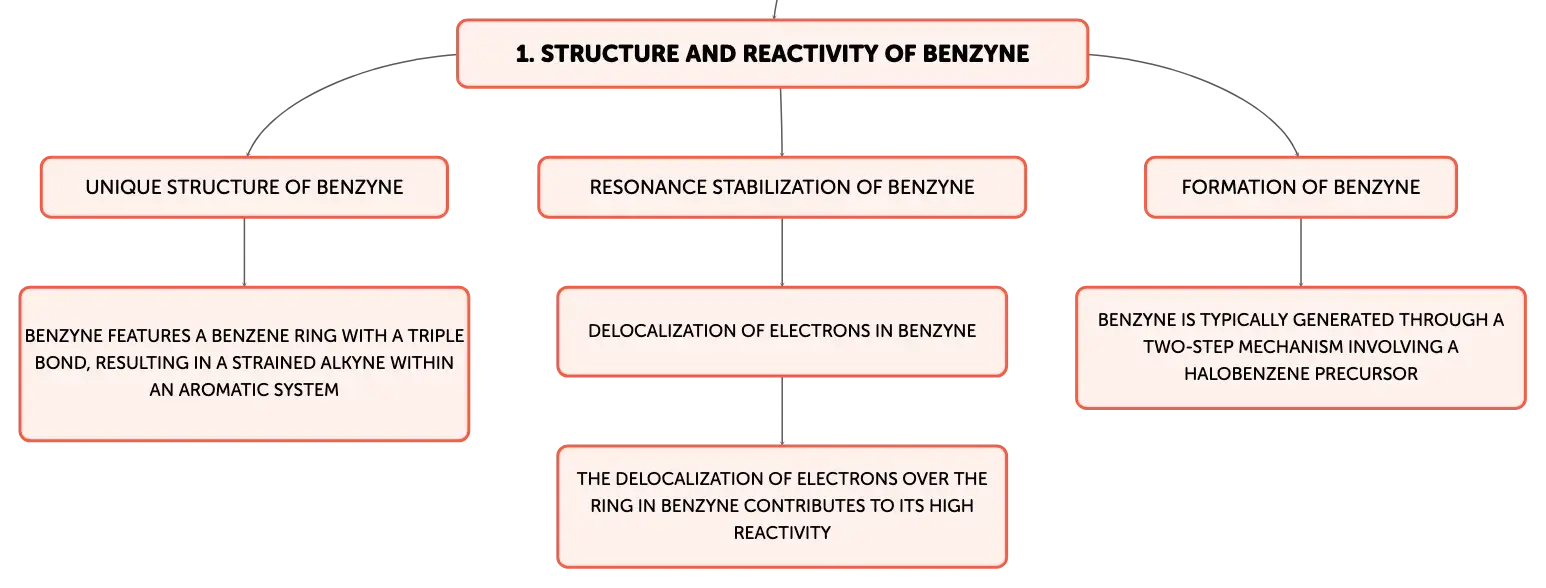

Structure and Reactivity of Benzyne
Unique Structure of Benzyne
Benzyne features a benzene ring with a triple bond, resulting in a strained alkyne within an aromatic system
Resonance Stabilization of Benzyne
Delocalization of electrons in Benzyne
The delocalization of electrons over the ring in Benzyne contributes to its high reactivity
Formation of Benzyne
Benzyne is typically generated through a two-step mechanism involving a halobenzene precursor

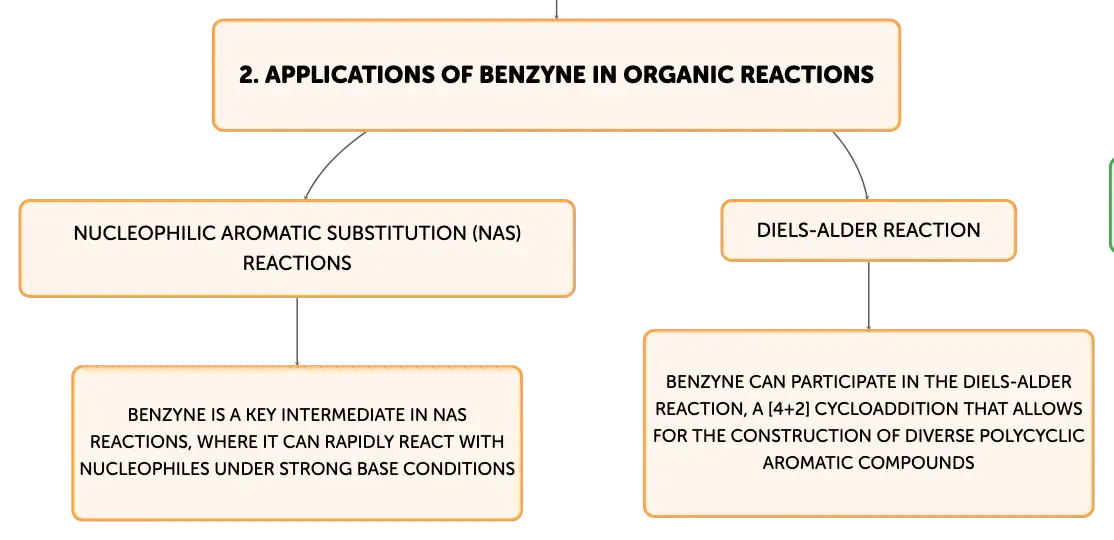

Applications of Benzyne in Organic Reactions
Nucleophilic Aromatic Substitution (NAS) Reactions
Benzyne is a key intermediate in NAS reactions, where it can rapidly react with nucleophiles under strong base conditions
Diels-Alder Reaction
Benzyne can participate in the Diels-Alder reaction, a [4+2] cycloaddition that allows for the construction of diverse polycyclic aromatic compounds

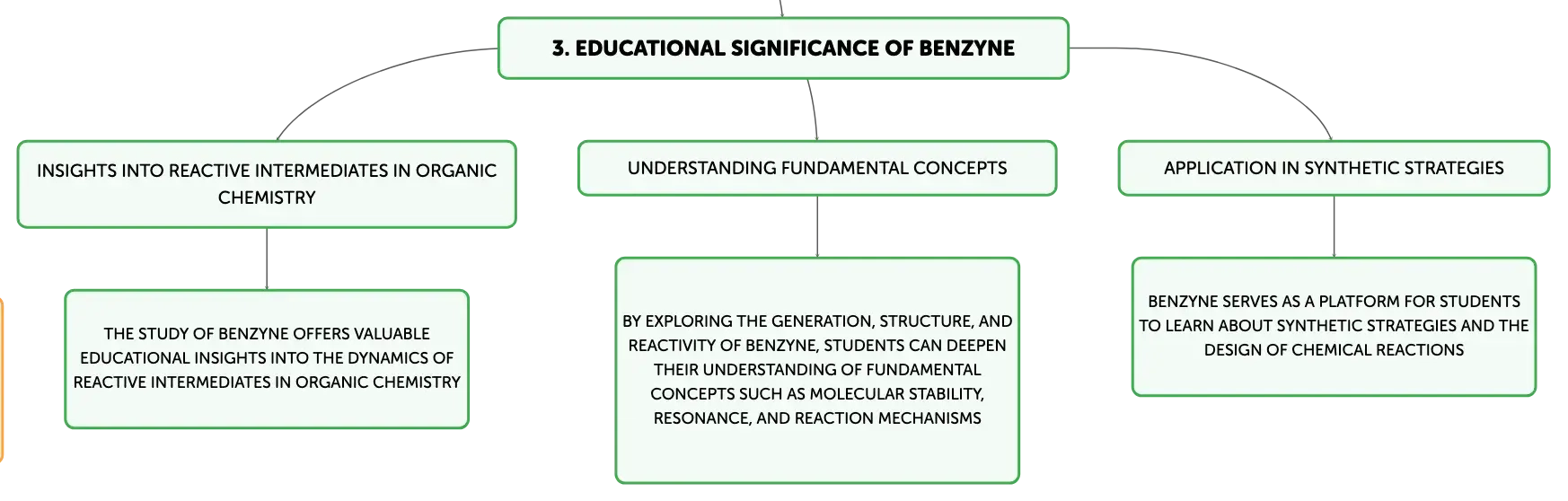

Educational Significance of Benzyne
Insights into Reactive Intermediates in Organic Chemistry
The study of Benzyne offers valuable educational insights into the dynamics of reactive intermediates in organic chemistry
Understanding Fundamental Concepts
By exploring the generation, structure, and reactivity of Benzyne, students can deepen their understanding of fundamental concepts such as molecular stability, resonance, and reaction mechanisms
Application in Synthetic Strategies
Benzyne serves as a platform for students to learn about synthetic strategies and the design of chemical reactions
Benzyne: A Versatile Intermediate in Organic Chemistry
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Benzyne's deviation from Hückel's rule
Has six pi electrons but lacks continuous p orbital overlap due to triple bond, not fitting (4n + 2) rule.
01
Resonance stabilization in Benzyne
Less than benzene; triple bond electrons delocalized over ring, creating multiple resonance forms.
02
Benzyne's role in organic reactions
Serves as a highly reactive intermediate due to strained structure and electron delocalization.
