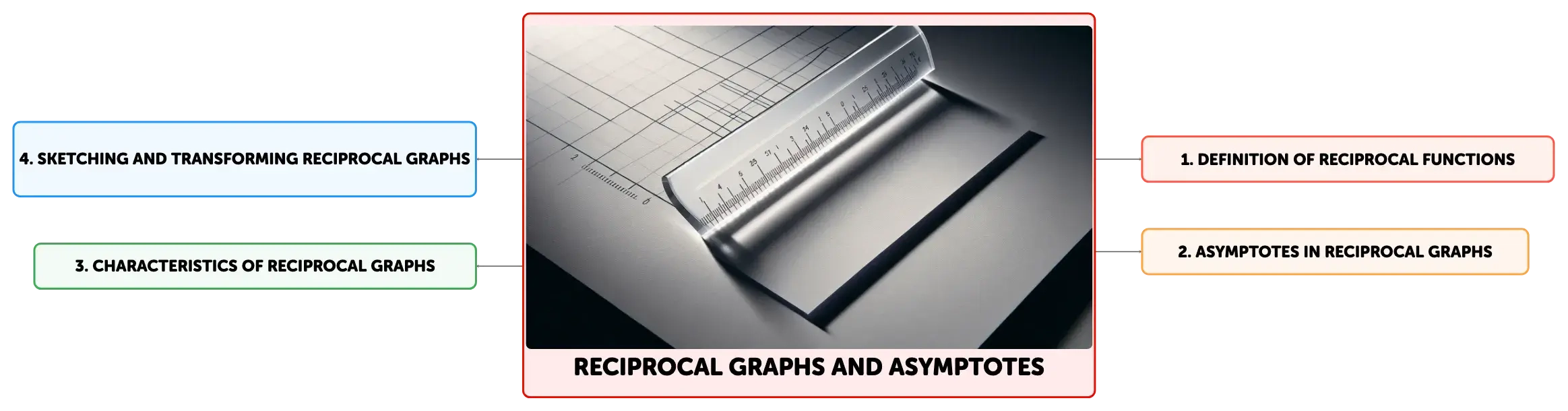

Reciprocal Graphs and Asymptotes

Reciprocal graphs represent inverse relationships between variables, such as service counters and wait times. They feature vertical and horizontal asymptotes, symmetry, and vary with the constant 'a'. Understanding how to plot and transform these graphs, as well as deduce their equations, is essential in mathematics.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

In reciprocal functions like y = a/x or y = a/x^2, 'a' represents a ______ and 'x' is the variable.

Click to check the answer

non-zero constant

2

Definition of an asymptote

Click to check the answer

A line that a graph approaches indefinitely but never intersects.

3

Reciprocal function examples

Click to check the answer

y = a/x and y = a/x^2 are examples of reciprocal functions.

4

Why x cannot be zero in reciprocal functions

Click to check the answer

Division by zero is undefined, hence x=0 creates a vertical asymptote.

5

In reciprocal functions, the ______ excludes the value at the vertical asymptote, and the ______ excludes the value at the horizontal asymptote.

Click to check the answer

domain range

6

Quadrants for y = a/x with positive 'a'

Click to check the answer

Graph in first and third quadrants.

7

Quadrants for y = a/x with negative 'a'

Click to check the answer

Graph in second and fourth quadrants.

8

Graph behavior of y = a/x^2 for positive 'a'

Click to check the answer

Graph in first and second quadrants, all y-values positive.

9

When drawing a reciprocal graph like y = 1/x, identify the ______ at x = 0 and y = 0.

Click to check the answer

asymptotes

10

In a reciprocal graph, as x nears zero, y tends towards ______ in size, but the sign varies based on the x direction.

Click to check the answer

infinity

11

General form of transformed reciprocal function

Click to check the answer

y = a/(x + h) + k; 'a' affects steepness, 'h' horizontal shifts, 'k' vertical shifts.

12

New asymptotes in transformed reciprocal graph

Click to check the answer

Horizontal asymptote at y = k; vertical asymptote at x = -h.

13

To find the equation of a ______ graph, determine the horizontal and vertical asymptotes, represented by 'h' and 'k' with opposite signs in the equation, and compute 'a' using a known point.

Click to check the answer

reciprocal

14

Defining Asymptotes in Reciprocal Graphs

Click to check the answer

Asymptotes are lines a graph approaches but never touches, indicating where functions are undefined or reach infinity.

15

Effect of Constant 'a' on Reciprocal Graphs

Click to check the answer

The value of 'a' affects the steepness and orientation of the reciprocal graph, influencing its vertical and horizontal stretch.

16

Transformations of Reciprocal Graphs

Click to check the answer

Transformations include translation, reflection, and dilation, altering the graph's position and shape on the coordinate plane.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Mathematics

Mutually Exclusive Events in Probability Theory

View document

Mathematics

Renewal Theory

View document

Mathematics

Quartiles and Their Importance in Statistical Analysis

View document

Mathematics

Charts and Diagrams in Statistical Analysis

View document

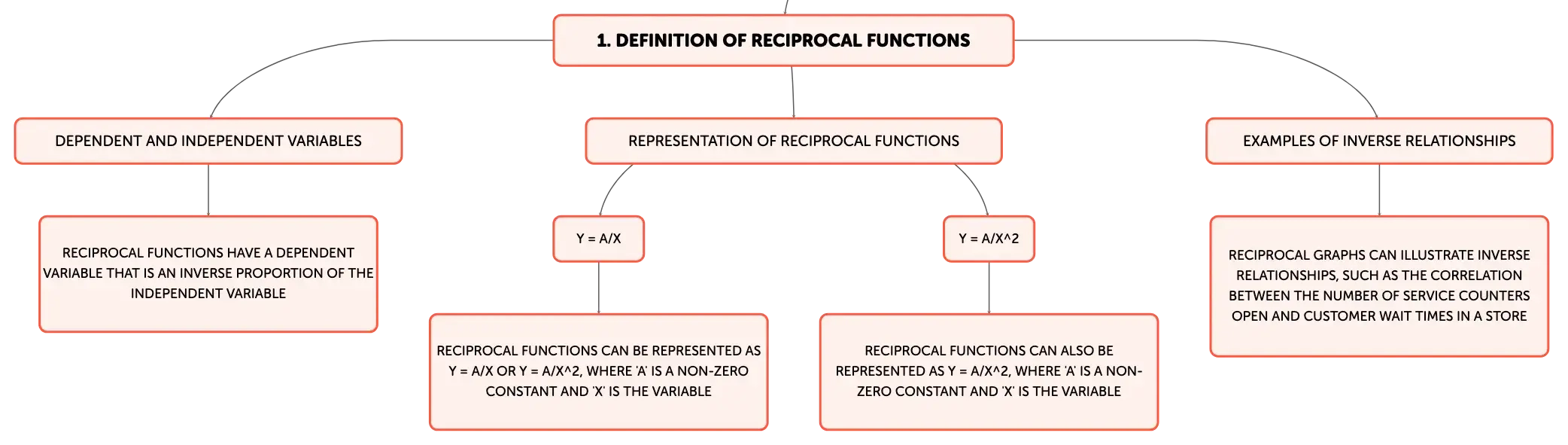

Exploring the Basics of Reciprocal Graphs

Reciprocal graphs are used to depict the behavior of reciprocal functions, which are defined as functions where the dependent variable is an inverse proportion of the independent variable. These functions are generally represented as y = a/x or y = a/x^2, where 'a' is a non-zero constant and 'x' is the variable. Such graphs are instrumental in illustrating inverse relationships, such as the correlation between the number of service counters open and customer wait times in a store; as more counters open (increasing x), the wait times typically decrease (decreasing y).
Transparent acrylic graphing ruler on white paper with intersecting straight and curved lines, illustrating graphing concepts without text or symbols.

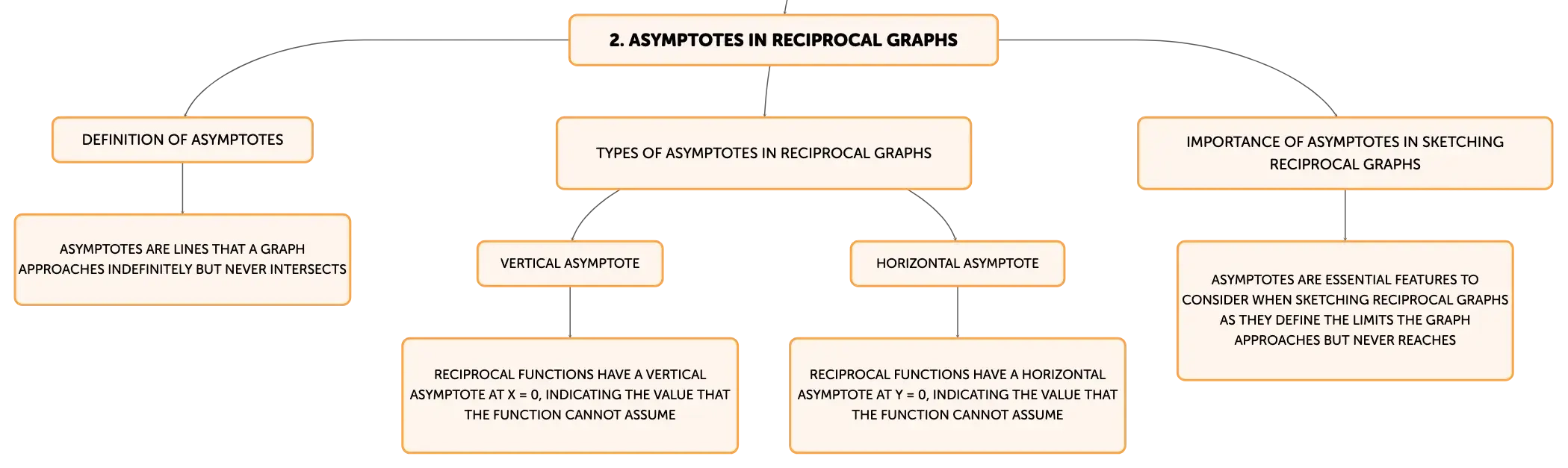

Identifying Asymptotes in Reciprocal Graphs

Asymptotes are essential features to consider when sketching reciprocal graphs. An asymptote is a line that a graph approaches indefinitely but never intersects. Reciprocal functions like y = a/x and y = a/x^2 have two asymptotes: a vertical asymptote at x = 0 and a horizontal asymptote at y = 0. These asymptotes indicate the values that the function cannot assume; for example, x cannot be zero because division by zero is undefined, and y cannot be zero because the reciprocal of zero is undefined, not a non-zero constant 'a'.

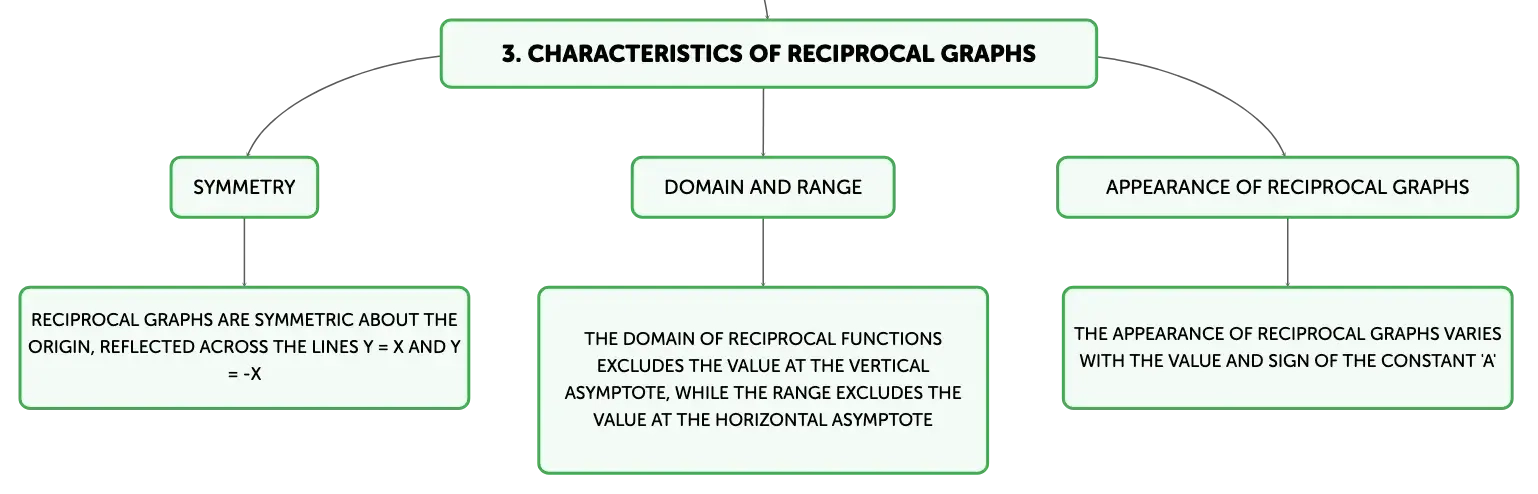

Symmetry in Reciprocal Graphs

The graph of the reciprocal function y = 1/x is characterized by its symmetry about the origin, which is reflected across the lines y = x and y = -x. This symmetry indicates that for every point (x, y) on the graph, there is a corresponding point (-x, -y). The domain of reciprocal functions excludes the value at the vertical asymptote, while the range excludes the value at the horizontal asymptote.

Different Forms of Reciprocal Graphs

The appearance of reciprocal graphs varies with the value and sign of the constant 'a'. For the function y = a/x, a positive 'a' results in a graph that resides in the first and third quadrants, while a negative 'a' places the graph in the second and fourth quadrants. For y = a/x^2, since the squared term ensures all y-values are positive for any non-zero x-value, the graph will be in the first and second quadrants if 'a' is positive, and non-existent for negative 'a' because the square of x cannot be negative.

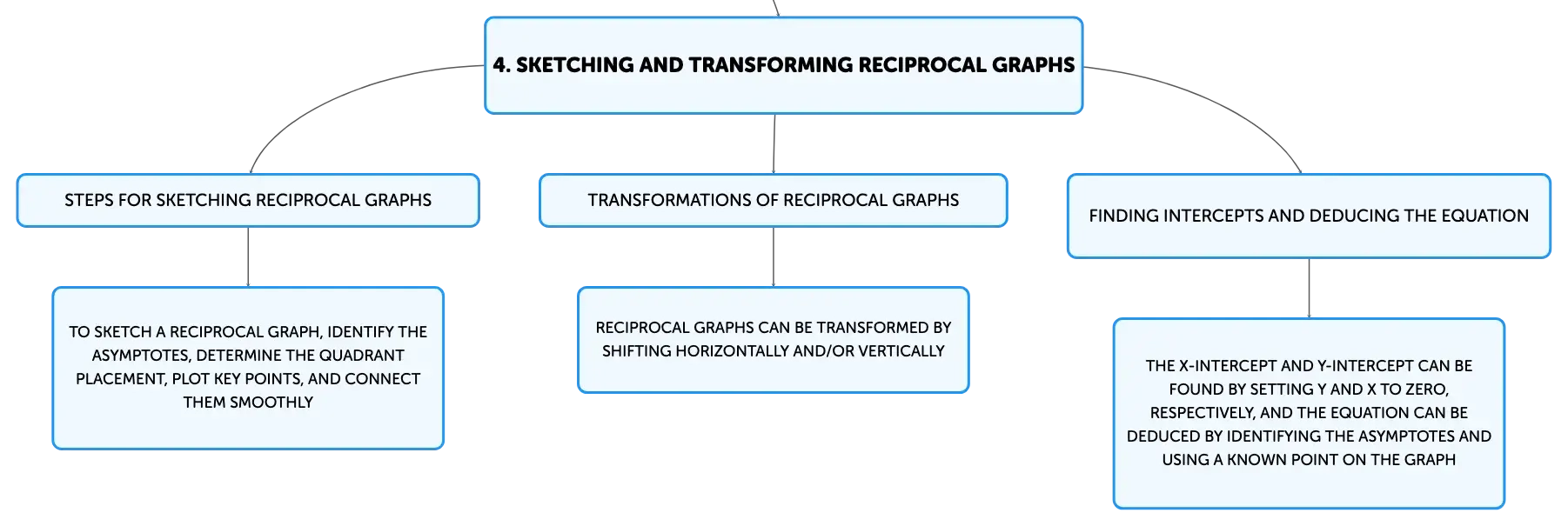

Step-by-Step Guide to Sketching Reciprocal Graphs

To sketch a reciprocal graph such as y = 1/x, begin by identifying the asymptotes at x = 0 and y = 0. Determine the sign of 'a' to ascertain the graph's quadrant placement. Plot key points to illustrate the graph's behavior near the asymptotes, noting that as x approaches zero, y approaches infinity in magnitude but with opposite signs depending on the direction from which x approaches zero. Connect these points smoothly, ensuring the graph approaches the asymptotes without intersecting them.

Transformations and Intercepts of Reciprocal Graphs

Reciprocal graphs can be transformed by shifting horizontally and/or vertically. The general form of a transformed reciprocal function is y = a/(x + h) + k, where 'h' shifts the graph horizontally and 'k' shifts it vertically, resulting in new asymptotes at x = -h and y = k. To find the x-intercept, set y to zero and solve for x; for the y-intercept, set x to zero and solve for y. These intercepts are where the graph crosses the x-axis and y-axis, respectively.

Determining the Equation of a Reciprocal Graph

To deduce the equation of a reciprocal graph, first identify the horizontal and vertical asymptotes, which correspond to 'h' and 'k' in the transformed function's equation, with the signs reversed. Next, calculate the value of 'a' by using a known point on the graph to solve the equation. This allows for the reconstruction of the function's equation from its graphical representation.

Key Concepts of Reciprocal Graphs

Reciprocal graphs are a vital tool for visualizing functions that express inverse relationships between variables. Understanding asymptotes is crucial for sketching these graphs, as they define the limits the graph approaches but never reaches. The shape and position of reciprocal graphs depend on the constant 'a', and transformations can alter their placement on the coordinate plane. Mastery of plotting, transforming, and deriving equations for reciprocal graphs is fundamental in the study of mathematical relationships where variables are inversely related.
