Fundamentals of Area Approximation Techniques in Calculus
Area approximation in calculus is an essential technique for estimating the area bounded by a curve and the x-axis, particularly when the region does not have a simple geometric shape. This concept is analogous to determining the size of a piece of land with irregular boundaries. For instance, to approximate the area under the curve of the function \( f(x) = x^2 \) from \( x = 1 \) to \( x = 2 \), one would use area approximation methods. These methods, including Riemann sums, the Trapezoidal Rule, and Simpson's Rule, break down the area into simpler geometric shapes such as rectangles or trapezoids, facilitating easier calculations.Essential Techniques and Formulas for Area Approximation
Area approximation can be achieved through various methods, each with specific formulas. The Riemann Sum is a basic approach that partitions the area into vertical slices, each approximated by rectangles. The Trapezoidal Rule and Simpson's Rule provide more refined estimates by using trapezoids and parabolic arcs, respectively. The formula for the Trapezoidal Rule is \( A \approx \frac{h}{2}[f(a) + 2\sum_{i=1}^{n-1}f(a+ih) + f(b)] \), where \( h = \frac{b - a}{n} \), and for Simpson's Rule, it is \( A \approx \frac{h}{3}[f(a) + 4\sum_{odd \, i}^{n-1}f(a+ih) + 2\sum_{even \, i}^{n-2}f(a+ih) + f(b)] \). These formulas, while intricate, are indispensable for computing areas under curves that defy simple geometric analysis.Implementing Area Approximation Methods Step by Step
To approximate the area under a curve accurately, one must follow a systematic procedure. This involves selecting the function to be analyzed, defining the interval of integration, choosing a suitable approximation method, and applying the corresponding formula. For example, to estimate the area under \( f(x) = x^2 \) from \( x = 0 \) to \( x = 1 \) using the Midpoint Riemann Sum with four subdivisions, one calculates the width of each subdivision and the midpoint values of the function. These values are then plugged into the Riemann Sum formula to yield the estimated area.The Trapezoidal Rule as a Reliable Method for Area Approximation
The Trapezoidal Rule is a numerical integration technique that approximates the area under a curve by dividing it into a series of trapezoids. This method tends to be more accurate than simple Riemann sums because trapezoids can more closely conform to the shape of the curve. To apply the Trapezoidal Rule, one must determine the function, the interval of integration, the number of trapezoids, the width of each trapezoid, the function values at the endpoints and midpoints, and then use the Trapezoidal Rule formula. For instance, to approximate the area under \( f(x) = x^2 \) from \( x = 0 \) to \( x = 2 \) with four trapezoids, one would evaluate the function at the appropriate x-values and apply the formula to estimate the area.Decoding the Terms in Area Approximation Formulas
The formulas for area approximation include specific terms that are vital for the computation. The variable \( n \) denotes the number of subdivisions or trapezoids. The width of each subdivision, \( h \), is given by \( h = \frac{b - a}{n} \). The function values at the start and end of the interval are \( f(a) \) and \( f(b) \), respectively. The expression \( f(a+ih) \) represents the function value at the ith subdivision. A thorough understanding of these terms is essential for grasping the mechanics of each approximation method and for accurately calculating areas.Real-world Relevance of Area Approximation
Area approximation extends beyond theoretical mathematics and is applied in various practical contexts, such as physics, engineering, and economics. Environmental scientists, for instance, might use area approximation to calculate the total precipitation over a time period by integrating the rate of rainfall. The adaptability of these methods allows for adjustments in the number of subdivisions to achieve the desired level of accuracy. The practical applications of area approximation highlight its significance, demonstrating its role in bridging complex mathematical concepts with real-world problems and solutions.
Show More

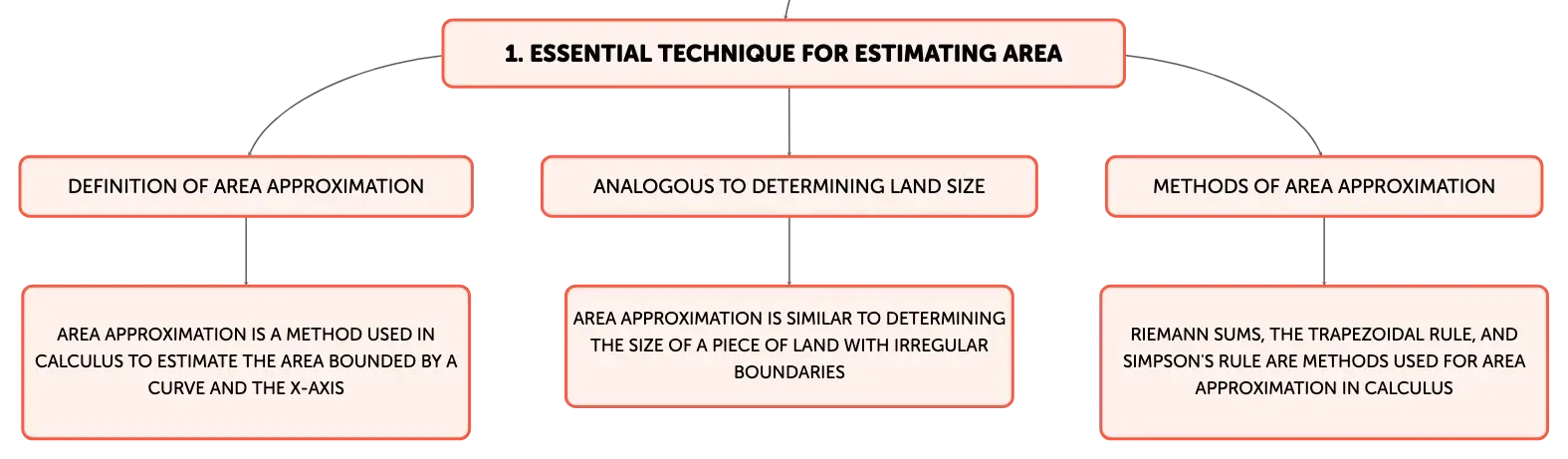

Essential Technique for Estimating Area
Definition of Area Approximation
Area approximation is a method used in calculus to estimate the area bounded by a curve and the x-axis
Analogous to Determining Land Size
Area approximation is similar to determining the size of a piece of land with irregular boundaries
Methods of Area Approximation
Riemann sums, the Trapezoidal Rule, and Simpson's Rule are methods used for area approximation in calculus

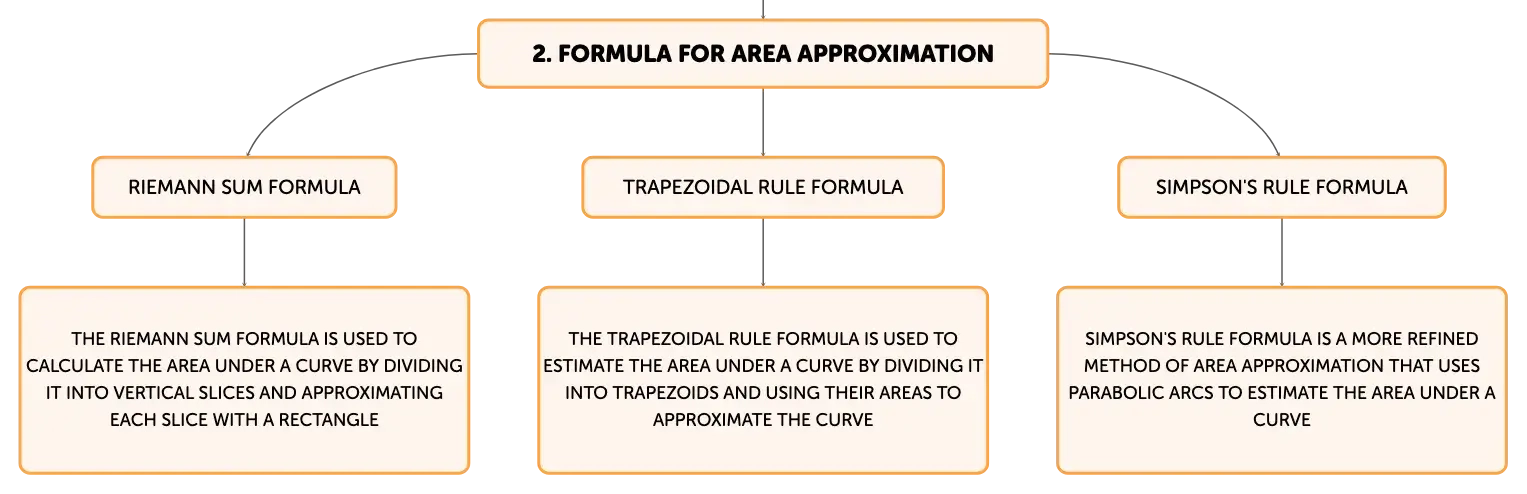

Formula for Area Approximation
Riemann Sum Formula
The Riemann Sum formula is used to calculate the area under a curve by dividing it into vertical slices and approximating each slice with a rectangle
Trapezoidal Rule Formula
The Trapezoidal Rule formula is used to estimate the area under a curve by dividing it into trapezoids and using their areas to approximate the curve
Simpson's Rule Formula
Simpson's Rule formula is a more refined method of area approximation that uses parabolic arcs to estimate the area under a curve

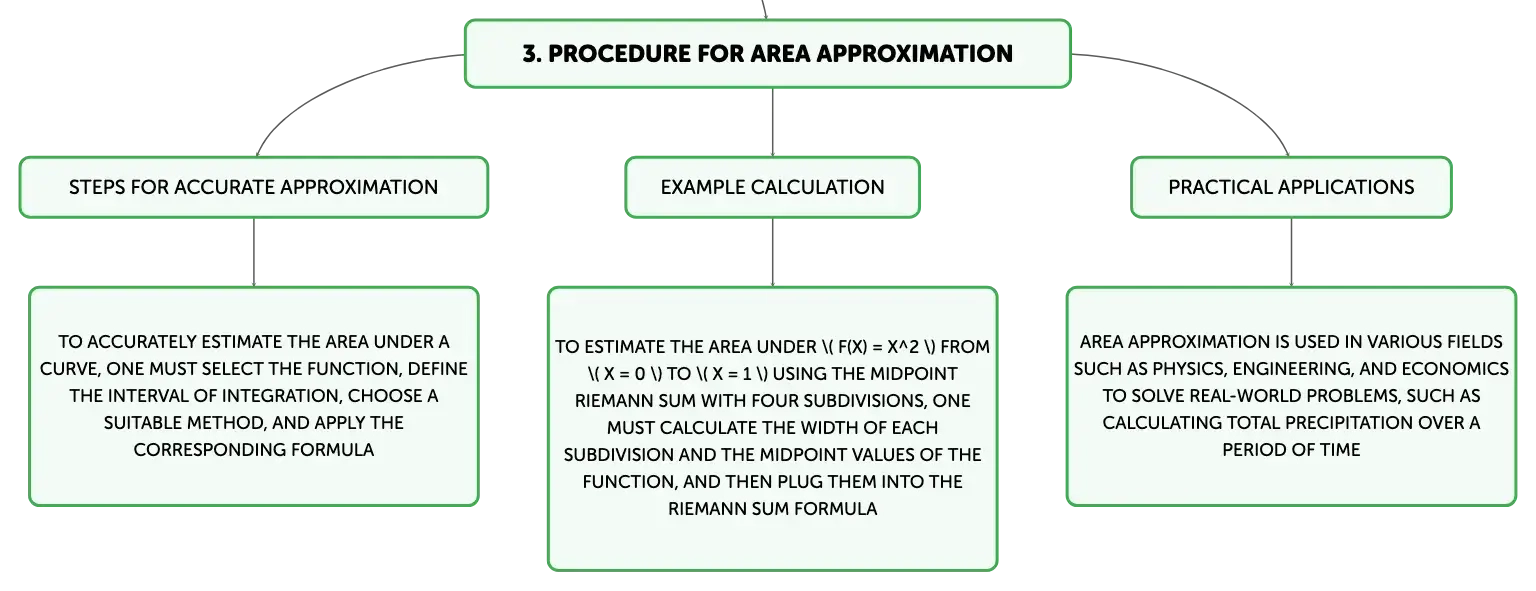

Procedure for Area Approximation
Steps for Accurate Approximation
To accurately estimate the area under a curve, one must select the function, define the interval of integration, choose a suitable method, and apply the corresponding formula
Example Calculation
To estimate the area under \( f(x) = x^2 \) from \( x = 0 \) to \( x = 1 \) using the Midpoint Riemann Sum with four subdivisions, one must calculate the width of each subdivision and the midpoint values of the function, and then plug them into the Riemann Sum formula
Practical Applications
Area approximation is used in various fields such as physics, engineering, and economics to solve real-world problems, such as calculating total precipitation over a period of time
Area Approximation in Calculus
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
The ______ Sum is a method that estimates area by dividing it into rectangles.
Riemann
01
For more precise area calculations, the ______ Rule uses trapezoids, while ______ Rule uses parabolic arcs.
Trapezoidal
Simpson's
02
Environmental scientists may calculate the total ______ over a period by integrating the ______ of rainfall.
precipitation
rate
