Phenanthrene: A Versatile Polycyclic Aromatic Hydrocarbon

Concept Map

Algorino

Edit available

Phenanthrene is a polycyclic aromatic hydrocarbon with applications in pharmaceuticals and environmental studies. It forms the basis for drugs like morphine and is a common environmental contaminant found in coal tar and exhaust fumes. Its derivatives, such as Phenanthridine and Phenanthrenequinone, are used in dyes and as oxidizing agents, showcasing its versatility in scientific and industrial applications.

Summary

Outline

Exploring the Basics of Phenanthrene

Phenanthrene, a white crystalline polycyclic aromatic hydrocarbon (PAH), has the molecular formula C14H10 and is commonly found in coal tar, cigarette smoke, and exhaust fumes. Comprising three fused benzene rings, it is a pervasive environmental contaminant and a building block in organic chemistry. Phenanthrene's structure is foundational to the synthesis of various pharmaceuticals, including opioid medications such as morphine. Its environmental presence and applications underscore its significance in both ecological studies and the development of therapeutic agents.

Glass flask with yellowish phenanthrene crystals on reflective laboratory bench, surrounded by organic synthesis equipment.

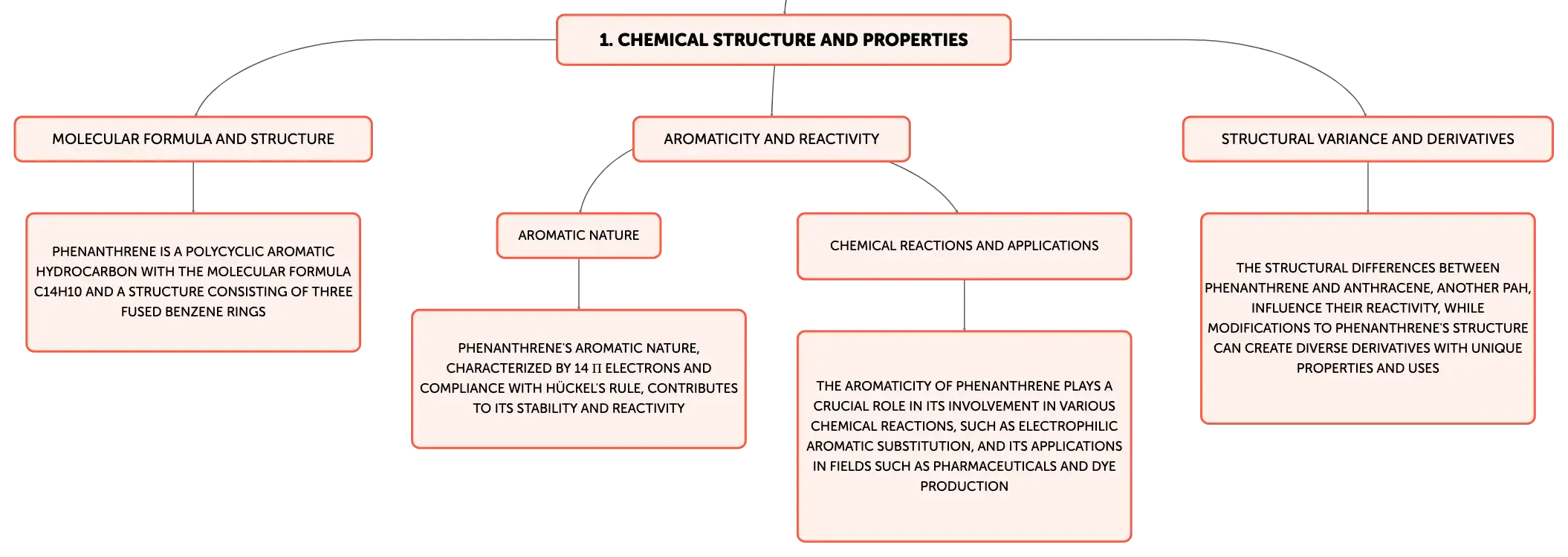

The Molecular Structure of Phenanthrene

Phenanthrene's molecular structure is characterized by 14 carbon atoms and 10 hydrogen atoms forming three interconnected benzene rings. This arrangement bestows the molecule with aromaticity, a chemical property that enhances its stability due to the delocalization of π (pi) electrons. The stability and reactivity of Phenanthrene are influenced by this aromatic nature, which is a hallmark of its chemical behavior and contributes to its role in various chemical reactions and applications.

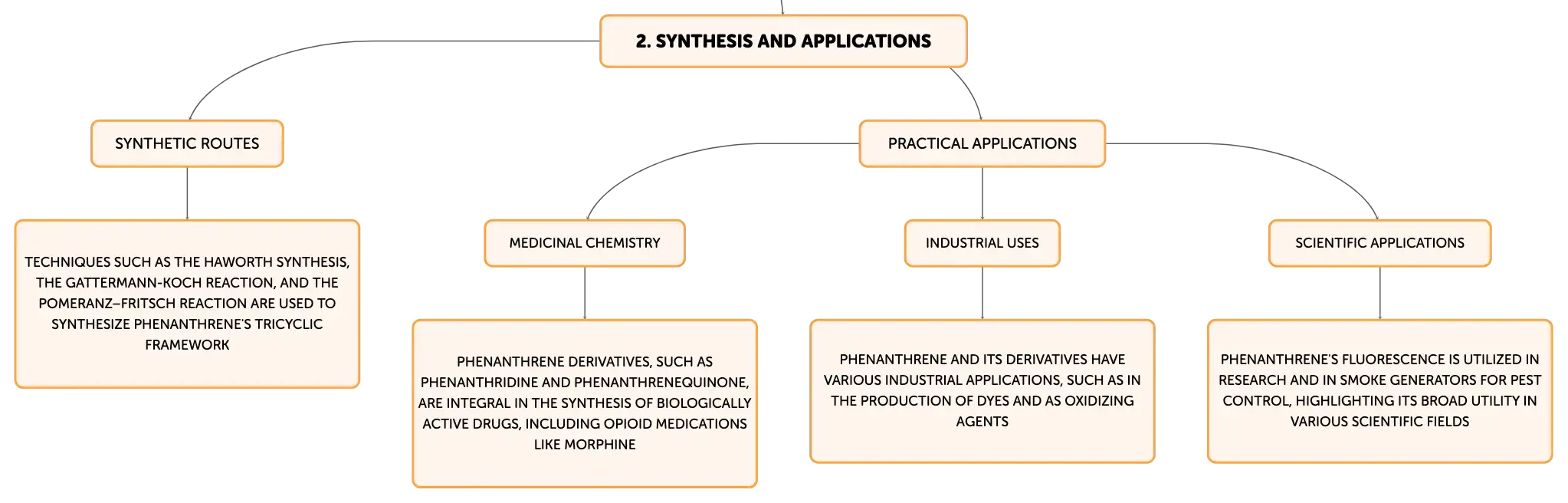

Synthetic Routes to Phenanthrene

The synthesis of Phenanthrene involves intricate chemical processes that have been refined over time. Techniques such as the Haworth Synthesis, the Gattermann-Koch reaction, and the Pomeranz–Fritsch reaction are employed to construct its tricyclic framework. These synthetic routes typically begin with simpler aromatic compounds and employ reactions like aromatic substitutions and cyclizations. For instance, the Haworth Synthesis uses a condensation reaction between β-naphthol and an aldehyde in acidic conditions to form Phenanthrene through a series of steps.

Comparing Phenanthrene and Anthracene

Phenanthrene and Anthracene, both PAHs with the formula C14H10, differ in their structural configurations and chemical behaviors. Anthracene has a linear, planar arrangement of three benzene rings, while Phenanthrene's rings are angularly fused, resulting in a non-planar structure. This structural variance influences their reactivity; Anthracene is more reactive in addition reactions, whereas Phenanthrene is more reactive in electrophilic aromatic substitution, particularly at the 9 and 10 carbon positions.

The Aromatic Nature and Chemical Behavior of Phenanthrene

The aromatic nature of Phenanthrene is central to its chemical properties. Aromatic compounds like Phenanthrene exhibit exceptional stability due to their compliance with Hückel's rule, which states that aromatic stability is achieved with 4n+2 π electrons in a cyclic system. Phenanthrene, with 14 π electrons, fits this rule with n=3, leading to high resonance stability and a delocalized π electron system. These characteristics confer chemical stability, specific solubility properties, and fluorescence, which are exploited in various scientific applications.

The Versatility of Phenanthrene Derivatives

Phenanthrene's chemical structure can be modified to create a range of derivatives with diverse properties and uses. Derivatives such as Phenanthridine, which contains nitrogen, and Phenanthrenequinone, with two carbonyl groups, demonstrate the structural adaptability of Phenanthrene. These derivatives are synthesized through chemical substitutions or additions and find applications in medicinal chemistry, dye production, and as oxidizing agents. The structural diversity of Phenanthrene derivatives highlights their significance in scientific and industrial applications.

Phenanthrene in Everyday Applications

Phenanthrene's practical applications permeate daily life, from the production of dyes and pharmaceuticals to its use as a research chemical. Its derivatives are integral in synthesizing biologically active drugs, including analgesics such as morphine, codeine, and thebaine. Phenanthrene's fluorescence is also utilized in research and in smoke generators for pest control. The compound's broad utility in various industries emphasizes its relevance and the considerable impact it has on modern society.
