Crystalline Polymers: Structure and Properties
Concept Map

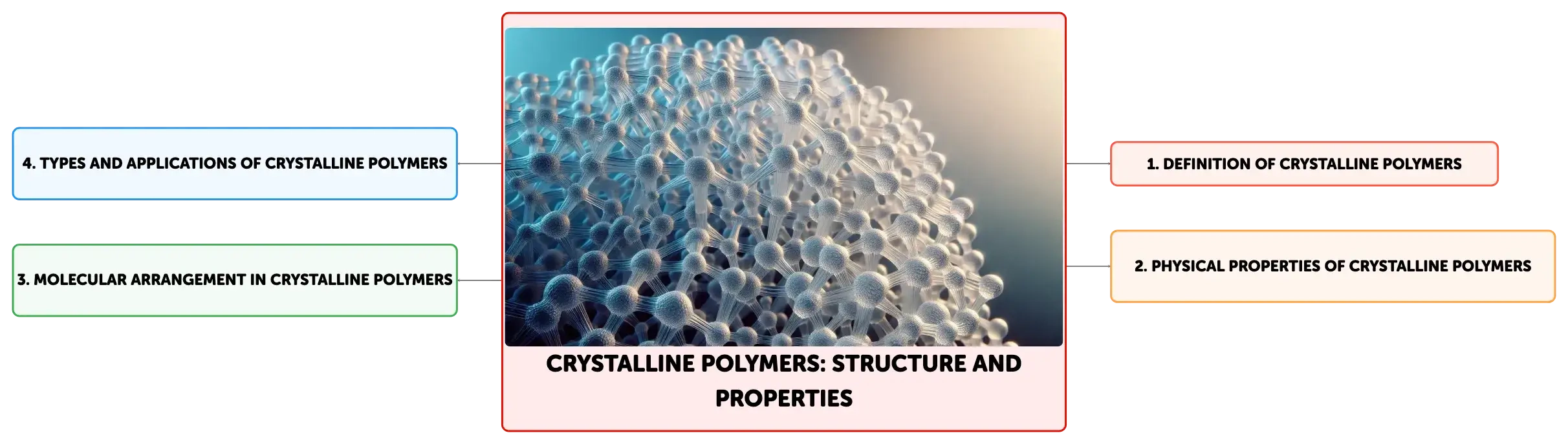

Exploring crystalline polymers, this overview delves into their semi-crystalline nature, combining ordered and disordered molecular chains. These polymers, like Polyethylene and Polypropylene, exhibit unique properties such as high density and melting points, and are used in industries ranging from automotive to medical technology. Their structure-property relationships are key to their functionality and widespread application.
Summary
Outline
Exploring the Nature of Crystalline Polymers with Analogies
Crystalline polymers can be compared to a well-organized sock drawer, where socks are neatly folded and arranged systematically. This represents the structured nature of crystalline polymers, where polymer chains are orderly and regularly packed. In contrast, amorphous polymers resemble a disorganized sock drawer, with chains arranged randomly. This article provides an in-depth look at crystalline polymers, discussing their organized structures, inherent properties, and the various types that exist in the material science field.Defining the Structure of Crystalline Polymers
Crystalline polymers are materials that exhibit regions of highly ordered molecular chains, forming a lattice-like structure. These polymers are never fully crystalline; they are more accurately termed semi-crystalline because they also contain amorphous regions where the chains are disordered. The degree of crystallinity in these polymers affects their physical properties, resulting in a blend of characteristics derived from both their crystalline and amorphous components.Physical Properties of Crystalline Polymers
The physical properties of crystalline polymers are largely determined by their degree of crystallinity and the thermal history of the polymer. These materials generally have higher densities and melting points compared to their amorphous counterparts. They also exhibit excellent wear resistance. However, their rigidity often leads to reduced ductility and impact strength, making them more brittle. Crystalline polymers are typically less transparent due to light scattering by their ordered regions, and they offer superior resistance to chemical attack and solvent penetration.Molecular Arrangement in Crystalline Polymers
The molecular arrangement in crystalline polymers is characterized by a regular, repeating pattern that extends in three dimensions. This order can be affected by processing conditions such as temperature, pressure, and cooling rate. Analytical techniques like X-ray diffraction have shown that crystalline polymers consist of crystalline lamellae separated by amorphous regions. The lamellae are areas where the polymer chains fold back and forth, creating layers of ordered structure, while the amorphous regions are composed of randomly coiled chains.Applications of Semi-Crystalline Polymers
Common semi-crystalline polymers include Polyethylene (PE), Polypropylene (PP), and Polybutylene terephthalate (PBT), which are integral to various industries. PE is the most widely produced plastic, used in packaging and containers, while PP is utilized in automotive parts, textiles, and consumer goods. PBT is often employed in electrical components due to its excellent insulating properties. In the medical field, semi-crystalline polymers are used in dental applications such as prosthetics, fillings, and restorative devices, benefiting from their high impact resistance and favorable mechanical properties.Concluding Insights on Crystalline Polymers
To conclude, crystalline polymers are semi-crystalline materials that possess distinct regions of ordered and disordered molecular chains. Their unique combination of high density, elevated melting points, and resistance to degradation is contrasted by their brittleness and reduced transparency. The interplay between crystalline and amorphous phases is crucial to their functionality and application in various industries. A comprehensive understanding of the structure-property relationships in crystalline polymers is vital for their effective use in engineering, medical technology, and everyday products.
Show More

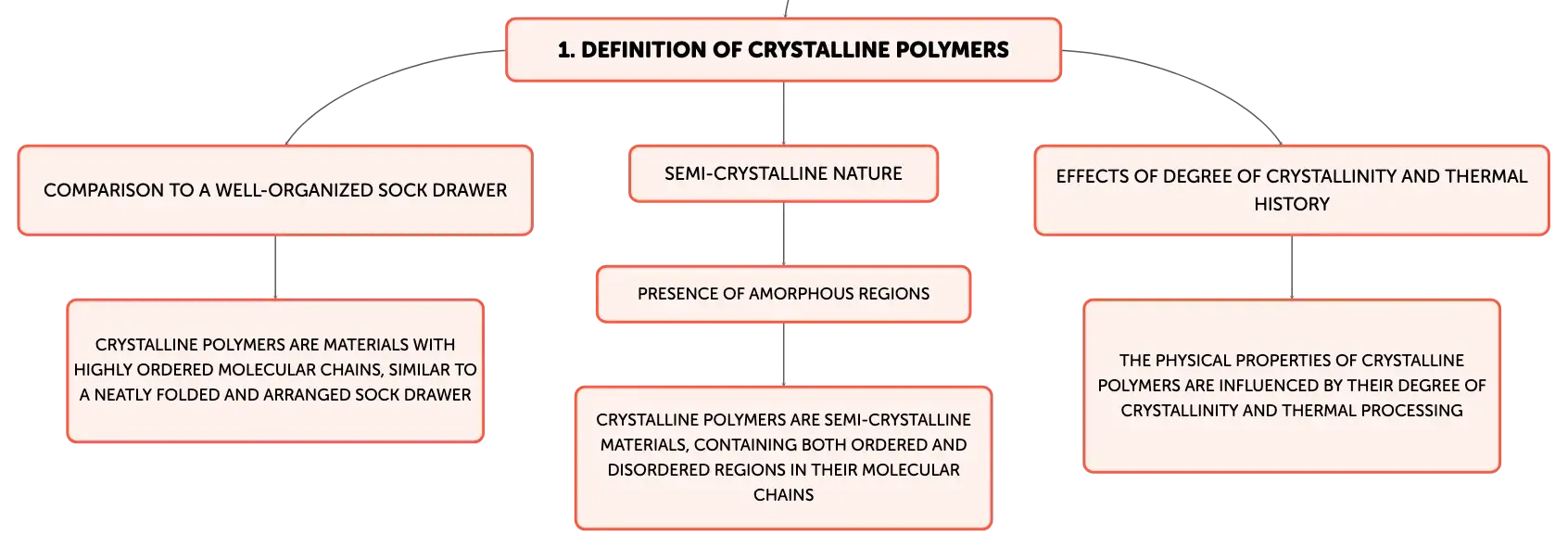

Definition of Crystalline Polymers
Comparison to a well-organized sock drawer
Crystalline polymers are materials with highly ordered molecular chains, similar to a neatly folded and arranged sock drawer
Semi-crystalline nature
Presence of amorphous regions
Crystalline polymers are semi-crystalline materials, containing both ordered and disordered regions in their molecular chains
Effects of degree of crystallinity and thermal history
The physical properties of crystalline polymers are influenced by their degree of crystallinity and thermal processing

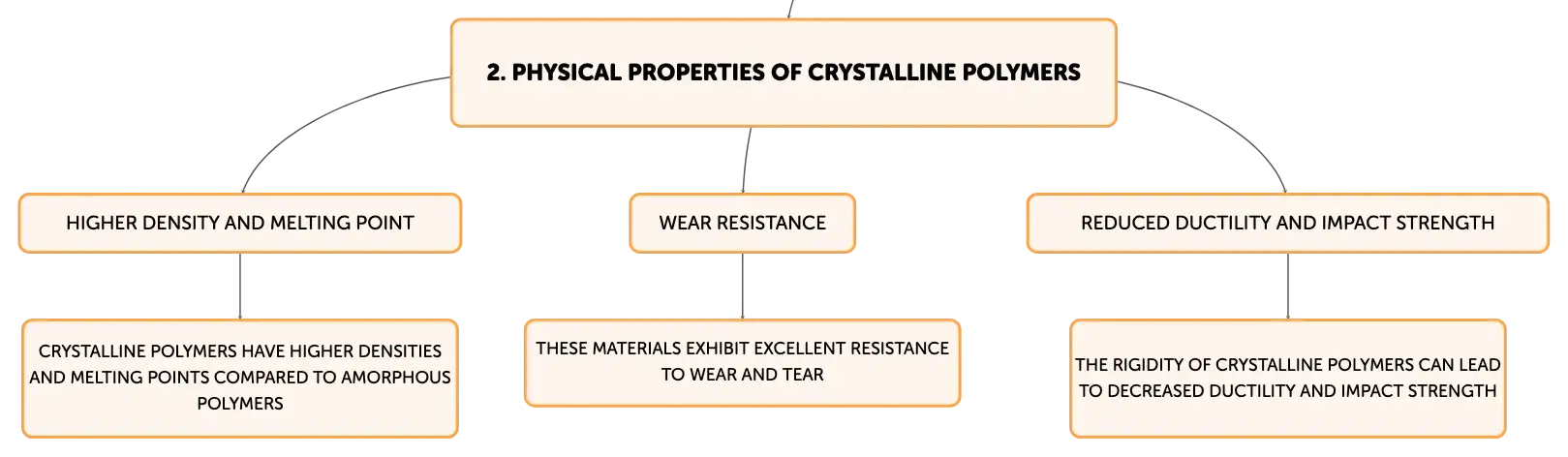

Physical Properties of Crystalline Polymers
Higher density and melting point
Crystalline polymers have higher densities and melting points compared to amorphous polymers
Wear resistance
These materials exhibit excellent resistance to wear and tear
Reduced ductility and impact strength
The rigidity of crystalline polymers can lead to decreased ductility and impact strength

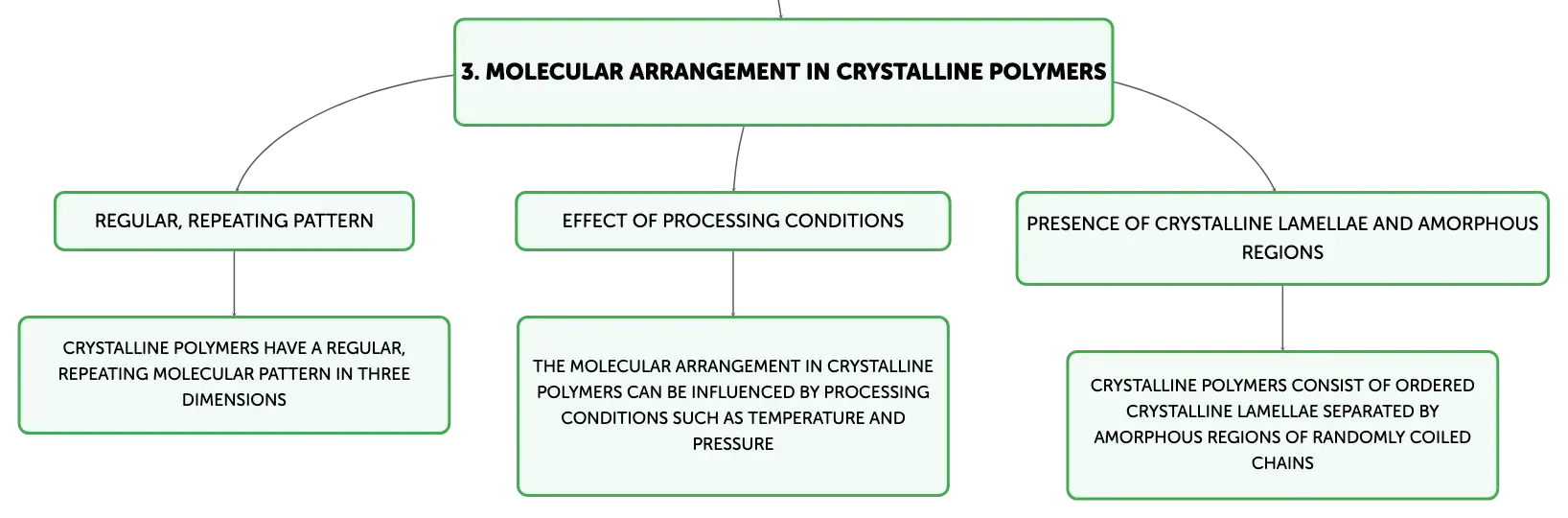

Molecular Arrangement in Crystalline Polymers
Regular, repeating pattern
Crystalline polymers have a regular, repeating molecular pattern in three dimensions
Effect of processing conditions
The molecular arrangement in crystalline polymers can be influenced by processing conditions such as temperature and pressure
Presence of crystalline lamellae and amorphous regions
Crystalline polymers consist of ordered crystalline lamellae separated by amorphous regions of randomly coiled chains

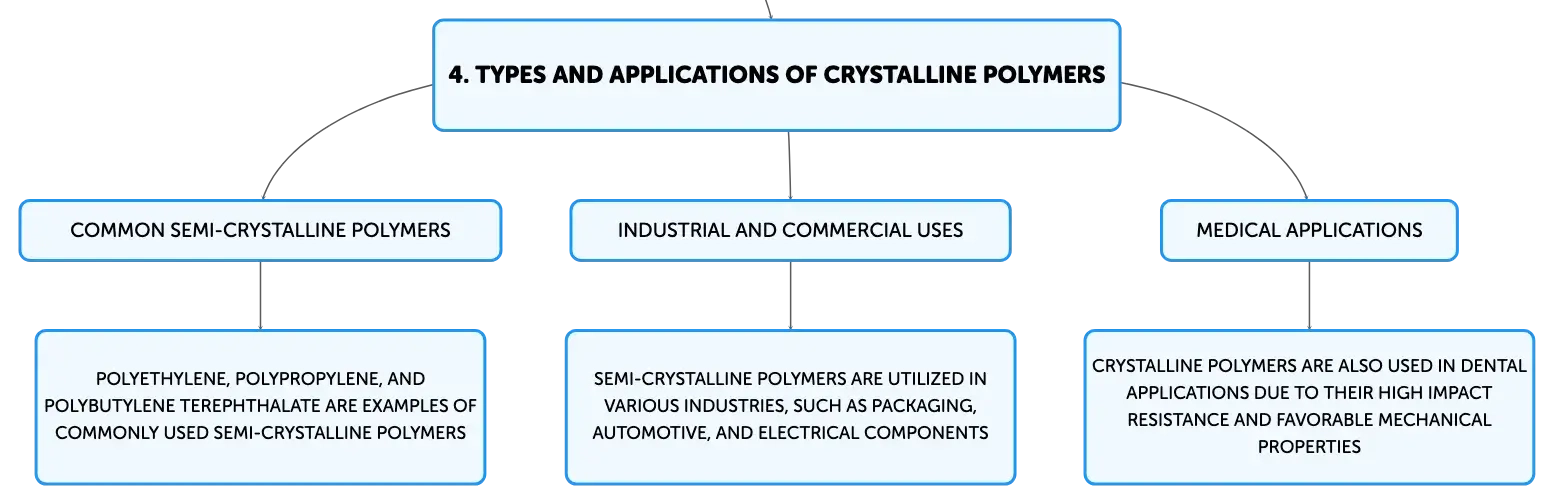

Types and Applications of Crystalline Polymers
Common semi-crystalline polymers
Polyethylene, polypropylene, and polybutylene terephthalate are examples of commonly used semi-crystalline polymers
Industrial and commercial uses
Semi-crystalline polymers are utilized in various industries, such as packaging, automotive, and electrical components
Medical applications
Crystalline polymers are also used in dental applications due to their high impact resistance and favorable mechanical properties
Crystalline Polymers: Structure and Properties
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Nature of crystalline polymer structure
Polymer chains orderly, regularly packed, resembling a well-organized system.
01
Comparison between crystalline and amorphous polymers
Crystalline polymers have structured chains; amorphous polymers have randomly arranged chains.
02
Inherent properties of crystalline polymers
Due to organized structure, they exhibit specific, predictable mechanical and thermal properties.
