Parallel Inductors in Electrical Engineering

Understanding Inductors in Parallel Configurations

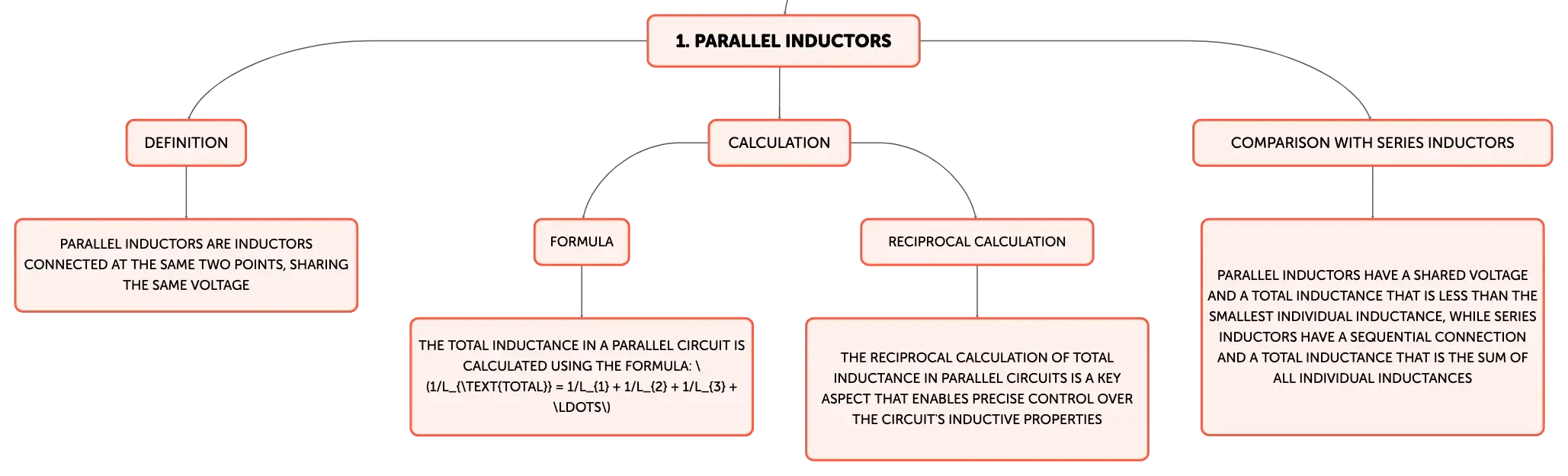

Inductors arranged in parallel are a key concept in electrical engineering, where multiple inductors are connected at the same two points, sharing the same voltage. This setup contrasts with series connections, where inductors share the same current. The total inductance in a parallel circuit is less than the smallest individual inductance and is calculated using the formula: \(1/L_{\text{Total}} = 1/L_{1} + 1/L_{2} + 1/L_{3} + \ldots\), where \(L_{1}\), \(L_{2}\), \(L_{3}\), etc., are the inductances of each inductor. This relationship is crucial for students to understand as it underpins the behavior of inductors in complex circuits.

The Practical Importance of Parallel Inductor Arrangements

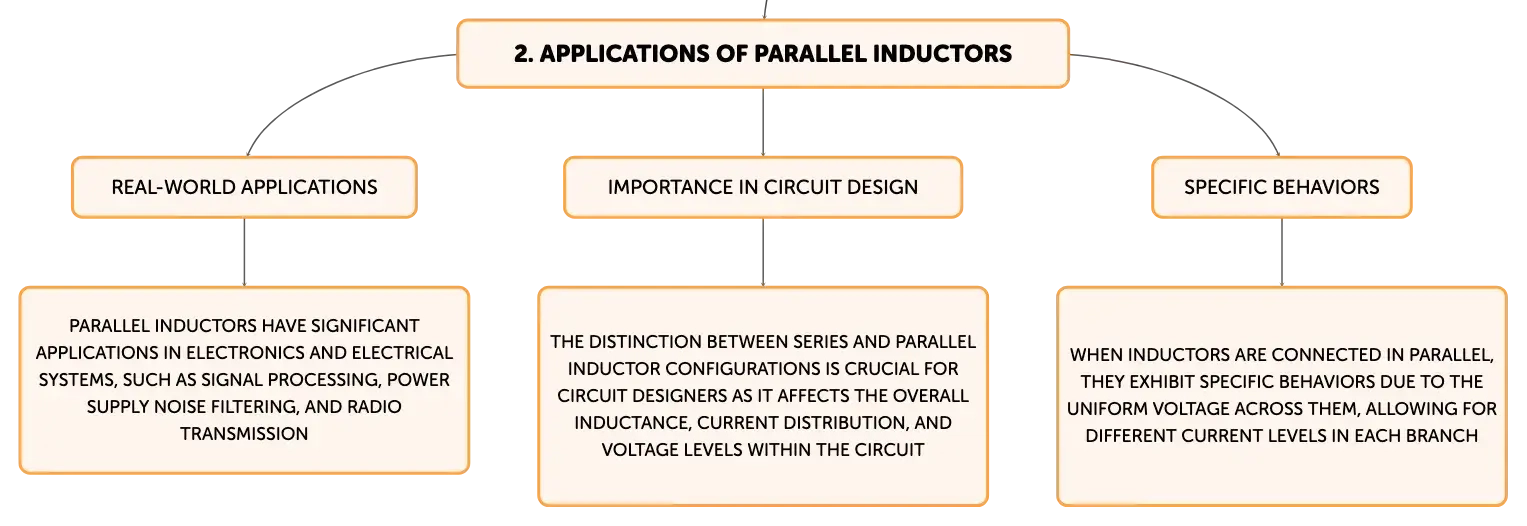

Inductors in parallel have significant real-world applications in electronics and electrical systems. They are essential in fine-tuning signal processing, filtering power supply noise, and ensuring efficient radio transmission. The energy storage capability and current regulation provided by inductors are critical in circuits, such as those used for impedance matching in antennas, noise filtering in power supplies, and in resonant circuits that are pivotal in technologies ranging from radio receivers to medical imaging equipment.

Distinguishing Between Series and Parallel Inductor Circuits

It is essential to differentiate between series and parallel inductor configurations. In series, inductors are connected sequentially, and the total inductance is the sum of all individual inductances (\(L_{\text{Total}} = L_{1} + L_{2} + L_{3} + \ldots\)). In parallel, the inductors are connected across the same two points, resulting in a total inductance that is less than the smallest individual inductance. This distinction is fundamental for circuit designers, as it affects the overall inductance, current distribution, and voltage levels within the circuit.

Behavior and Characteristics of Inductors in Parallel

When inductors are connected in parallel, they exhibit specific behaviors due to the uniform voltage across them. The current through each inductor is determined by its inductance and other circuit elements, allowing for different current levels in each branch. This is particularly useful in power distribution systems where transformers, which function as inductors, may need to handle different loads while maintaining a consistent voltage. The reciprocal calculation of total inductance in parallel circuits is a key aspect that enables precise control over the circuit's inductive properties.

Step-by-Step Approach to Calculating Total Inductance in Parallel

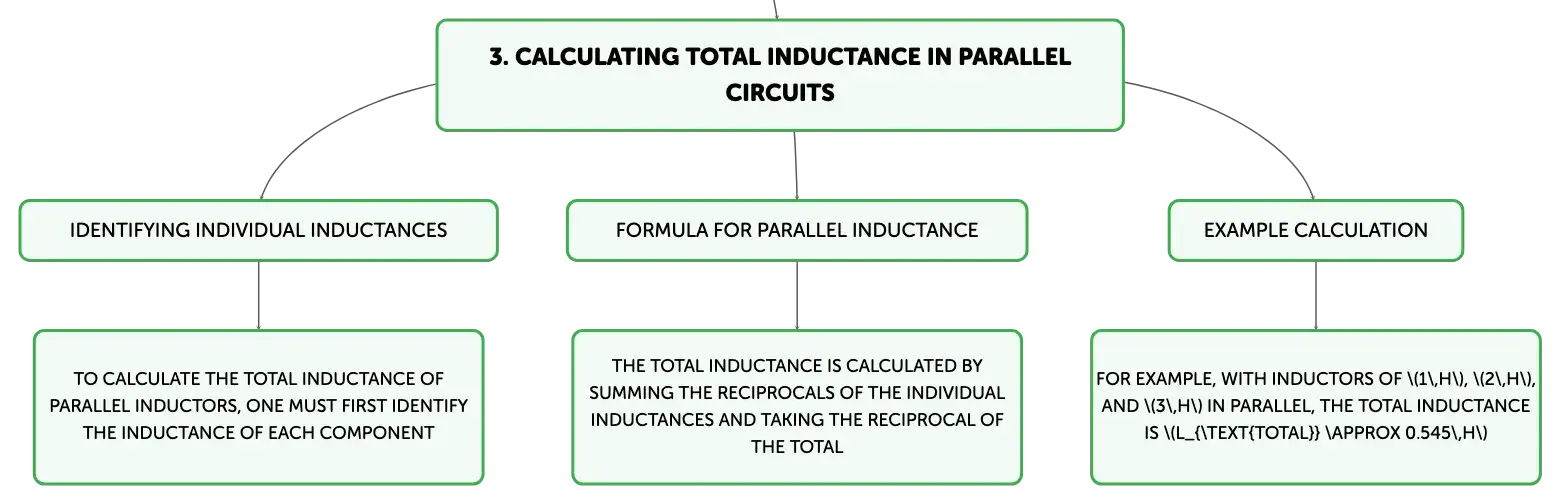

To calculate the total inductance of parallel inductors, one must first identify the inductance of each component. Then, using the formula for parallel inductance, the reciprocals of the individual inductances are summed, and the reciprocal of this total gives the combined inductance. For example, with inductors of \(1\,H\), \(2\,H\), and \(3\,H\) in parallel, the total inductance is \(L_{\text{Total}} \approx 0.545\,H\). This process is a critical skill for circuit designers and requires meticulous calculation to ensure the circuit functions as intended.

The Integral Role of Parallel Inductors in Electronic Circuits

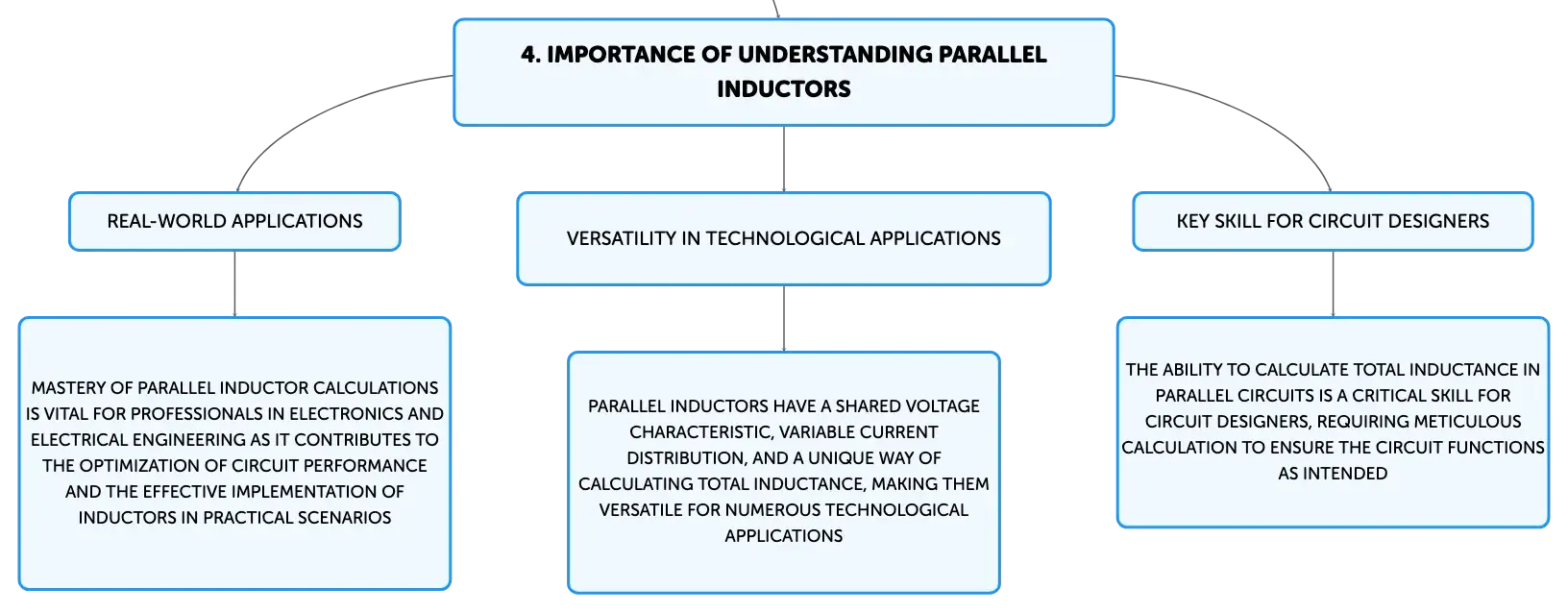

In conclusion, parallel inductors are indispensable in the design and operation of electronic circuits. Their shared voltage characteristic, variable current distribution, and the unique way their total inductance is calculated make them versatile for numerous technological applications. Mastery of parallel inductor calculations is vital for professionals in electronics and electrical engineering, as it contributes to the optimization of circuit performance and the effective implementation of inductors in practical scenarios.
