Nuclear Magnetic Resonance (NMR) Spectroscopy

Fundamentals of NMR Spectroscopy

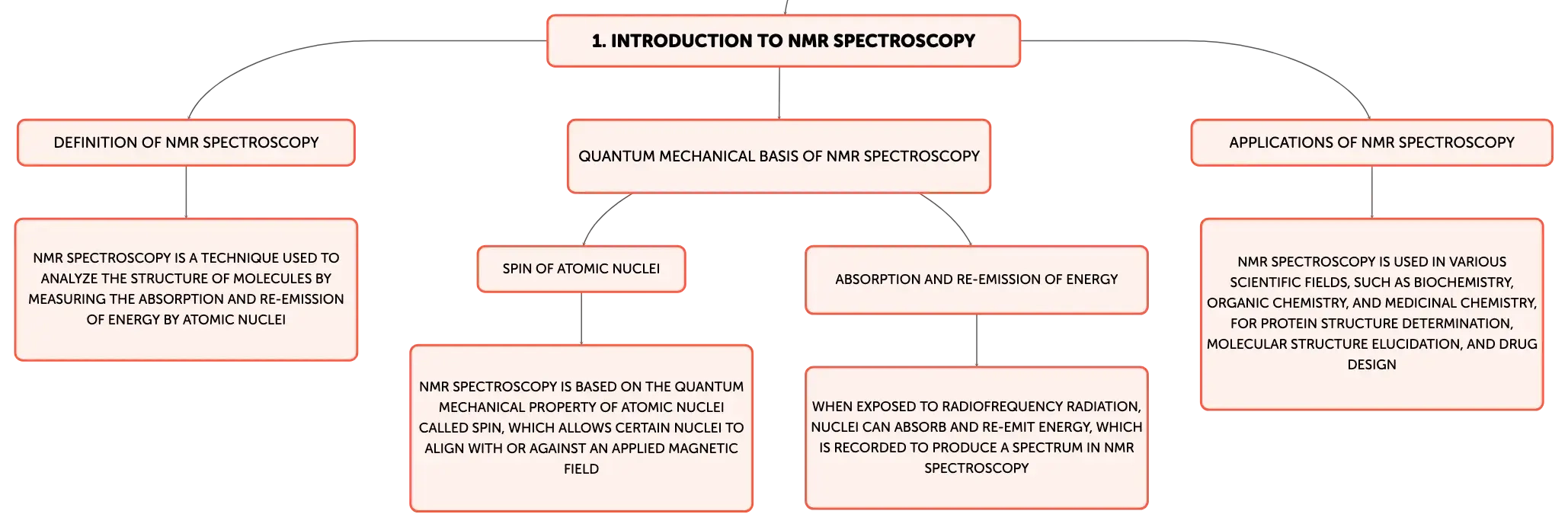

Nuclear Magnetic Resonance (NMR) spectroscopy is an indispensable analytical tool for elucidating the structure of molecules, identifying the positions of atoms, and determining the conformation of complex biomolecules like proteins. This technique is based on the quantum mechanical property of atomic nuclei called spin, which allows certain nuclei to align with or against an applied magnetic field. When these nuclei are exposed to radiofrequency radiation, they can absorb and re-emit energy, which is recorded to produce a spectrum. The spectrum plots the frequency of the absorbed energy (chemical shift) in parts per million (ppm) relative to a standard reference compound. The chemical shift is sensitive to the electronic environment of the nucleus, enabling the identification of different types of atoms and their functional groups within the molecule.

Conducting NMR Experiments

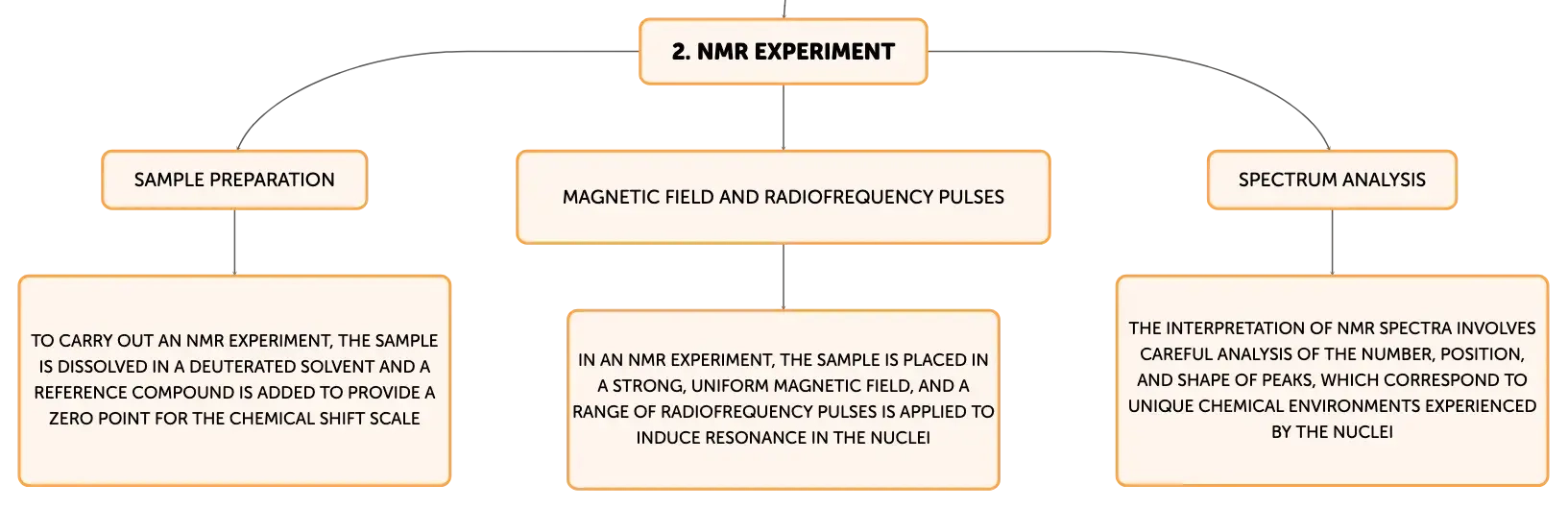

To carry out an NMR experiment, the sample is dissolved in a deuterated solvent to minimize interference from solvent hydrogen atoms, and a reference compound, typically tetramethylsilane (TMS), is added to provide a zero point for the chemical shift scale. The sample is then placed in a strong, uniform magnetic field, and a range of radiofrequency pulses is applied. The nuclei in the sample resonate at specific frequencies depending on their magnetic environment, transitioning between energy levels. The resulting signal is detected and transformed into a spectrum that displays the relative energy absorption as a function of chemical shift, offering a fingerprint of the molecular structure.

Deciphering NMR Spectra

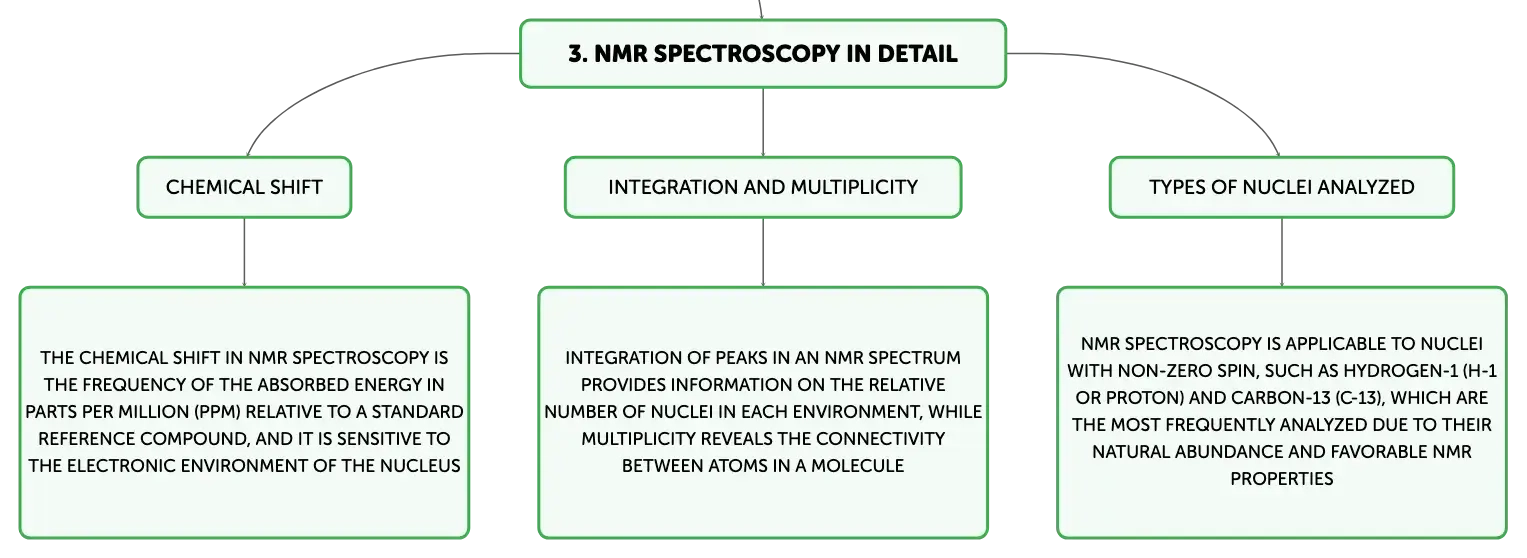

The interpretation of NMR spectra requires careful analysis of the number, position, and shape of the peaks. Each peak corresponds to a unique chemical environment experienced by the nuclei and is characterized by its chemical shift value. By comparing these values with standard reference data, one can identify the functional groups present. For instance, a peak at 58 ppm may suggest the presence of an ether group (RCH2O), while peaks at 18 ppm and 9 ppm could indicate alkyl groups (RCH2R and RCH3, respectively). Integration of the peaks provides information on the relative number of nuclei in each environment, and multiplicity reveals the connectivity between atoms, allowing for the reconstruction of the molecule's structure.

Nuclei Studied in NMR Spectroscopy

NMR spectroscopy is applicable to nuclei with non-zero spin, which typically have either an odd atomic number or an odd mass number. The most frequently analyzed nuclei are hydrogen-1 (H-1 or proton) and carbon-13 (C-13), due to their natural abundance and favorable NMR properties. Proton NMR is highly sensitive and provides detailed information about the hydrogen atoms in a molecule, including their environment and interactions with neighboring nuclei (spin-spin coupling). Carbon-13 NMR, although less sensitive due to the lower natural abundance of C-13, offers valuable insights into the carbon skeleton of organic compounds.

Applications and Challenges of NMR Spectroscopy

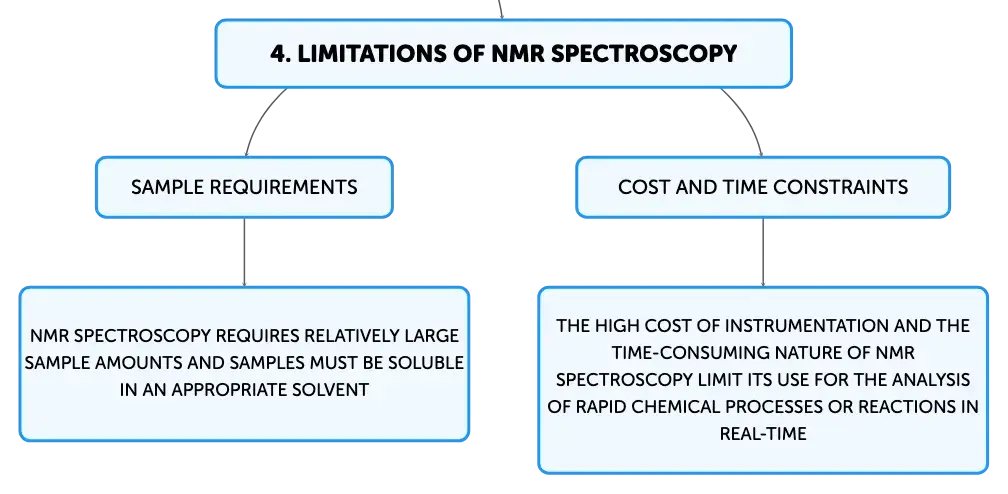

NMR spectroscopy is widely used in various scientific fields, including biochemistry for protein structure determination, organic chemistry for molecular structure elucidation, and medicinal chemistry for drug design. It is a non-destructive technique that provides comprehensive information about the molecular architecture. However, NMR spectroscopy has its limitations, such as the requirement for relatively large sample amounts, the high cost of instrumentation, and the need for samples to be soluble in an appropriate solvent. Additionally, the technique is generally time-consuming and less suited for the analysis of rapid chemical processes or reactions in real-time.

Conclusion on NMR Spectroscopy

NMR spectroscopy is a sophisticated and powerful technique for molecular analysis, offering detailed and distinct spectra that can differentiate between various functional groups and chemical environments within a molecule. The process involves dissolving the sample in a deuterated solvent, adding a reference compound, and subjecting it to a magnetic field and radiofrequency pulses. The resulting spectra enable the identification of functional groups and the determination of molecular structure. Despite its limitations, NMR spectroscopy remains a cornerstone in the toolkit of analytical chemists and researchers in related disciplines.
