Implicit Differentiation and its Applications
Exploring the brachistochrone curve, the quickest path between two points, and its real-world example, the cycloid. This text delves into the use of implicit differentiation for calculating tangent and normal lines on complex curves, a technique pivotal in theoretical physics and practical applications. It also touches on the historical significance of these concepts in relation to Snell's law.
See moreExploring the Brachistochrone Curve and Cycloid

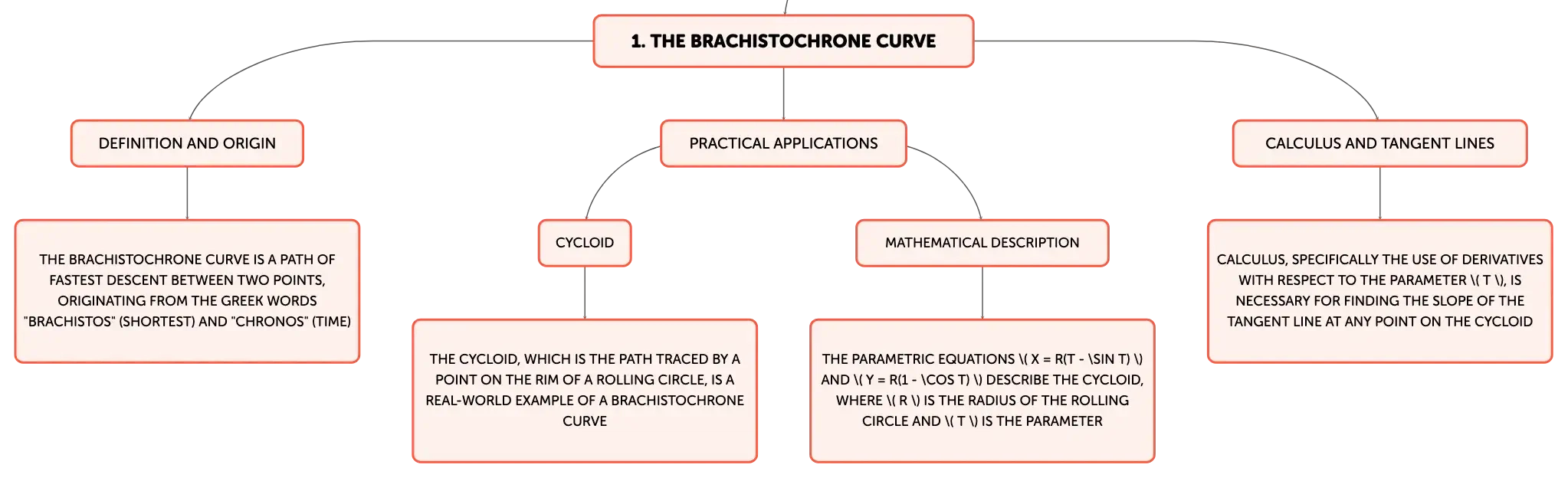

The brachistochrone curve represents the path of fastest descent between two points, a concept stemming from the Greek words "brachistos" (shortest) and "chronos" (time). This curve is not only a fascinating subject in the realm of theoretical physics but also has practical applications. A cycloid, which is the path traced by a point on the rim of a rolling circle, is a real-world example of a brachistochrone curve. The mathematical description of a cycloid is given by the parametric equations \( x = r(t - \sin t) \) and \( y = r(1 - \cos t) \), where \( r \) is the radius of the rolling circle and \( t \) is the parameter. Finding the slope of the tangent at any point on the cycloid involves calculus, specifically the use of derivatives with respect to the parameter \( t \).The Utility of Implicit Differentiation for Tangent Lines
Implicit differentiation is a powerful mathematical technique used when a function is given in an implicit form, meaning that the dependent variable, typically \( y \), is not isolated on one side of the equation. This method is essential for finding the slope of the tangent line to curves like the cycloid, where the relationship between \( x \) and \( y \) is not given by a simple function. By differentiating both sides of the equation with respect to \( x \) and treating \( y \) as an implicitly defined function of \( x \), one can determine the derivative \( \frac{dy}{dx} \), which represents the slope of the tangent line at any point on the curve.Step-by-Step Guide to Implicit Differentiation
To apply implicit differentiation for finding a tangent line at a specific point, one must first differentiate the equation with respect to \( x \), using the chain rule where necessary. The next step is to substitute the coordinates of the point into the differentiated equation to solve for the slope \( m \) of the tangent line at that point. Finally, the point-slope form of a line, \( y - y_1 = m(x - x_1) \), is used to write the equation of the tangent line. This method is exemplified in the context of the cycloid, where the differentiation of the parametric equations leads to the determination of the slope at a given point.Demonstrating Implicit Differentiation with an Example
Consider the example \( y^5 + x^5 = \frac{\sqrt{\pi}}{17} \), where \( y \) is a function of \( x \). Differentiating both sides with respect to \( x \) and applying the chain rule, we obtain \( 5y^4 \frac{dy}{dx} + 5x^4 = 0 \). Solving for \( \frac{dy}{dx} \) gives the slope of the tangent line as \( -\frac{x^4}{y^4} \). This example showcases the effectiveness of implicit differentiation in finding slopes for curves where \( y \) is not explicitly expressed as a function of \( x \).Calculating Tangent Lines for Complex Curves

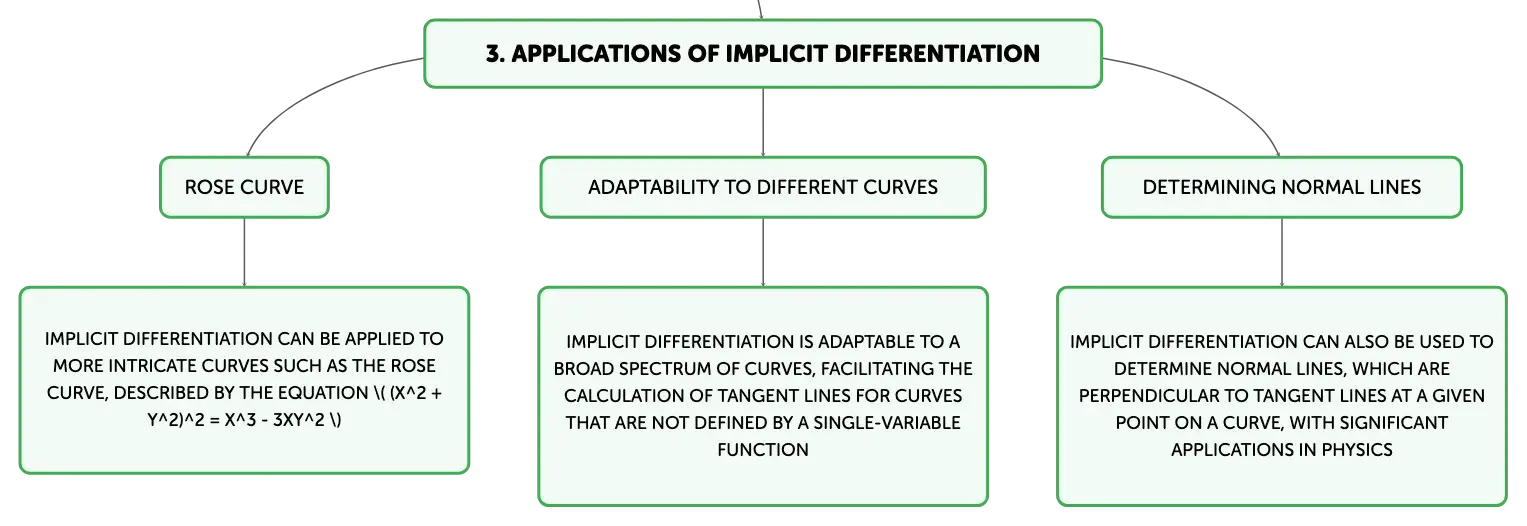

Implicit differentiation is not limited to simple curves; it can also be applied to more intricate curves such as the rose curve, which is described by the equation \( (x^2 + y^2)^2 = x^3 - 3xy^2 \). By differentiating this equation implicitly with respect to \( x \) and solving for \( \frac{dy}{dx} \) at a specific point, one can find the slope of the tangent line. This process highlights the adaptability of implicit differentiation in dealing with a broad spectrum of curves, facilitating the calculation of tangent lines for curves that are not defined by a single-variable function.Implicit Differentiation for Normal Lines
Implicit differentiation is invaluable not only for finding tangent lines but also for determining normal lines, which are perpendicular to tangent lines at a given point on a curve. The slope of the normal line is the negative reciprocal of the tangent line's slope. After using implicit differentiation to find the tangent slope, one can easily derive the equation for the normal line. This technique has significant applications in physics, such as calculating forces like friction or applying Snell's law of refraction. The historical discovery by Johann Bernoulli that the brachistochrone curve and Snell's law are related underscores the profound impact of implicit differentiation in both mathematics and physics.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Chain Rule Application in Implicit Differentiation
Click to check the answer
2
Solving for Slope m After Differentiation
Click to check the answer
3
Point-Slope Form Equation of Tangent Line
Click to check the answer
4
Equation of rose curve
Click to check the answer
5
Implicit differentiation process
Click to check the answer
6
Application of implicit differentiation
Click to check the answer
7
Johann Bernoulli's discovery revealed a connection between the ______ curve and ______ law, highlighting the importance of implicit differentiation.
Click to check the answer
