Exploring the Concepts of Impulse and Momentum

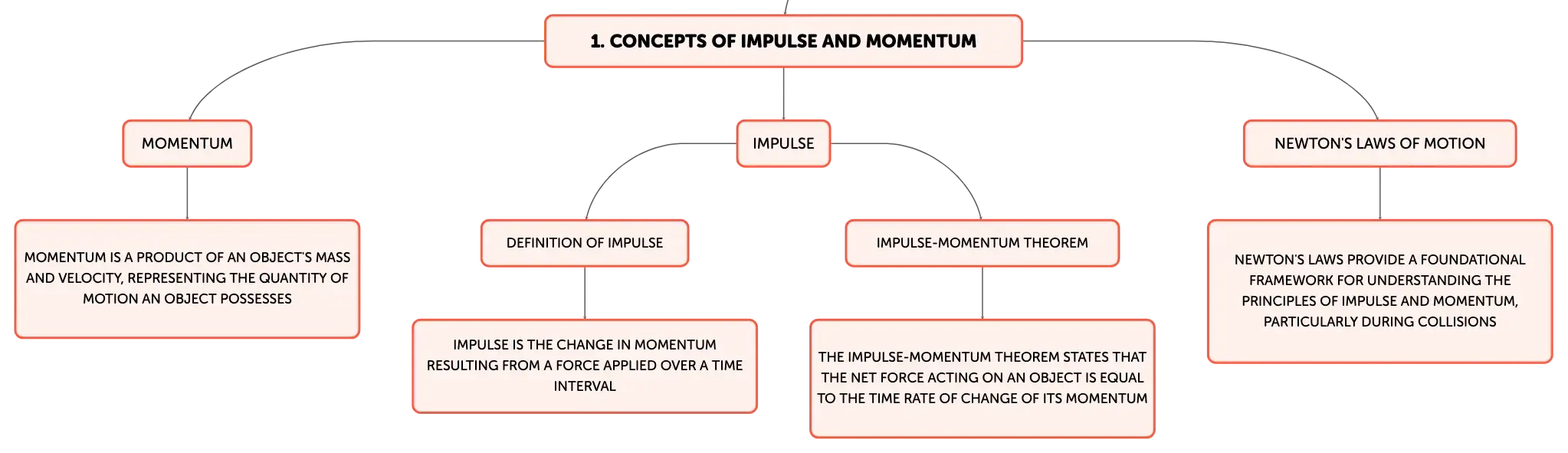

In the realm of physics, the concepts of impulse and momentum are integral to the study of motion and collisions. Momentum, symbolized by the vector $\vec{p}$, is a product of an object's mass $m$ and its velocity $\vec{v}$, formulated as $\vec{p} = m \vec{v}$. It represents the quantity of motion an object possesses, indicating how much force is required to bring it to a stop. The greater an object's momentum, the more force is needed to change its state of motion. Impulse, denoted by the vector $\vec{J}$, is defined as the change in momentum resulting from a force applied over a time interval. Mathematically, impulse is given by $\vec{J} = \Delta \vec{p} = m\Delta \vec{v}$, where $\Delta \vec{v}$ signifies the change in velocity. This relationship underscores the direct correlation between the force exerted on an object, the duration of its application, and the resulting change in the object's velocity and momentum.

High-speed photograph capturing the precise moment a white cue ball strikes a red ball on a green felt pool table, illustrating momentum transfer.

Newton's Laws and Momentum

Newton's laws of motion provide a foundational framework for understanding the principles of impulse and momentum. Newton's third law, which states that every action has an equal and opposite reaction, is particularly relevant during collisions, where the forces experienced by the colliding objects are equal in magnitude and opposite in direction. Newton's second law, commonly expressed as $F = ma$, can be extended to describe momentum. Since acceleration $\vec{a}$ is the time derivative of velocity $\vec{v}$, the law can be rephrased to state that the net force $\vec{F}_\text{net}$ acting on an object is equal to the time rate of change of its momentum, or $\vec{F}_\text{net} = \frac{\mathrm{d} \vec{p}}{\mathrm{d} t}$. This expression, known as the impulse-momentum theorem, is a fundamental concept in classical mechanics, linking force, time, and the change in momentum.

Classifying Collisions: Elastic and Inelastic

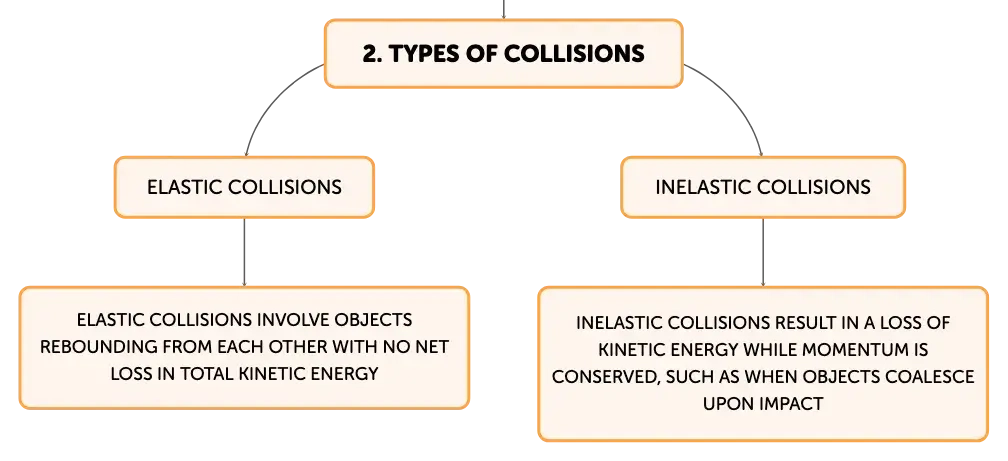

Collisions, a central topic in physics, are divided into two main categories: elastic and inelastic. Elastic collisions are those in which both momentum and kinetic energy are conserved. During such interactions, objects rebound from each other with no net loss in total kinetic energy. Billiard balls colliding on a pool table exemplify nearly perfect elastic collisions, where they exchange momentum and kinetic energy efficiently. In contrast, inelastic collisions are characterized by objects that coalesce upon impact, resulting in a loss of kinetic energy while momentum is conserved. A classic example is a lump of clay striking and sticking to a wall; kinetic energy is dissipated as heat and deformation energy, but the combined momentum of the clay and wall system before and after the collision remains constant.

The Integral Nature of Impulse

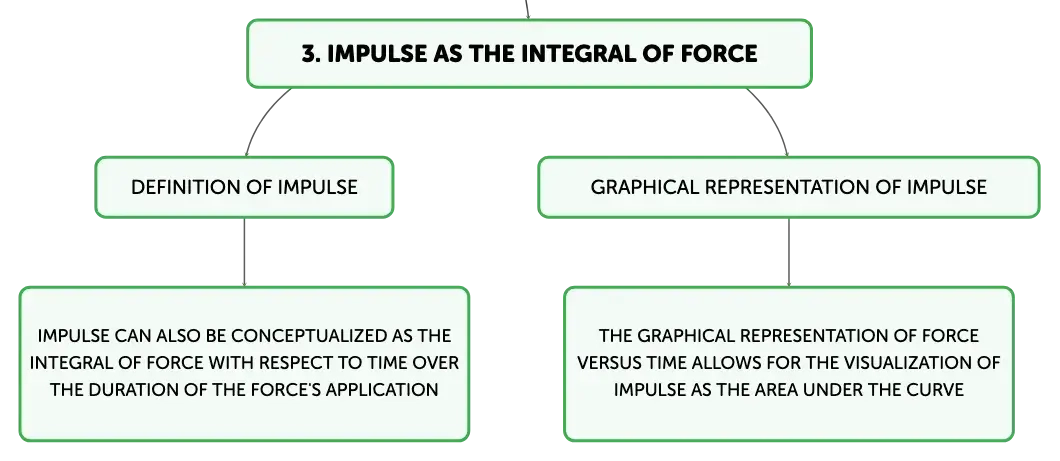

Impulse is also conceptualized as the integral of force with respect to time over the duration of the force's application. This relationship is mathematically represented as $\vec{J}=\int_{t_\text{i}}^{t_\text{f}} \vec{F}(t)\,\mathrm{d}t$, where $t_\text{i}$ and $t_\text{f}$ denote the initial and final times, respectively. This integral formulation emphasizes that impulse is dependent not only on the magnitude of the force but also on the length of time the force is applied. The graphical representation of force versus time allows for the visualization of impulse as the area under the curve, reinforcing the concept that impulse is a vector quantity with both magnitude and direction, corresponding to the net force exerted on an object.

Momentum Conservation and External Forces

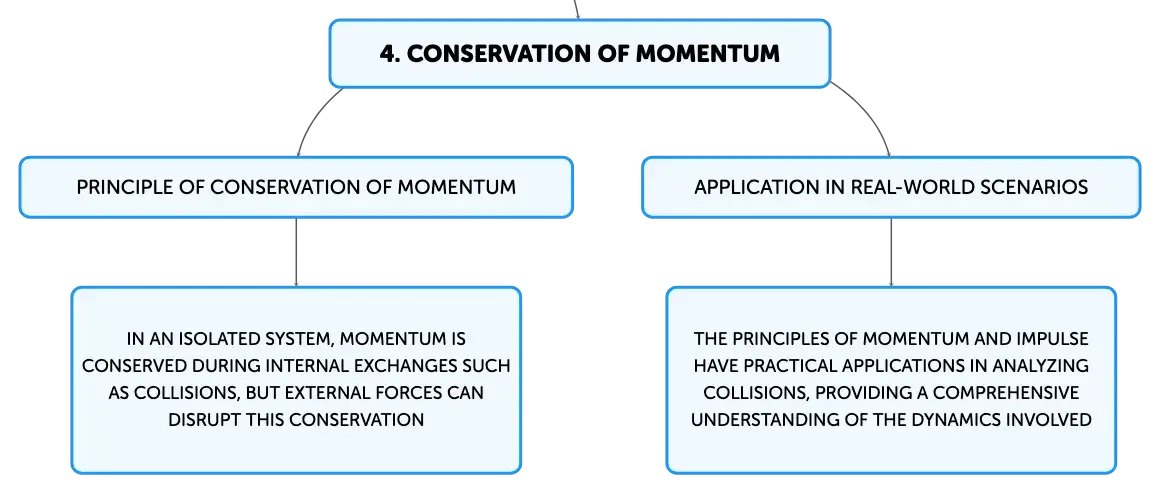

The conservation of momentum is a key principle in analyzing interactions within physical systems. In an isolated system, where no external forces are present, momentum is conserved during internal exchanges such as collisions. However, the introduction of external forces can disrupt this conservation, as these forces contribute an external impulse to the system. It is essential to distinguish between internal and external dynamics when evaluating real-world situations, such as a vehicular collision, where the momentum transferred to the Earth by external forces must be considered to accurately assess the system's behavior.

Momentum and Impulse in Practical Situations

The theoretical principles of momentum and impulse have tangible applications in real-world scenarios, extending beyond the confines of academic study. For example, analyzing the impulse imparted to a vehicle during a crash can shed light on the forces at play and the resulting motion of the vehicle. By calculating the change in momentum, one can infer the magnitude of the impulse and thus gain a deeper understanding of the dynamics involved in the collision. This practical application of physics principles enables a detailed reconstruction of events, from the initial conditions to the aftermath, providing a comprehensive narrative of the collision process.
