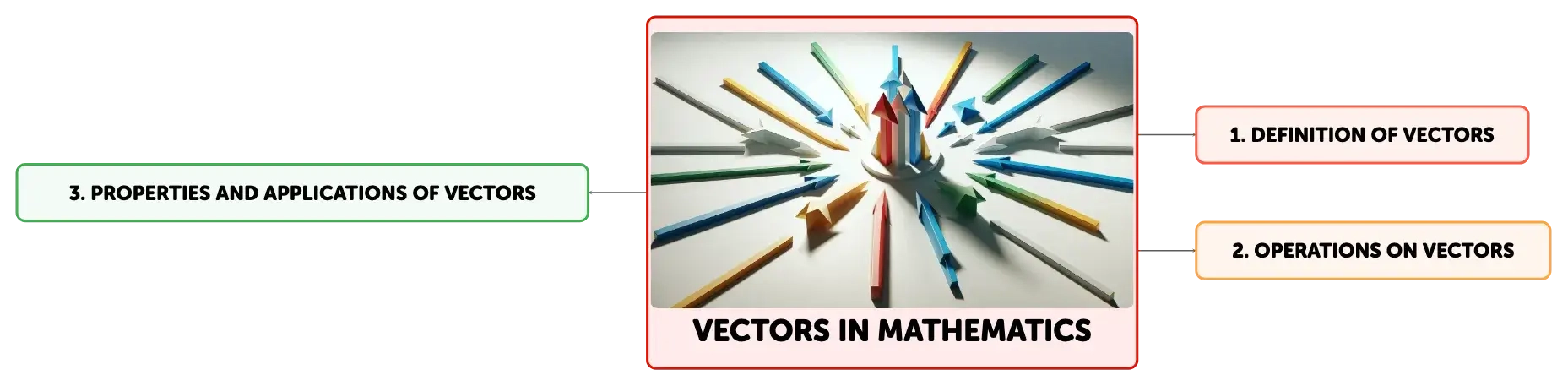

Vectors in Mathematics

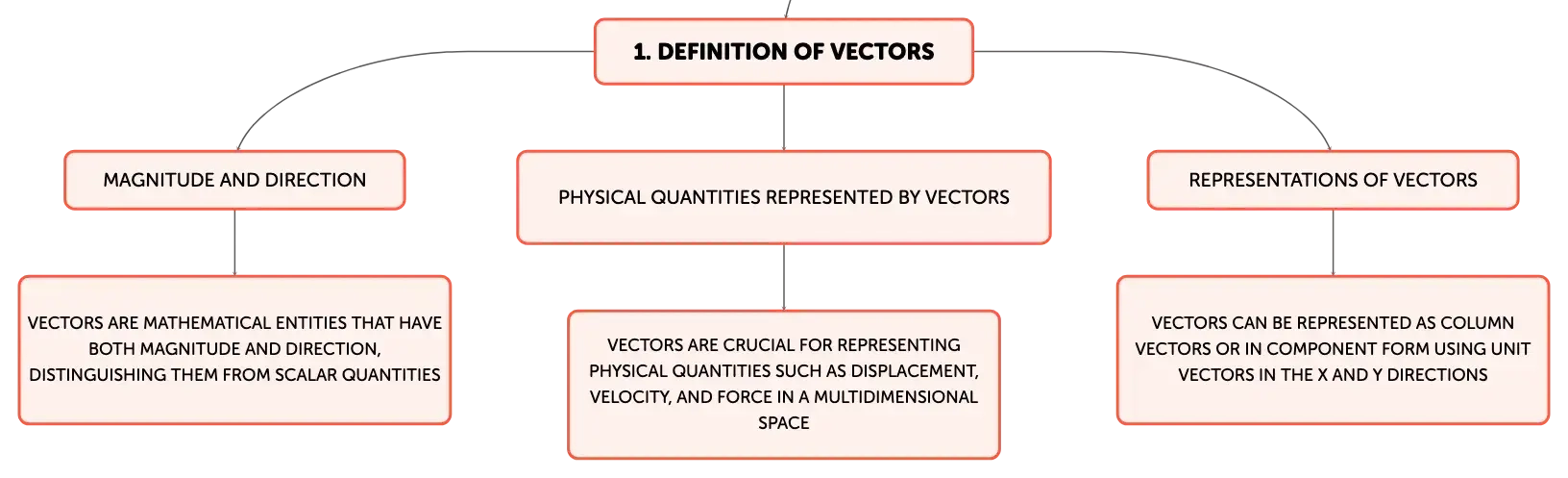

Fundamentals of Vector Mathematics

In mathematics, vectors are essential entities that encapsulate both magnitude and direction, distinguishing them from scalar quantities, which possess only magnitude. Vectors are crucial for representing physical quantities such as displacement, velocity, and force in a multidimensional space. A two-dimensional vector can be represented as a column vector \( \begin{bmatrix} x \\ y\end{bmatrix} \), or in component form as \( x\hat{i} + y\hat{j} \), where \( \hat{i} \) and \( \hat{j} \) are unit vectors in the directions of the x and y axes, respectively. These representations can describe both position vectors, which specify a point in space relative to an origin, and free vectors, which convey the idea of movement from one point to another without being fixed to a specific starting point.

Vector Notation and Graphical Representation

Vectors are typically denoted by boldface type, such as \( \mathbf{v} \), in printed material, or by an arrow over the letter, such as \( \vec{v} \), in handwritten form. The notation \( \vec{AB} \) signifies a vector that points from point A to point B. Graphically, vectors are depicted as directed line segments with an arrow indicating the direction, and the length of the segment representing the vector's magnitude. For example, the vector \( 3\hat{i} + 2\hat{j} \) originates from the origin and extends to the point (3, 2) in the Cartesian coordinate system, illustrating its direction and magnitude.

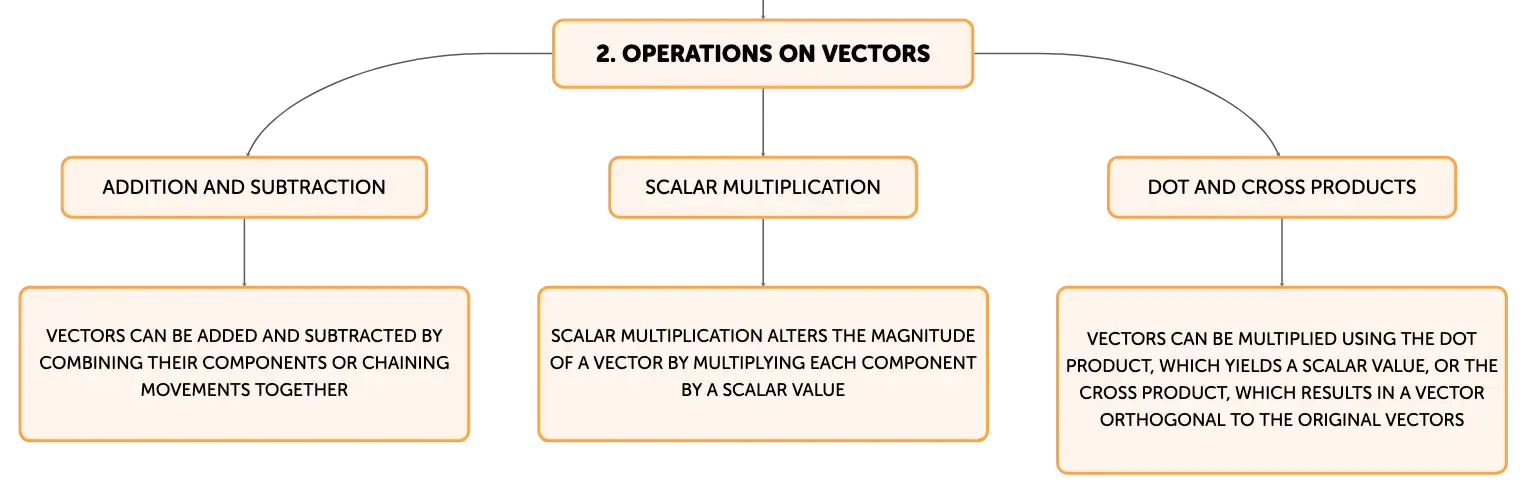

Vector Arithmetic

Vectors can be combined through operations such as addition, subtraction, and scalar multiplication. Vector addition is performed by placing the initial point of one vector at the terminal point of another, effectively chaining movements together. Subtraction involves reversing the direction of the vector being subtracted before adding it. Algebraically, these operations are executed by adding or subtracting the corresponding components of the vectors. Scalar multiplication, or scaling, alters the magnitude of a vector, multiplying each component by the scalar value. If the scalar is negative, the vector's direction is also inverted.

Multiplicative Operations on Vectors

Vectors can be multiplied using the dot product or the cross product. The dot product, or scalar product, is the sum of the products of the corresponding components of two vectors, yielding a scalar value. This value indicates the extent of alignment between the vectors, being maximal when they are parallel and zero when perpendicular. The cross product, or vector product, is exclusive to three-dimensional space and results in a vector that is orthogonal to the plane defined by the two original vectors. The magnitude of this vector is equal to the area of the parallelogram formed by the original vectors, and the direction follows the right-hand rule. The cross product is anticommutative, satisfying \( \vec{a} \times \vec{b} = -\vec{b} \times \vec{a} \).

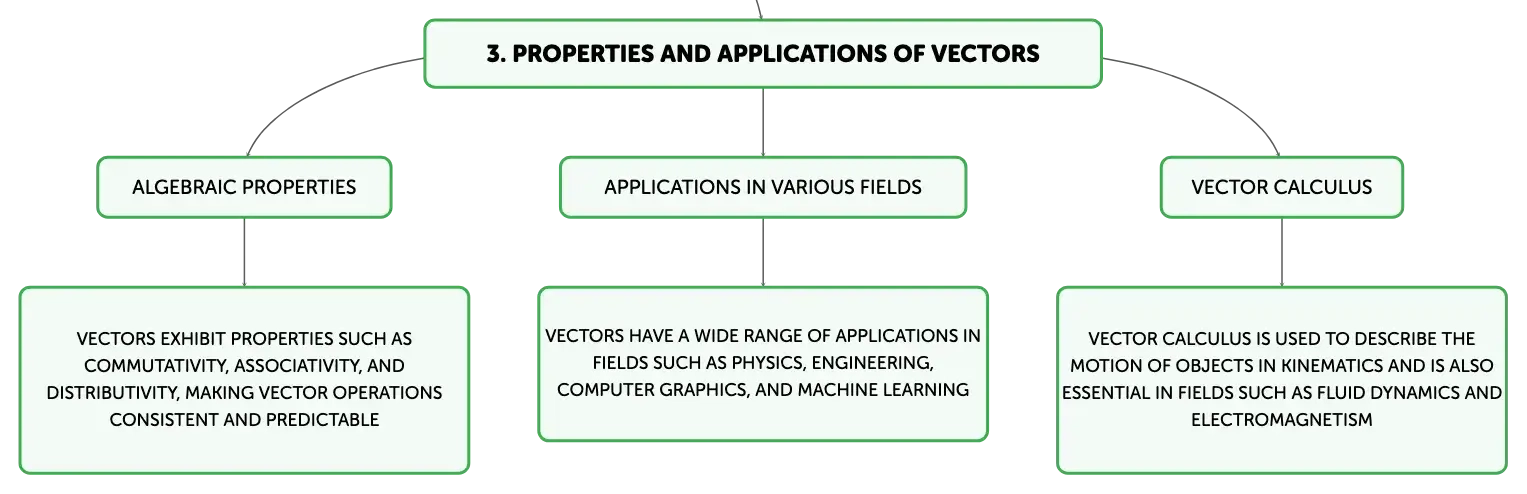

Vector Properties and Practical Applications

Vectors exhibit algebraic properties such as the commutativity and associativity of addition, and the distributivity of scalar multiplication over vector addition. These properties ensure that vector operations are consistent and predictable. Vectors have a wide range of applications in various fields, including physics, where they describe forces and motion, engineering, computer graphics for rendering three-dimensional scenes, and machine learning, where they represent data points and model parameters. For instance, vectors are instrumental in optimization algorithms like gradient descent, which navigates the search space to find the minimum of a function.

Determining Magnitude and Direction

The magnitude of a vector, also referred to as its norm, is the square root of the sum of the squares of its components, in accordance with the Pythagorean theorem. The magnitude is a non-negative scalar that represents the direct distance the vector spans. The direction of a vector in a plane is typically described by the angle it forms with the positive x-axis, which can be calculated using trigonometric functions such as the arctangent. Normalization of a vector scales it to a unit vector, preserving its direction but adjusting its magnitude to one. This process is essential when the direction is of interest, and the magnitude is irrelevant, as in the case of unit vectors used to define coordinate axes.

Vector Calculus in Kinematics and Other Fields

Vector calculus is a branch of mathematics that deals with vector-valued functions, which are functions that take scalars as inputs and return vectors as outputs. In kinematics, a branch of mechanics, vector calculus is used to describe the motion of objects. The position vector as a function of time can be differentiated to obtain the velocity vector, and further differentiation yields the acceleration vector. These vector quantities are fundamental in physics for analyzing the trajectories and dynamics of moving bodies. The application of vectors is not limited to motion; they are also pivotal in fields such as fluid dynamics, electromagnetism, and even in the abstract realm of vector spaces in linear algebra, which underpin many modern scientific and engineering disciplines.
