Fullerenes: Carbon Allotropes with Unique Properties

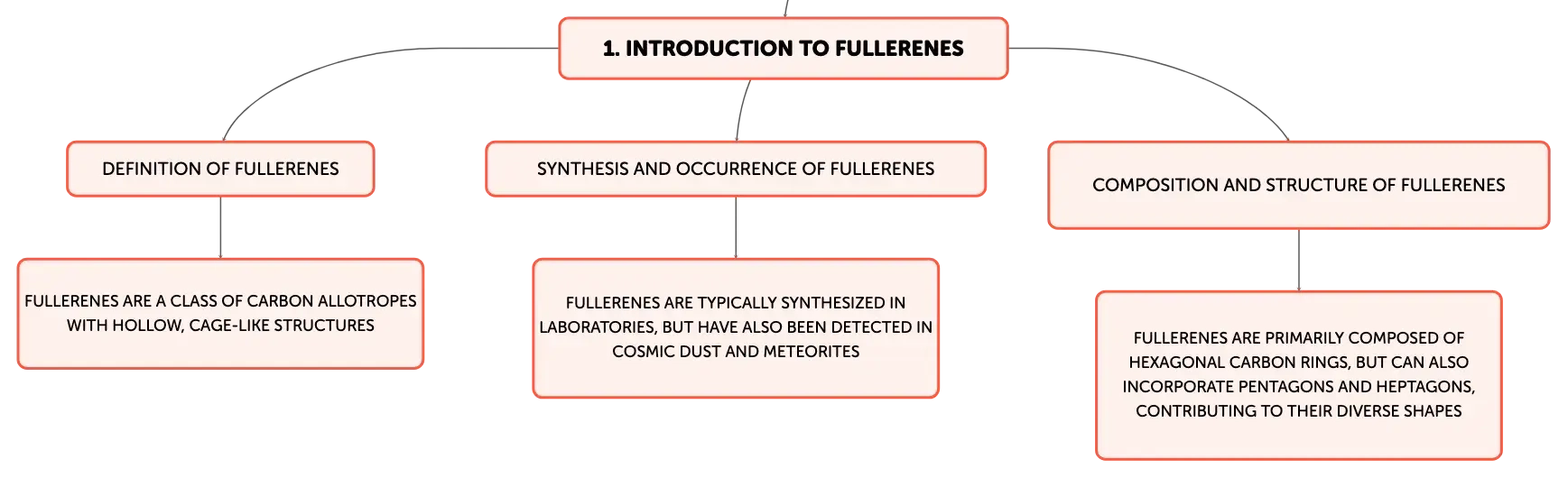

Exploring the Structure of Fullerenes: Unique Carbon Allotropes

Fullerenes are a class of carbon allotropes, distinguished by their hollow, cage-like structures. Unlike graphite and diamond, other well-known allotropes of carbon, fullerenes are not naturally occurring on Earth and are typically synthesized in laboratories. However, they have been detected in cosmic dust and meteorites, suggesting their presence in the universe. Fullerenes are primarily composed of hexagonal carbon rings, but they can also incorporate pentagons and heptagons, which contribute to the diversity of their shapes. The carbon atoms in fullerenes are linked by single and double covalent bonds, which provide these molecules with remarkable stability and a range of unique properties.

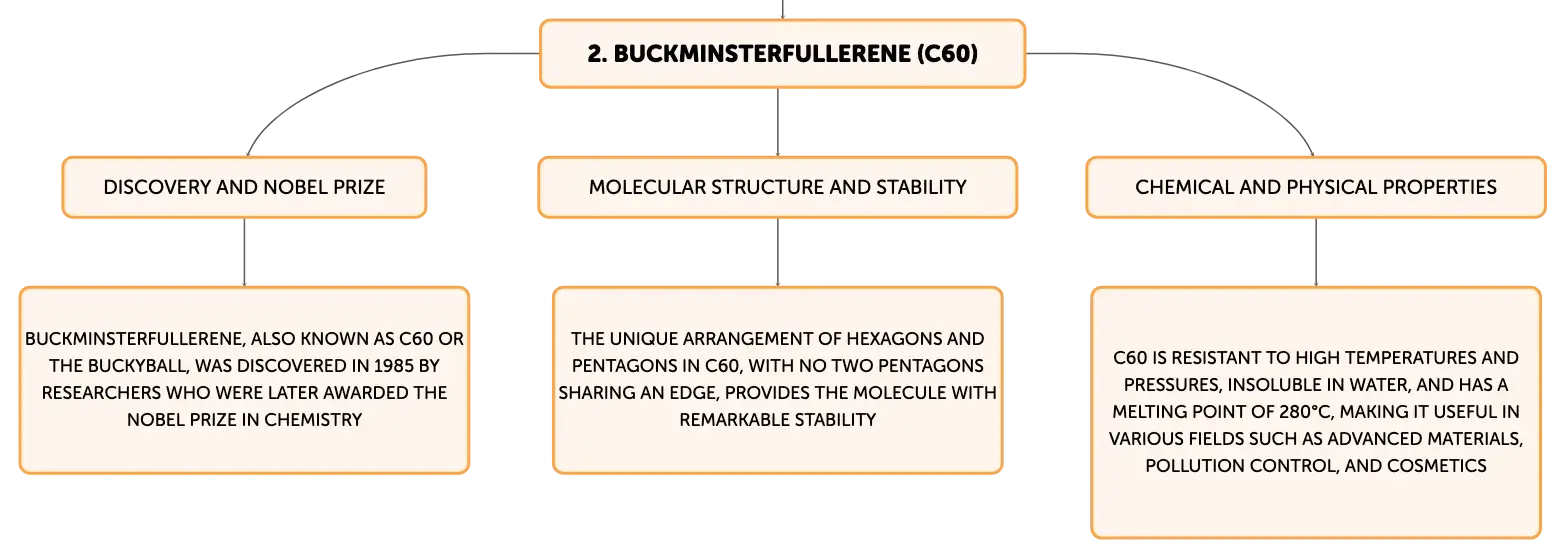

The Discovery and Molecular Geometry of Buckminsterfullerene (C60)

Buckminsterfullerene, commonly known as C60 or the Buckyball, is the archetype of fullerene molecules, consisting of 60 carbon atoms arranged in a spherical shape. Its structure is a truncated icosahedron, comprising 20 hexagons and 12 pentagons, similar to the pattern on a soccer ball. This molecule was discovered in 1985 by researchers Robert Curl, Harold Kroto, and Richard Smalley, who were awarded the Nobel Prize in Chemistry for their work. The unique arrangement of hexagons and pentagons, with no two pentagons sharing an edge, imparts stability to the molecule. Each carbon atom in C60 is bonded to three others, forming a network of covalent bonds with delocalized pi-bonds (π) over the surface, creating an electron-rich cloud. The Van Der Waals diameter of C60, which includes the electron cloud, is about 1.0 nm, while the core structure has a nucleus-to-nucleus diameter of 0.7 nm.

Chemical and Physical Properties of Buckminsterfullerene

Buckminsterfullerene (C60) possesses a unique set of chemical and physical properties that have led to its exploration in various fields. It is capable of acting as an electron acceptor or donor while retaining its spherical geometry, which is essential for its reactivity. C60 is resistant to high temperatures and pressures, insoluble in water, and sublimates at approximately 600°C. With a melting point around 280°C and a molecular diameter of 1.1 nm, it has found applications in the manufacture of advanced materials such as batteries, superconductors, pollution control technologies, and even in the cosmetics industry. The versatility of Buckminsterfullerene is attributed to its distinctive molecular shape and the presence of a delocalized π electron system.

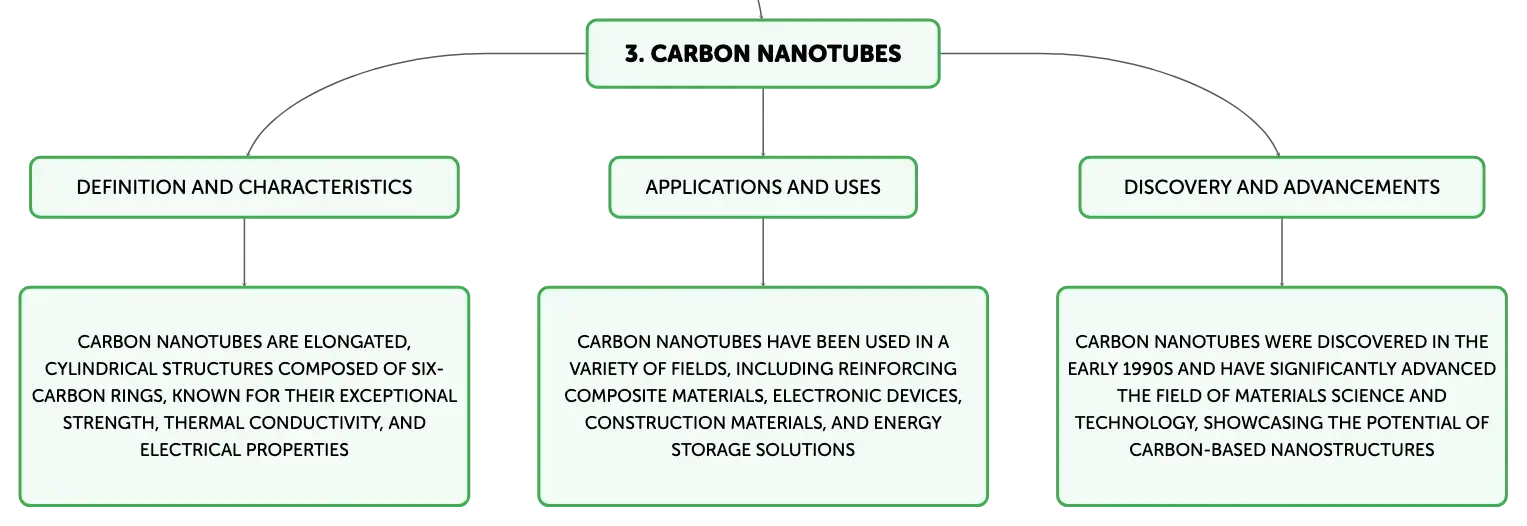

Carbon Nanotubes: Cylindrical Fullerenes with Advanced Properties

Carbon nanotubes are a variant of fullerenes, characterized by their elongated, cylindrical shape. These nanostructures are composed of a seamless mesh of six-carbon rings, mirroring the three-bonded carbon atoms found in Buckminsterfullerene. The diameters of carbon nanotubes are typically in the nanometer range, while their lengths can extend to several micrometers or even millimeters. Discovered in the early 1990s, carbon nanotubes have garnered attention for their exceptional tensile strength, high thermal conductivity, and impressive electrical properties. These characteristics have led to their use in reinforcing composite materials, electronic devices, construction materials, refining processes, energy storage solutions, and a host of nanotechnology applications.

Summary of Fullerenes and Carbon Nanotubes

To summarize, fullerenes are carbon allotropes with distinctive hollow, cage-like structures, predominantly made up of hexagonal carbon rings. The spherical Buckminsterfullerene (C60) is renowned for its chemical reactivity and resilience under extreme conditions. Carbon nanotubes, with their cylindrical form, extend the utility of fullerenes, offering remarkable mechanical strength and electrical conductivity. Both fullerenes and carbon nanotubes have significantly advanced the field of materials science and technology, showcasing the extraordinary capabilities and potential of carbon-based nanostructures.
