Diagnostic Imaging in Healthcare

Concept Map

Exploring the roles of Computed Tomography (CT) scans and Magnetic Resonance Imaging (MRI) in healthcare, this overview highlights their diagnostic capabilities, differences, and safety considerations. CT scans are valuable for assessing acute injuries and guiding biopsies, while MRIs excel in soft tissue imaging and neurological evaluations. The use of contrast agents and strategies to manage claustrophobia are also discussed, emphasizing the importance of patient safety in imaging procedures.

Summary

Outline

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

CT Scan Imaging Basis

Uses X-ray measurements from various angles, reconstructed to create cross-sectional body images.

MRI Imaging Technique

Employs powerful magnetic field and radiofrequency pulses to generate detailed internal body structure images.

CT vs. MRI for Soft Tissue Visualization

MRI is superior to CT in detailing soft tissue structures, making it more effective for diagnosing soft tissue tumors and joint abnormalities.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

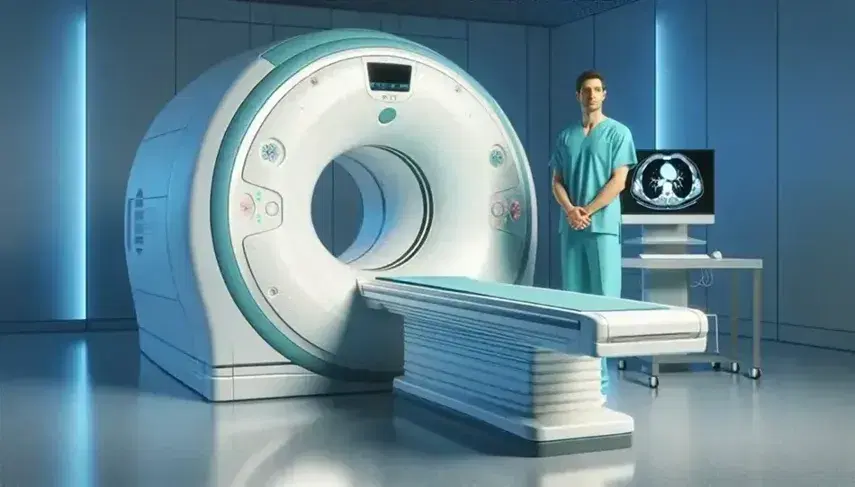

Modern PET/CT scanner in a medical imaging room with a healthcare professional in teal scrubs and a dual-monitor workstation displaying scan results.

Positron Emission Tomography (PET)

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Exploring CT Scans and MRI Technology in Healthcare

Computed Tomography (CT) scans and Magnetic Resonance Imaging (MRI) are integral diagnostic tools in contemporary healthcare. A CT scan combines X-ray measurements from different angles, reconstructed by computer processing to create cross-sectional images of the body. These scans excel in depicting a combination of skeletal, soft tissue, and vascular structures, facilitating the diagnosis of diseases such as cancer, cardiovascular disease, and musculoskeletal disorders. MRI uses a powerful magnetic field and radiofrequency pulses to produce detailed images of the body's internal structures, particularly soft tissues. It is highly effective for diagnosing neurological conditions, joint abnormalities, and soft tissue tumors. Both modalities are non-invasive and provide invaluable data for clinical evaluation and treatment planning.

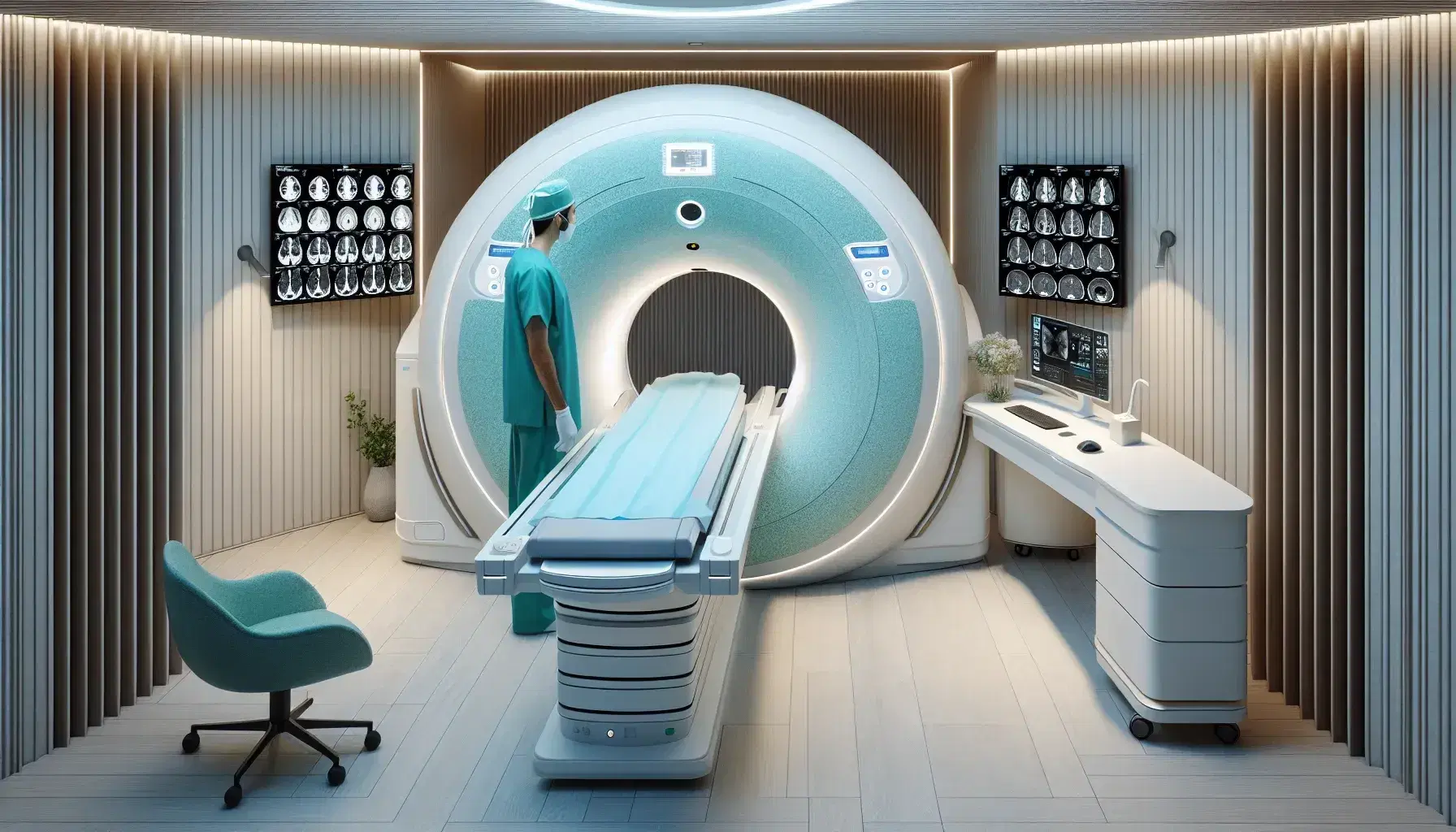

Modern CT scan room with a white donut-shaped scanner, blue-cushioned patient table, and a healthcare professional analyzing images at a computer console.

Interpreting CT and MRI Images

The interpretation of CT and MRI images is a complex task that requires extensive training and expertise in radiology. Radiologists evaluate these images by assessing variations in tissue density and signal intensity. In CT images, higher density structures such as bone appear white, while lower density structures like air appear black. MRI images offer a range of contrast variations, with different pulse sequences providing specific information about tissue properties. For example, fluid-filled structures may appear bright on T2-weighted images. The radiologist's report synthesizes these findings with clinical information to assist other physicians in making informed decisions about patient care.

Enhancing Diagnostic Accuracy with Contrast Agents

Contrast agents are chemicals that improve the diagnostic accuracy of CT scans and MRIs by delineating anatomical structures and pathological conditions more clearly. In CT imaging, iodine-based contrasts are prevalent due to their high X-ray attenuation properties, enhancing the visualization of vascular structures and areas of inflammation or infection. MRI contrast agents, typically containing gadolinium, alter the local magnetic field, thereby changing the relaxation properties of nearby hydrogen atoms and enhancing tissue contrast. The route of administration for these agents may be intravenous, oral, or rectal, depending on the clinical indication and the anatomical area of interest.

Distinguishing Between CT Scans and MRIs

CT scans and MRIs serve different purposes and have unique advantages and limitations. CT scans, which use ionizing radiation, are fast and cost-effective, making them a preferred choice for quickly assessing acute injuries, detecting lung and chest problems, and guiding biopsies. MRIs do not employ ionizing radiation and provide superior contrast resolution for soft tissue, making them more suitable for evaluating the brain, spinal cord, and musculoskeletal system. However, MRIs are contraindicated for patients with certain types of metal implants or electronic devices due to the strong magnetic field. The decision to use a CT scan or MRI is based on the clinical question at hand and the specific diagnostic requirements.

Addressing Claustrophobia in Imaging Procedures

The enclosed nature of CT and MRI scanners can induce claustrophobia in some patients. CT scanners are generally less confining and have shorter scan times, which may be more tolerable for claustrophobic individuals. MRI machines, with their longer scan times and narrow bore, can be more challenging. Strategies to manage claustrophobia include the use of open or wide-bore MRI machines, sedation, and ongoing communication with the patient during the procedure. Ensuring patient comfort is essential to obtain high-quality images and complete the diagnostic process effectively.

Prioritizing Safety in Imaging Techniques

Patient safety is paramount in the use of CT scans and MRIs. The radiation exposure from CT scans is a concern, particularly with repeated scans, as it may increase the lifetime risk of cancer. Special precautions are taken with vulnerable populations, such as children and pregnant women, to minimize exposure. MRI safety concerns revolve around the magnetic field's potential to interfere with metal implants, electronic devices, and foreign bodies within the patient. Rigorous screening protocols are in place to prevent adverse events related to these contraindications. Both imaging modalities require careful consideration of risks and benefits to ensure patient safety and optimal diagnostic outcomes.

Diagnostic Imaging in Healthcare

Concept Map

Summary

Outline

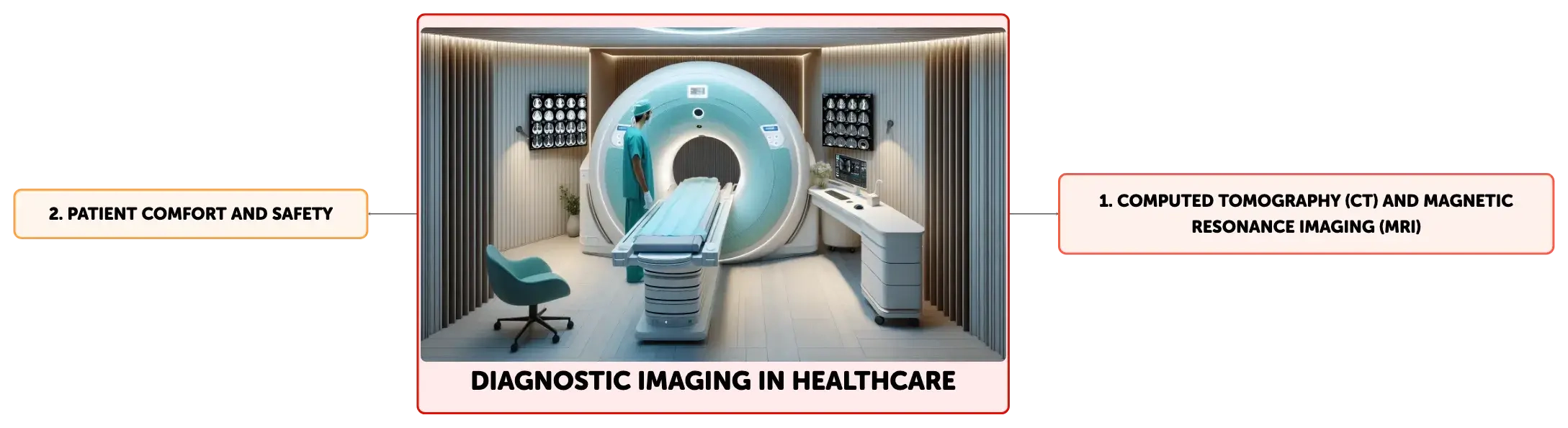

Diagnostic Imaging in Healthcare

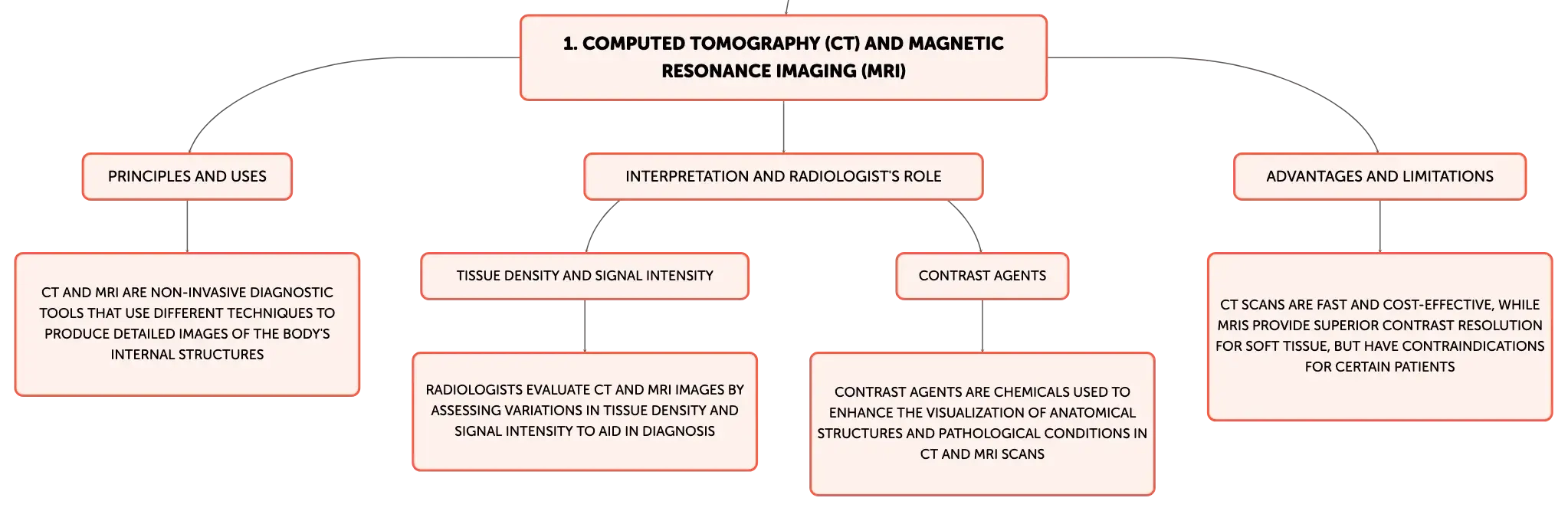

Computed Tomography (CT) and Magnetic Resonance Imaging (MRI)

Principles and Uses

Interpretation and Radiologist's Role

Advantages and Limitations

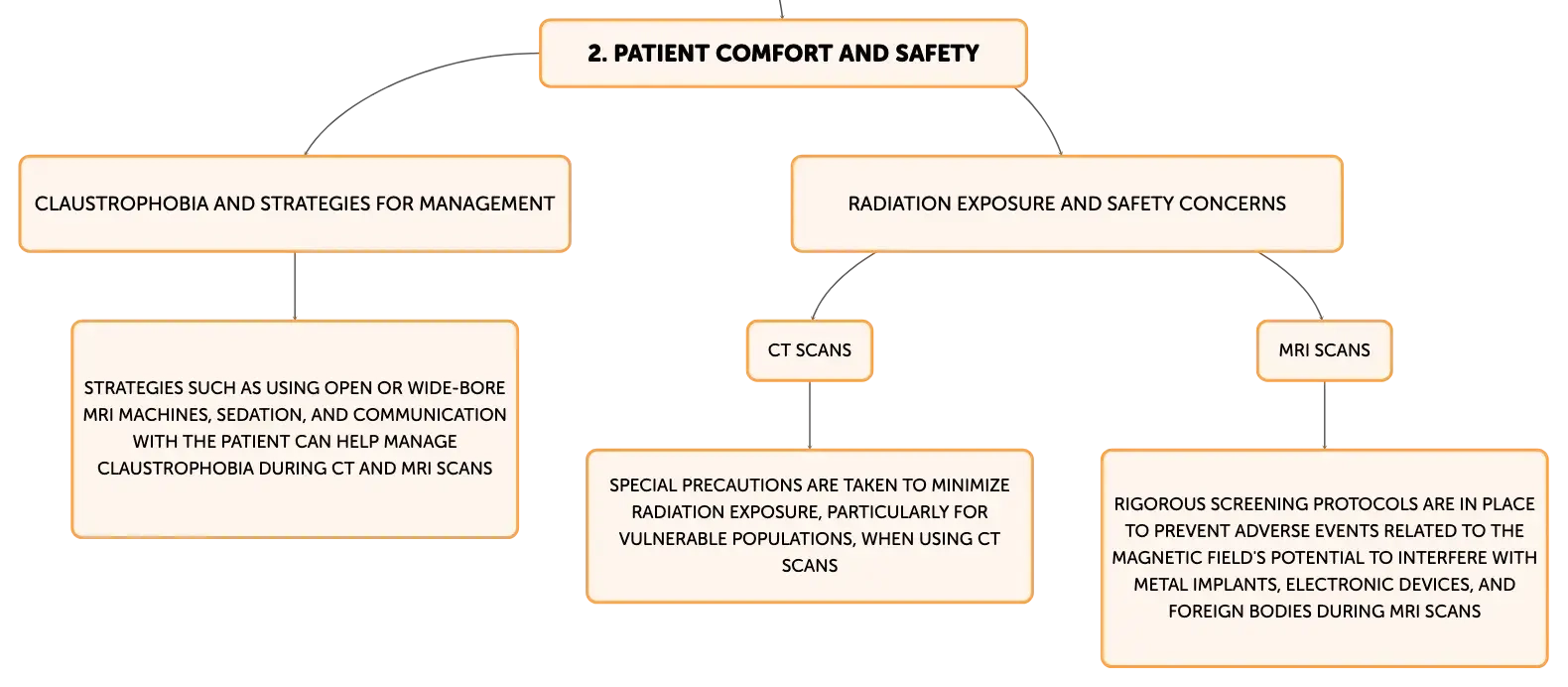

Patient Comfort and Safety

Claustrophobia and Strategies for Management

Radiation Exposure and Safety Concerns
