The Function and Legacy of Mendel's Genetic Research

Concept Map

Algorino

Edit available

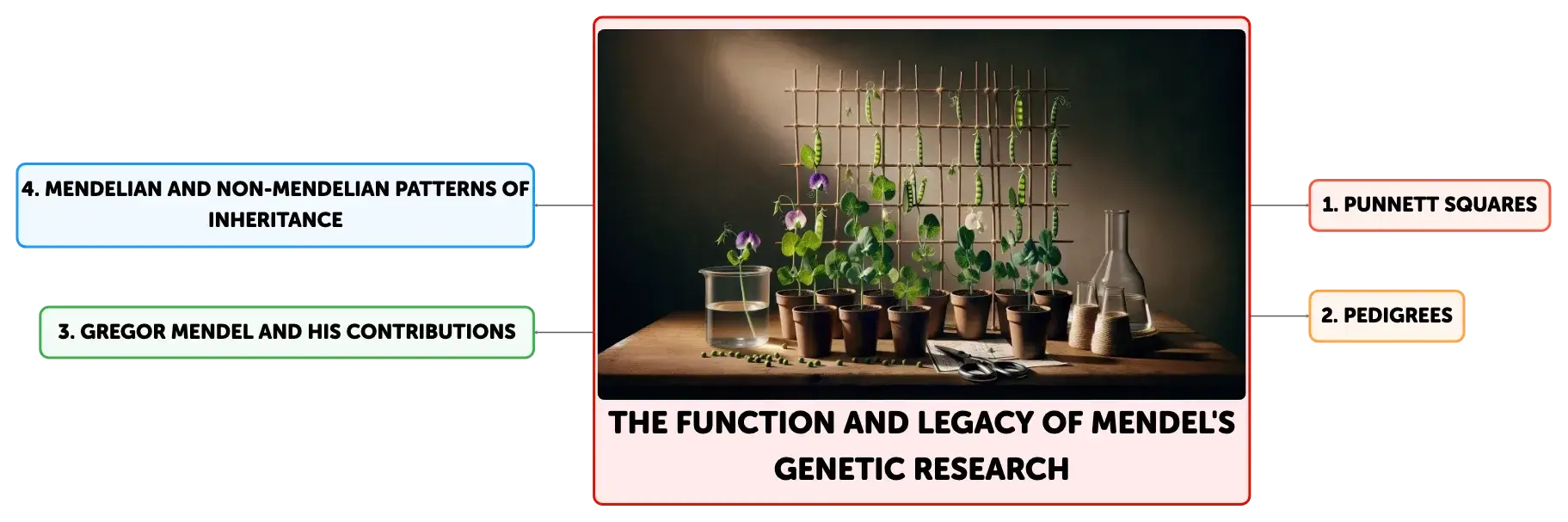

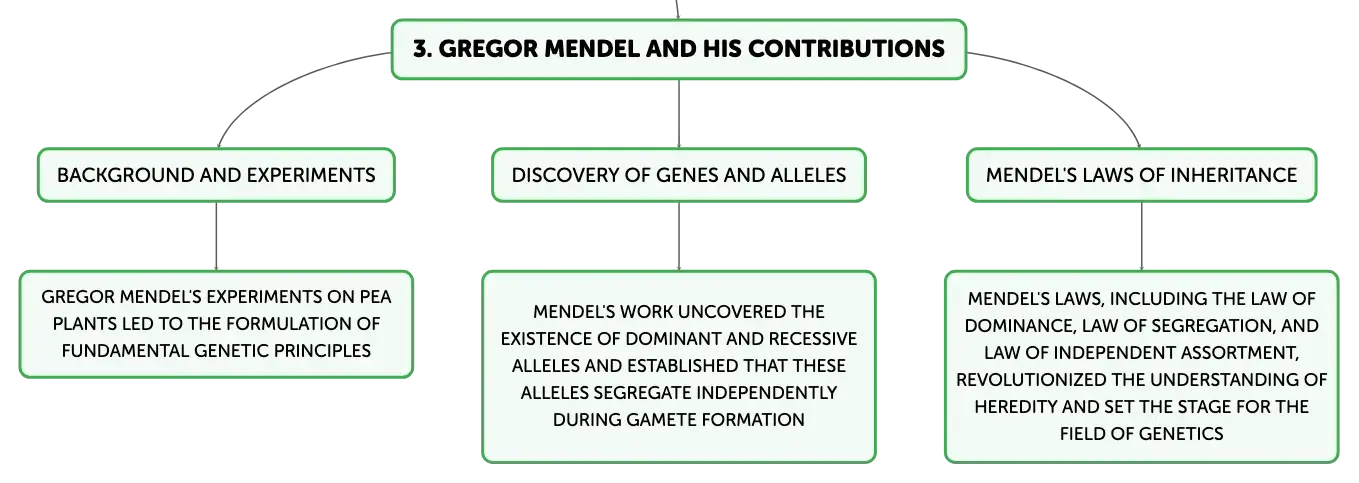

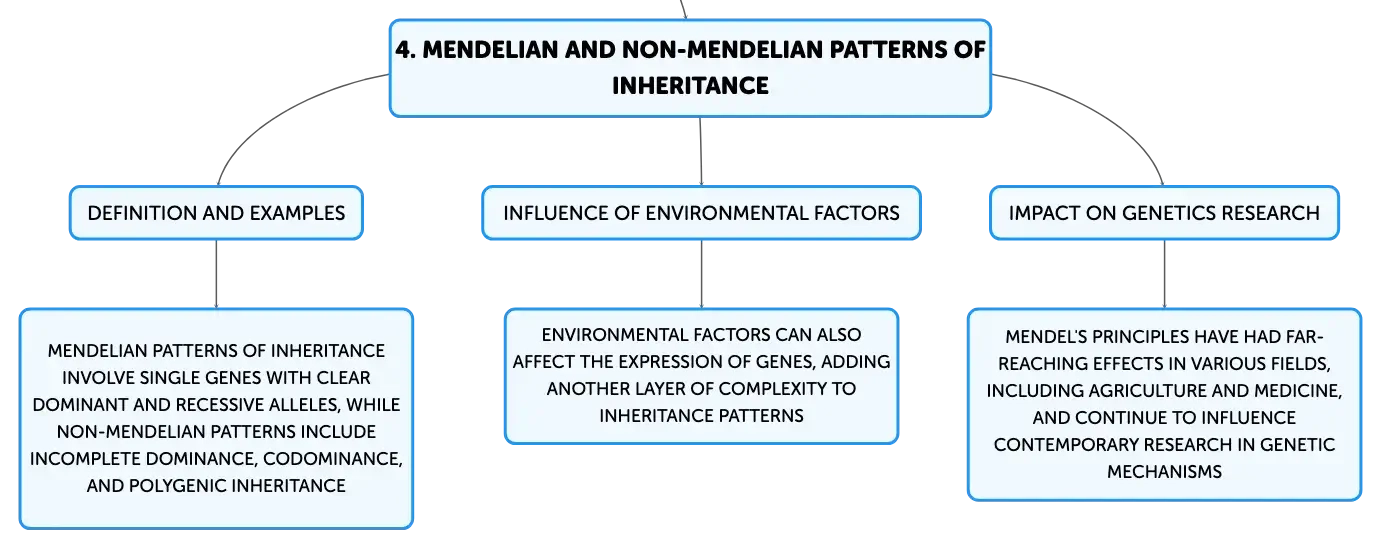

Exploring the role of Punnett Squares and pedigrees in genetics, this overview highlights Gregor Mendel's revolutionary contributions. Mendel's laws of inheritance, including the Law of Dominance, Segregation, and Independent Assortment, provide a framework for understanding genetic traits. While Mendelian traits follow his laws, complex inheritance patterns such as incomplete dominance and polygenic traits reveal the intricacies of heredity.

Exploring the Function of Punnett Squares in Genetics

Punnett Squares, named after their creator, Reginald Punnett, are a staple in the study of genetics for predicting the potential genetic combinations of offspring from two parents. Each square is a simple graphical representation of the Mendelian inheritance of a particular trait. The alleles from one parent are listed across the top, and those from the other parent down the side. The inside of the square is filled out with the possible allele combinations that could result from these parental contributions. This visual tool is invaluable for calculating the likelihood of inheriting specific traits, including those related to genetic disorders.
Pea plants in pots with purple and white flowers on wooden table, bamboo trellis, scissors and beaker with water in background.

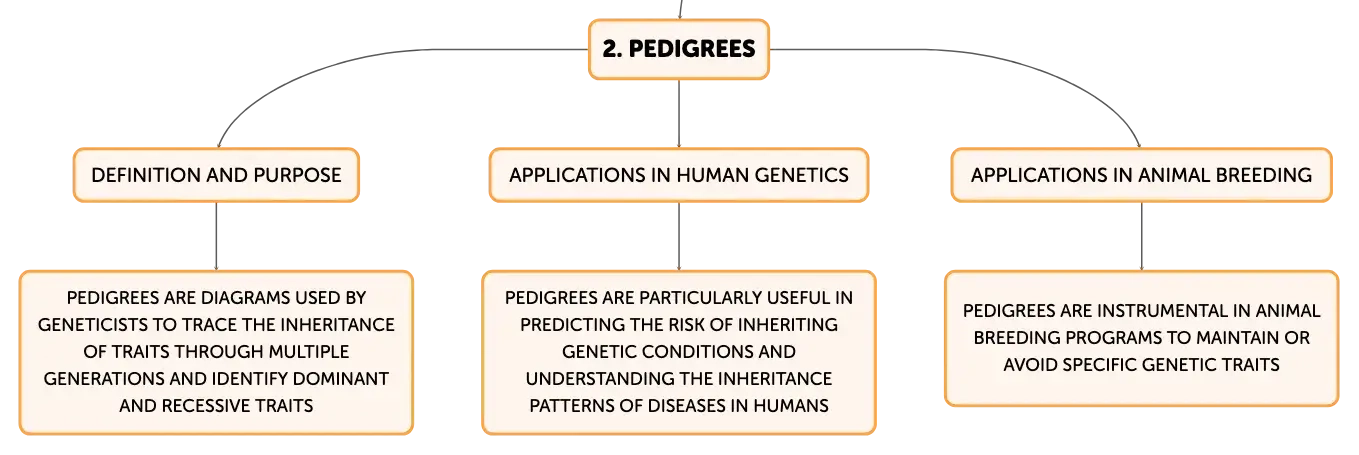

The Importance of Pedigrees in Genetic Analysis

Pedigrees are diagrams that resemble family trees and are essential for geneticists to trace the inheritance of traits through multiple generations. They provide a visual record of family relationships and the transmission of alleles, allowing for the identification of dominant and recessive traits. Pedigrees are particularly useful in human genetics for predicting the risk of inheriting genetic conditions and for understanding the inheritance patterns of certain diseases. They are also instrumental in animal breeding programs to maintain or avoid specific genetic traits.

Show More

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

Origin of Punnett Square name

Named after Reginald Punnett, a geneticist.

01

Punnett Square layout

Parental alleles top and side; offspring combinations inside.

02

Punnett Square utility

Calculates probabilities of inheriting traits, including genetic disorders.
