Understanding Earth's Radius

Concept Map

Algorino

Edit available

Exploring Earth's radius reveals its oblate spheroid shape, with a larger equatorial radius compared to the poles. This shape, influenced by Earth's rotation and internal forces, is crucial for geophysics and astronomy. Models like the geoid and ellipsoid help scientists measure Earth's curvature and contribute to precise mapping and geodetic calculations. Understanding these dimensions is essential for GPS and other navigation technologies.

Summary

Outline

Understanding Earth's Radius

The radius of Earth is a key measure in geophysics and astronomy, indicating the average distance from the planet's center to its surface. Earth is not a perfect sphere but an oblate spheroid, meaning it has a larger radius at the equator (about 6,378 kilometers) than at the poles (about 6,357 kilometers). The International Astronomical Union (IAU) uses the equatorial radius as the standard for astronomical measurements. Earth's rotation, internal density variations, and gravitational forces contribute to its shape, which is nearly spherical with a minor bulge at the equator, making the spherical approximation useful for many purposes.
Surveyor with theodolite on tripod measures angles in grassy plain with hills in the background and blue sky with scattered clouds.

Models and Measurements of Earth's Radius

Scientists employ different models to represent Earth's shape, from the actual irregular surface to the geoid, which approximates mean sea level, and the ellipsoid, a mathematical figure used for global maps. The geocentric radius varies by latitude due to Earth's spheroidal shape. The meridional and prime-vertical radii of curvature are specific measures of Earth's curvature in north-south and east-west directions, respectively, and are crucial for precise mapping and geodetic calculations.

The Influence of Earth's Rotation on Its Shape

The rotation of Earth causes it to have an oblate spheroid shape, characterized by an equatorial bulge and polar flattening. This oblateness is quantified by a constant that depends on the planet's rotation rate, mass, and the gravitational constant. The equatorial bulge can vary due to redistribution of mass in the oceans and other dynamic processes. The geoid height, indicating the deviation of mean sea level from the ellipsoid, can also change due to geological events or alterations in ice and water mass distribution.

Geocentric and Curvature Radii of Earth

The geocentric radius, which depends on the equatorial and polar radii, changes with latitude and is used to calculate distances from Earth's center to any point on the surface. The meridional and prime-vertical radii of curvature provide detailed information about Earth's shape and are essential for geodesy, the science of measuring and understanding Earth's size, shape, and gravitational field, as well as for accurate cartography.

Global Averages and Reference Values for Earth's Radius

For various scientific and practical applications, average values of Earth's radius are used, such as the mean radius (an average of distances from the center to the surface), the authalic radius (which gives an equal surface area sphere), and the volumetric radius (defining a sphere with the same volume as Earth). These averages, around 6,371 kilometers, are provided by the International Union of Geodesy and Geophysics (IUGG). The World Geodetic System 1984 (WGS-84) also offers standard values for Earth's radii, which are integral to global positioning systems (GPS) and other navigation and geospatial technologies.

Historical Development of the Concept of Earth's Radius

The understanding of Earth's radius has advanced significantly since ancient times. Aristotle's early speculations were refined by Eratosthenes' measurements in the 3rd century BC, which were remarkably accurate for the time. The concept of Earth as an oblate spheroid gained acceptance through the work of Isaac Newton and Christiaan Huygens. The 18th-century French Geodesic Mission provided empirical evidence supporting Newton's theory of Earth's oblateness. These historical milestones have been crucial in the development of geodesy and have greatly enhanced our comprehension of Earth's physical dimensions.

Show More

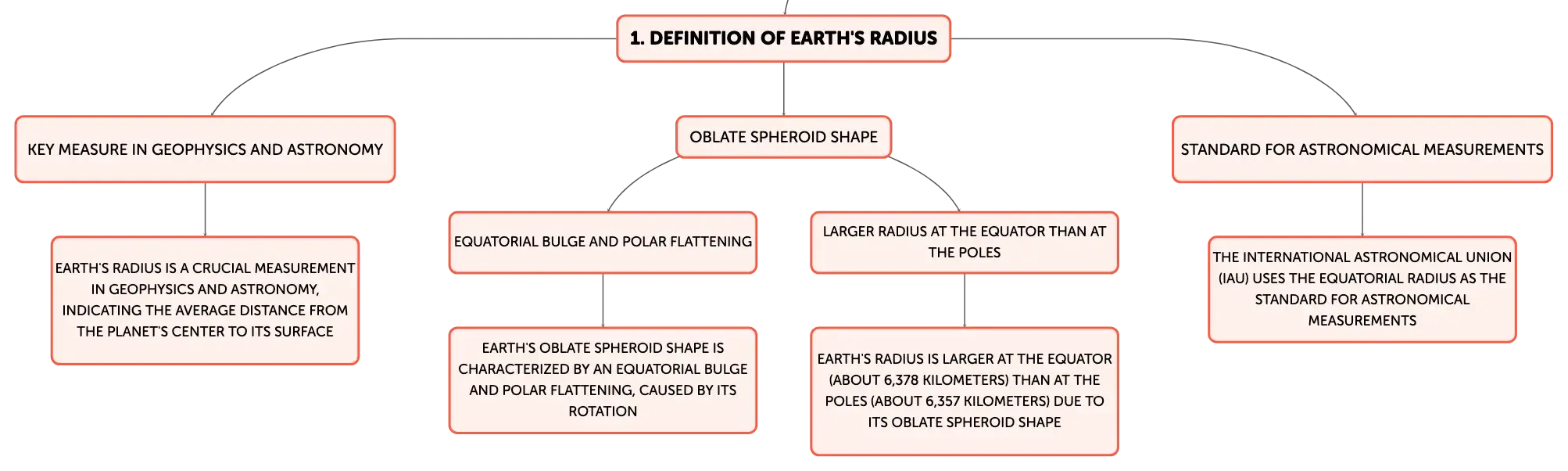

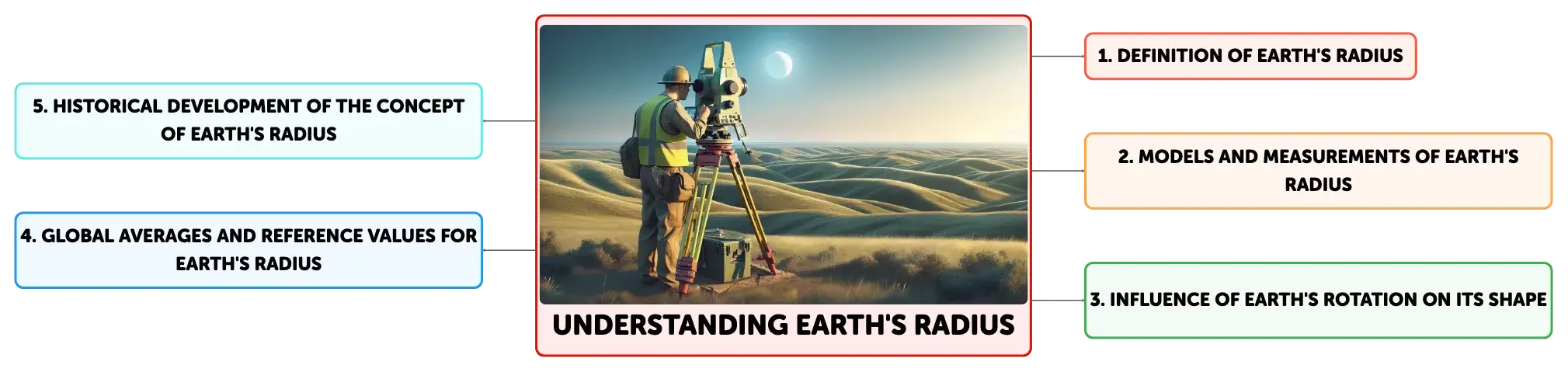

    Understanding Earth's Radius

  • Definition of Earth's Radius

  • Key measure in geophysics and astronomy

  • Earth's radius is a crucial measurement in geophysics and astronomy, indicating the average distance from the planet's center to its surface

  • Oblate spheroid shape

  • Equatorial bulge and polar flattening

  • Earth's oblate spheroid shape is characterized by an equatorial bulge and polar flattening, caused by its rotation

  • Larger radius at the equator than at the poles

  • Earth's radius is larger at the equator (about 6,378 kilometers) than at the poles (about 6,357 kilometers) due to its oblate spheroid shape

  • Standard for astronomical measurements

  • The International Astronomical Union (IAU) uses the equatorial radius as the standard for astronomical measurements

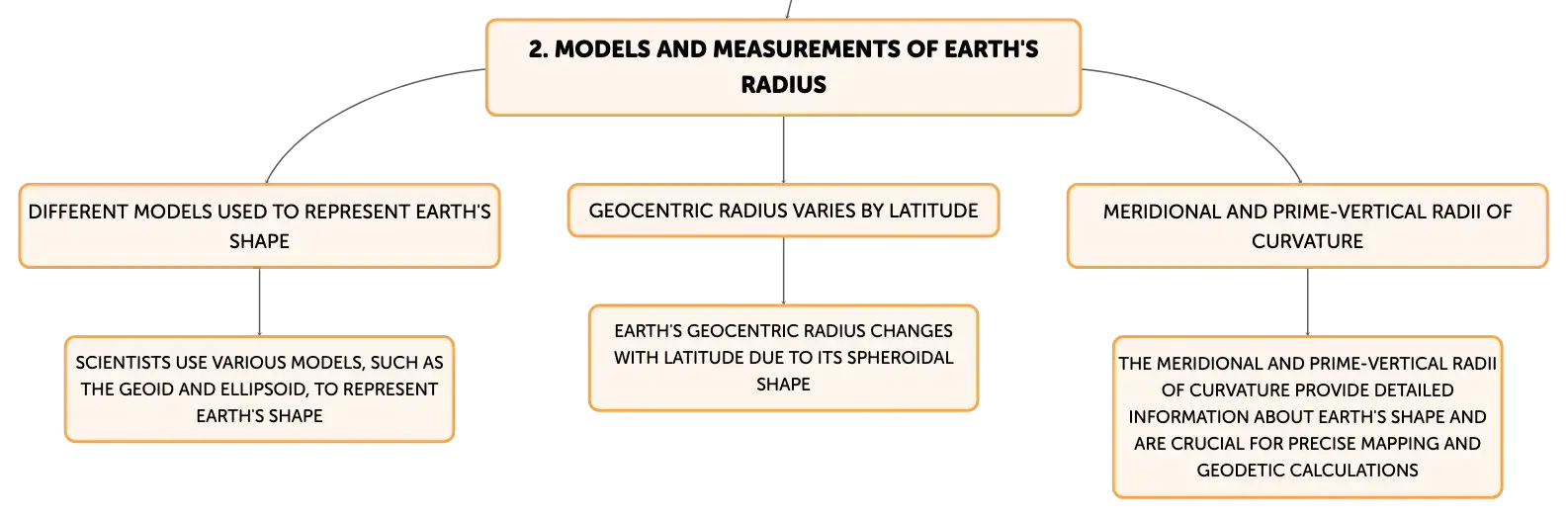

  • Models and Measurements of Earth's Radius

  • Different models used to represent Earth's shape

  • Scientists use various models, such as the geoid and ellipsoid, to represent Earth's shape

  • Geocentric radius varies by latitude

  • Earth's geocentric radius changes with latitude due to its spheroidal shape

  • Meridional and prime-vertical radii of curvature

  • The meridional and prime-vertical radii of curvature provide detailed information about Earth's shape and are crucial for precise mapping and geodetic calculations

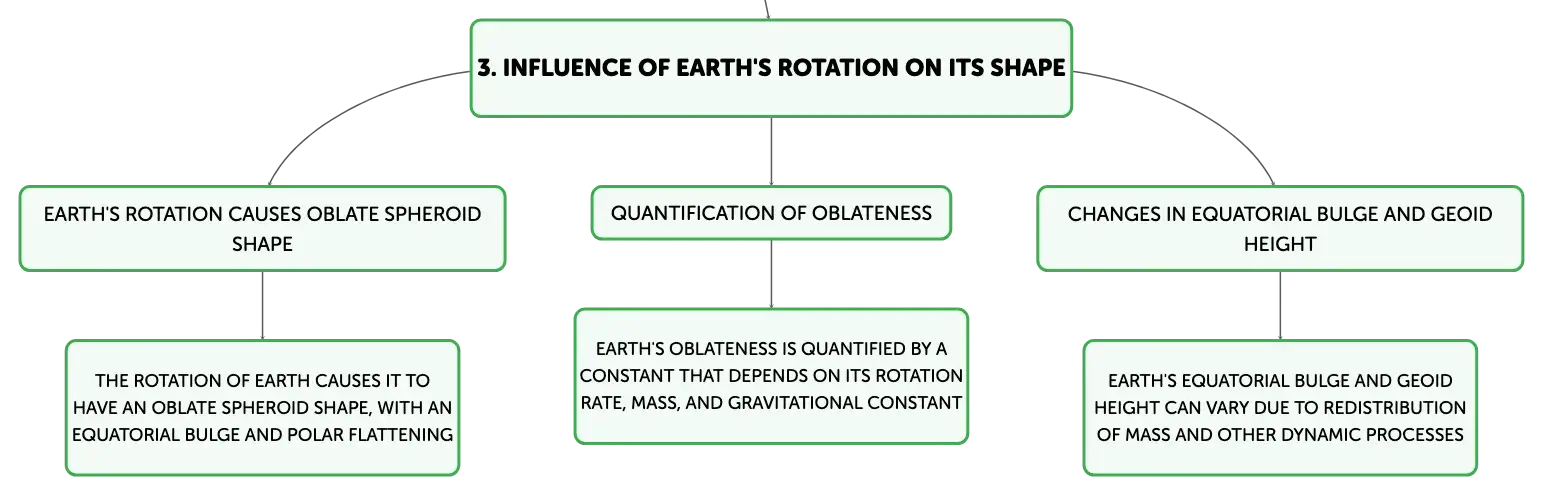

  • Influence of Earth's Rotation on Its Shape

  • Earth's rotation causes oblate spheroid shape

  • The rotation of Earth causes it to have an oblate spheroid shape, with an equatorial bulge and polar flattening

  • Quantification of oblateness

  • Earth's oblateness is quantified by a constant that depends on its rotation rate, mass, and gravitational constant

  • Changes in equatorial bulge and geoid height

  • Earth's equatorial bulge and geoid height can vary due to redistribution of mass and other dynamic processes

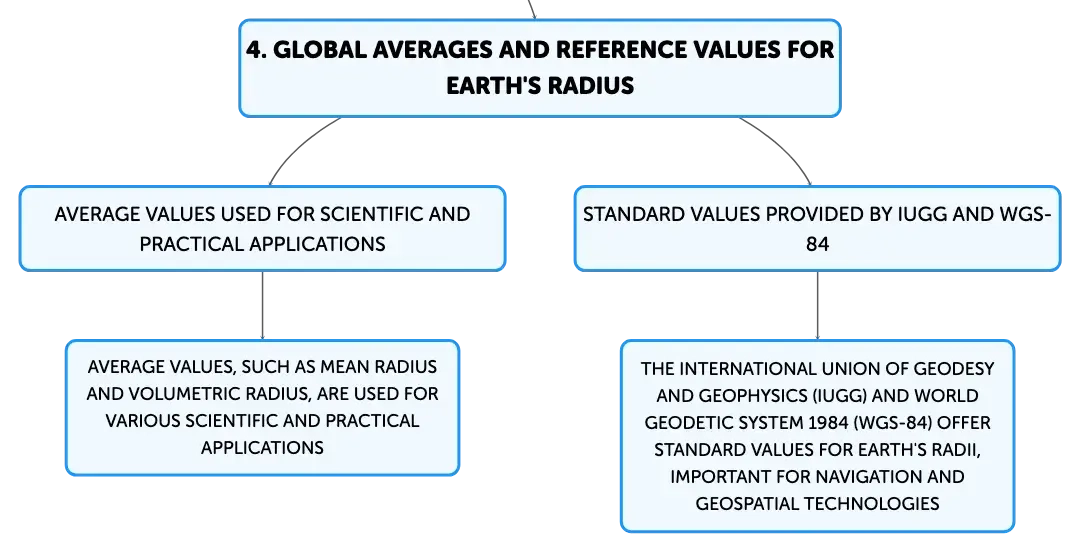

  • Global Averages and Reference Values for Earth's Radius

  • Average values used for scientific and practical applications

  • Average values, such as mean radius and volumetric radius, are used for various scientific and practical applications

  • Standard values provided by IUGG and WGS-84

  • The International Union of Geodesy and Geophysics (IUGG) and World Geodetic System 1984 (WGS-84) offer standard values for Earth's radii, important for navigation and geospatial technologies

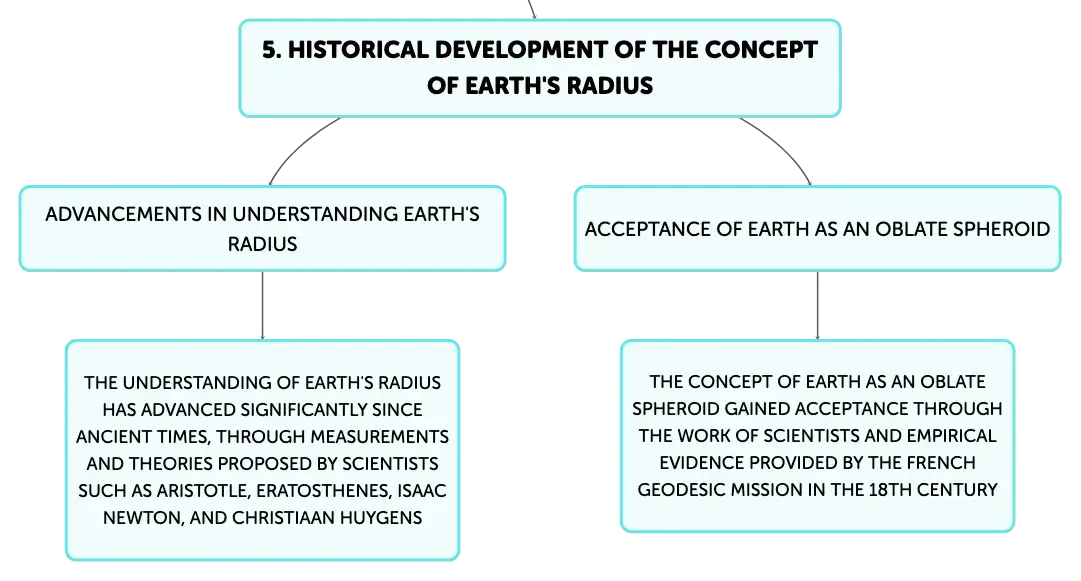

  • Historical Development of the Concept of Earth's Radius

  • Advancements in understanding Earth's radius

  • The understanding of Earth's radius has advanced significantly since ancient times, through measurements and theories proposed by scientists such as Aristotle, Eratosthenes, Isaac Newton, and Christiaan Huygens

  • Acceptance of Earth as an oblate spheroid

  • The concept of Earth as an oblate spheroid gained acceptance through the work of scientists and empirical evidence provided by the French Geodesic Mission in the 18th century

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

Earth's shape classification

Oblate spheroid due to equatorial bulge.

01

Difference in Earth's radius: Equator vs Poles

Equatorial radius ~6,378 km, polar radius ~6,357 km.

02

Factors affecting Earth's shape

Rotation, internal density variations, gravitational forces.

03

Researchers use various models to depict ______, including the geoid and the ellipsoid.

Earth's shape

04

The geoid is designed to mimic the ______, while the ellipsoid is used for ______.

mean sea level

global maps

05

Due to the ______, the geocentric radius changes with ______.

spheroidal shape of Earth

latitude

06

Earth's shape description due to rotation

Oblate spheroid with equatorial bulge and polar flattening.

07

Factors determining Earth's oblateness

Rotation rate, mass, and gravitational constant.

08

Causes of equatorial bulge variation

Mass redistribution in oceans, dynamic processes.

09

The ______ and ______ radii of curvature are crucial for the study of Earth's form and are used in ______, which deals with Earth's dimensions and gravity.

meridional

prime-vertical

geodesy

10

Mean Earth radius definition

Average of distances from Earth's center to its surface.

11

Authalic Earth radius purpose

Defines a sphere with Earth's surface area for equal-area projections.

12

Volumetric Earth radius significance

Sphere radius with the same volume as Earth, used for size comparisons.

13

Aristotle's initial ideas about Earth's size were improved upon by ______ in the ______ century BC.

Eratosthenes

3rd

14

The shape of Earth as an ______ ______ was confirmed by the work of ______ and ______.

oblate

spheroid

Isaac Newton

Christiaan Huygens

15

The ______-century ______ Geodesic Mission provided proof for Newton's theory regarding Earth's ______.

18th

French

oblateness

16

The field of ______ has benefited from historical achievements that have improved our understanding of Earth's ______ ______.

geodesy

physical

dimensions
