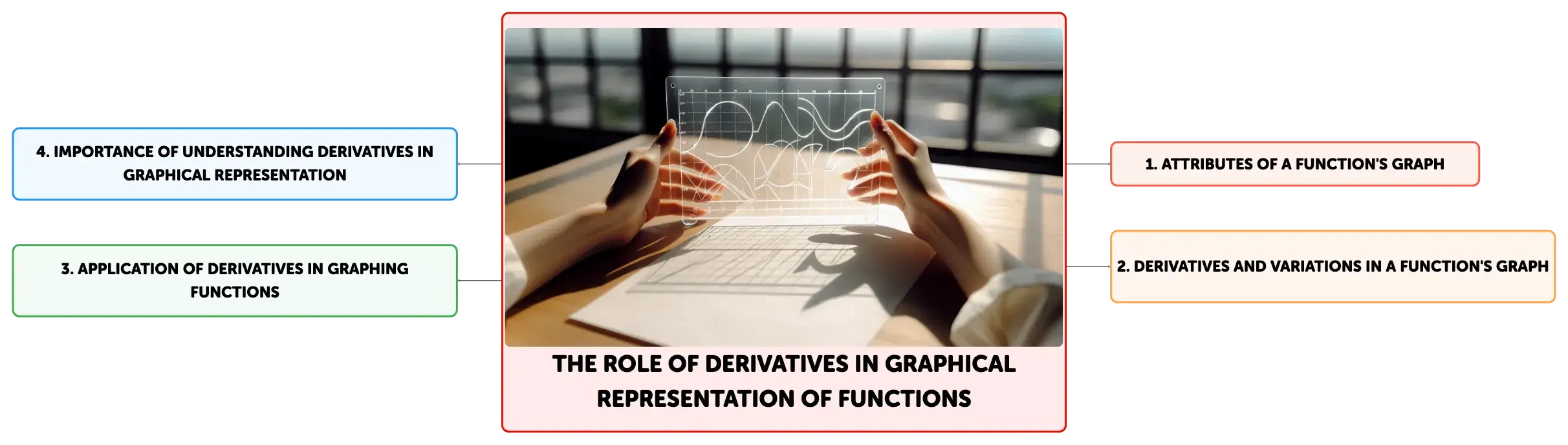

The Role of Derivatives in Graphical Representation of Functions

Exploring the Connection Between Derivatives and Graphical Representations

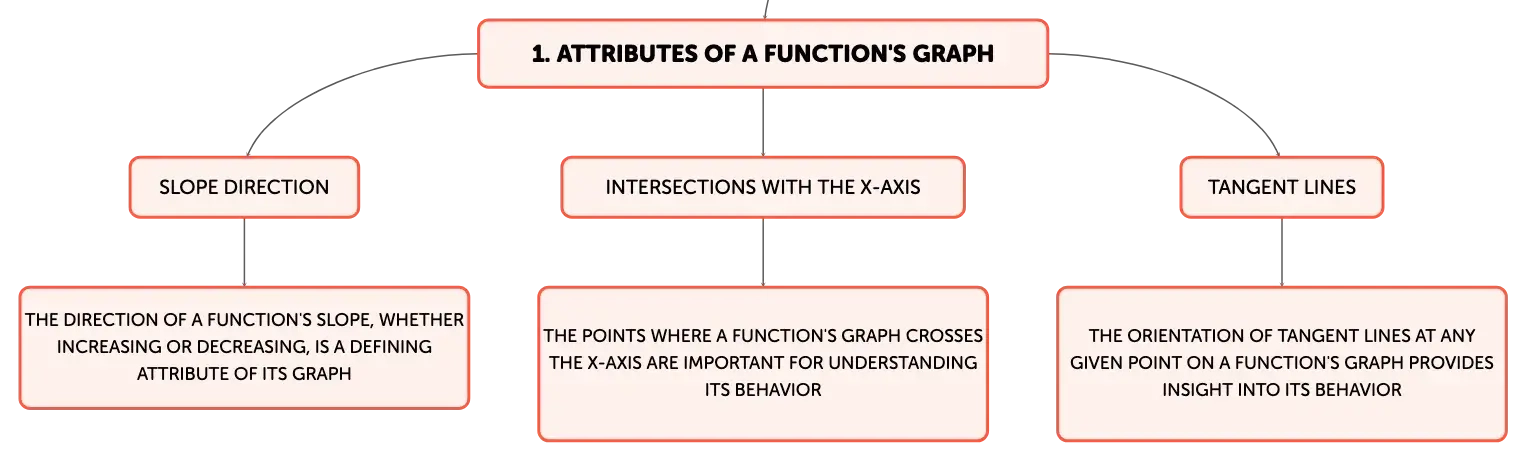

In the study of calculus, the graphical representation of a function is defined by its various attributes, such as the direction of its slope (increasing or decreasing), its intersections with the x-axis, the gradient of its slope, and the orientation of its tangent lines at any given point. These characteristics can differ within distinct segments of the graph, allowing a single function to exhibit regions of both increase and decrease. Derivatives are fundamental in analyzing these variations, as they quantify the instantaneous rate of change of a function. The first derivative of a function, often denoted as \( f'(x) \), provides insights into the function's rate of increase or decrease, while the second derivative, \( f''(x) \), sheds light on the graph's concavity, indicating whether it is concave upward or downward.

The Influence of the First Derivative on Graph Dynamics

The first derivative of a function, \( f'(x) \), plays a pivotal role in identifying the intervals over which the function's graph is increasing or decreasing. A positive first derivative, \( f'(x) > 0 \), signifies that the function is increasing and the graph ascends, whereas a negative first derivative, \( f'(x) < 0 \), indicates a decreasing function with a descending graph. Points where \( f'(x) = 0 \) are known as critical points and may represent locations where the function's graph changes direction, transitioning from increasing to decreasing or vice versa. These points are crucial for delineating the graph's extremities and overall configuration.

The Second Derivative and Its Effect on Graph Curvature

The second derivative, \( f''(x) \), obtained by differentiating the first derivative, provides a deeper understanding of the graph's curvature. A graph with a negative second derivative, \( f''(x) < 0 \), exhibits a concave downward shape, with tangent lines positioned above the curve. Conversely, a positive second derivative, \( f''(x) > 0 \), indicates a concave upward curvature, with tangent lines below the curve. The curvature determined by the second derivative is distinct from the increasing or decreasing nature of the graph, allowing for a variety of combinations of concavity and slope direction. Inflection points, where the curvature changes from concave to convex or the reverse, are identified by a change in the sign of the second derivative.

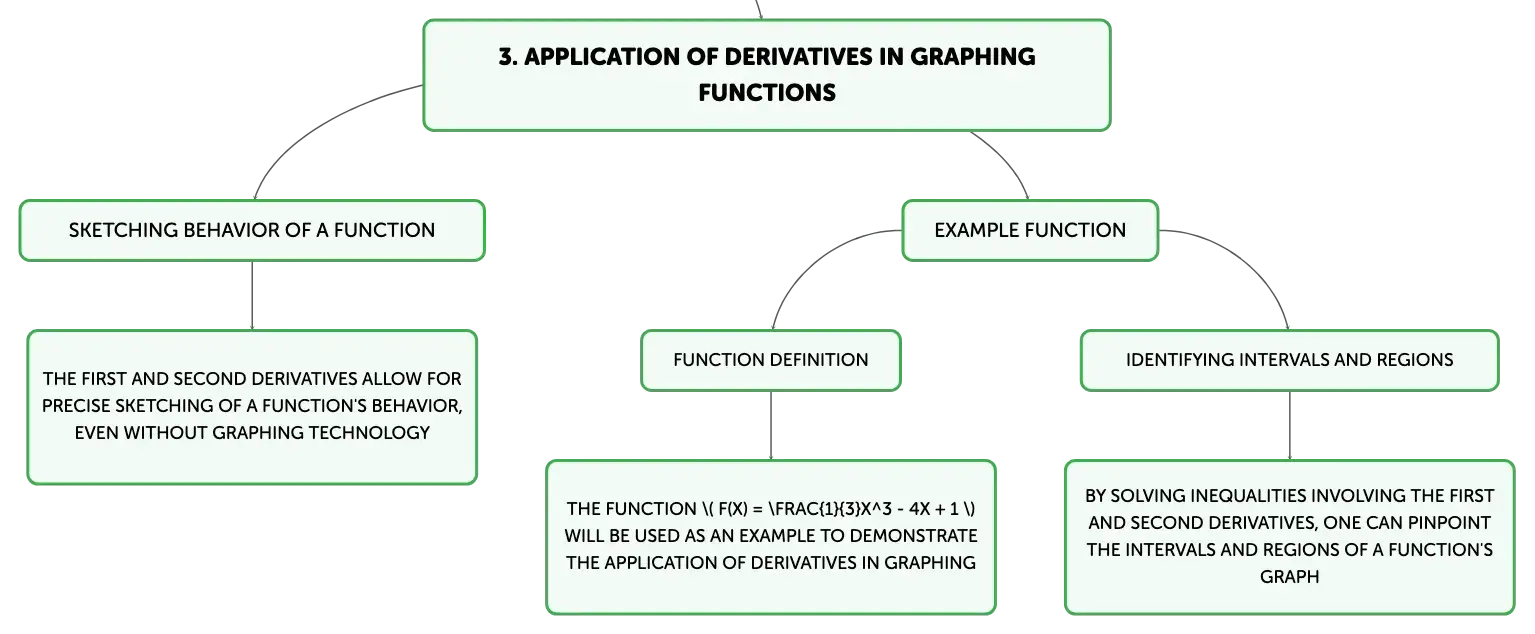

Utilizing Derivatives to Construct Graphs

Mastery of the implications of the first and second derivatives on a graph enables one to sketch the behavior of a function with precision, even without the aid of graphing technology. To illustrate, consider the function \( f(x) = \frac{1}{3}x^3 - 4x + 1 \). To determine the intervals where the function is increasing or decreasing, one would compute the first derivative, \( f'(x) = x^2 - 4 \), and examine its sign. Similarly, the second derivative, \( f''(x) = 2x \), aids in identifying the regions of concavity. By solving the inequalities involving \( f'(x) \) and \( f''(x) \), one can pinpoint the intervals where the function exhibits an upward or downward trend, and where it is concave up or down.

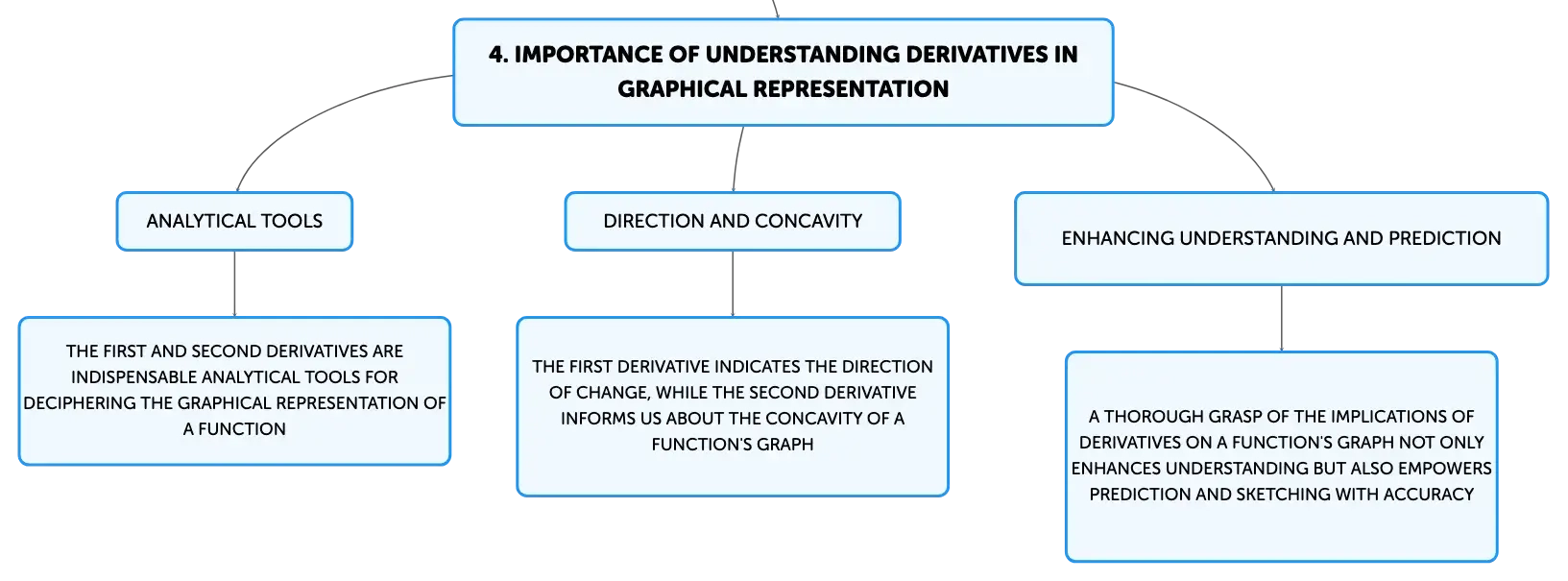

Essential Insights on Derivatives and Graphical Analysis

To conclude, the first and second derivatives are indispensable analytical tools for deciphering the graphical representation of a function. The first derivative indicates the function's direction of change, with positive values denoting an upward trajectory and negative values a downward one. The second derivative informs us about the function's concavity, with negative values suggesting a concave downward shape and positive values a concave upward one. A thorough grasp of these principles not only enhances our understanding of a function's behavior but also empowers us to predict and sketch its graphical representation with accuracy.
